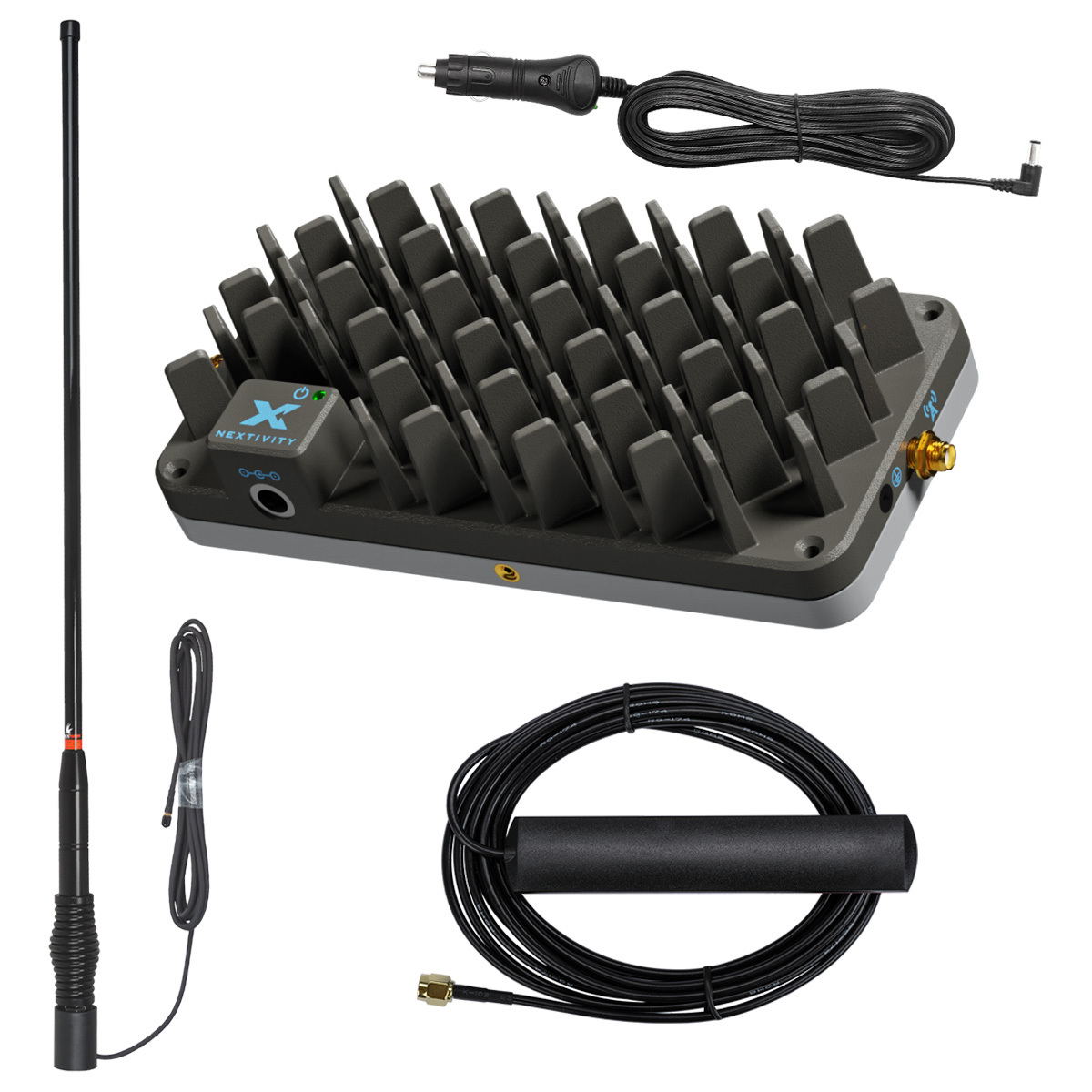

Nextivity CEL-FI ROAM R41 Trucker Edge Pack
The CEL-FI ROAM R41 with Tracker Edge Antenna is a legal mobile signal booster. It provides reliable 3G, 4G, & 5G DSS connectivity for vehicles like cars, vans, trucks, caravans, motor homes, and boats. Approved for Telstra, Optus and Vodafone Networks.
SKU: NEX.RPR-CF-00990
SAVE 41%!
Available at Supplier
In Stock at our Suppliers Warehouse
Typically ships same/next business day
Cellular Coverage Anywhere Life Takes You To
The CEL-FI ROAM R41 boasts enterprise-grade performance combined with a user-friendly installation design, making it incredibly easy to set up and power on. Regardless of whether you're in a car, truck or RV, this compact solution keeps you connected wherever you roam. Its low-profile design enables discreet installation under any seat, while its rugged frame ensures durability, enhancing both productivity and safety for individuals and mobile devices alike.
FEATURES:
- Ideal for boosting mobile signal in a car, van, 4WD, truck, motorhome or caravan.
- Support for 3G, 4G and 5G Dynamic Spectrum Sharing (DSS)
- Carrier switchable between Telstra, Optus and Vodafone (Optus and Vodafone support due early October – can be performed via WAVE App)
- Suitable replacement for CEL-FI GO G31 Mobile Signal Booster
- Supports 700L/850/900/1800/2100/2600 + Band 20 & 26
- Latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelised coverage for specific mobile network operator signals
- Ease of installation with plug-and-play operation
Supports 5G DSS on Telstra, Optus and Vodafone
This is a type of 5G that layers both 4G and 5G on top of each other sharing the same frequency. The WAVE App will not display 5G is being boosted, but your handset will have boosted 5G signal and a 5G icon. May not be available in all areas on all bands.
Setting up ROAM R41 is a breeze with its plug-and-play operation, allowing you to improve connectivity in any car, van, truck, caravan or RV within minutes.
The system’s low-profile design allows you to install it discretely under any seat, while its rugged frame offers trusted durability, so people and crews can keep their connection – improving productivity and safety.
ROAM R41 also supports carrier switching through the Nextivity WAVE App for iOS and Android devices.

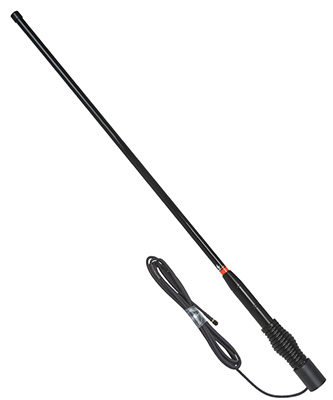

Blackhawk Trucker Edge 95cm Antenna 6dBi
Blackhawks' Trucker Edge Antenna is designed to provide optimal gain across 3G, 4G and 5G DSS bands used when travelling throughout Australia.This powerful bullbar antenna provides 6 dBi of gain making it ideal for both flat areas and when travelling amongst hills and tall trees. The antenna has a 4.5 metre PTL-240 Ultra-Flex cable which is an industry-standard for high vibration mining machinery and industrial plant and provides the lowest per-metre loss of all similar sized coaxial cables.
FEATURES:
- 5G Ready*
- Optimum 6 dBi gain for flat and hilly areas
- Extra heavy-duty stainless steel spring
- High-vibration PTL-240 Ultra-Flex cabling
- 4.5 metres of cable with an industry-standard SMA Male connector.
*5G (NR850) via Dynamic Spectrum Sharing (DSS) on compatible repeaters including the CEL-FI R41
Bands |
|||
---|---|---|---|
Bands |
Downlink (MHz) |
Uplink (MHz) |
Max. Relay BW (MHz) |
1 | 2110-2170 | 1920-1980 | 20 |
3 | 1805-1880 | 1710-1785 | 20 |
5 | 869-894 | 824-849 | 20 |
7 | 2620-2690 | 2500-2570 | 20 |
8 | 925-960 | 880-915 | 15 |
20 | 791-821 | 832-862 | 20 |
26 | 859-894 | 814-849 | 20 |
28L | 758-788 | 703-733 | 20 |
Australian Networks | Telstra, Optus & Vodafone |
Specifications |
|
Frequency Bands | 1/3/5/7/8/20/26/28L |
Relay Channel Bandwidths (MHz) | 5/10/15/20 |
Networks | 3G/4G/5G |
Network Protocols | WCDMA/LTE/DSS |
Network Selection | Automatically (MyWave App set to “Following”) |
Configured to authorized operator | PLMN-IDs |
Duplex Modes | FDD |
# of Relay Bands | 1MHz max. |
Relay Bandwidth | 20MHz max. |
Output Downlink Power (All Bands) | 0dBm max |
Output Uplink Power (Bands 5/8/20/26/28L) | 22dBm max. |
Output Uplink Power (Bands 1/3/7) | 24dBm max. |
System Gain | 100dBm max. |
Enterprise-Grade Echo Cancellation | 30dB min. |
Return Loss (dB typ.) | -8dB typ. |
Interface |
|
Donor RF Connector | SMA (f) |
Server RF Connector | SMA (f) |
DC Input | 5.5 x 2.5 mm (f) Barrel |
Device Setup | Bluetooth for WAVE App |
Power & System Status | Bi-color LED (Green/Red) |
Factory Debug only | USB 2.0 Micro-B |
System Management & SW Updates | WAVE App for iOS 11.0 or later WAVE App for Android |
Band Selection | MyWAVE App for iOS 11.0 or later MyWave App for Android |
Power Supply |
|
Power Consumption (W) max. | 18 |
Input Voltage (VDC max.) | 12 |
Input Current (A max.) | 1.5 |
Power Supply Plug | Automobile Auxiliary Power |
Power Supply Cable | 1mm2 | 18 AWG |
Power Supply Cable Length (m (ft)) | 5m (16.3ft) |
Environmental |
|
Operating Temperature °C (°F) | 0 to 60°C (32 to 140°F) |
Storage Temperature °C (°F) | -35 to 70°C (-31 to 158°F) |
Heat Dissipation | Passive Convection |
Surface Temperature °C (°F) max. at ambient | 44°C (111.2°F) |
Non-condensing Humidity | 0 to 95% |
Ingress Protection Rating | IPX0 |
Mechanical & Packaging |
|
Main Unit Dimensions | 170.2 x 78.7 x 43.2mm | 6.7 x 3.1 x 1.7in |
Main Unit Weight | 0.49KG | 1.08lbs |
SKU | NEX.RPR-CF-00990 |
Brand | Nextivity |
Shipping Weight | 2.8600kg |
Shipping Width | 1.170m |
Shipping Height | 0.100m |
Shipping Length | 0.220m |
Shipping Cubic | 0.025740000m3 |
