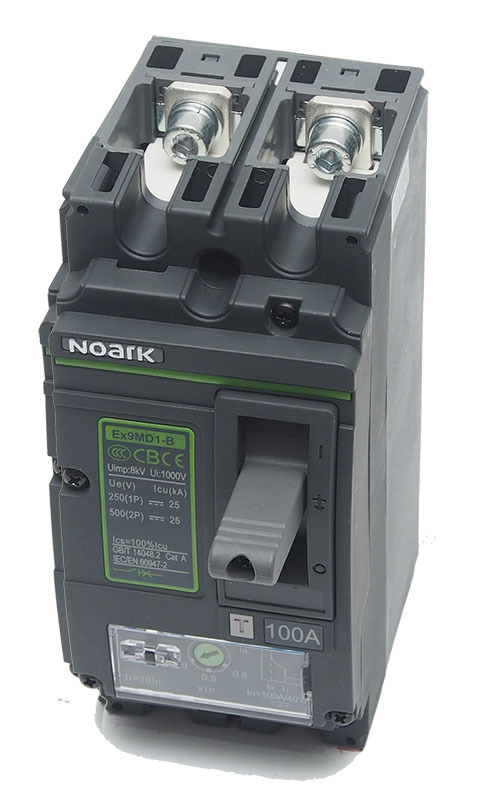

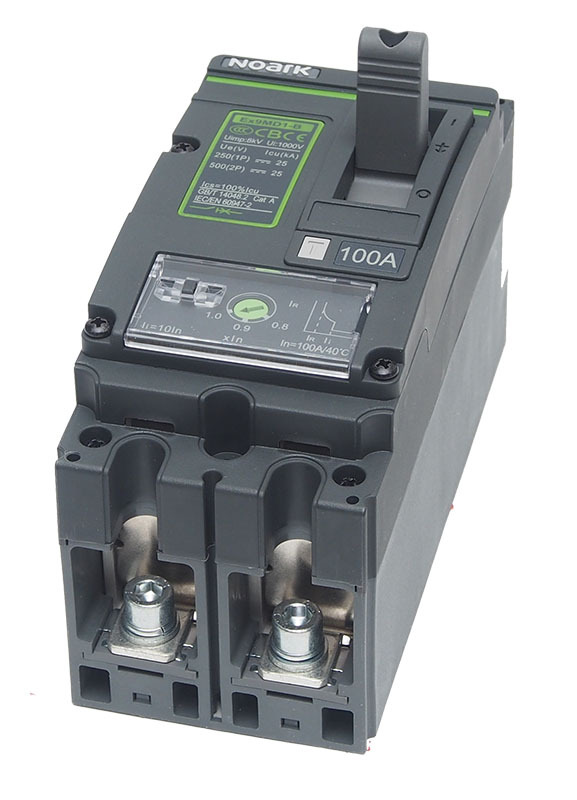

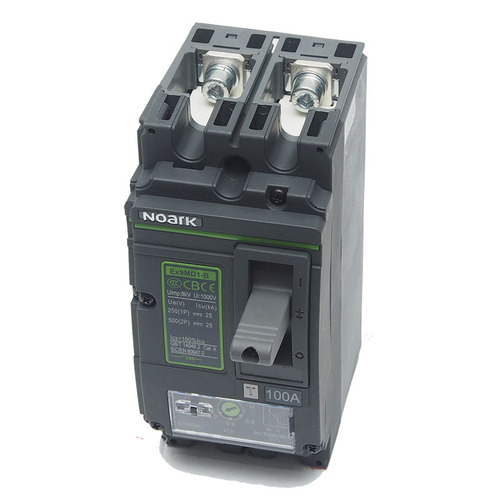

100A 500VDC Moulded Case Circuit Breaker MCCB (2 Pole) Non-Polarised - EX9MD1B TM DC100 2P


Features:

  • Frame size 1 - 90 x 140 x 109mm
  • High breaking capacity
  • Installation flexibility
  • Field installable accessories
  • Certified to EN 60947



DC switching voltage:

250V DC per pole e.g. 2 pole = 500V DC

Rated Voltage 500V DC
Rated Insulation Voltage 1000V
Frame Size 1 to 125A
Breaking Capacity 25kA
Release Technology Thermo-magnetic
IP Protection IP40 (all sides) | IP20 (Terminal)
Poles 2



SKU NRK.28708
Model # N852895
Brand Noark
Shipping Weight 1.0000kg
Unit Of Measure ea
