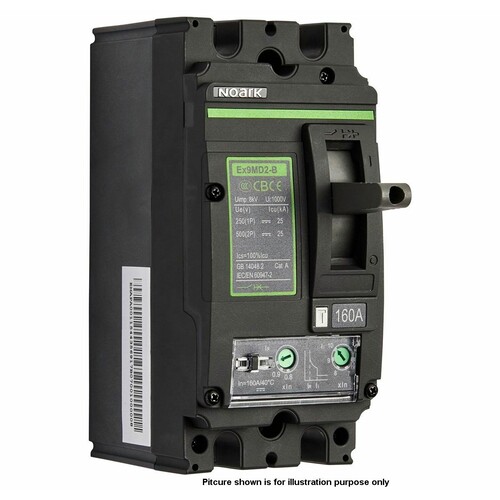

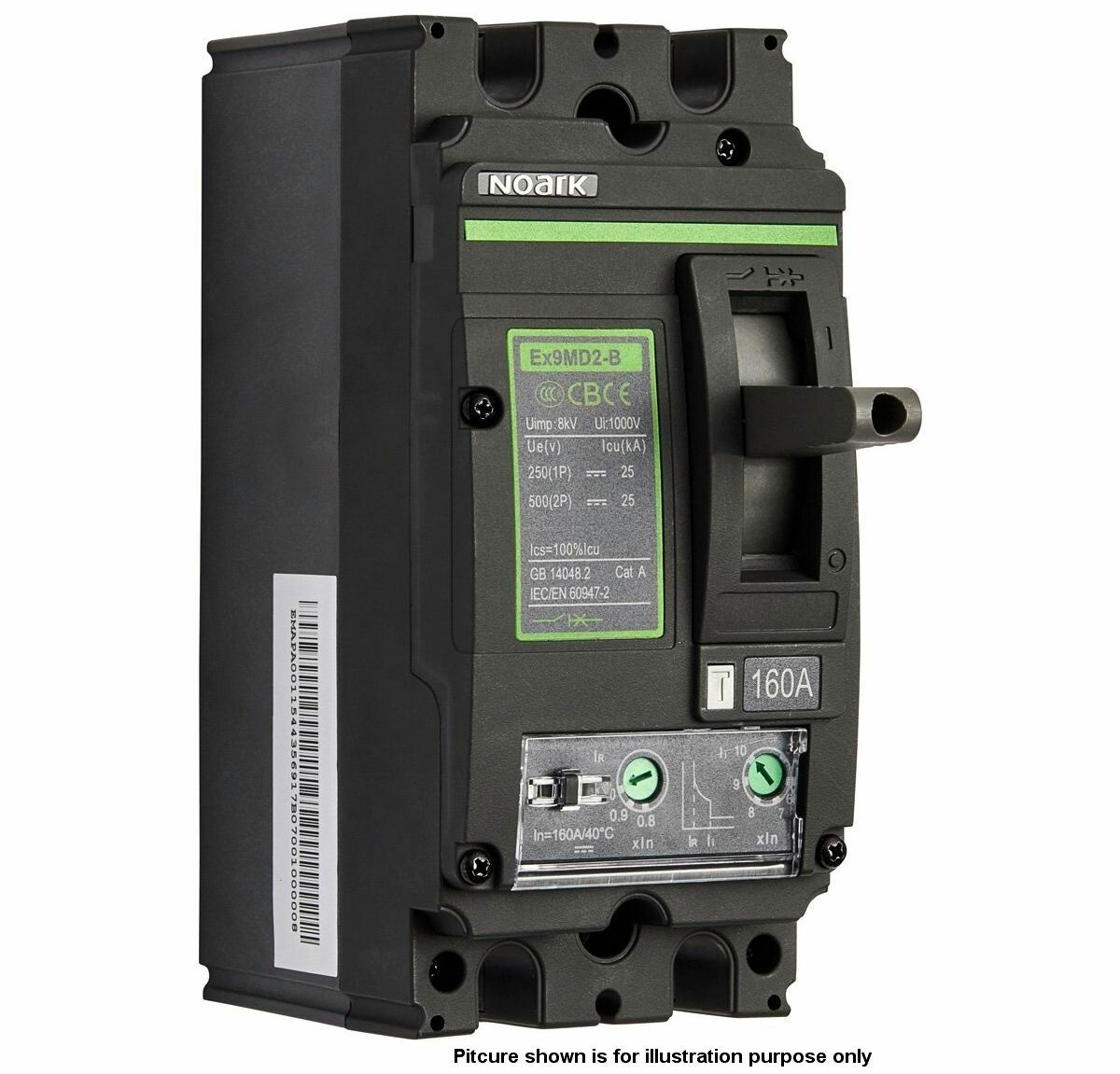

180A 500VDC Moulded Case Circuit Breaker MCCB (2 Pole) Non-Polarised - EX9MD2B TM DC180 2P


The Ex9 Series - M offers:

  • Frame size 2 - 105 x 157 x 126mm
  • High-breaking capacity and a new patented arc extinguishing design
  • New patented technology reduces the manual operating force
  • High quality compact modular with energy saving and environmentally friendly design
  • Installation flexibility: Bus Bar Connection, Lug Line/Load Side Connection, Plug-In and Rear Connection
  • Fixed and adjustable trip setting units
  • Certified to EN 60947



DC switching voltage:

250V DC per pole e.g. 2 pole = 500V DC

Rated Voltage 500V DC
Insulation Rated Voltage 1000V
Frame Size 2 to 250A
Breaking Capacity 25kA
Release Technology Thermo-magnetic
IP Protection IP40 All Side | IP20 Terminal
Poles 2



SKU NRK.28902
Model # 28902
Brand Noark
Shipping Weight 1.5000kg
Unit Of Measure ea

5 Years
