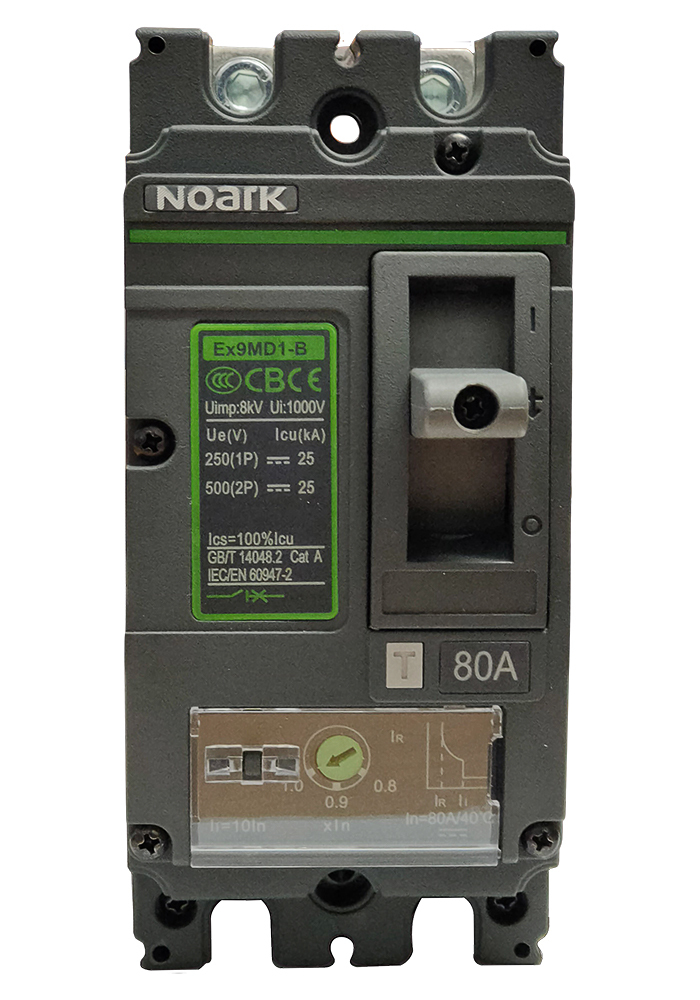

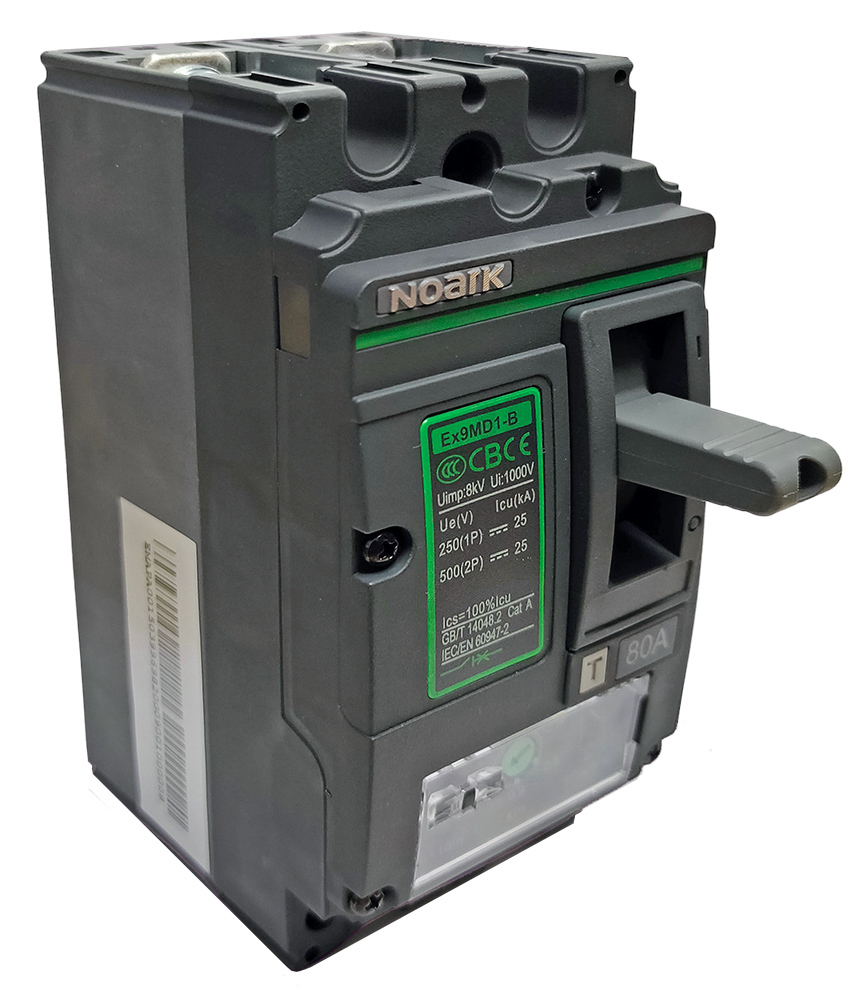

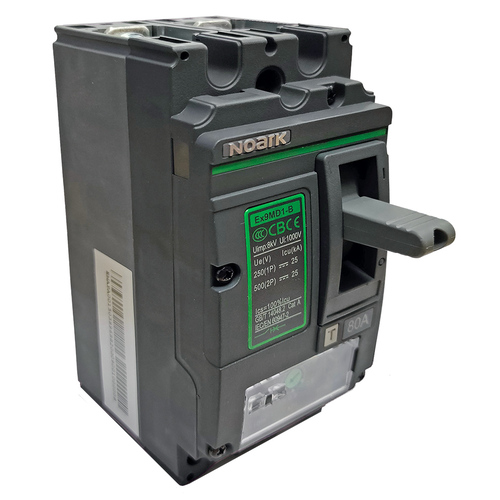

80A 500VDC Moulded Case Circuit Breaker MCCB (2 Pole) Non-Polarised - EX9MD1B TM DC80 2P
/assets/files/Manufacturers/noark/EX9MD1-B.pdf

The Ex9 Series - M offers:

  • Frame size 1 - 90 x 140 x 109mm
  • High-breaking capacity and a new patented arc extinguishing design
  • New patented technology reduces the manual operating force
  • High quality compact modular with energy saving and environmentally friendly design
  • Installation flexibility: Bus Bar Connection, Lug Line/Load Side Connection, Plug-In and Rear Connection
  • Fixed and adjustable trip setting units
  • Certified to EN 60947



DC switching voltage:

250V DC per pole e.g. 2 pole = 500V DC

Rated Voltage 500V DC
Rated Insulation Voltage 1000V
Frame Size 1 to 125A
Breaking Capacity 25kA
Release Technology Thermo-magnetic
IP Protection IP40 (all sides) | IP20 (Terminal)
Poles 2



SKU NRK.28707
Model # 28707
Brand Noark
Shipping Weight 1.5000kg
Unit Of Measure ea
