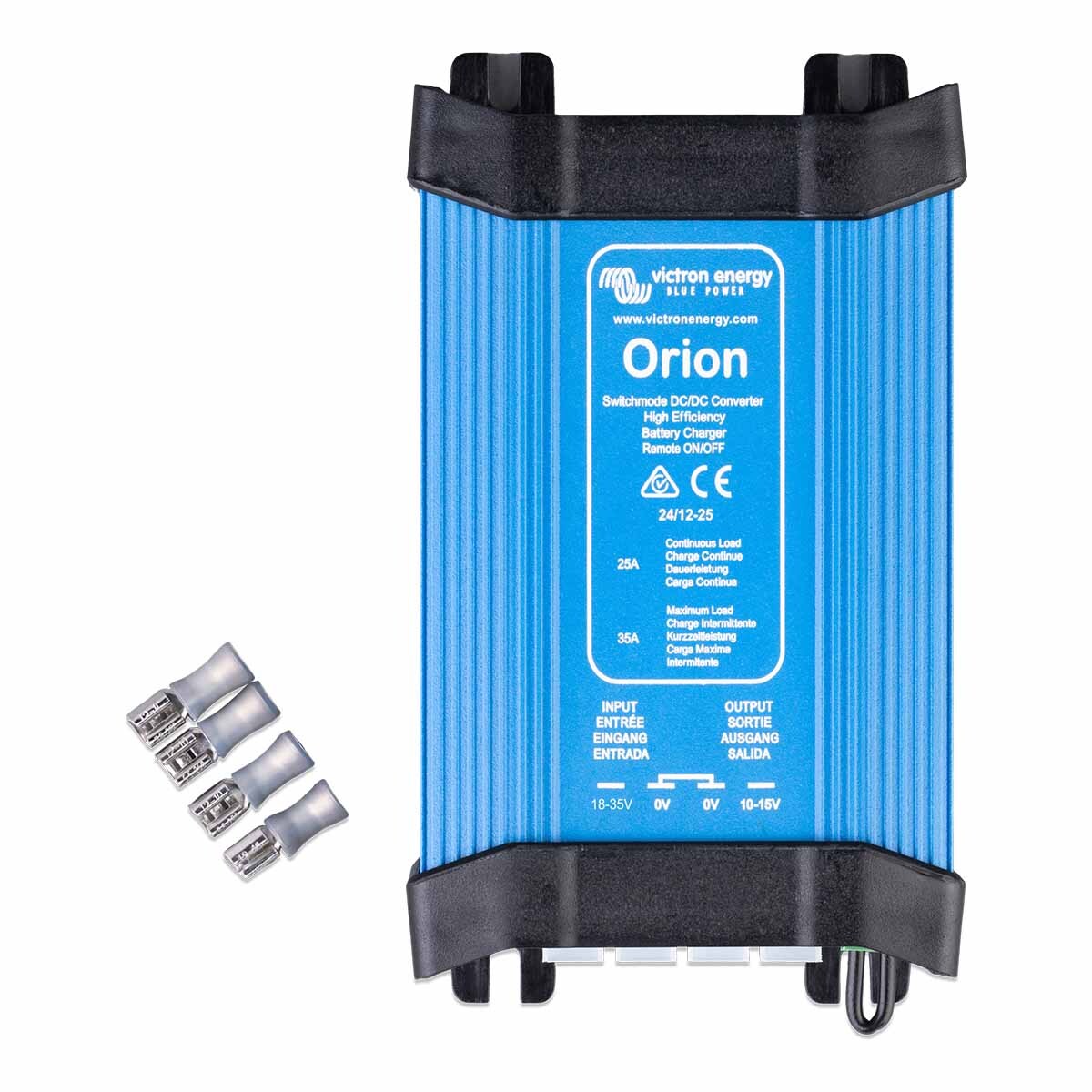

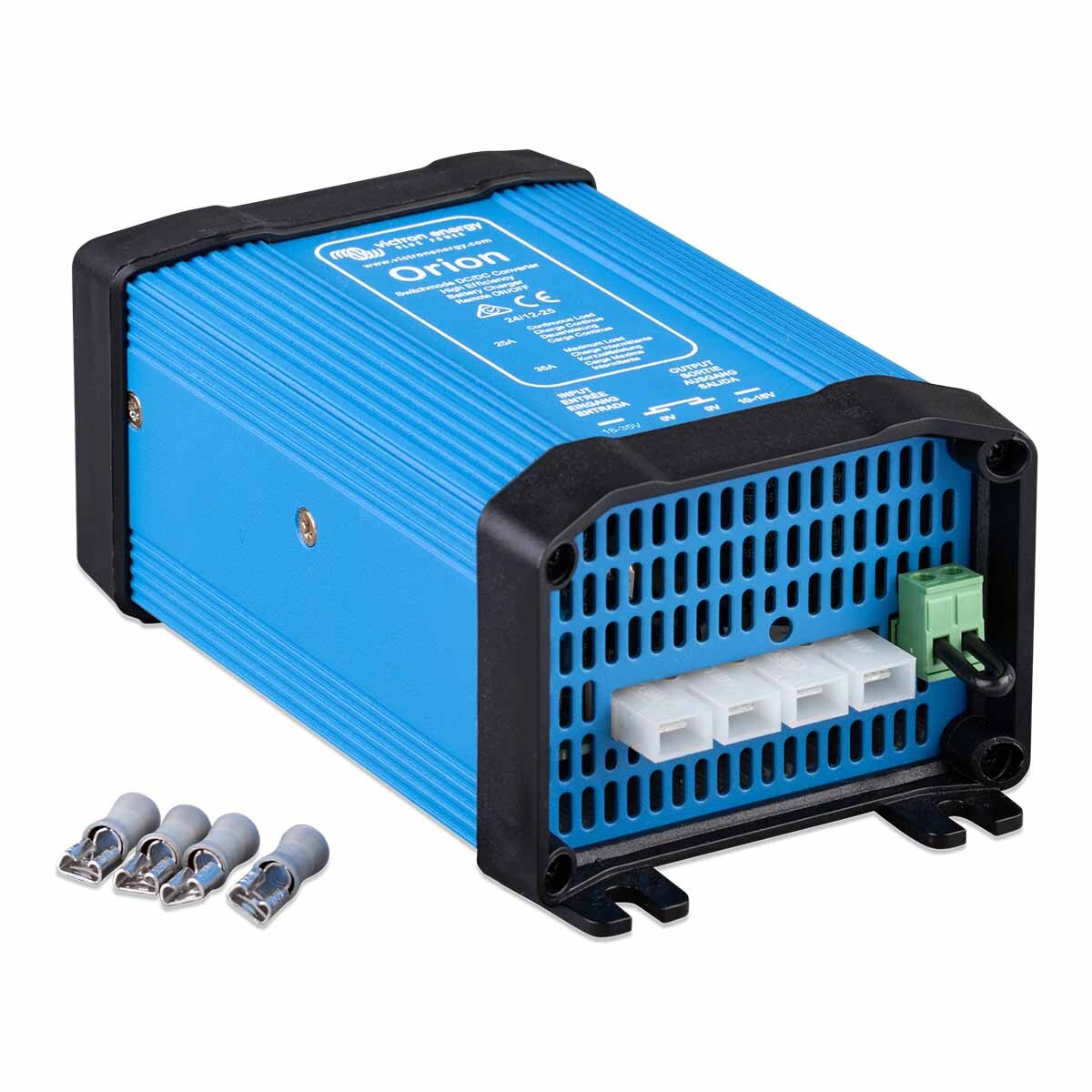

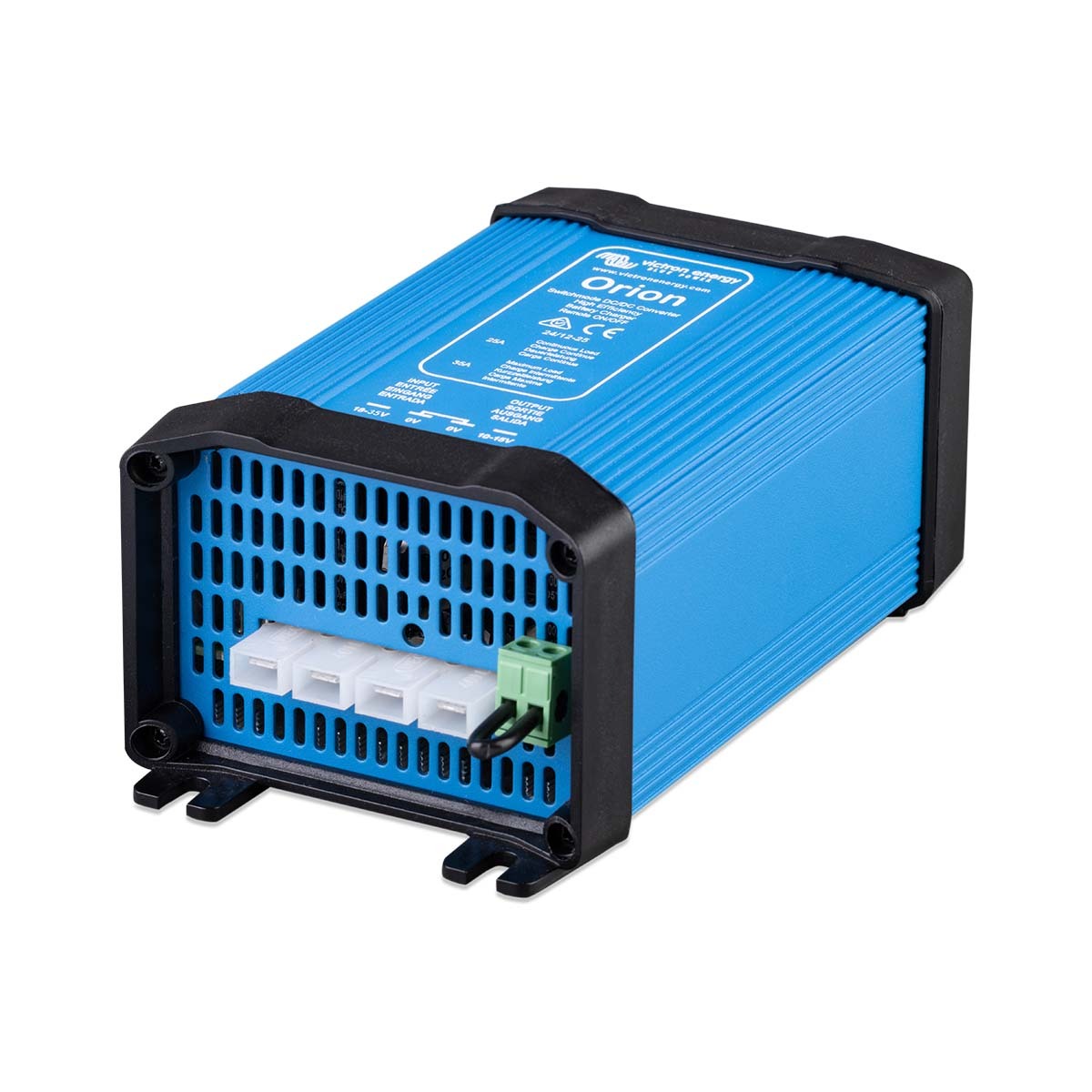

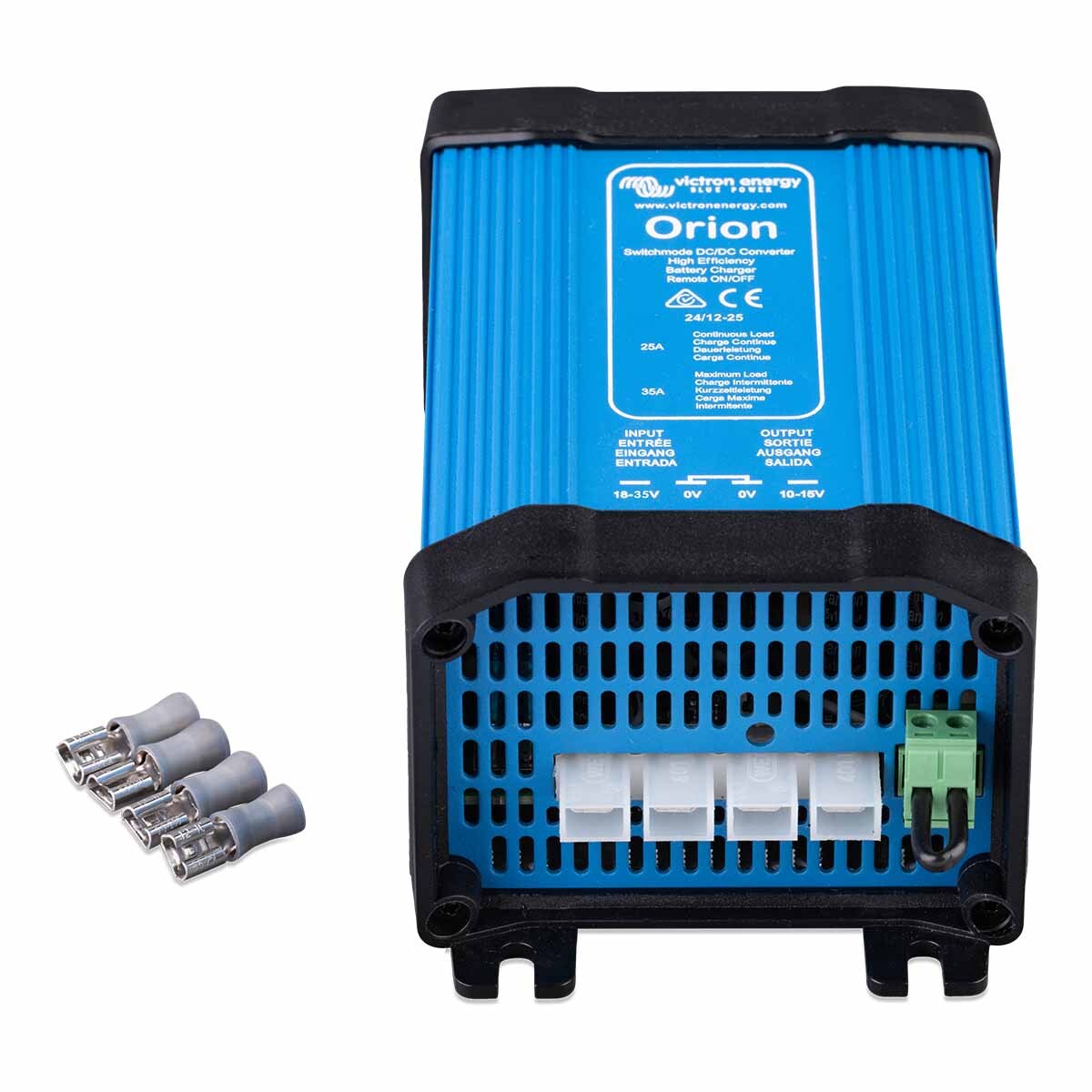

Victron Orion 24/12-25A DC-DC converter IP20

The Victron Orion 24/12-25A DC-DC Converter is an essential device designed for seamless power conversion and system integration. Boasting a non-isolated, high-power design, this converter is ideal for a wide range of applications, including automotive, marine, and renewable energy systems. Its innovative features ensure efficiency, reliability, and versatility in converting 24V power sources to 12V with a 25A output.

Key Features:

  • Remote On/Off Connector: Simplifies installation by eliminating the need for high-current switches. This feature can be activated by a low-power switch or directly through the engine’s run/stop mechanism.
  • Adjustable Output: The converter’s output voltage can be adjusted, making it versatile for various charging needs
  • Parallel Connection Capability: To meet higher power requirements, up to five units can be connected in parallel, significantly increasing the output current without compromising stability or efficiency.
  • Easy Installation: Comes with four Insulated Fastons Female Crimp 6.3mm for straightforward installation, ensuring quick setup and integration into existing systems.
  • Versatile Use: While optimized for converting 24V to 12V, its adjustable output and the ability to parallel units expand its application range, including charging solutions and system expansions.

Technical Specifications:

Feature Specification
Input Voltage 24V DC
Output Voltage 12V DC (Adjustable)
Output Current 25A
Efficiency High efficiency, low heat generation
Protection IP20 rating for indoor use
Connectivity Remote on/off capability
Installation Accessories 4x Insulated Fastons Female Crimp 6.3mm
Paralleling Capability Yes, up to five units
  Orion 24/12-25 Orion 24/12-40 Orion 24/12-70 Orion 12/24-8 Orion 12/24-10 Orion 12/24-20
Input voltage range (V) 18-35 18-35 18-35 9-18 9-18 9-18
Under voltage shutdown (V) 14 14 14 8 8 8
Under voltage restart (V) 18 18 18 10 10 10
Output voltage adjustable with potentiometer Yes No Yes No Yes Yes
Output voltage (V) Adjustable 10–15V, F set 13.2V 13.2 Adjustable 10–15V, F set 13.2V 24 Adjustable 20-30V, F set 26.4V Adjustable 20-30V, F set 26.4V
Efficiency (%) 96 95 92 95 95 93
Suitable to buffer-charge a battery Yes No Yes No Yes Yes
Can be connected in parallel Yes No Yes No Yes Yes
Continuous output current (A) 25 40 70 8 10 20
Max. Output current (A) 35 55 85 20 20 30
Fan assisted cooling (temp. controlled) No Yes Yes No No Yes
Galvanic isolation No No No No No No
Off load current < 15mA < 20mA < 20mA < 10mA < 15mA < 30mA
Remote on-off Yes Yes Yes No No Yes
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C -20 to +55°C -20 to +55°C -20 to +55°C -20 to +55°C -20 to +55°C
DC connection Faston tabs 6.3 mm Double Faston tabs 6.3 mm M6 bolts Faston tabs 6.3 mm Faston tabs 6.3 mm M6 bolts
Weight kg 0.7 0.85 0.9 0.4 0.4 0.9
Dimensions HxWxD in mm 65x88x160 65x88x185 65x88x195 45x90x115 45x90x125 65x88x195

Standards: Saftey
Emission
Immunity
Automotive Directive

 EN 60950
EN 61000-6-3, EN 55014-1
EN 61000-6-2, EN 61000-6-1, EN 55014-2
ECE R10-4
SKU VIC.ORI241225020
Model # ORI241225020
UPC/EAN 8719076023012
Brand Victron Energy
Shipping Weight 0.8000kg
Shipping Width 0.185m
Shipping Height 0.080m
Shipping Length 0.110m
Shipping Cubic 0.001628000m3
