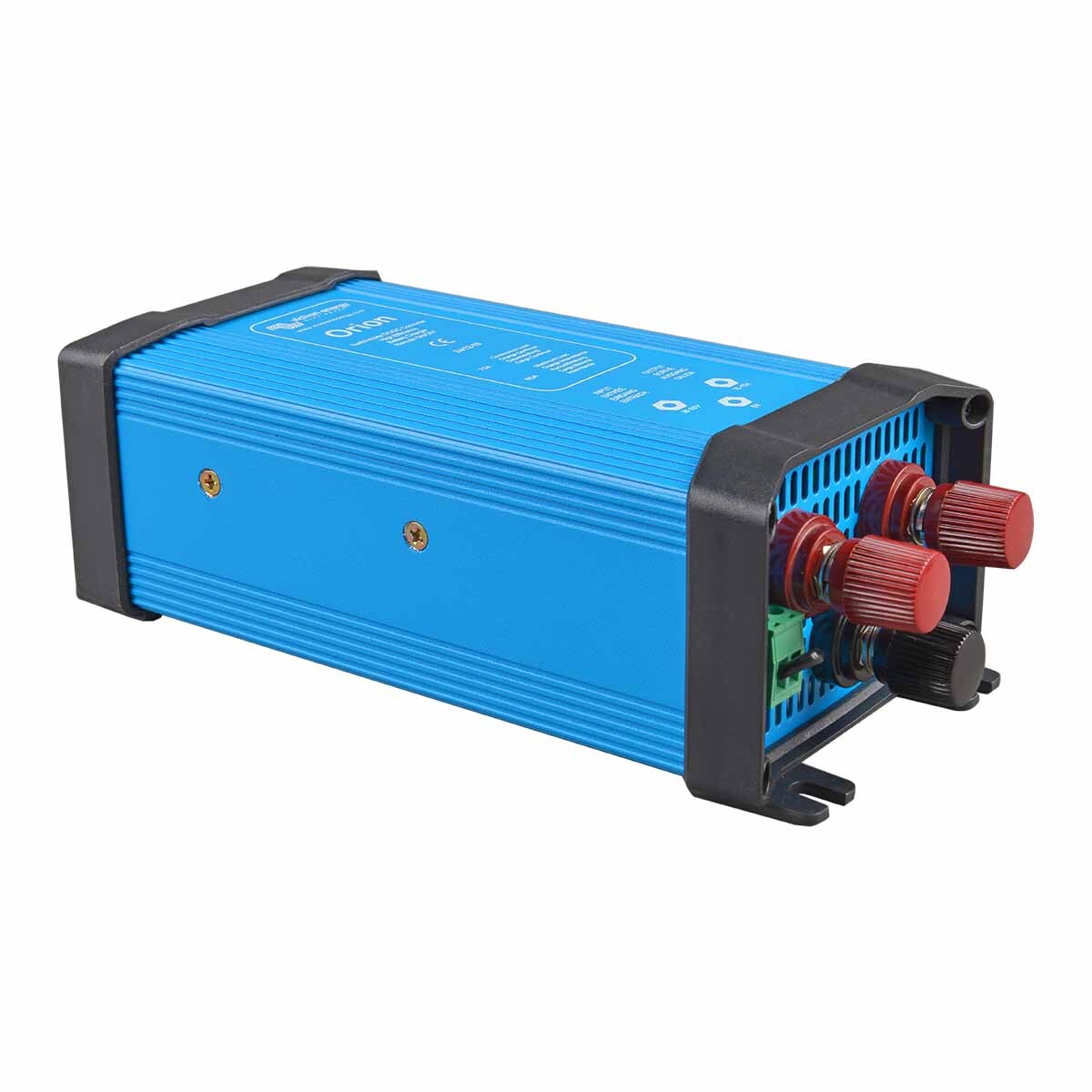

Victron Orion 24/12-70A DC-DC converter IP20 / Binding posts
Victron DC-DC Converters - DC/DC Converters Not Isolated - Orion 24/12-70A DC-DC converter IP20 / Binding posts
SKU: VIC.ORI241270030 | MPN: ORI241270030
SAVE $22.30 (10%)
Only 4 left In Stock
Ships today from our Southport warehouse if order placed by 1pm
Victron Orion 24/12-70A DC-DC converter IP20 / Binding posts
The Victron Orion 24/12-70 DC-DC Converter is an essential device designed for seamless power conversion and system integration. Boasting a non-isolated, high-power design, this converter is ideal for a wide range of applications, including automotive, marine, and renewable energy systems. Its innovative features ensure efficiency, reliability, and versatility in converting 24V power sources to 12V with a 70A output.
Key Features:
- Remote On/Off Connector: Simplifies installation by eliminating the need for high-current switches. This feature can be activated by a low-power switch or directly through the engine’s run/stop mechanism.
- Adjustable Output: The converter’s output voltage can be adjusted, making it versatile for various charging needs.
- Parallel Connection Capability: To meet higher power requirements, up to five units can be connected in parallel, significantly increasing the output current without compromising stability or efficiency.
- Versatile Use: While optimized for converting 24V to 12V, its adjustable output and the ability to parallel units expand its application range, including charging solutions and system expansions.
Technical Specifications:
| Feature | Specification |
|---|---|
| Input Voltage | 24V DC |
| Output Voltage | 12V DC (Adjustable) |
| Output Current | 70A |
| Efficiency | High efficiency, low heat generation |
| Protection | IP20 rating for indoor use |
| Connectivity | Remote on/off capability |
| Paralleling Capability | Yes, up to five units |
| Orion 24/12-25 | Orion 24/12-40 | Orion 24/12-70 | Orion 12/24-8 | Orion 12/24-10 | Orion 12/24-20 | |
|---|---|---|---|---|---|---|
| Input voltage range (V) | 18-35 | 18-35 | 18-35 | 9-18 | 9-18 | 9-18 |
| Under voltage shutdown (V) | 14 | 14 | 14 | 8 | 8 | 8 |
| Under voltage restart (V) | 18 | 18 | 18 | 10 | 10 | 10 |
| Output voltage adjustable with potentiometer | Yes | No | Yes | No | Yes | Yes |
| Output voltage (V) | Adjustable 10–15V, F set 13.2V | 13.2 | Adjustable 10–15V, F set 13.2V | 24 | Adjustable 20-30V, F set 26.4V | Adjustable 20-30V, F set 26.4V |
| Efficiency (%) | 96 | 95 | 92 | 95 | 95 | 93 |
| Suitable to buffer-charge a battery | Yes | No | Yes | No | Yes | Yes |
| Can be connected in parallel | Yes | No | Yes | No | Yes | Yes |
| Continuous output current (A) | 25 | 40 | 70 | 8 | 10 | 20 |
| Max. Output current (A) | 35 | 55 | 85 | 20 | 20 | 30 |
| Fan assisted cooling (temp. controlled) | No | Yes | Yes | No | No | Yes |
| Galvanic isolation | No | No | No | No | No | No |
| Off load current | < 15mA | < 20mA | < 20mA | < 10mA | < 15mA | < 30mA |
| Remote on-off | Yes | Yes | Yes | No | No | Yes |
| Operating temperature range (derate 3% per °C above 40°C) | -20 to +55°C | -20 to +55°C | -20 to +55°C | -20 to +55°C | -20 to +55°C | -20 to +55°C |
| DC connection | Faston tabs 6.3 mm | Double Faston tabs 6.3 mm | M6 bolts | Faston tabs 6.3 mm | Faston tabs 6.3 mm | M6 bolts |
| Weight kg | 0.7 | 0.85 | 0.9 | 0.4 | 0.4 | 0.9 |
| Dimensions HxWxD in mm | 65x88x160 | 65x88x185 | 65x88x195 | 45x90x115 | 45x90x125 | 65x88x195 |
|
Standards: Saftey |
EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4 |
|||||
| SKU | VIC.ORI241270030 |
| Model # | ORI241270030 |
| UPC/EAN | 8719076023050 |
| Brand | Victron Energy |
| Shipping Weight | 1.0500kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.080m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.002304000m3 |
