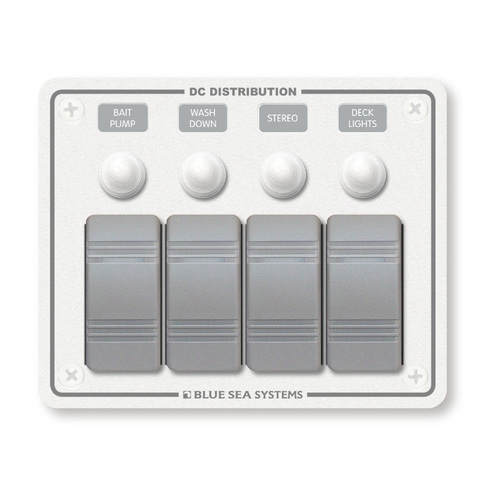

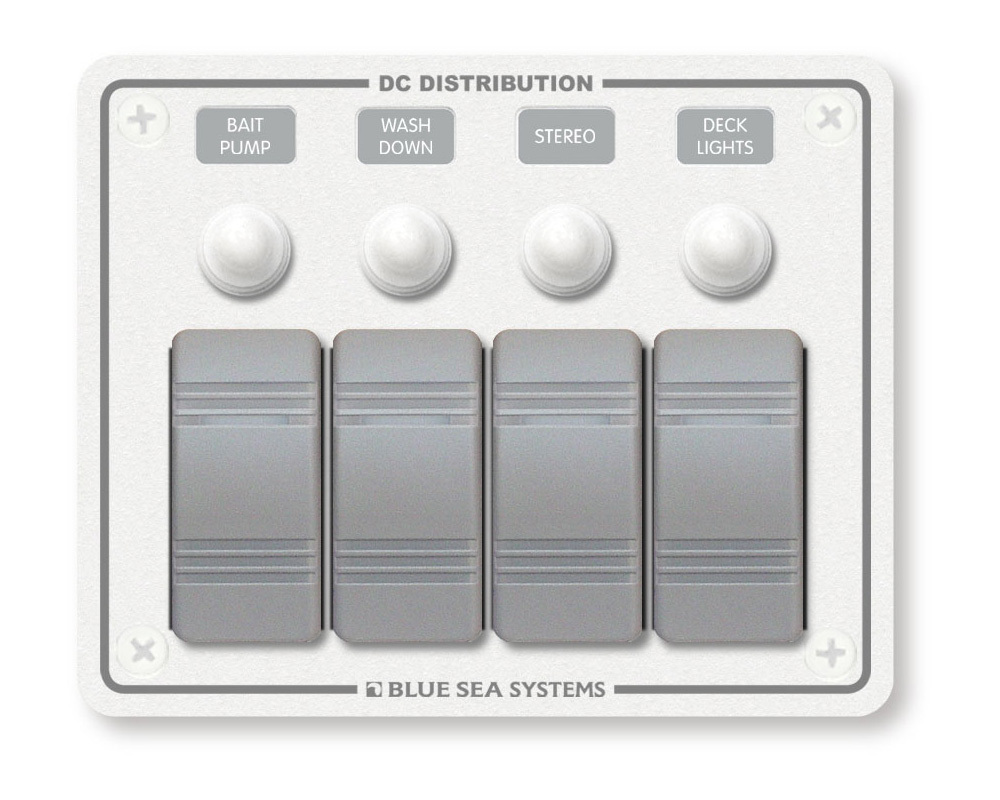

Features

  • Designed for flybridge and open cockpit applications
  • Panel front is rated IP66 - Protected against powerful water jets
  • Ignition protected - safe for installation aboard petrol-powered boats
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in the switch
  • Watertight mounting gasket
  • Push Button Reset-Only circuit breakers with waterproof boots
  • Meets UL 1500 and ISO 8846 ignition protection requirements
  • Countersunk mounting holes throughout
  • Heavy 1/10"aluminum material
  • Two-part polyurethane white or black finish
  • MIL-C-5541C immersion undercoating for lifetime corrosion resistance
  • Completely wired and ready to install
  • Includes set of 60 common DC labels

NOTE: Waterproof panel labels are not backlit



Specifications
Weatherproof  Water Resistant
Positions 4
Nominal Voltage 12V DC
24V DC
Panel Cumulative Rating 45A
Switch Rating 20A @ 12V DC
15A @ 24V DC
Height 4.25in (107.95 mm)
Width 5.25in (133.35 mm)
Depth 3.25in (82.55 mm)
Weight 0.90Lb (0.41 Kg)
Weight 0.95lb (0.43 kg)



SKU BSS.8272
Model # 8272
UPC/EAN 632085082727
Brand Blue Sea Systems
Shipping Weight 0.4300kg
