Peplink Product Page   Data Sheet

RELATED ACCESSORIES

  • M2M-PL-00216 Peplink 10ft DC Power Cable
  • ACW-643 Peplink Vehicle Cigarette to Molex Power Cable
  • Peplink PrimeCare and PrimeCare+ available (1, 2 and 4 years). Contact us for a quote
  • Peplink Virtual WAN Activation License for B20X, BR1 Pro/5G/HD1 Dome & Pro/B310 5G/BR2 Pro (Perpetual)

Sonic for a Reason

The 'classic goes sonic', why? The BR1 Pro 5G is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds. Achieving 800% faster speeds than the original BR1 Classic.

Upgrade to Wi-Fi 6

Experience less interference and connect to multiple devices simultaneously.

Deploy with Confidence

Just like the original BR1 Classic, the BR1 Pro 5G has also been certified to meet the standards of a wide array of deployment criteria.

Low-Profile Form Factor

At 1.14 inches short, the BR1 Pro 5G is 25% slimmer than the BR1 Classic.

Available with PrimeCare

The economical way to build your secure SpeedFusion network. Experience it all with PrimeCare.

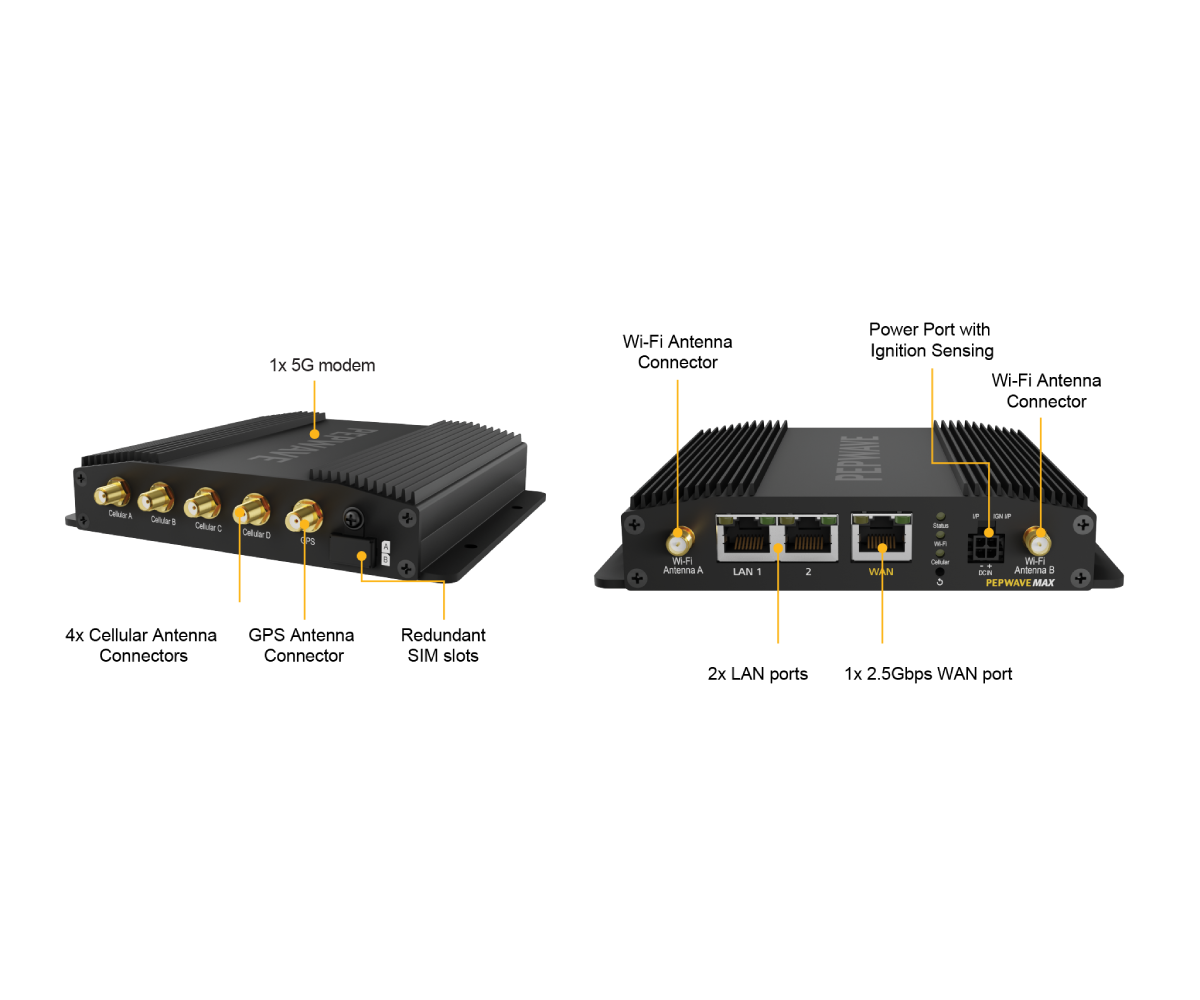

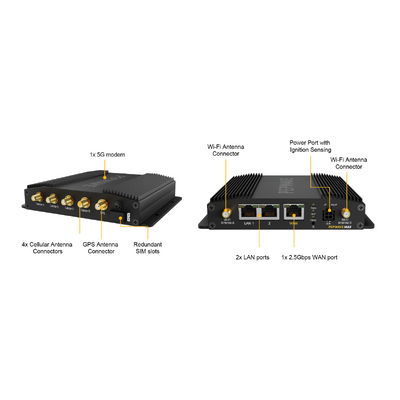

WAN Interfaces 1x 10/100/1000/2500M Ethernet*
1x 5G Modem with Redundant SIM Slot

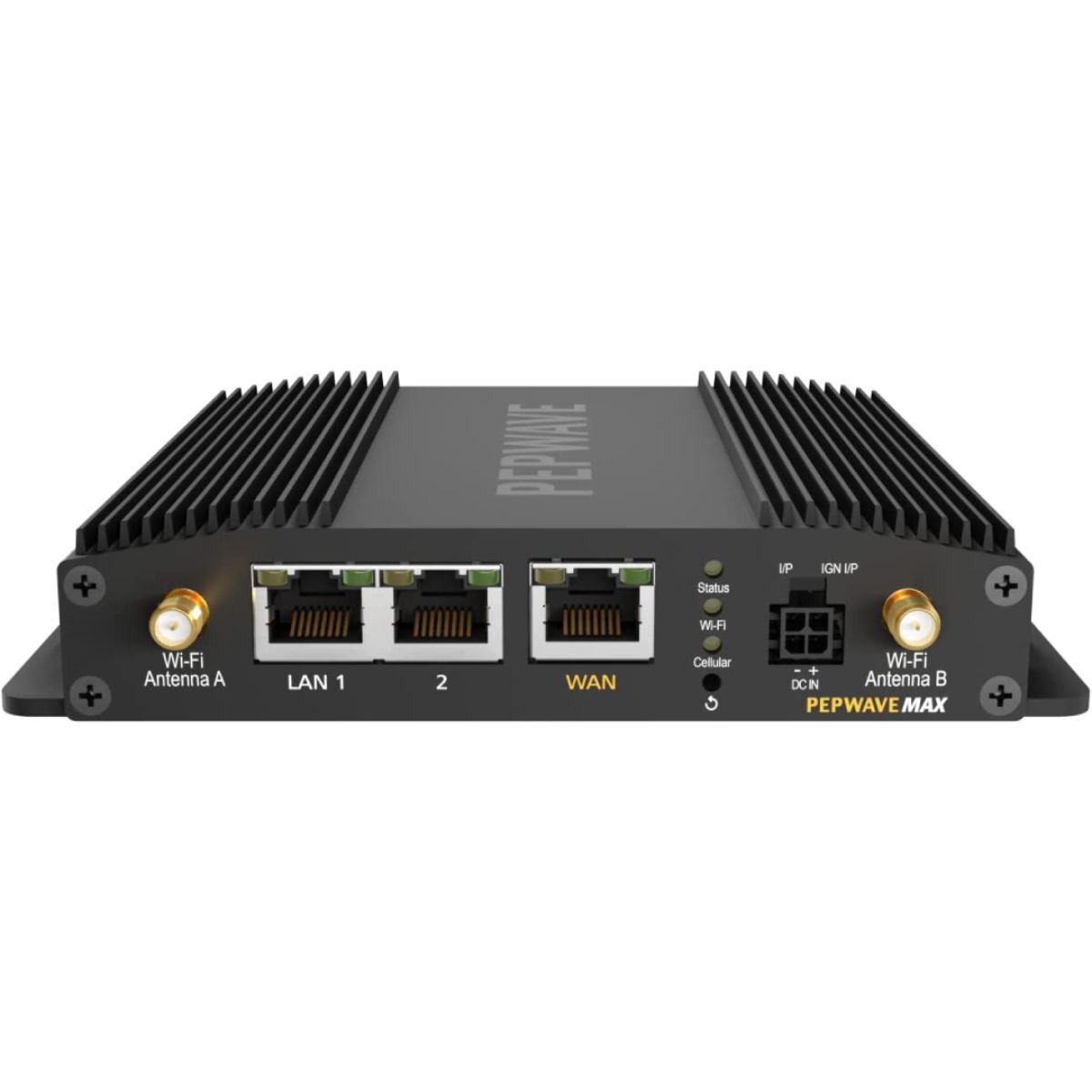

LAN Interface 2x 10/100/1000M Ethernet
Wi-Fi Interface Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 6, 2X2 MU-MIMO
Wi-Fi WAN and/or AP
Features Drop-in Mode
Load Balancing/Failover
Ignition Sensing
Transmit Power (2.4GHz / 5GHz) 24 dBm / 26 dBm
Router Throughput 1 Gbps
PepVPN Throughput (No Encryption) 400 Mbps
PepVPN Throughput (256-bit AES) 200 Mbps
SpeedFusion Features Hot Failover, WAN Smoothing,
Bandwidth Bonding**
Number of PepVPN
SpeedFusion Peers		 2/5***
5G Cellular Data Rate****
(Downlink/Uplink)		 5G: 4 Gbps / 700 Mbps
LTE CAT-20: 2 Gbps / 150 Mbps
Recommended Users 150
Antenna Connectors 4x SMA Cellular Antenna Connectors
2x RP-SMA Wi-Fi Antenna Connectors
1x SMA GPS Antenna Connector
Power Input 10 - 30V
Power Consumption 8 W (nominal), 19 W (max.)
Dimensions (L x W x H) 5.78 x 5.08 x 1.15 inches / 146.8 x 129 x 29.3 mm
Weight 1.28 pounds / 580 g
Operating Temperature -40°– 149° F / -40°– 65° C
Humidity 15% – 95% (non-condensing)
Certifications FCC, CE, RoHS,
Railway Applications - Electronic Equipment used
on Rolling Stock: EN 50155
Electromagnetic Compatibility: EN 61000
Warranty 1-Year Limited Warranty
Package Content 1x BR1 Pro 5G
1x 12V2A Power Supply (ACW-632)
4x LTE/5G Antennas (ACW-235)
2x Wi-Fi Dual Band Antenna (ACW-341)
1x GPS Antenna (ACW-232)





* - The WAN port can act as a LAN port if needed.

** - Requires PrimeCare Subscription, complimentary for the firrst year.

*** - 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.

**** - Theoretical maximum data rates.

SKU MAX-BR1-PRO-5GN-T-PRM
Model # MAX-BR1-PRO-5GD-T-PRM
Brand Peplink
Shipping Weight 0.5800kg
Shipping Width 0.127m
Shipping Height 0.050m
Shipping Length 0.152m
Shipping Cubic 0.000965000m3
Unit Of Measure ea
