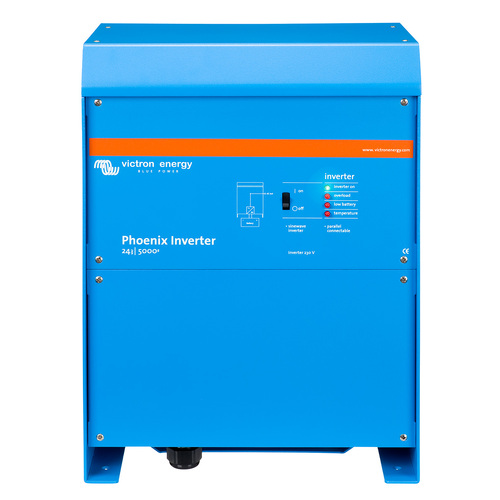

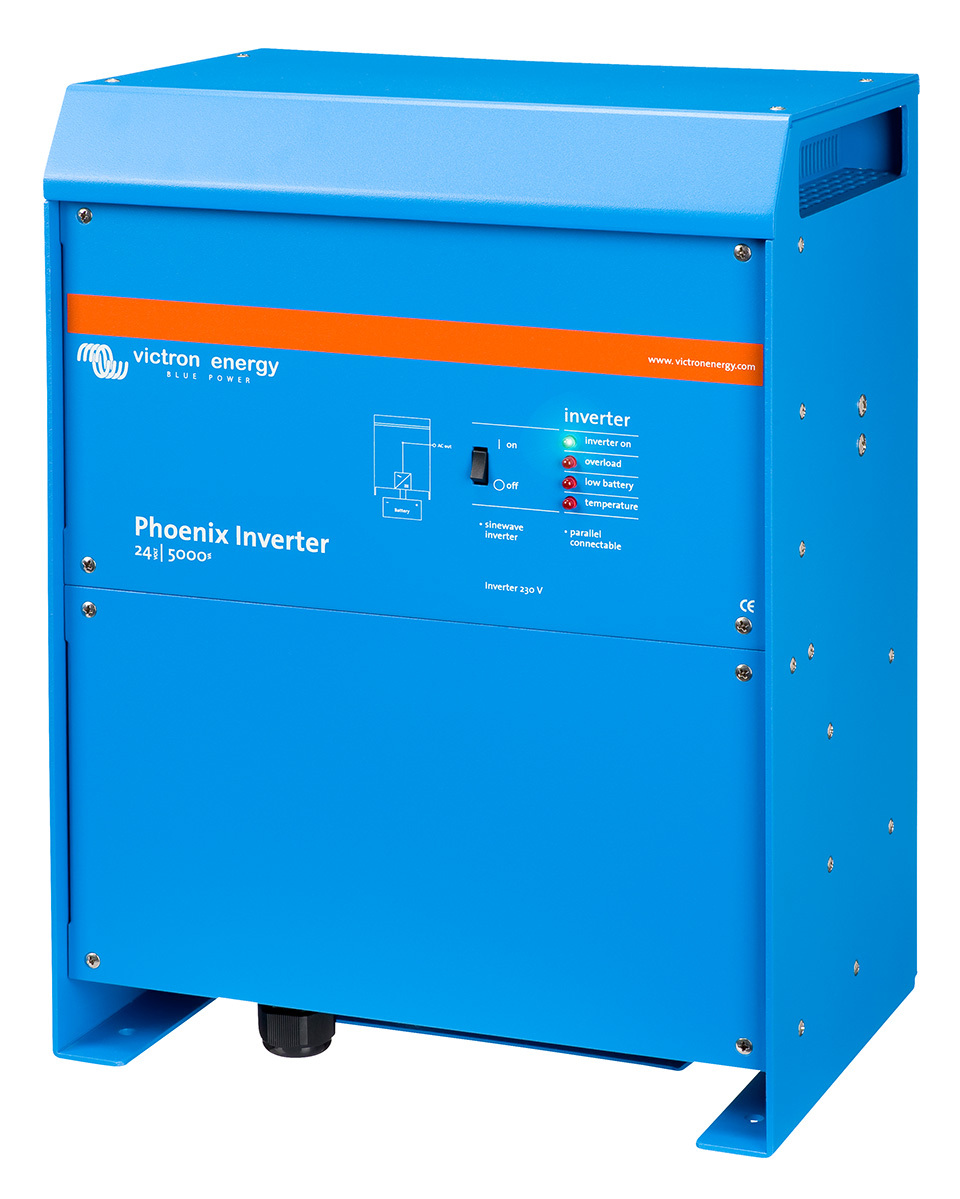

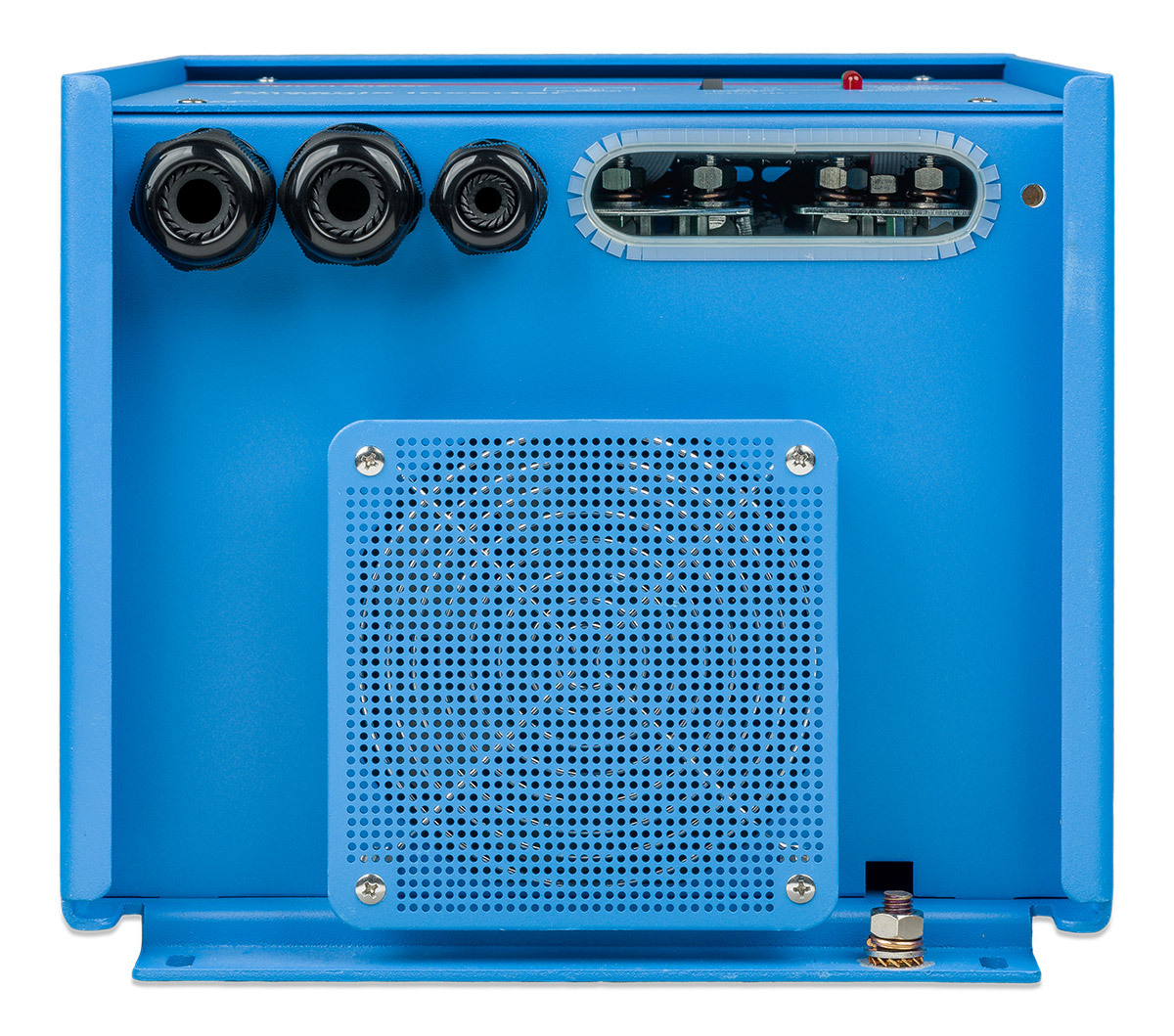

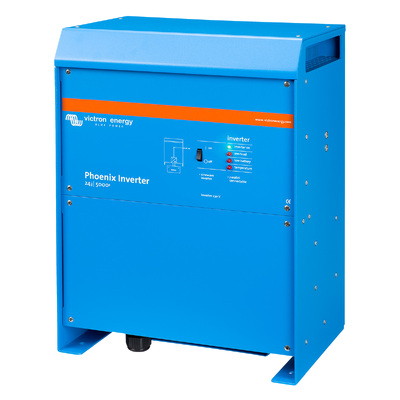

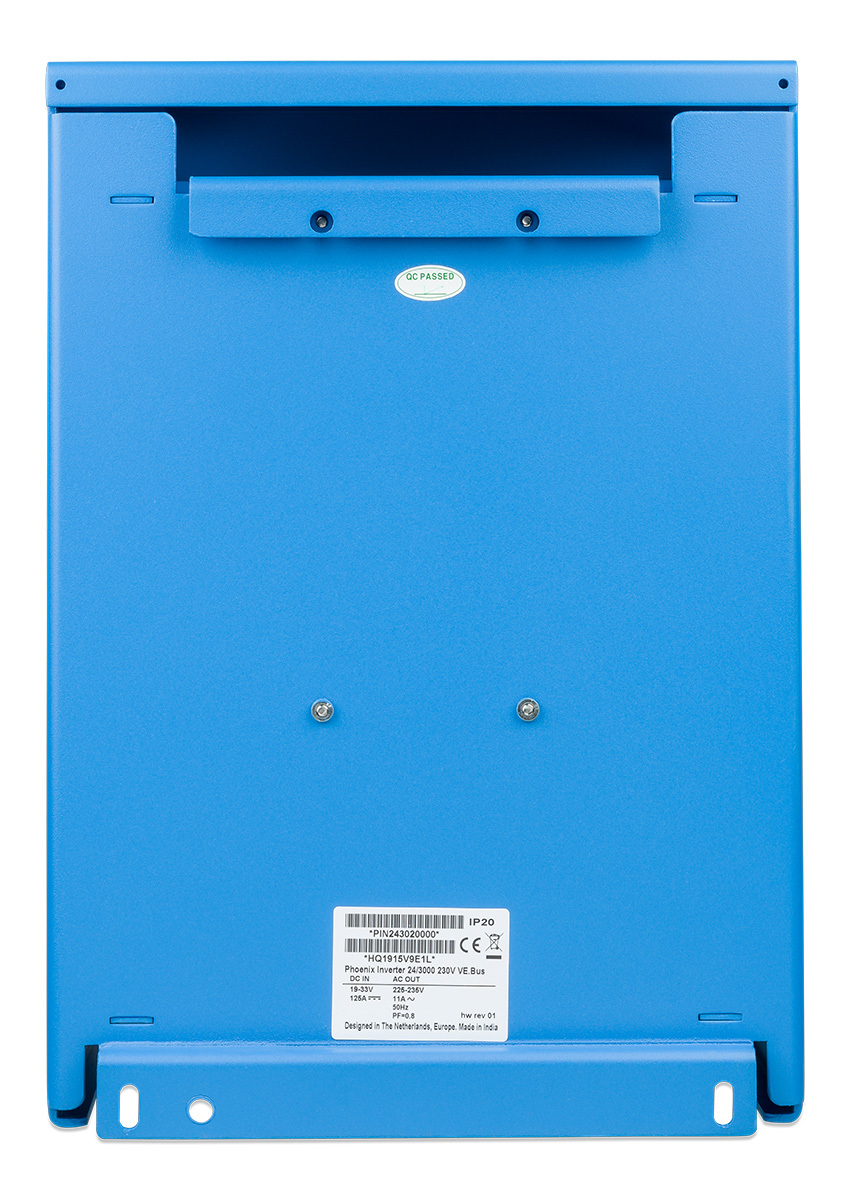

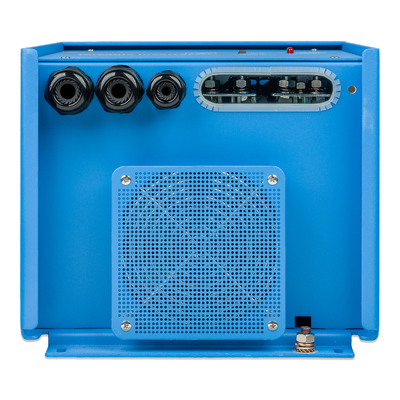

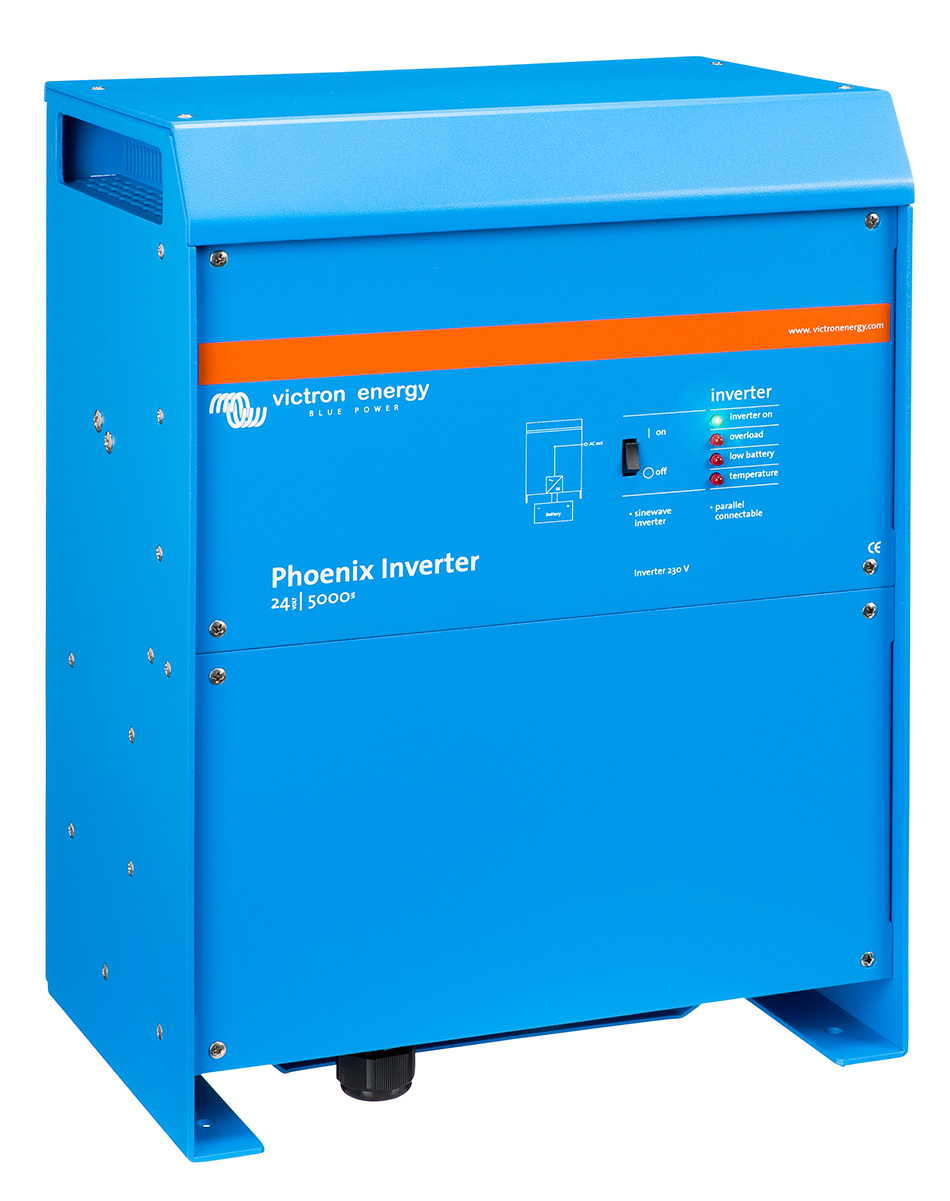

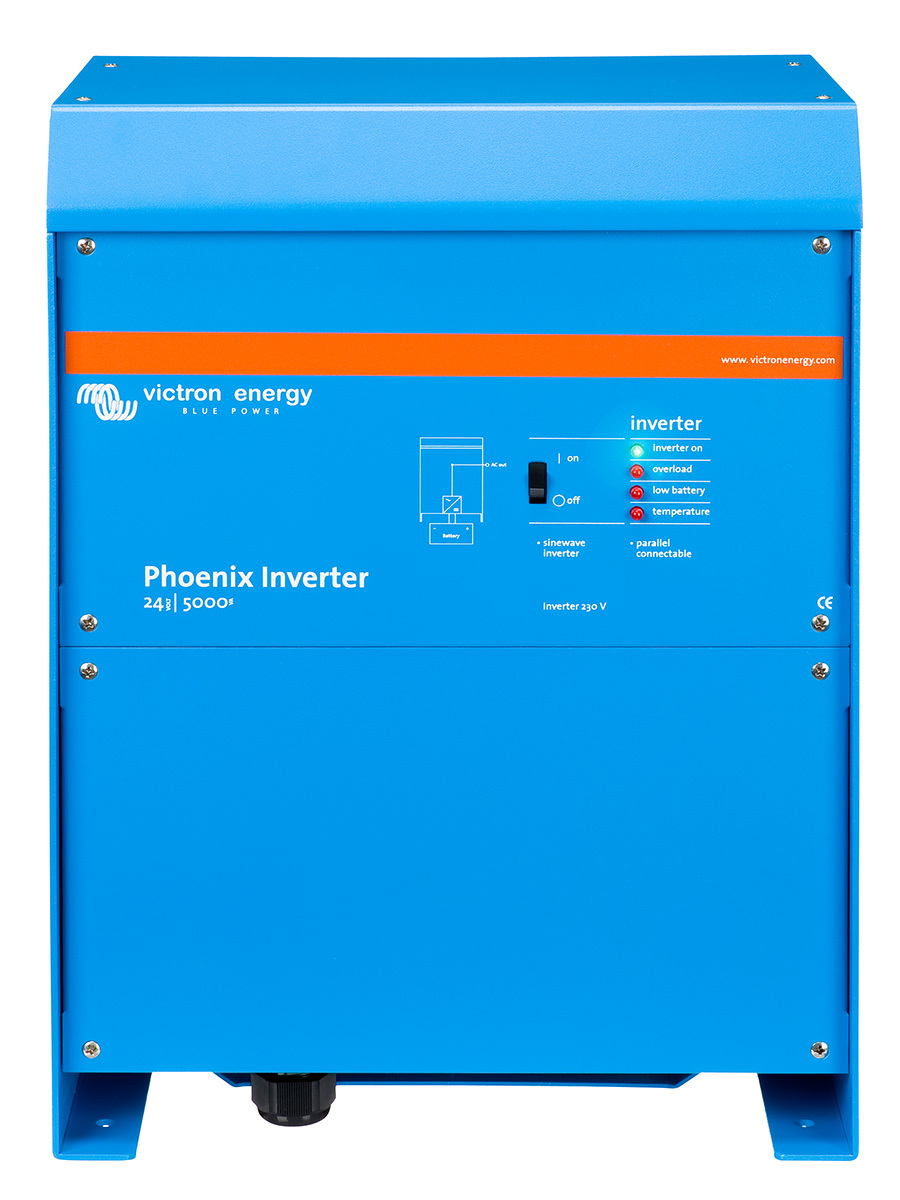

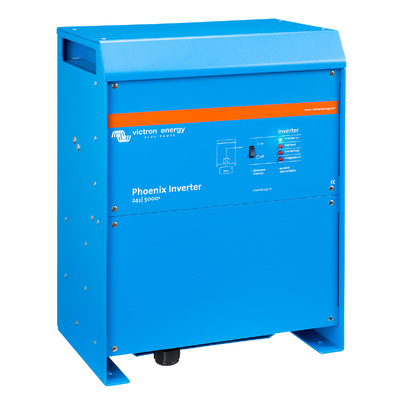

Phoenix Inverter 24/5000

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra start-up power

A unique feature of the SinusMax technology is its very high start-up power. Conventional high-frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in a 3-phase configuration is also possible.

Communications interface

These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is the Victron MK3- USB VE.Bus to USB interface. Together with the free downloadable VictronConnect or VEConfigure software, the parameters of the inverters can be customised. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.


Technical details

  • Input voltage range 19 - 33VDC
  • Output 230VAC +/- 2% 50Hz +/- 0.1% (adjustable to 240V 60Hz)
  • Continuous output power @ 25degC 5000VA 4500W
  • Peak power 10kW
  • Efficiency 94%
  • Zero-load power 25W, in search mode 5W
  • Programmable relay which can be set for general alarm, DC Undervoltage or Genset start signal function
  • Enclosure made from aluminium, blue RAL5012, IP21 rating
  • Dimensions 444 x 328 x 240 (HxWxD) in mm
  • Weight 30kg

This item must be installed by a licensed Electrician

Quick Install Guide



Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.

Phoenix Inverter

C12/1200
C24/1200

C12/1600 C24/1600

C12/2000 C24/2000

12/3000
24/3000
48/3000

24/5000
48/5000
Parallel and 3-phase operation Yes

INVERTER
Input voltage range (V DC) 12V - 9,5 – 17V | 24V - 19 – 33V | 48V - 38 – 66V
Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25ºC (VA) (2) 1200 1600 2000 3000 5000
Cont. output power at 25ºC (W) 1000 1300 1600 2400 4000
Cont. output power at 40ºC (W) 900 1200 1450 2200 3700
Cont. output power at 65ºC (W) 600 800 1000 1700 3000
Peak power (W) 2400 3000 4000 6000 10000
Max. efficiency 12/ 24 / 48V (%) 92 / 94 / 94 92 / 94 / 94 92 / 92 93 / 94 / 95 94 / 95
Zero load power 12 / 24 / 48V (W) 8 / 10 / 12 8 / 10 / 12 9 / 11 20 / 20 / 25 30 / 35
Zero load power in AES mode (W) 5 / 8 / 10 5 / 8 / 10 7 / 9 15 / 15 / 20 25 / 30
Zero load power in Search mode (W) 2 / 3 / 4 2 / 3 / 4 3 / 4 8 / 10 / 12 10 / 15

GENERAL
Programmable relay (3) Yes
Protection (4) a - g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
Remote on-off Yes
Common Characteristics Operating temperature range: -40 to +65ºC (fan assisted cooling)
Humidity (non-condensing): max 95%

ENCLOSURE
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP21
Battery-connection battery cables of 1.5 metre included M8 bolts 2+2 M8 bolts
230 V AC-connection G-ST18i plug Spring-clamp Screw terminals
Weight (kg) 10 12 18 30
Dimensions (hxwhd in mm) 375 x 214 x 110 520 x 255 x 125 362 x 258 x 218 444 x 328 x 240

STANDARDS
Safety EN 60335-1
Emission Immunity EN 55014-1 / EN 55014-2
1) Can be adjusted to 60 Hz and to 240 V
2) Non-linear load, crest factor 3:1
3) Programmable relay that can a.o. be set for general alarm, DC under voltage or genset start/stop function.
AC rating: 230 V / 4 A
DC rating: 4 A up to 35 VDC, 1A up to 60VDC		 4) Protection key:
a) output short circuit
b) overload
c) battery voltage too high
d) battery voltage too low
e) temperature too high
f) 230 V AC on inverter output
g) input voltage ripple too high



SKU VIC.PIN245020000
Model # PIN245020000
UPC/EAN 8719076023760
Brand Victron Energy
Shipping Weight 31.0000kg
Shipping Width 0.530m
Shipping Height 0.340m
Shipping Length 0.440m
Shipping Cubic 0.079288000m3
Unit Of Measure ea
