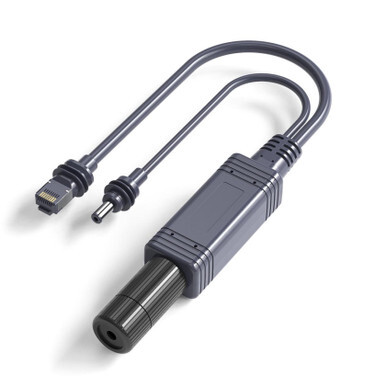

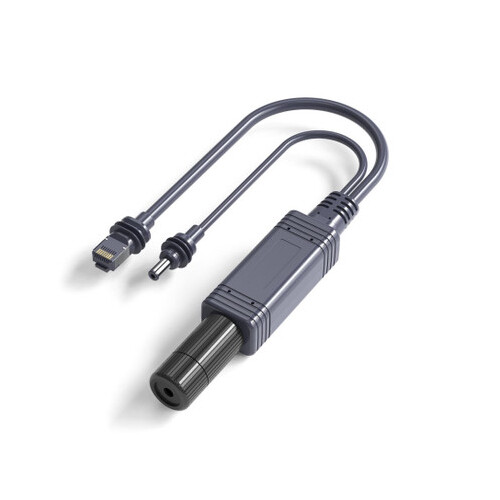

The Powertec Starlink Mini PoE Splitter Cable has two functions:

Single Cable to Mini Dish

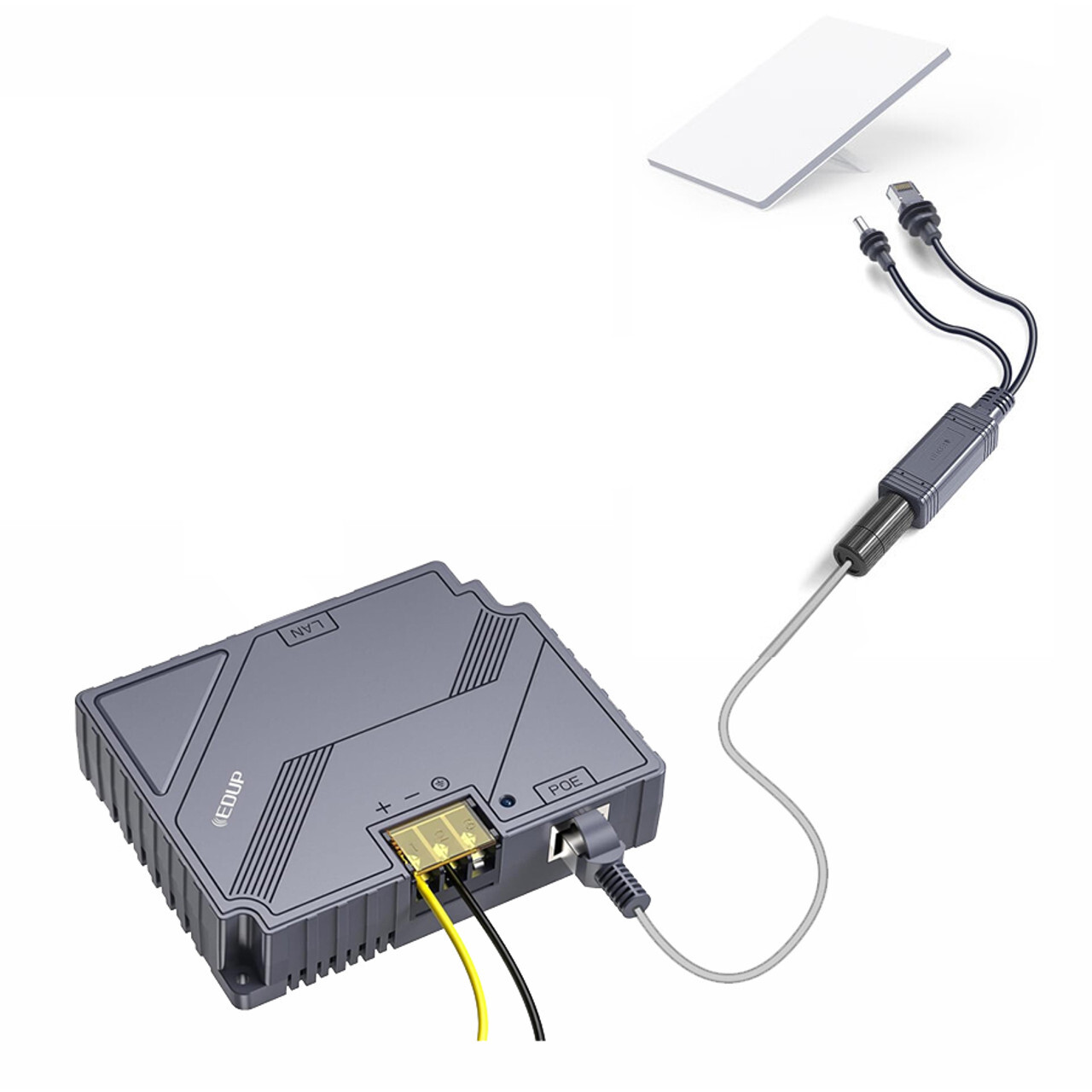

This splitter enables you to provide both power and data connectivity in a single PoE ethernet cable to the Starlink Mini dish. The Mini does not come with a PoE injector like the other Starlink dishes, it has it own DC barrel port for powering. This splitter cable basically allows you to power the Mini dish via PoE from a single network cable.

Extend the Cable Run to the Mini Dish
Even though the Mini dish has a 12V input, 48V is recommend over medium to long cable runs to avoid voltage drop and the dish cutting out under load. When used in conjection with the Powertec Starlink Gen3 DC/DC Power Converter this cable will provide 48V to the mini dish resulting in you being able to run much longer cables to power the Mini dish.

Specifications

Pin Configuration +V: 1, 2, 3, 6; -V: 4, 5, 7, 8
Interface Input:1*RJ45,Output:1*RJ45,1*DC 5.5*2.1mm
Network Speed 10/100/1000M
Input DC 37~52V
Output 48V 2.5A Max
Transmission distance Up to 100 meters
Cable Type Cat5e or higher category cables
Operating Temperature -25~+70° C
Operating Humidity 10% - 90% (Non-condensing)
Storage Temperature -40 to +80 ° C
Power 100W
SKU PWT.SAT-PT-00007
Model # EF-SK0076
Brand Powertec
Shipping Weight 0.1000kg
Shipping Width 0.030m
Shipping Height 0.100m
Shipping Length 0.030m
Shipping Cubic 0.000090000m3
