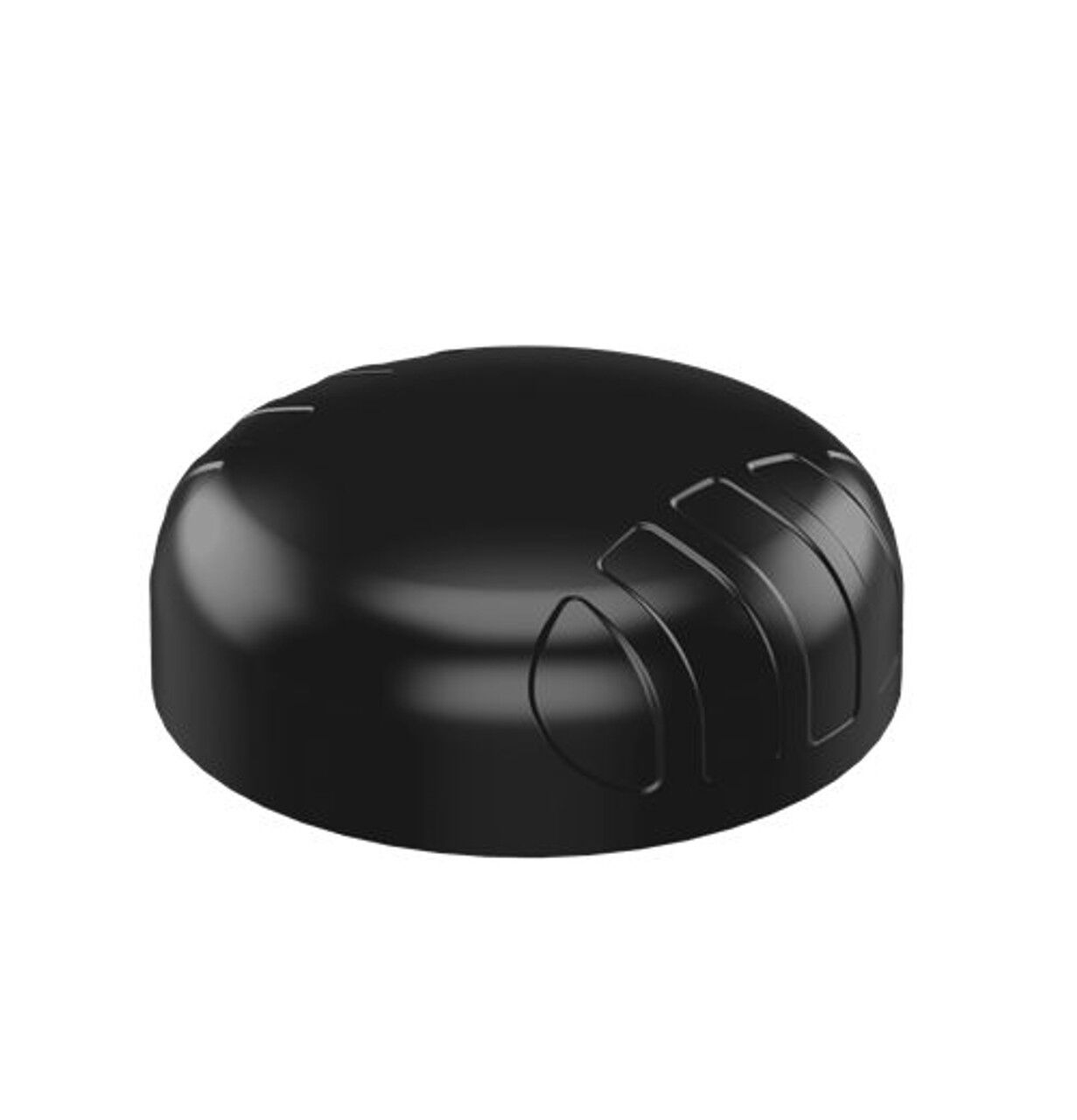

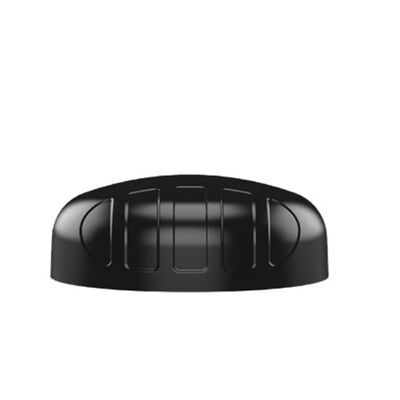

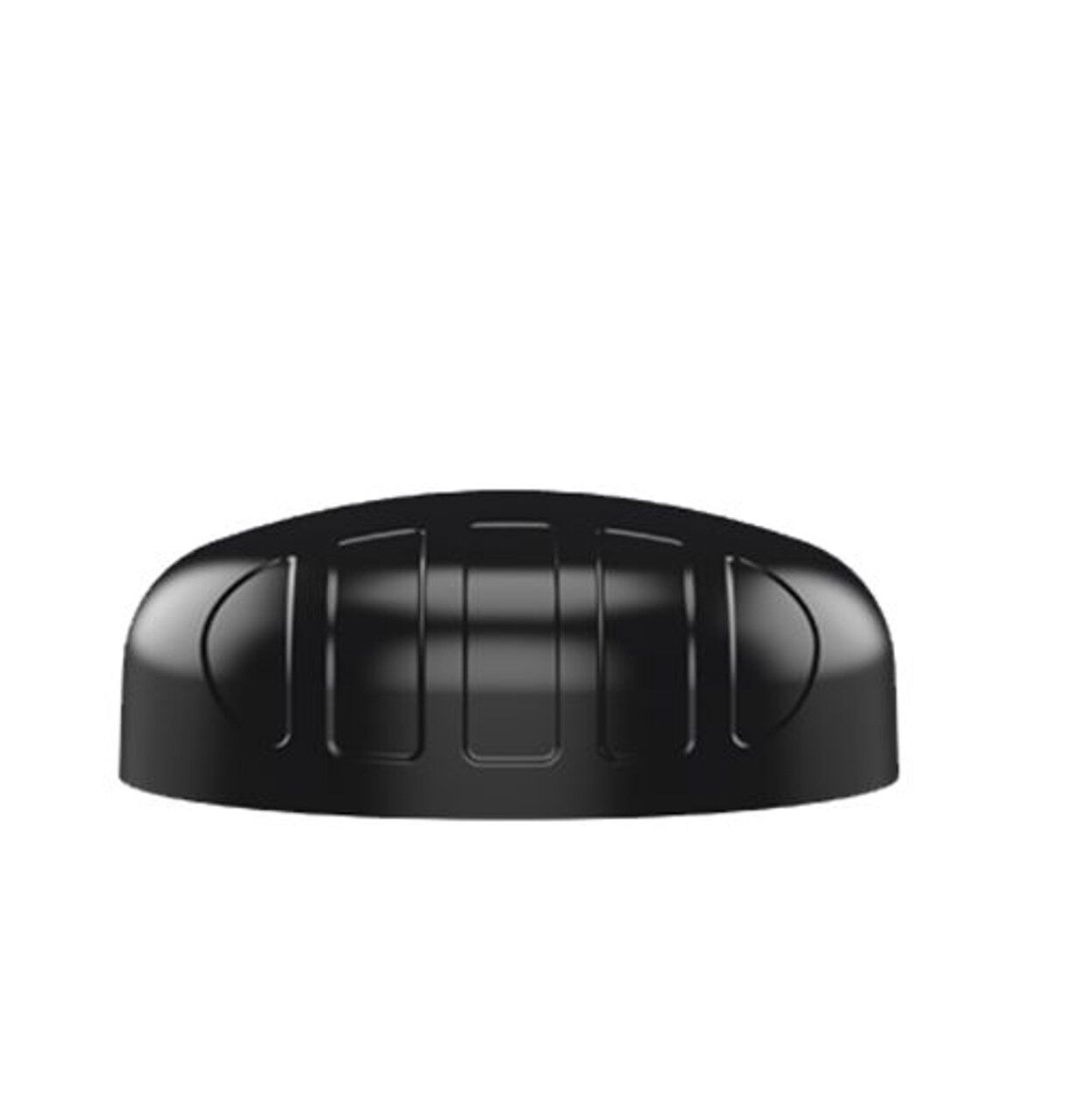

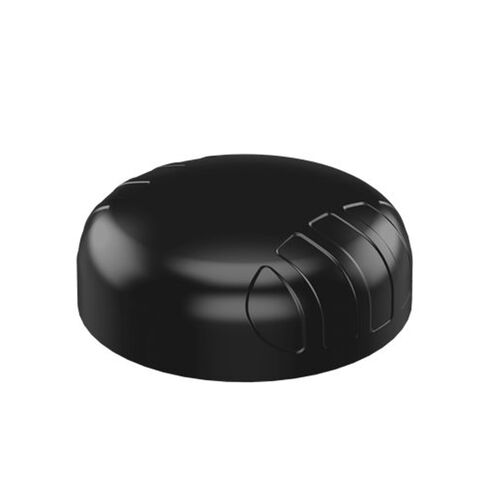

Poynting’s new V2 version of the GPS-1 antenna offers a small profile antenna for use in the IoT/M2M and transportation markets, where accurate positioning and timing is required. This new enclosure for the active GPS antenna keeps implementation as simple as possible with a wide variety of easy mounting options. The GPS/GLONASS system frequency band is 1575.42 MHz /1600 MHz and is still operational at temperatures as low as -40°C.

 Features:

• GPs/GLONASS Active Antenna
• Robust encloser (IK10), vandal resistant, and waterproof (IP68)
• Ideal for positioning and timing systems for transportation, marine, and IoT/M2M applications
• Ultra-versatile mounting options for easy installation

The Poynting GPS-1 GPS/GLONASS Active Antenna is ideal for use where rugged and accurate positioning and timing are required.

Application Areas:

• Industrial automation, robotic machinery, and other M2M systems
• Transport, tracking (Busses, Utility and Public Safety)
• Mining Vehicles & Machinery communications and positioning (m2M & IoT)
• Agricultural machinery
• Marine: Small boats, yachts
• Clocking and timing systems
