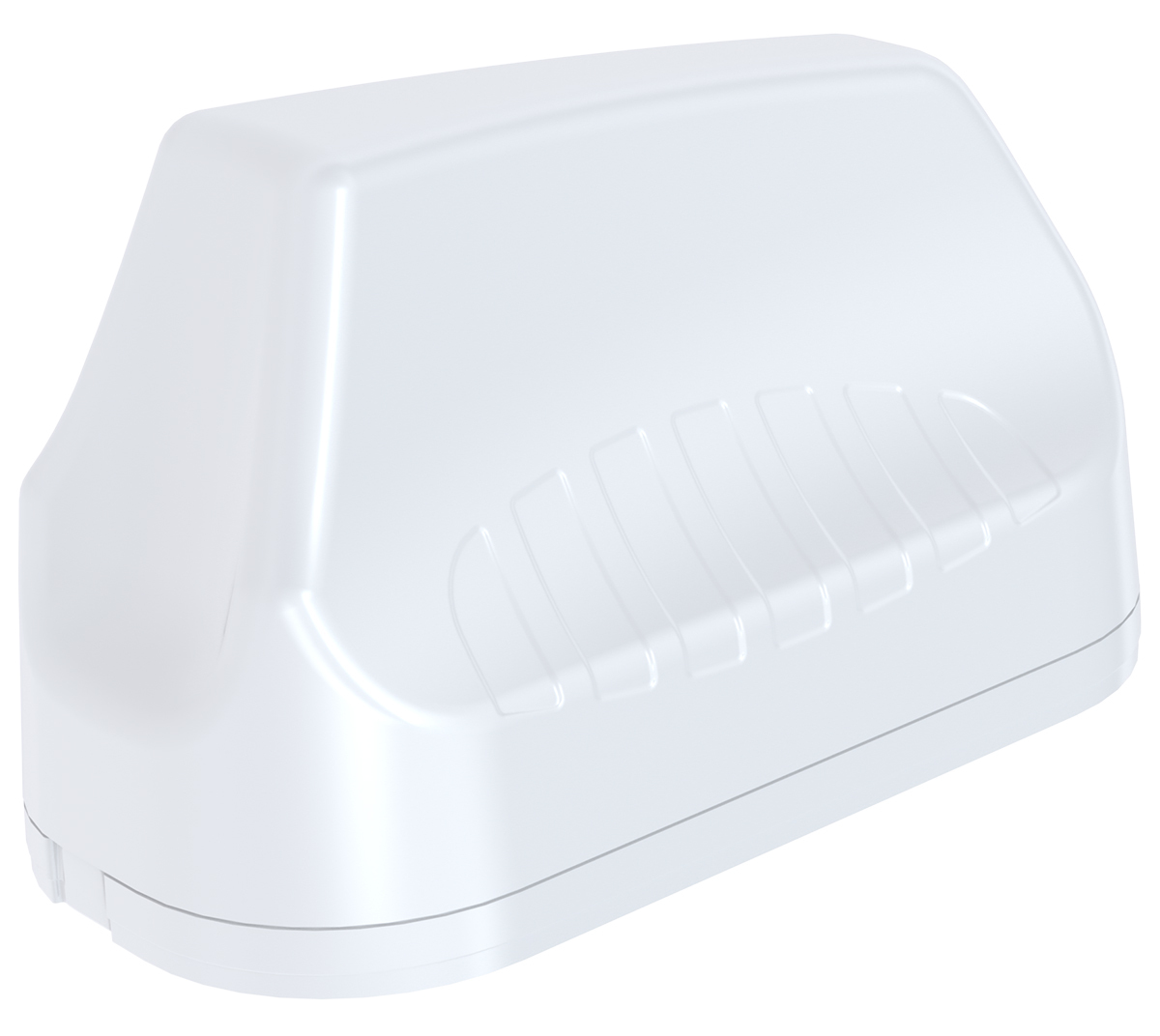

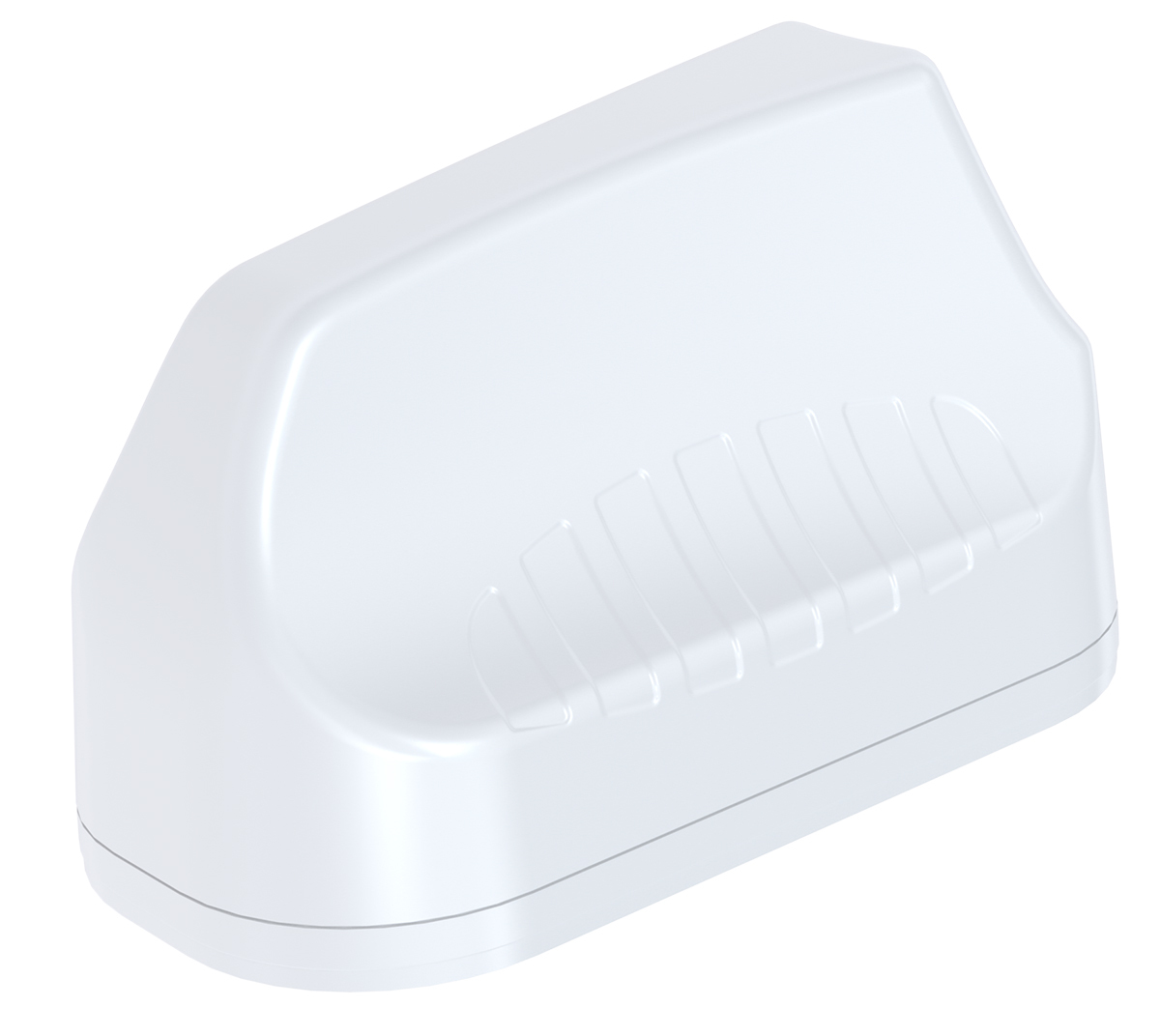

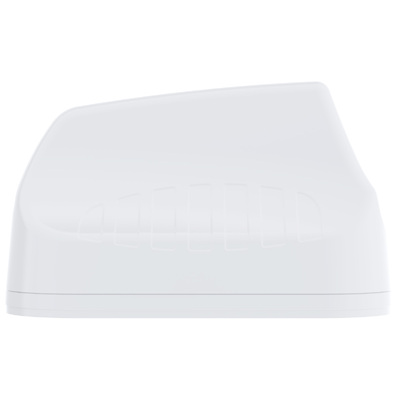

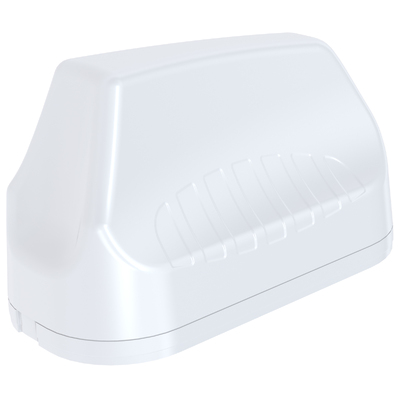

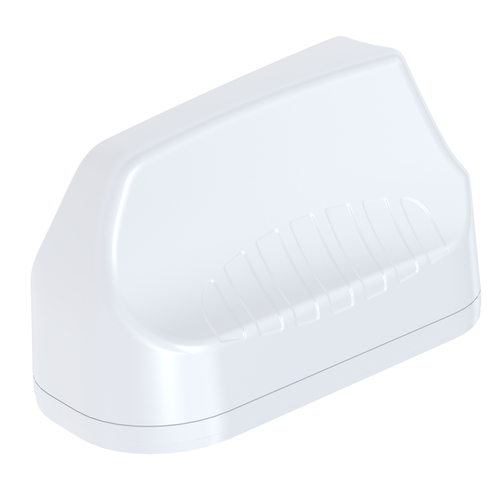

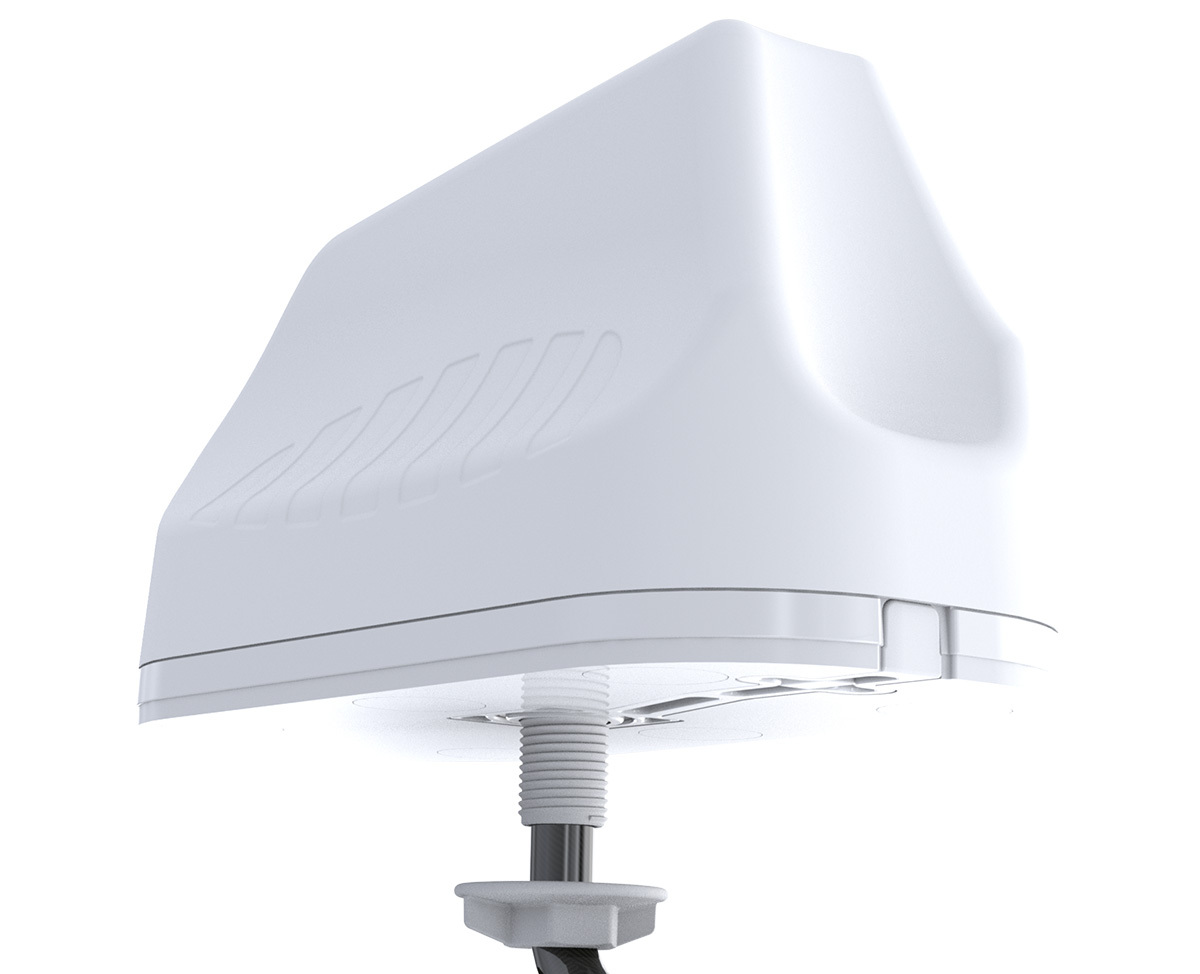

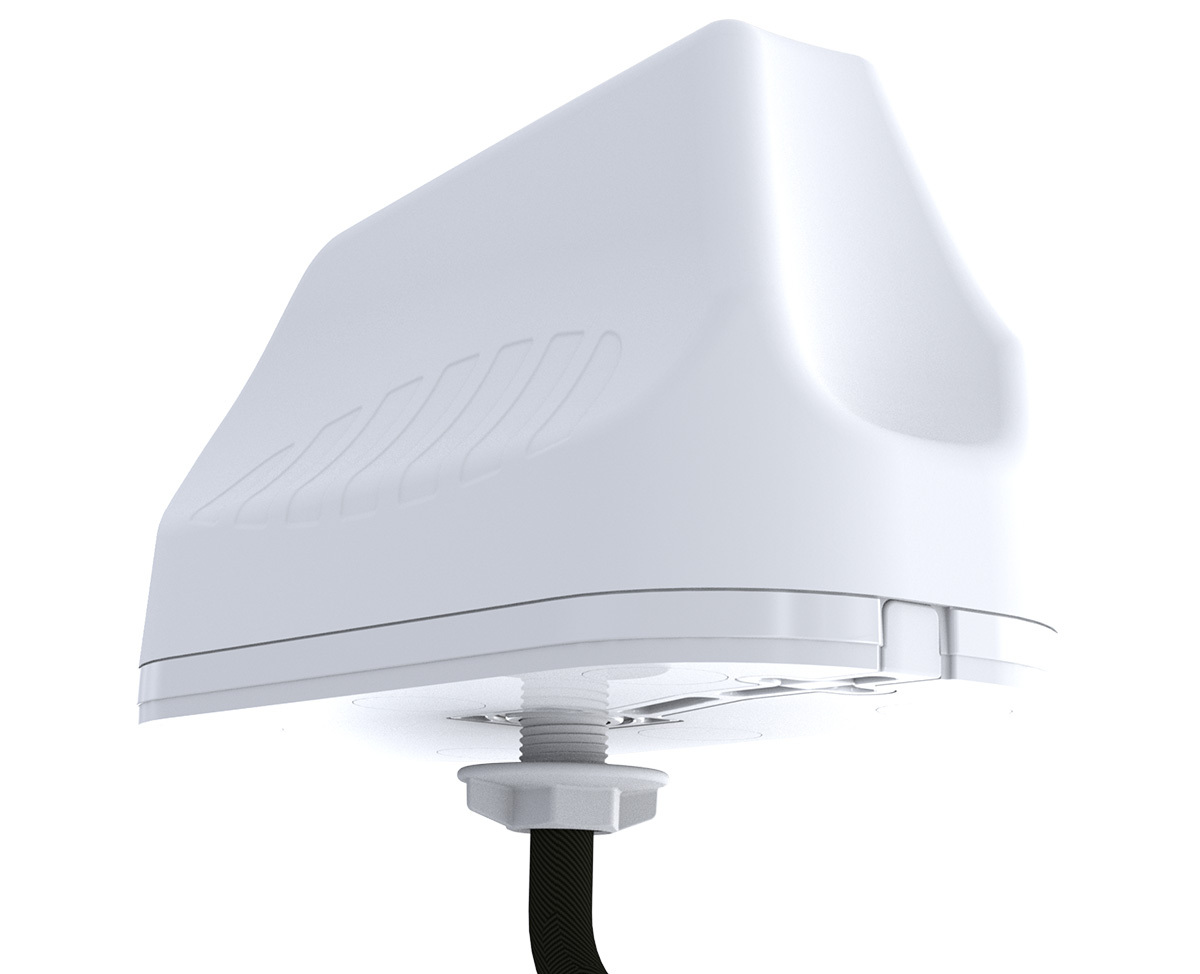

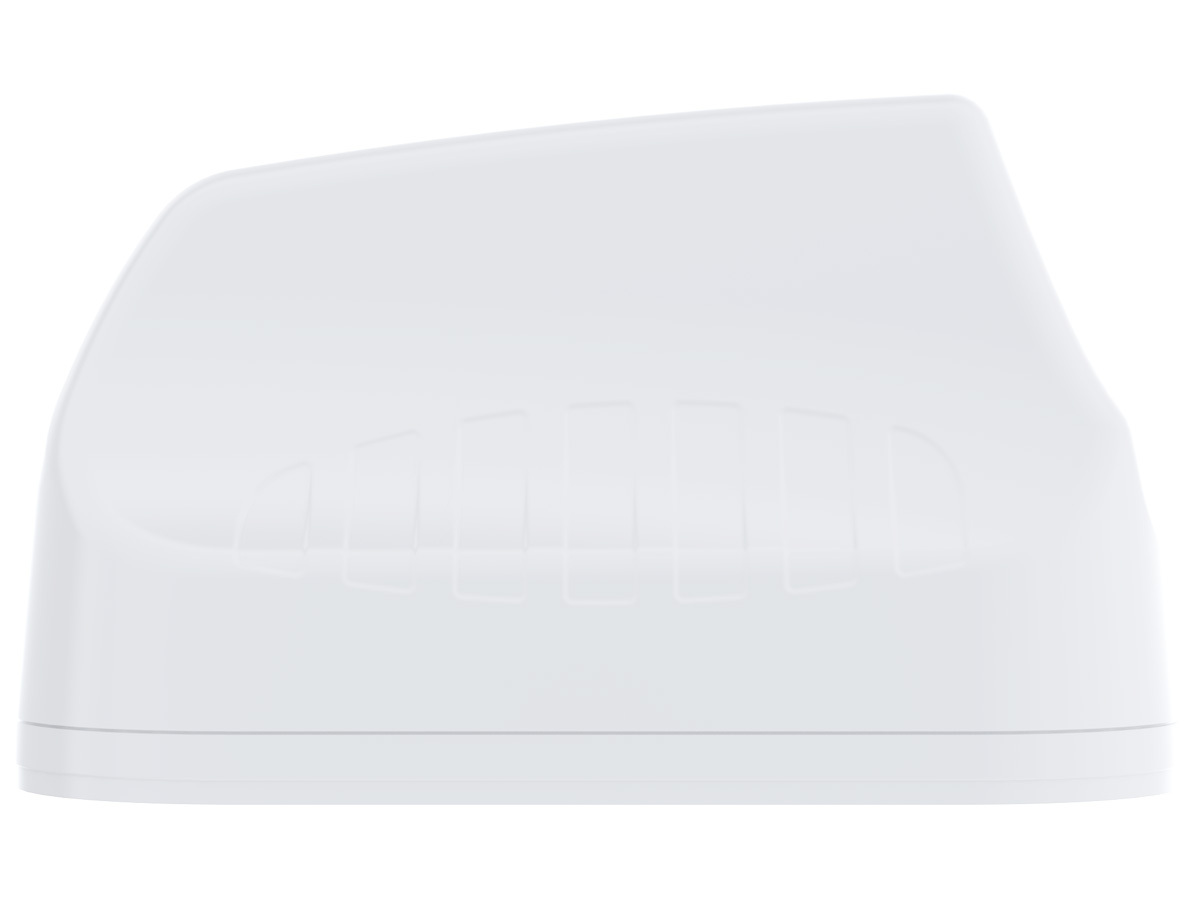

The MIMO-3-15 is a 5-in-1 high-performance multi-frequency antenna within a single housing, providing two cellular, two Wi-Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.

The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2×2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40°C.

The MIMO-3-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.

MIMO-3-15 Features

  • 5-in-1 High-performance multi-frequency 2G/3G/4G/LTE/5G antenna
  • 2X2 MIMO LTE, 2X2 MIMO Wi-Fi & GPS / GLONASS
  • Ultra-wideband - includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP 68)
  • Ideal for land transportation and marine use
  • Multi mounting options for easy installation

MIMO-3-15 Applications

  • Transport broadband and Wi-Fi distribution, automation and telemetry for caravan/RV, buses, utility, trucks and public safety vehicles
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & agricultural automation such as M2M & IoT
  • Broadband cellular to Wi-Fi distribution for marine/boats (inland and near coastal vessels)
  • Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)

Mounting and testing the Poynting LTE Antenna (MIMO-3) on a Motorhome



Poynting Product Code (SKU) A-MIMO-0003-V2-15
Radome Colour White
Ports 1 & 2 – LTE, 3 & 4 - Wi-Fi
5 - GPS
SISO / MIMO 2x2 MIMO – LTE
2x2 MIMO – Wi-Fi
Coax Cable Type Twin HDF 195 – LTE & Wi-Fi RTK-031 - GPS
Coax Cable Length 2m – LTE, Wi-Fi & GPS
Connector Type SMA (M) - LTE, Wi-Fi & GPS
EAN 6009710923764
EU Homologation Number E1*10R06/01*9550*00



Electrical Specifications - Cellular
Frequency Bands: 410 - 470 MHz
617 – 960 MHz
1427 – 1517 MHz
1710 – 2700 MHz
3400 – 3800 MHz
Gain (max): 1 dBi @ 410 – 470 MHz
3.5 dBi @ 617 – 960 MHz 4 dBi @ 1427 – 1517 MHz 5.8 dBi @ 1710 – 2700 MHz 4 dBi @ 3400 - 3800 MHz
VSWR: ≤2.5:1 across 90% of the bands
Feed Power Handling: 10 W
Input Impedance: 50 Ohm (nominal)
Polarisation: Linear Vertical
Coax Cable Loss: 0.250 dB/m @ 400 MHz
0.385 dB/m @ 900 MHz
0.507 dB/m @ 1500 MHz
0.565 dB/m @ 1800 MHz 0.788 dB/m @ 3000 MHz
DC short: Yes



Product Box Contents
Antenna: A-MIMO-0003-V2-15 or A-MIMO-0003-V2-15-B

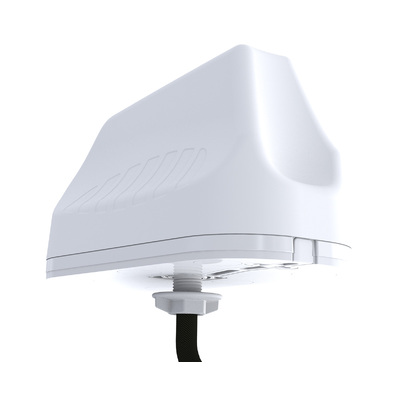

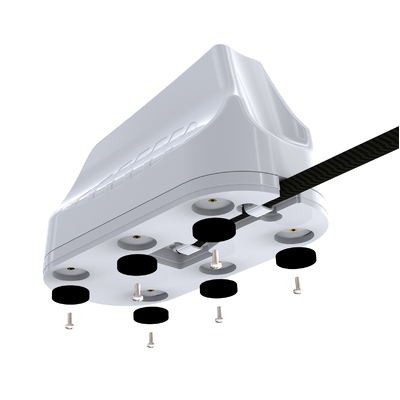

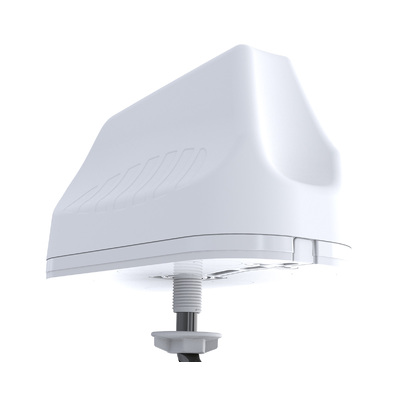

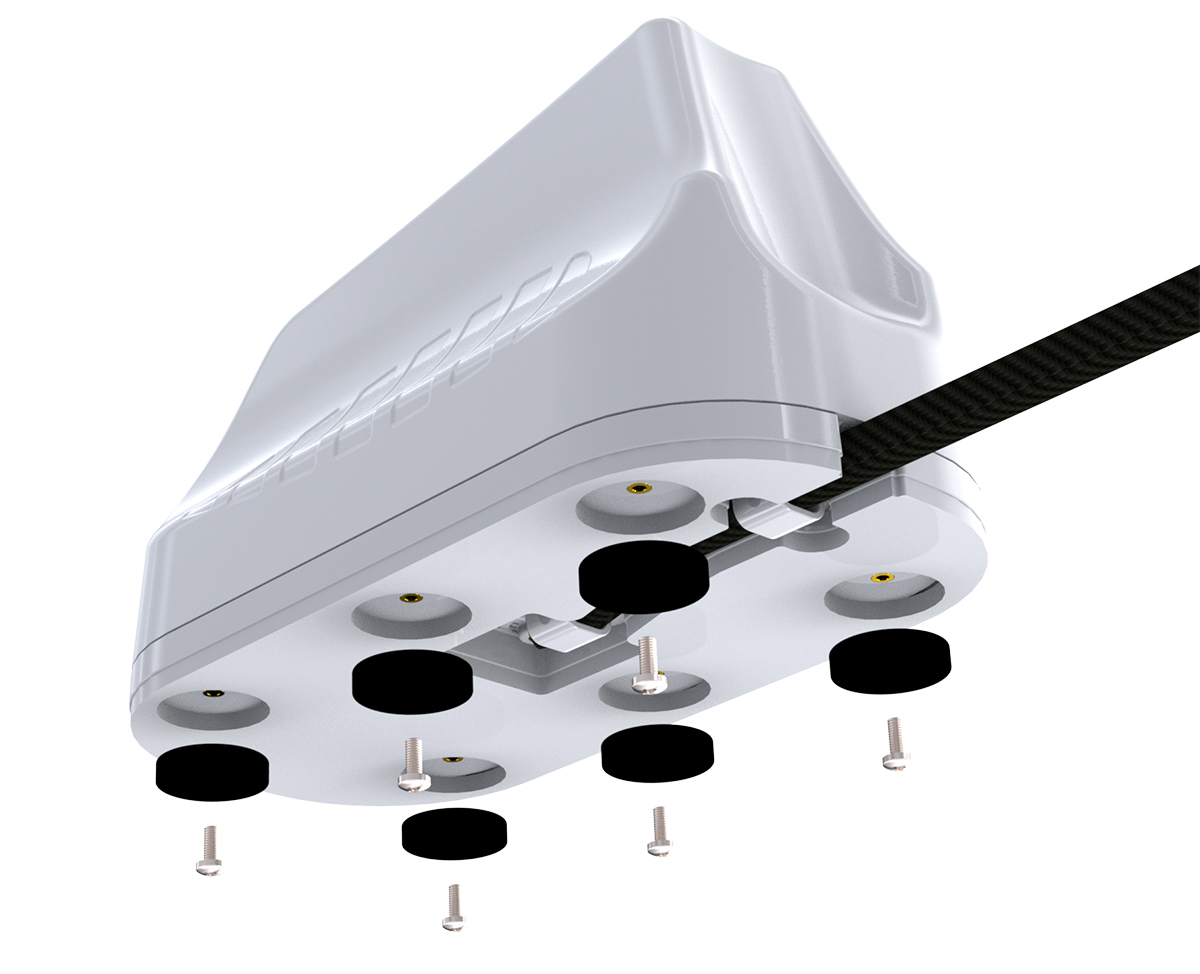

Mounting Bracket: Threaded spigots (up to 60mm clamping thickness), Adhesive surface mounting & Optional
Magnetic mount



Mechanical Specifications
Product Dimensions: 253 mm x 128 mm x 144 mm
Packaged Dimensions: 265 mm x 211 mm x 204 mm
Weight: 1.36 kg
Packaged Weight: 1.46 kg
Radome Material: UV Stable ASA
Mounting Type: Spigot, Surface and Magnetic mount
options
Environmental Specifications, Certification & Approvals
Wind Survival: ≤220 km/h
Temperature Range (Operating): -40°C to +80°C
Environmental Conditions: Outdoor/Indoor
Water Ingress Protection Ratio/Standard: IP69K
Salt Spray: MIL-STD 810G/ASTM B117
Operating Relative Humidity: Up to 98%
Storage Humidity: 5% to 95% - non-condensing
Storage Temperature: -40°C to +80°C
Enclosure Flammability Rating: UL 94-HB
Impact Resistance: IK 10
Product Safety & Environmental: Complies with CE and RoHS standards
GPS/Glonass Antenna Electrical Specifications
Frequency Range (GPS): 1575.42MHz/1600MHz
Gain (Max): 21+/-2dBi
VSWR: ≤1.5:1
DC Voltage: 2.7-3.3 V
DC Current: 5-15mA
Noise Figure: ≤1.5 dB
Nominal Impedance: 50 Ω
Polarisation: RHCP
Filter Out Band Attenuation: 12dB Min f0+50MHz, 16dBi Min f0-50MHz
Voltage: 2.7 - 3.3V
Max. Power: 50 W
Coax Cable Loss: 0.71 dB/m @ 1500 MHz



Wi-Fi Electrical Specifications
Frequency: 2400 - 2500 MHz
5000 – 7200 MHz
Gain (Max): 3 dBi @ 2400 - 2500 MHz
7 dBi @ 5000 - 7200 MHz
VSWR: ≤ 2.5:1 over 95% of the band
Feed Power Handling: 10 W
Nominal Input Impedance: 50 Ohm (nominal)
Coax Cable Loss: 0.666 dB/m @ 2400 MHz
1.15 dB/m @ 5800 MHz
Path To Ground: Yes
SKU PWT.ANT-PY-00037
Model # A-MIMO-0003-V2-15
UPC/EAN 6009710923764
Brand Poynting
Shipping Weight 1.5000kg
Shipping Width 0.270m
Shipping Height 0.210m
Shipping Length 0.220m
Shipping Cubic 0.012474000m3
