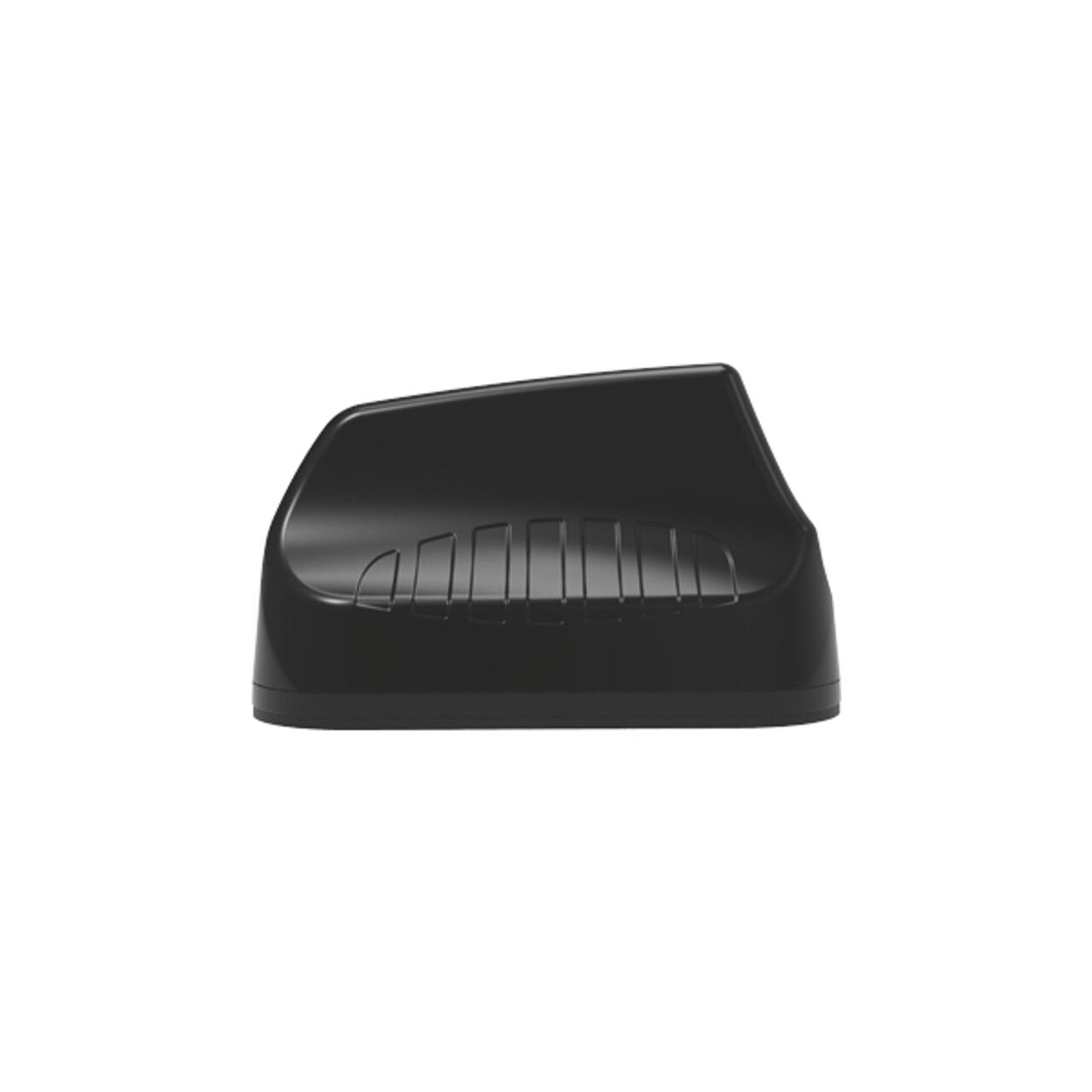

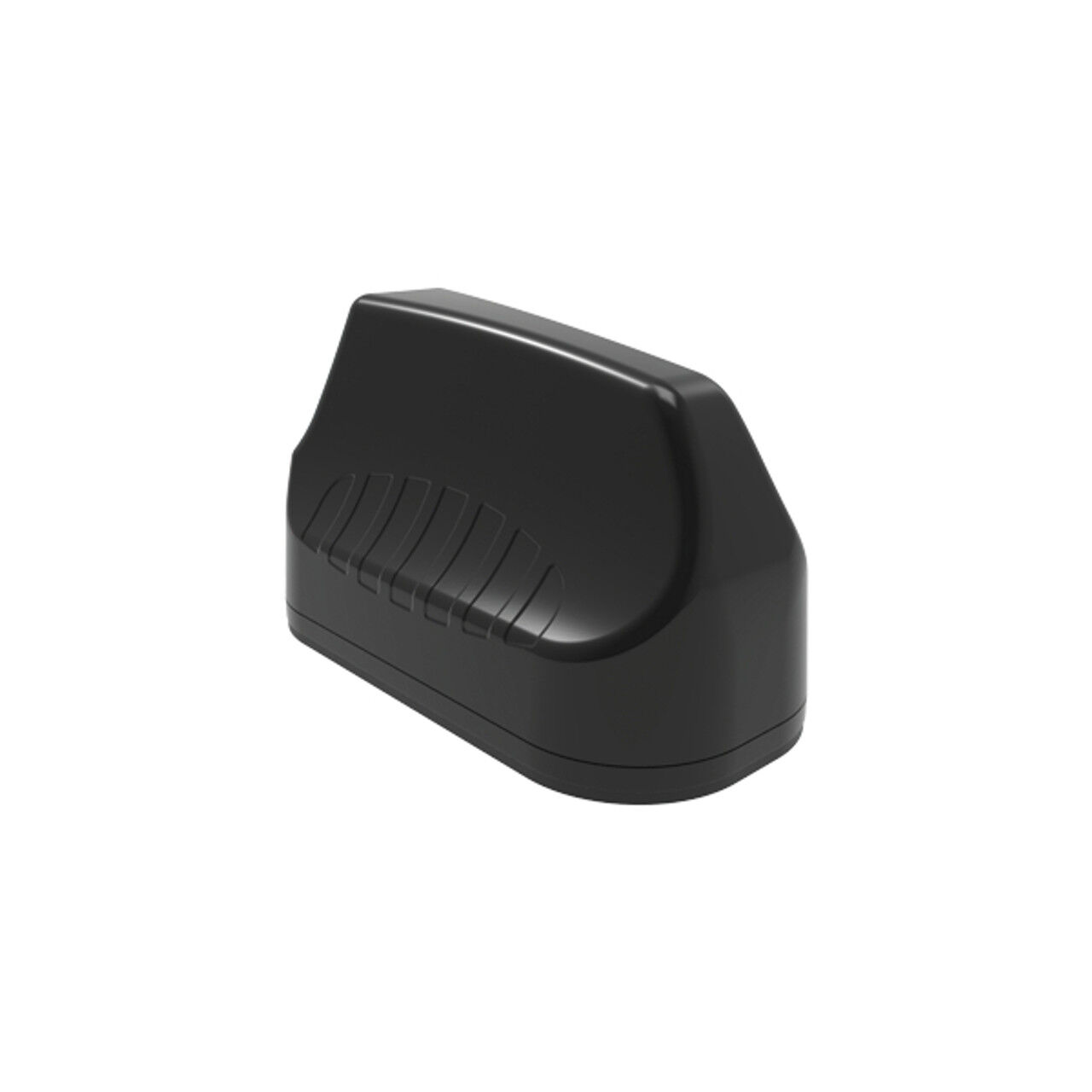

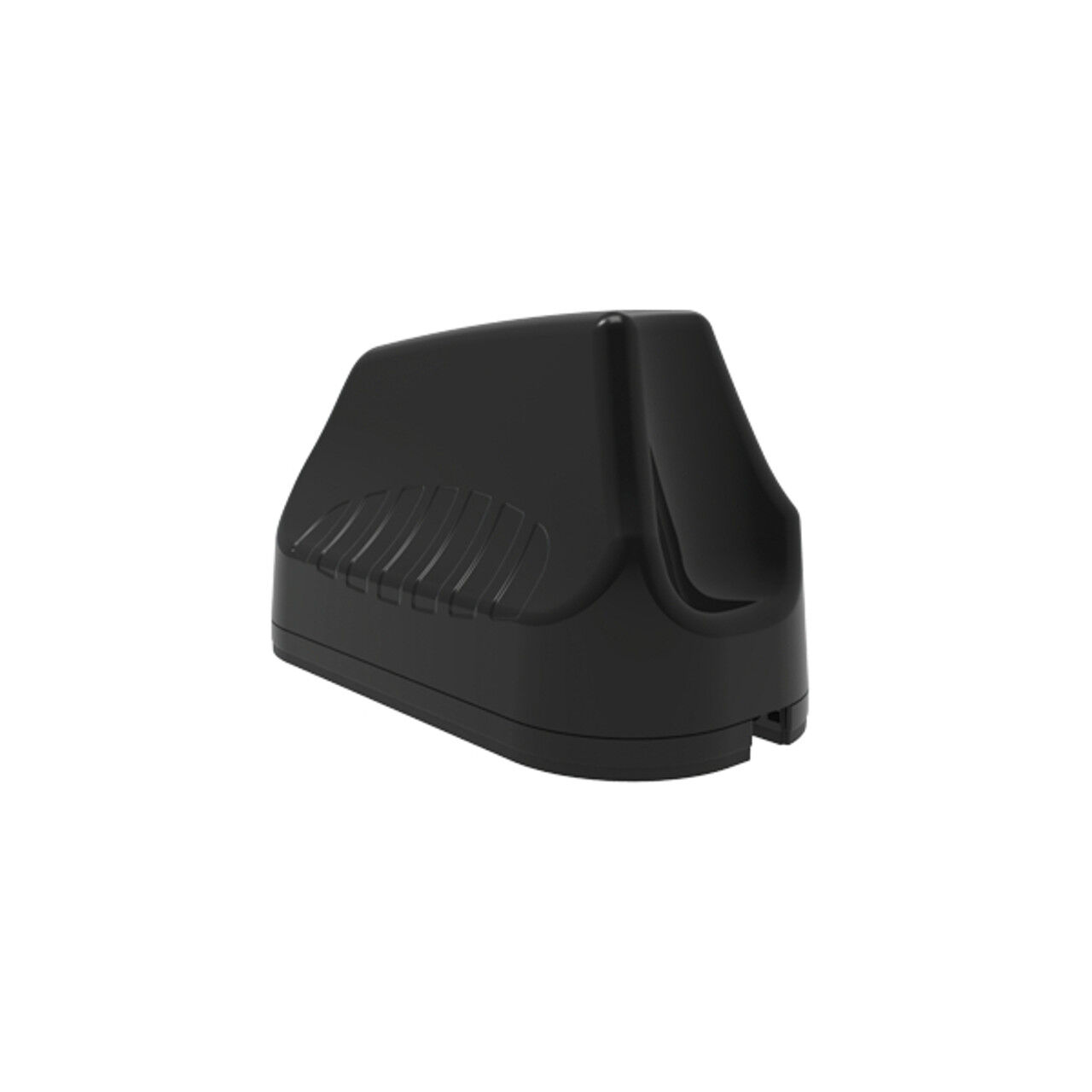

Explore the MIMO-3-17, a 7-in-1 high-performance antenna for transportation and automotive use, featuring 4X4 LTE MIMO, 2X2 Wi-Fi MIMO, and GPS/GLONASS with a broad frequency range of 410-3800 MHz. This robust, IP69K-rated antenna is perfect for commercial, industrial, and marine applications, offering flexibility with multiple mounting options and exceptional reliability in harsh environments.

Features

  • 7-in-1 Multi-Frequency Capability: Incorporates four cellular MIMO antennas (2G/3G/4G), two dual-band Wi-Fi antennas with 2x2 MIMO capability, and a high-performance GPS/GLONASS antenna.
  • Ultra-Wideband Coverage: Ranges from 410 MHz to 3800 MHz, including 450 MHz and 3.5 GHz CBRS bands, ensuring compatibility with various international cellular networks.
  • Robust and Water-Resistant: The antenna is designed with an IP69K rating, making it ideal for harsh transportation and marine environments.
  • Flexible Mounting Options: Offers multiple mounting solutions including magnetic, spigot, and surface/desk mount for versatile installation.
  • Optimised for Transportation and Marine Use: Ideal for commercial/industrial vehicles, marine applications, M2M, and IoT systems.



Specification Description
Industry (Application) Commercial & Industrial Antennas, Transportation & Mobility Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G), CDMA450/LTE-M 450, GPS/GLONASS, Wi-Fi
Frequency Band 410-450MHz, 433MHz, 450-470MHz, 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 5000-6000MHz
Frequency Range 410 – 3800 MHz
Gain 6.2dBi (LTE), 7dBi (Wi-Fi), 21dBi (GPS)
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n31, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n72, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B31, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B72, B73, B74, B85, B87, B88, B103, B106
Mounting Type Magnetic Mount, Spigot Mount, Surface/Desk Mount
Wi-Fi Standard Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Connectors SMA
MIMO 2×2, 4×4
Polarisation Linear Polarised
Environmental IP69K
Enclosure Name Badger
Enclosure Size Medium
LTE Ports 4
Wi-Fi Ports 2
GNSS/GPS Ports 1
SKU POY.MIMO-3-V2-17-B
Model # A-MIMO-0003-V2-17-B
Brand Poynting
Shipping Weight 1.6600kg
Shipping Width 0.270m
Shipping Height 0.210m
Shipping Length 0.220m
Shipping Cubic 0.012474000m3
