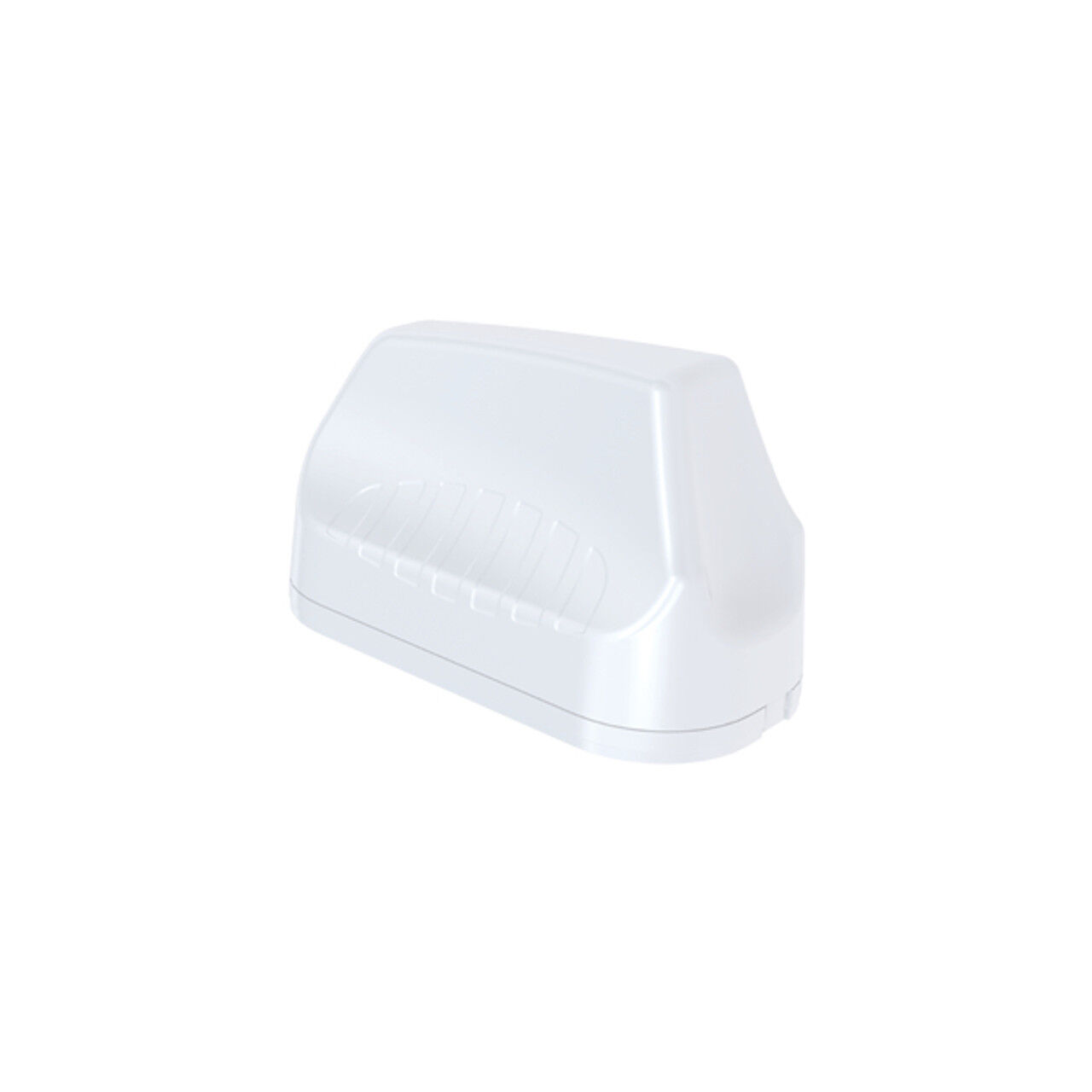

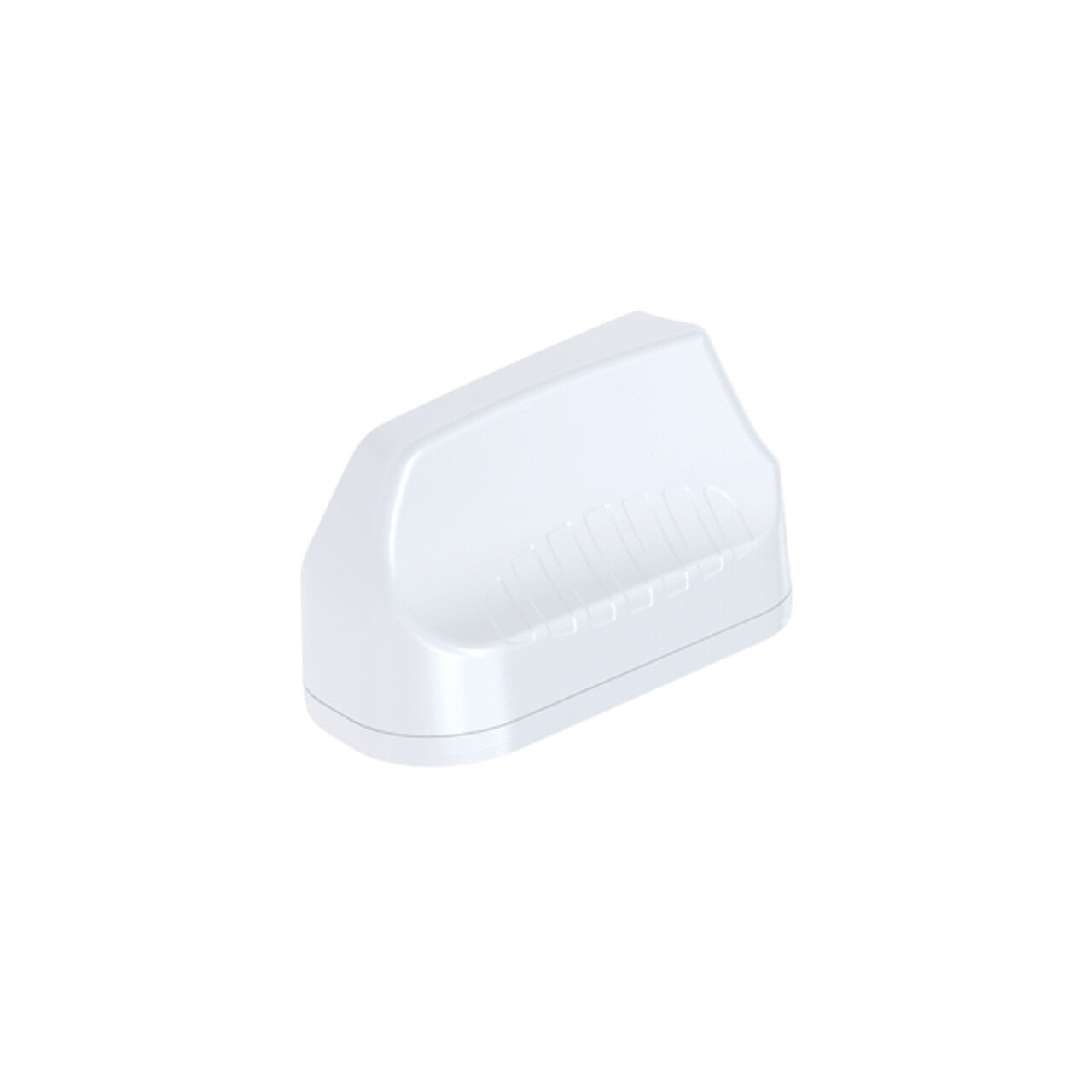

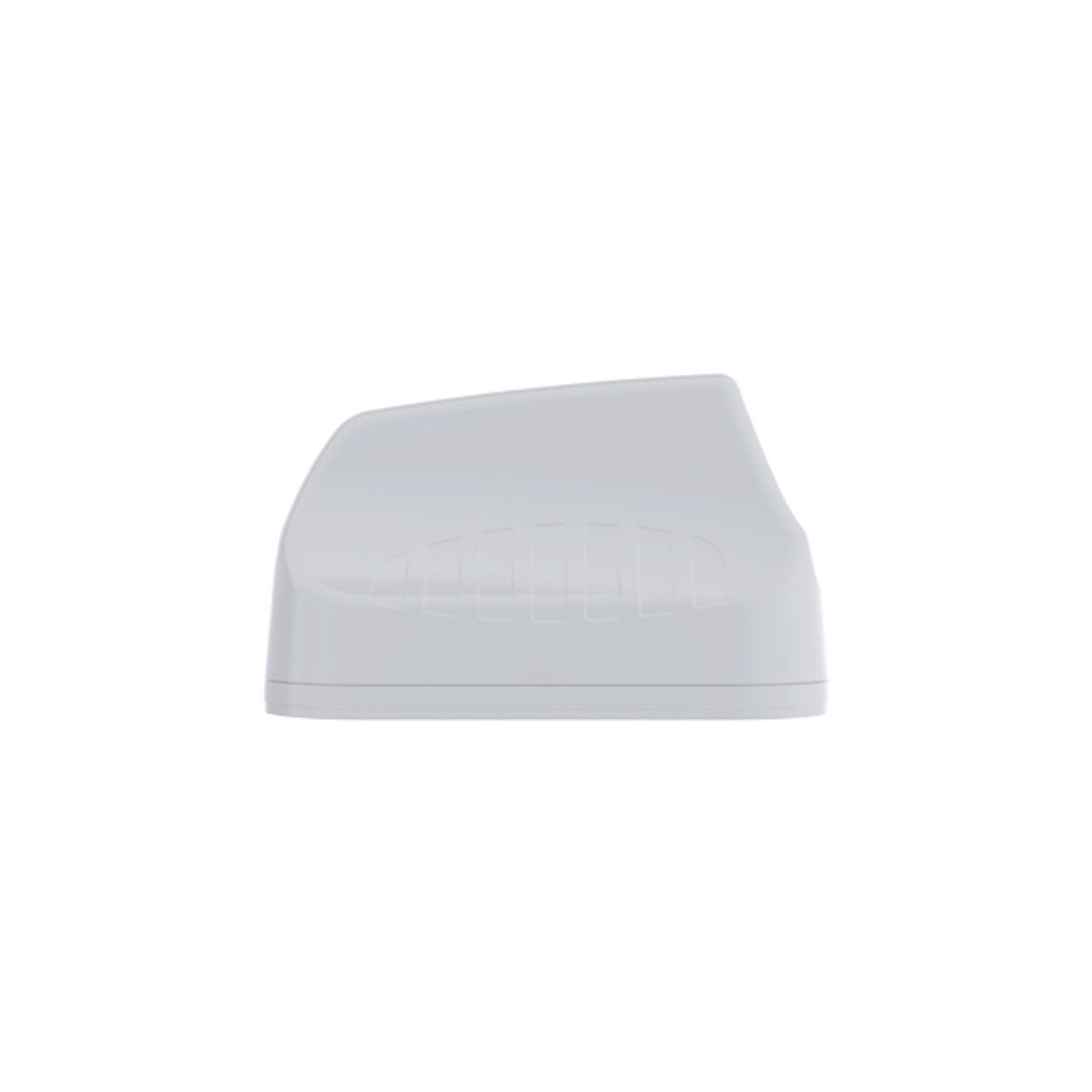

The Poynting MIMO-3-17, 7-in-1 Transportation & Automotive Antenna, is the ultimate solution for amplifying connectivity on the go. Designed to cater to the diverse needs of transportation and automotive applications, this cutting-edge antenna delivers exceptional performance across a wide frequency range from 410 to 3800 MHz. The MIMO-3-17 is a 7-in-1 high-performance multi-frequency antenna within a single housing, providing four cellular, two Wi-Fi, and a GPS/GLONASS antenna.

Two separate dual-band Wi-Fi antennas, provide concurrent 2.4 GHz and 5 GHz on each antenna with 2×2 MIMO capability. The seventh antenna is a high-performance active GPS/GLONASS system operating down to -40°C.

The main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.

Features:

  • 7-in-1 High performance multi-frequency 2G/3G/4G/LTE/5G antenna
  • 4X4 MIMO LTE, 2X2 MIMO Wi-Fi & GPS / GLONASS
  • Ultra-wideband includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP 69K)
  • Ideal for transportation and marine use
  • Multi-mounting options for easy installation



Specification Description
Industry (Application) Commercial & Industrial Antennas, Transportation & Mobility Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G), CDMA450/LTE-M 450, GPS/GLONASS, Wi-Fi
Frequency Band 410-450MHz, 433MHz, 450-470MHz, 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 5000-6000MHz
Frequency Range 410 – 3800 MHz
Gain 6.2dBi (LTE), 7dBi (Wi-Fi), 21dBi (GPS)
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n31, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n72, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B31, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B72, B73, B74, B85, B87, B88, B103, B106
Mounting Type Magnetic Mount, Spigot Mount, Surface/Desk Mount
Wi-Fi Standard Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Connectors SMA
MIMO 2×2, 4×4
Polarisation Linear Polarised
Environmental IP69K
Enclosure Name Badger
Enclosure Size Medium
LTE Ports 4
Wi-Fi Ports 2
GNSS/GPS Ports 1
SKU POY.MIMO-3-V2-17
Model # A-MIMO-0003-V2-17
Brand Poynting
Shipping Weight 1.6100kg
Shipping Width 0.270m
Shipping Height 0.210m
Shipping Length 0.220m
Shipping Cubic 0.012474000m3
