High-Performance Multi-Frequency Antenna for Transportation and Marine Use

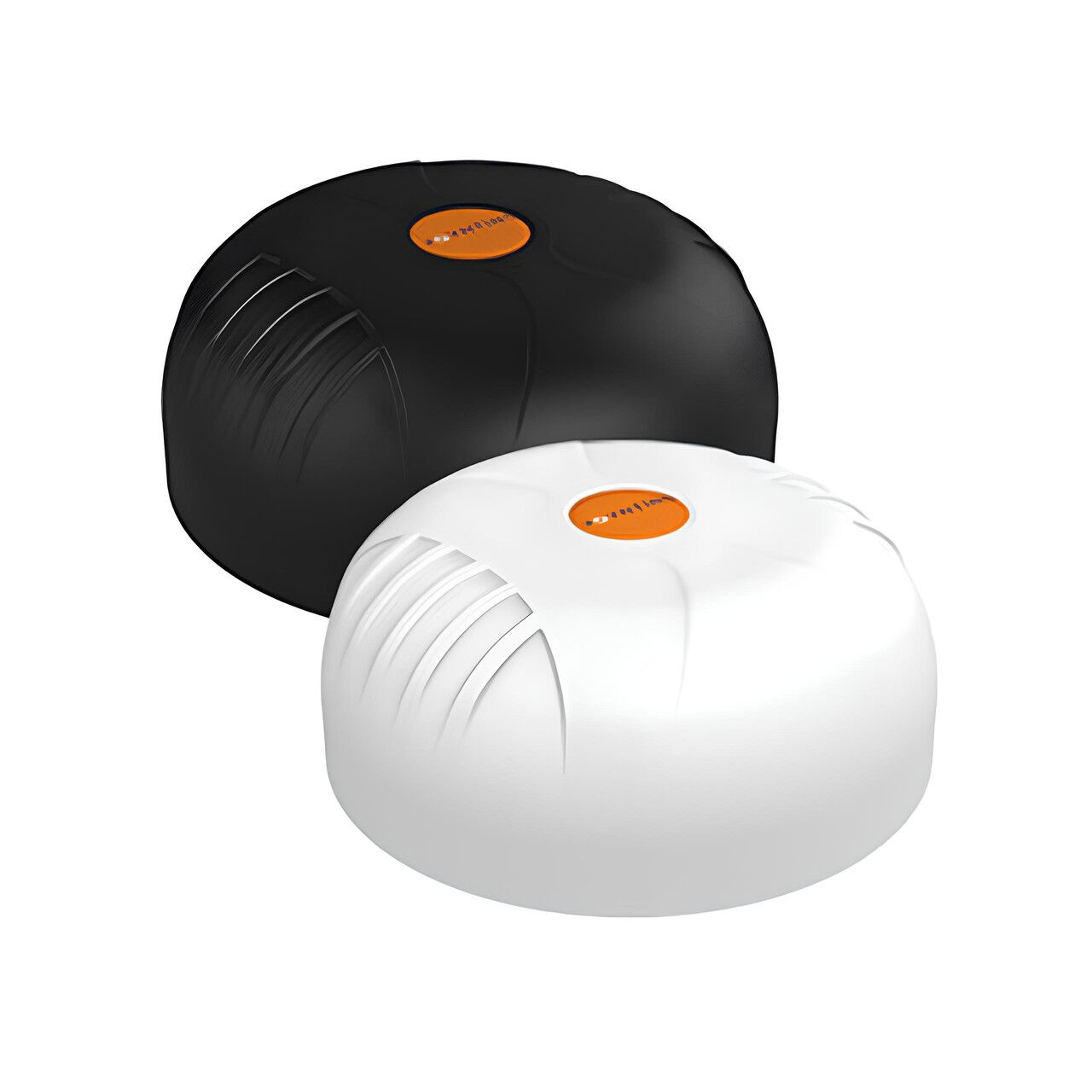

The Poynting MIMO-4-17 is a robust 7-in-1 antenna, providing extensive frequency coverage from 617 MHz to 7200 MHz. It integrates four MIMO antennas for LTE/5G, two dual-band MIMO Wi-Fi antennas, and GPS/GLONASS. Designed for commercial and industrial vehicles, marine applications, and IoT systems, it offers future-proof connectivity across multiple radio technologies, including LTE, 5G, and Wi-Fi. Its IP69K-rated, weather-resistant build ensures reliable performance in harsh environments.

Key Features

  • 7-in-1 Antenna: Combines LTE/5G MIMO, Wi-Fi MIMO, and GPS/GLONASS.
  • Wide Frequency Range: Covers 617 MHz to 7200 MHz for diverse cellular and Wi-Fi use.
  • Durable Build: IP69K weatherproof rating for outdoor and marine environments.
  • Multiple Mounting Options: Flexible installation for various vehicles and infrastructure.
  • Future-Proof: Supports LTE, 5G, and Wi-Fi technologies across broad frequency bands.

The Poynting MIMO-4-17 antenna is perfect for demanding commercial and industrial applications, ensuring high-speed, reliable connectivity in challenging environments.

Technical Specifications
Industry (Application) Commercial & Industrial Antennas, Marine & Coastal Antennas, Transportation & Mobility Antennas
Technology Cellular (LTE/2G/3G/4G/5G), GPS/GLONASS, Wi-Fi
Cellular Frequency Range 617 – 7200 MHz
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 3800-4200MHz, 5000-6000MHz, 6000-7200MHz
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Wi-Fi Standard Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Gain 6dBi (LTE), 6.5dBi (Wi-Fi), 21dBi (GPS)
Directionality Omni-Directional
Mounting Type Pole Mount, Magnetic Mount, Spigot Mount, Surface/Desk Mount, Wall Mount
Connectors SMA
MIMO 4×4
Polarisation Linear Polarised
Environmental IP69K
Enclosure Name Armadillo
Enclosure Size Medium
LTE Ports 4
Wi-Fi Ports 2
GNSS/GPS Ports 1
SKU POY.MIMO-4-V1-17-B
Model # A-MIMO-0004-V1-17-B
Brand Poynting
Shipping Weight 1.3600kg
Shipping Width 0.230m
Shipping Height 0.150m
Shipping Length 0.220m
Shipping Cubic 0.007590000m3
