The OMNI-280-02 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS).

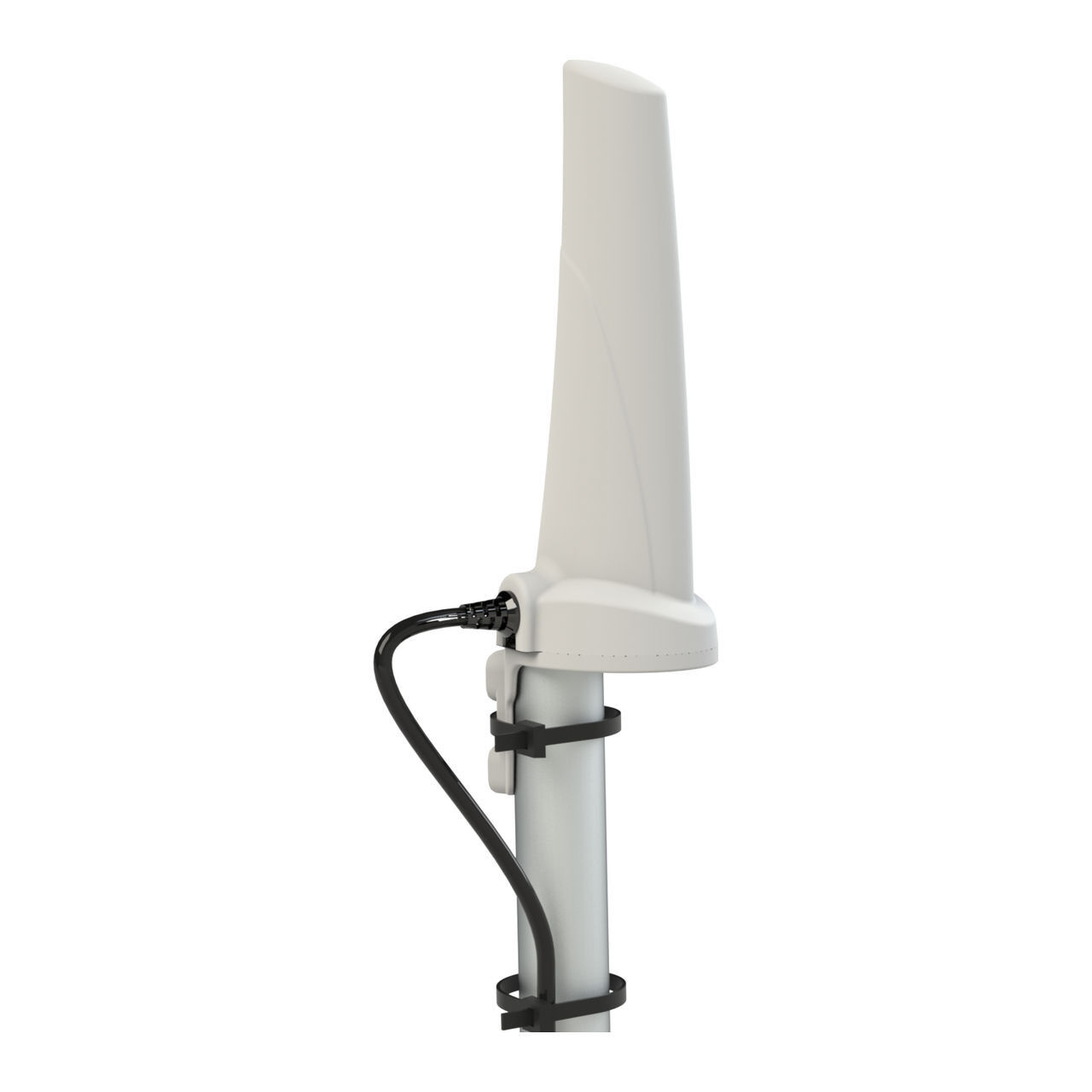

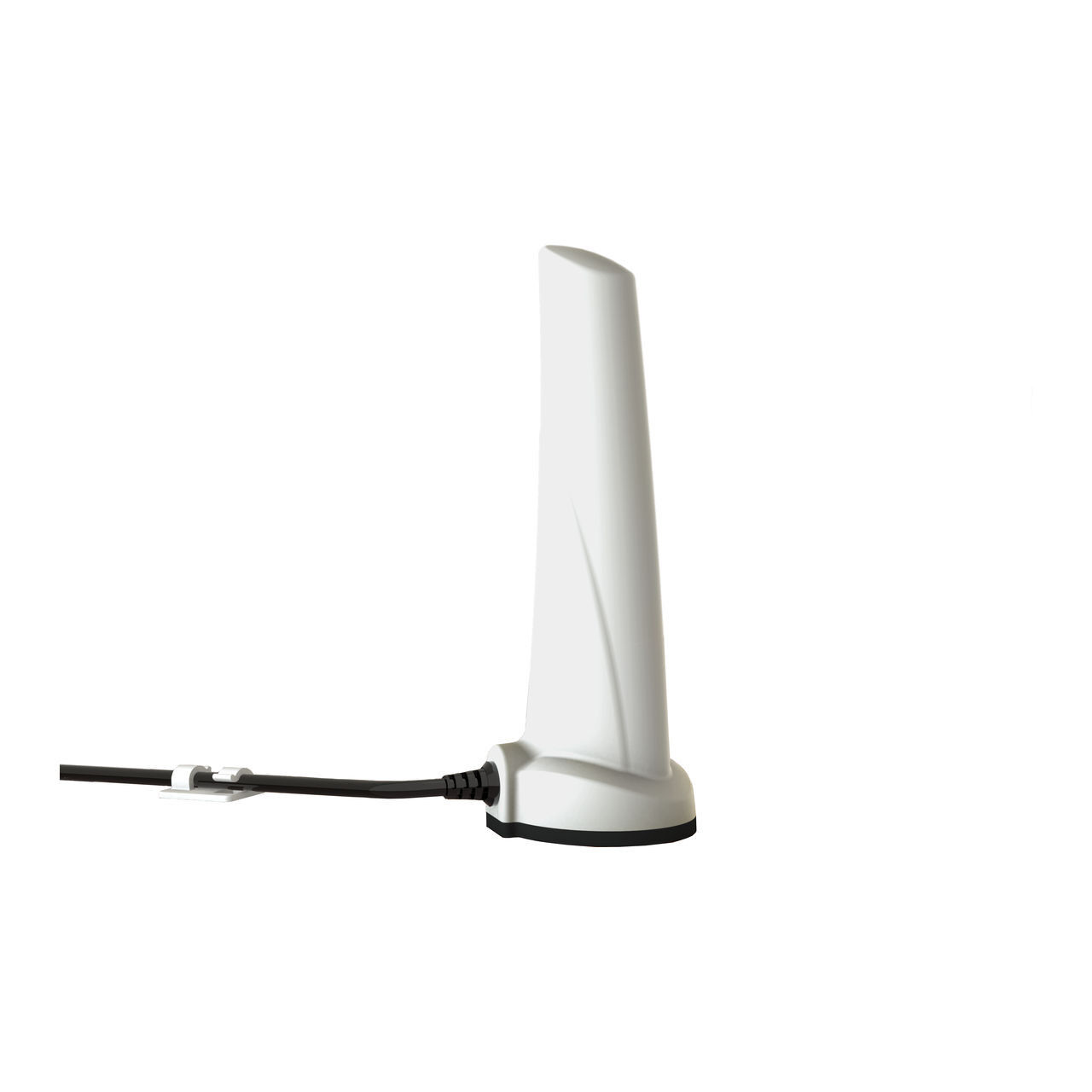

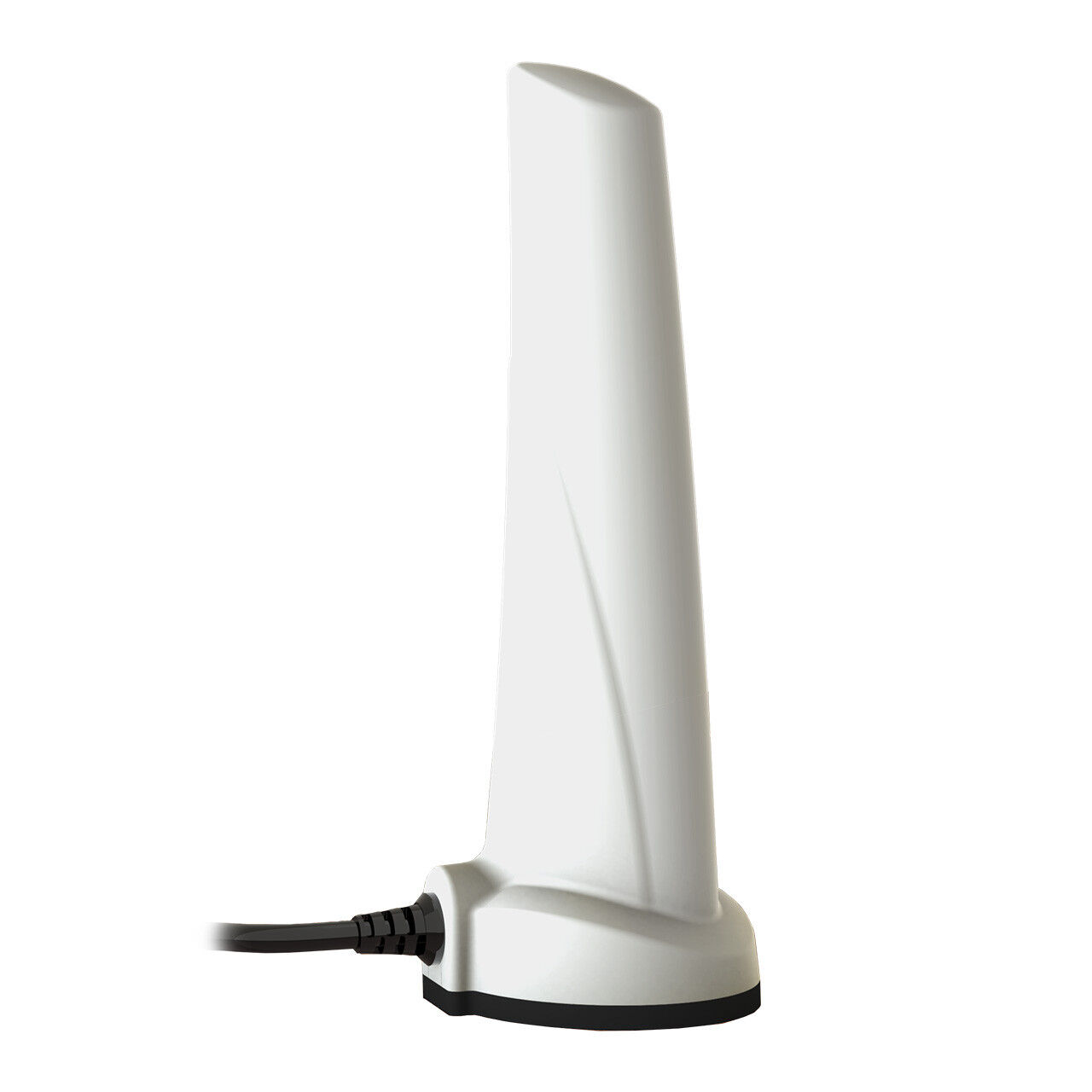

The Poynting Omni-280 Omni-Directional, Wideband, LTE/5G ready Antenna; 698-3800 MHz, 4 dBi provides an innovative solution for the signal enhancement of 4G/3G and 2G networks. It is a unique magnetic, wall- or pole-mountable, single polarized, full LTE band antenna that incorporates an ultra wide band element in a single housing. This antenna is a cost effective solution for enhancing signal reception and throughput.

Features:

  • Medium gain omni-directional antenna
  • Wideband - covers wide frequency band.
  • Magnetic, wall or pole mountable
  • Lightweight
  • Increase system transmission reliability

Applications:

  • M2M applications where machines and measurement devices need to be connected for real time monitoring and information transfer
  • Utilities for power and water metering
  • Security industry where cameras and other security equipment needs to be monitored
  • Retail point of sale equipment
  • Areas with poor data signal reception (Indoor and Outdoor)
Specification Description
Industry (Application) IoT M2M & Smart Meter Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz
Frequency Range 617 – 3800 MHz
Gain 4dBi
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Wi-Fi Standard Wi-Fi 3 (802.11g)
Mounting Type Pole Mount, Magnetic Mount, Surface/Desk Mount, Wall Mount
Connectors SMA, RA-SMA
MIMO SISO
Polarisation Linear Polarised
Environmental IP65
Enclosure Name Blade
Enclosure Size Small
LTE Ports 1
SKU POY.OMNI-280-02-V1
Model # A-OMNI-0280-02-V1
Brand Poynting
Shipping Weight 0.1800kg
Shipping Width 0.250m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001875000m3
