The OMNI-297 wideband cellular antenna operates from 617 to 3800 MHz, covering all the contemporary 5G and LTE frequency bands with an additional 2db gain. Constant gain across the entire frequency range improves the LTE performance features, such as multi carrier aggregation (CA). The ideal operation for the antenna will be for fixed installations of any cellular bands. It is also ideal for machine to machine (M2M) and internet of things (IoT) applications that communicate through the GSM networks (GPRS/EDGE/3G/HSPA/LTE).

Features:

  • Suitable for all 5G networks up to 3800 MHz
  • Medium gain omni-directional antenna

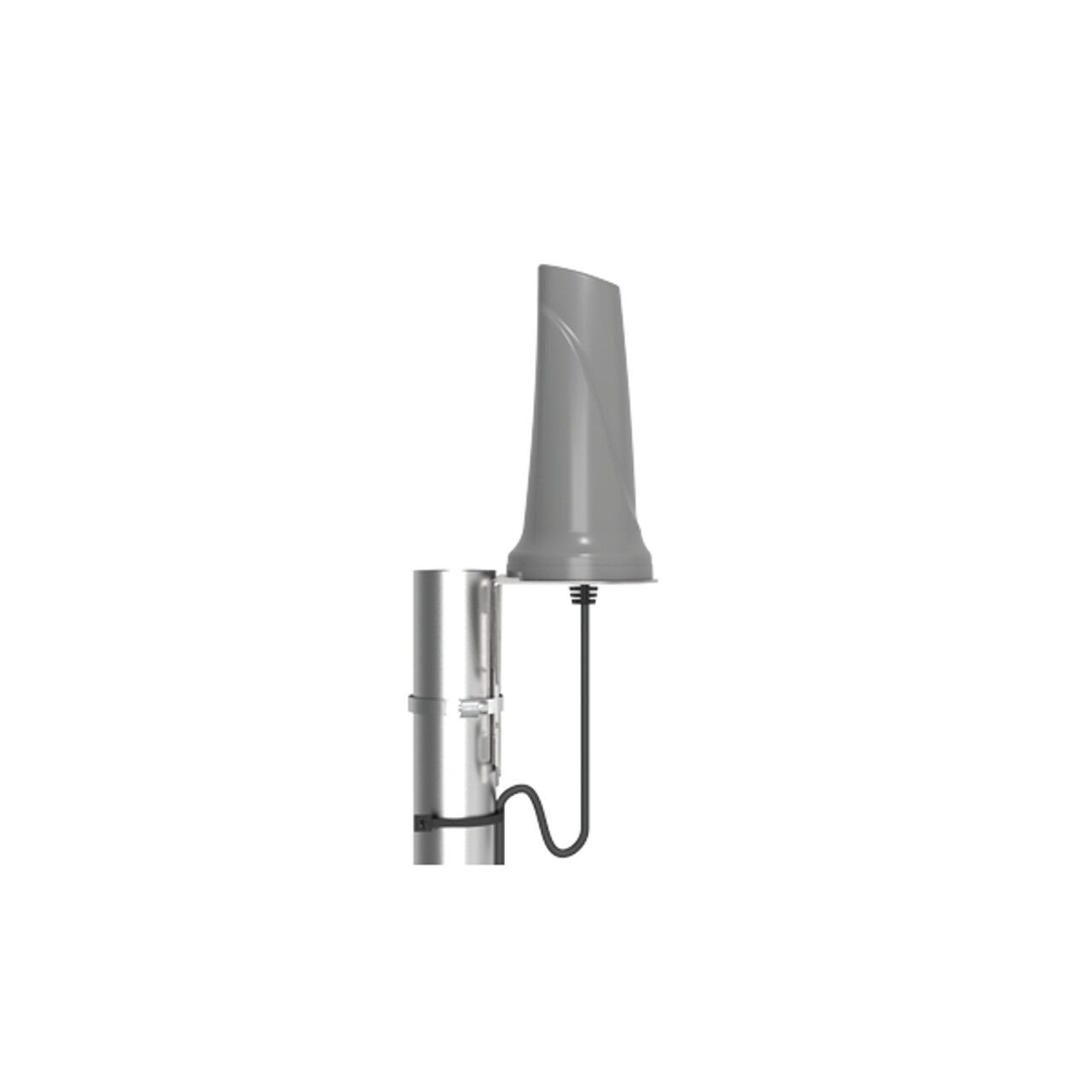

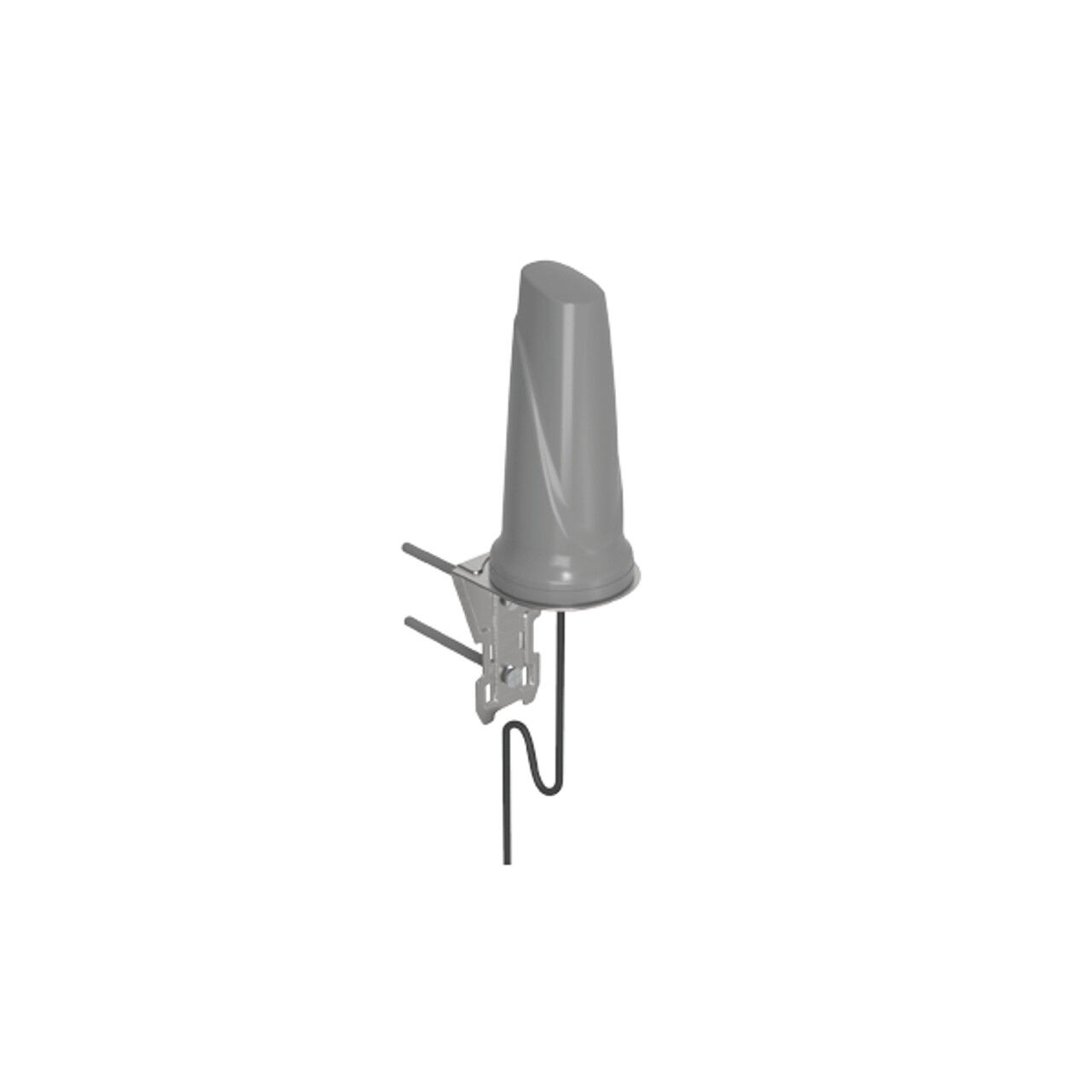

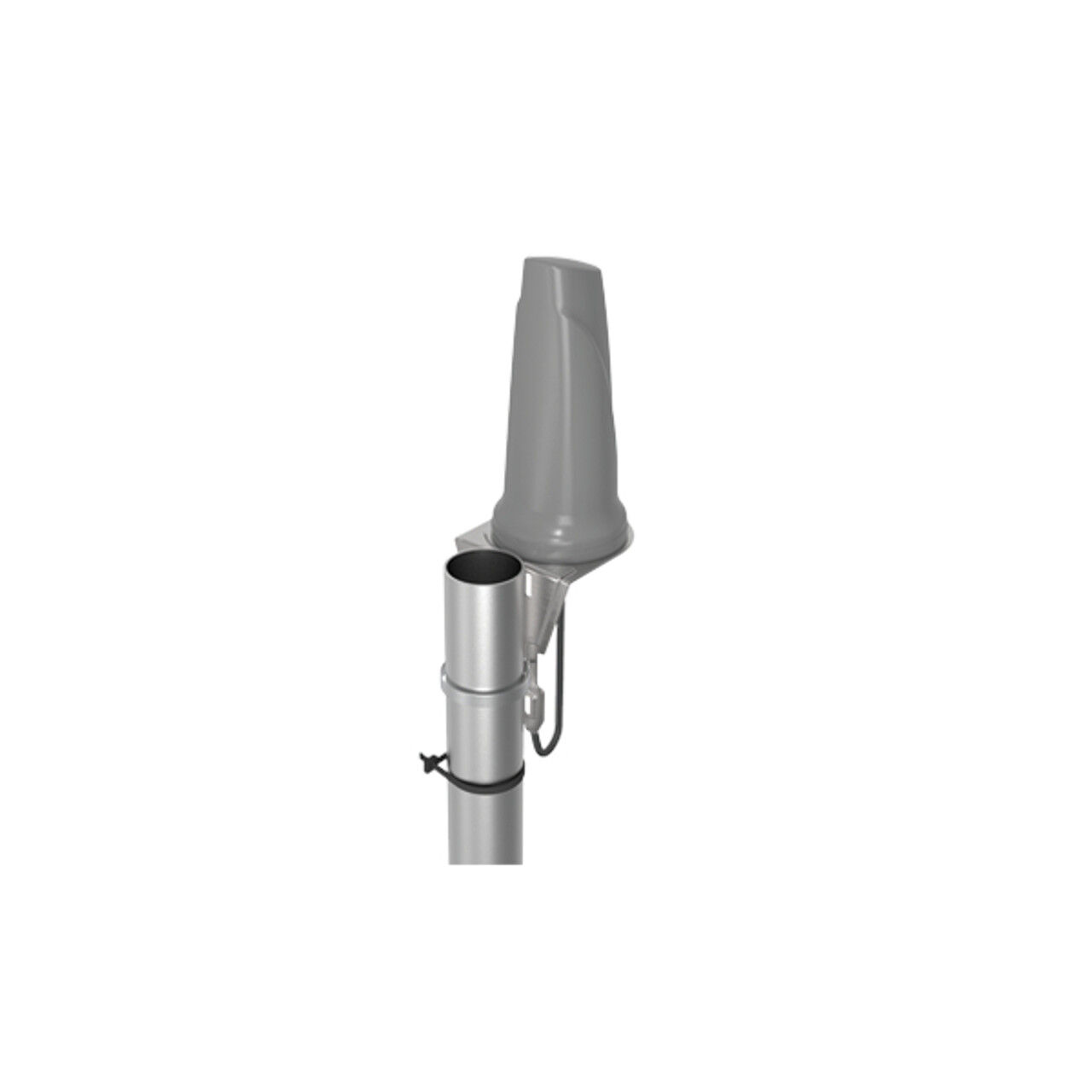

  • Wall or pole mountable for easy installation
  • Vandal and dust ingress protected
  • Aesthetically pleasing

Application Areas:

  • Machine to machine (M2M) and Internet of things (IoT)
  • Poor data signal reception (Indoor or Outdoor)
  • Improves slow data transmission connection
  • Increases system transmission reliability
  • High-end industrial grade router applications
  • Improves reception for mobile offices
Specification Description
Industry (Application) Commercial & Industrial Antennas, IoT M2M & Smart Meter Antennas, Mining & Tunnelling Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz
Frequency Range 617 – 3800 MHz
Gain 2dBi
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Mounting Type Pole Mount, Wall Mount
Wi-Fi Standard Wi-Fi 3 (802.11g)
Connectors SMA
MIMO SISO
Polarisation Linear Polarised
Environmental IP69K
Enclosure Name POYNTING Rhyno™
Enclosure Size Small
LTE Ports 1
SKU POY.OMNI-297-V1-01
Model # A-OMNI-0297-V1-01
Brand Poynting
Shipping Weight 0.5300kg
Shipping Width 0.240m
Shipping Height 0.090m
Shipping Length 0.100m
Shipping Cubic 0.002160000m3
