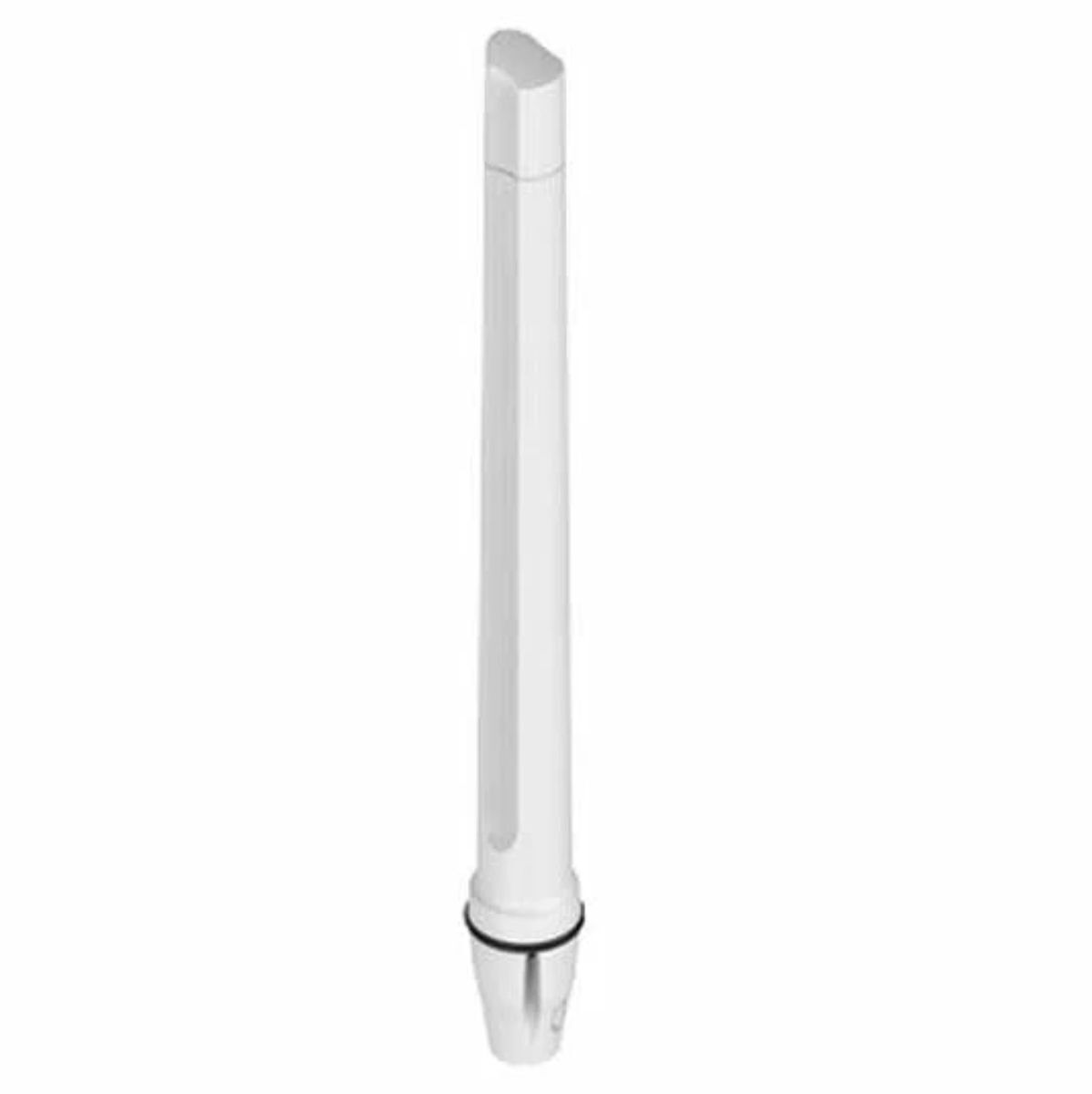

The Poynting OMNI-414 Omni-Directional, 4×4 MIMO Marine & Coastal 5G/LTE Antenna; 617 – 3800 MHz, 4dBi, 2m SMA/m is an ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellently balanced gain across all frequencies from 617 to 3800 MHz.

This antenna also offers 4×4 MIMO capability from its vertically separated radiating elements, all in the same single radome. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-414 a true omnidirectional 4×4 MIMO antenna, suitable for marine and coastal applications. The antenna also comes with an IP68 protection rating against dust and water ingress, making it ideal for most severe storms at sea. The radome is also fully saltwater protected so that it can be used in highly corrosive environments, thanks to the UV-stable ASA radome material.

The OMNI-414 guarantees signal reception almost everywhere and is usable in all parts of the world. The ultra-wideband performance makes the antenna future-proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use.

FEATURES:

  • 4×4 MIMO capable of improved performance
  • Wideband omnidirectional antenna (617 – 3800 MHz)
  • Includes Band 71 (617 to 698 MHz) and 3.5 GHz 5G band
  • Robust and weather-resistant enclosure with an IP68 rating

APPLICATION AREAS:

  • Marine applications: Yachts / Boats / Ferries
  • Enhanced LTE/4G and 5G reception
  • Increase system transmission reliability
  • High-end industrial grade router applications
  • Industrial and commercial LTE/5G deployment
  • Agricultural and farming LTE/5G data distribution
SKU POY.OMNI-414
Model # OMNI-414
Brand Poynting
Shipping Weight 1.8000kg
Shipping Width 0.700m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.010500000m3
Unit Of Measure ea
