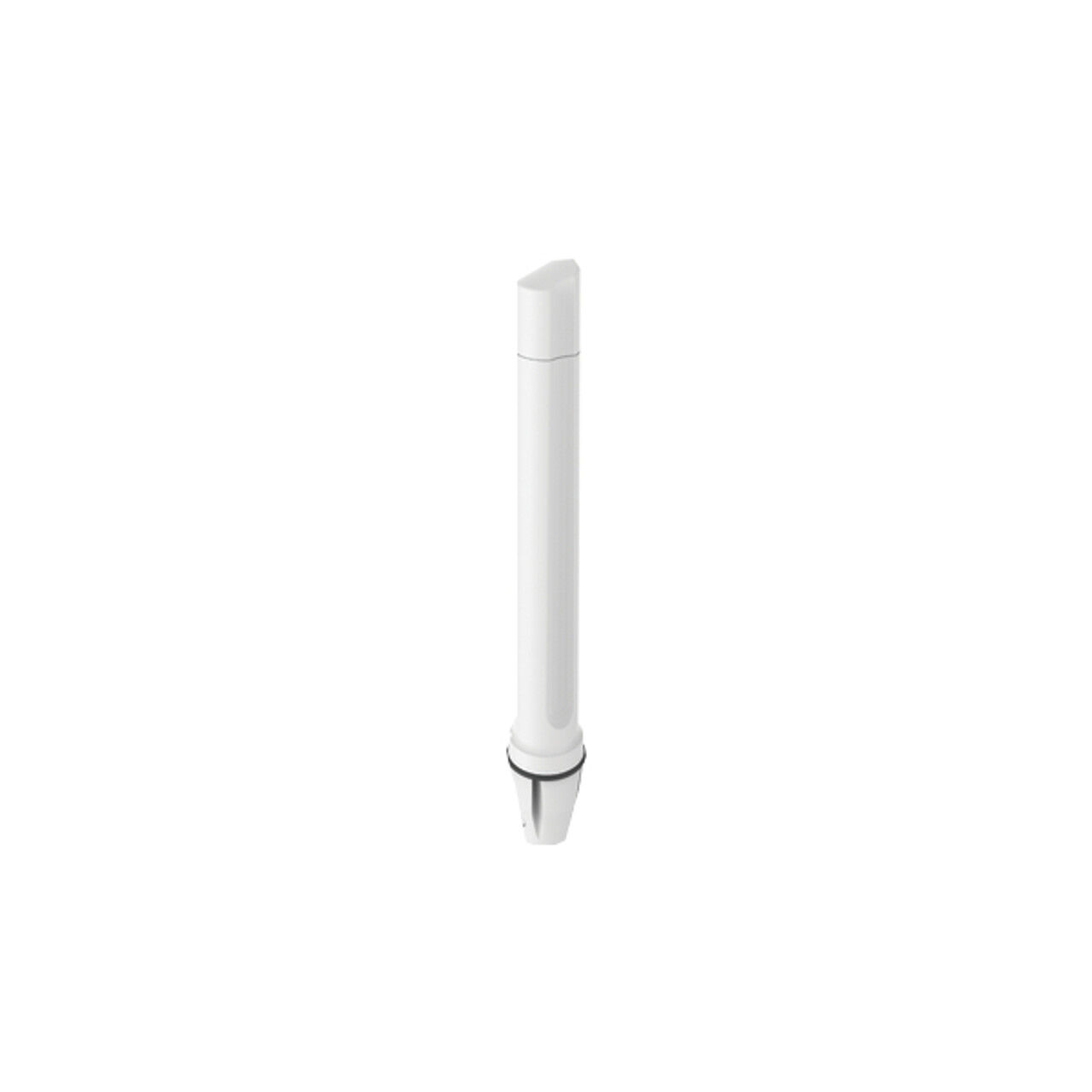

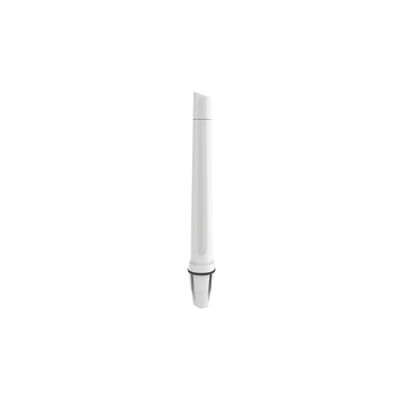

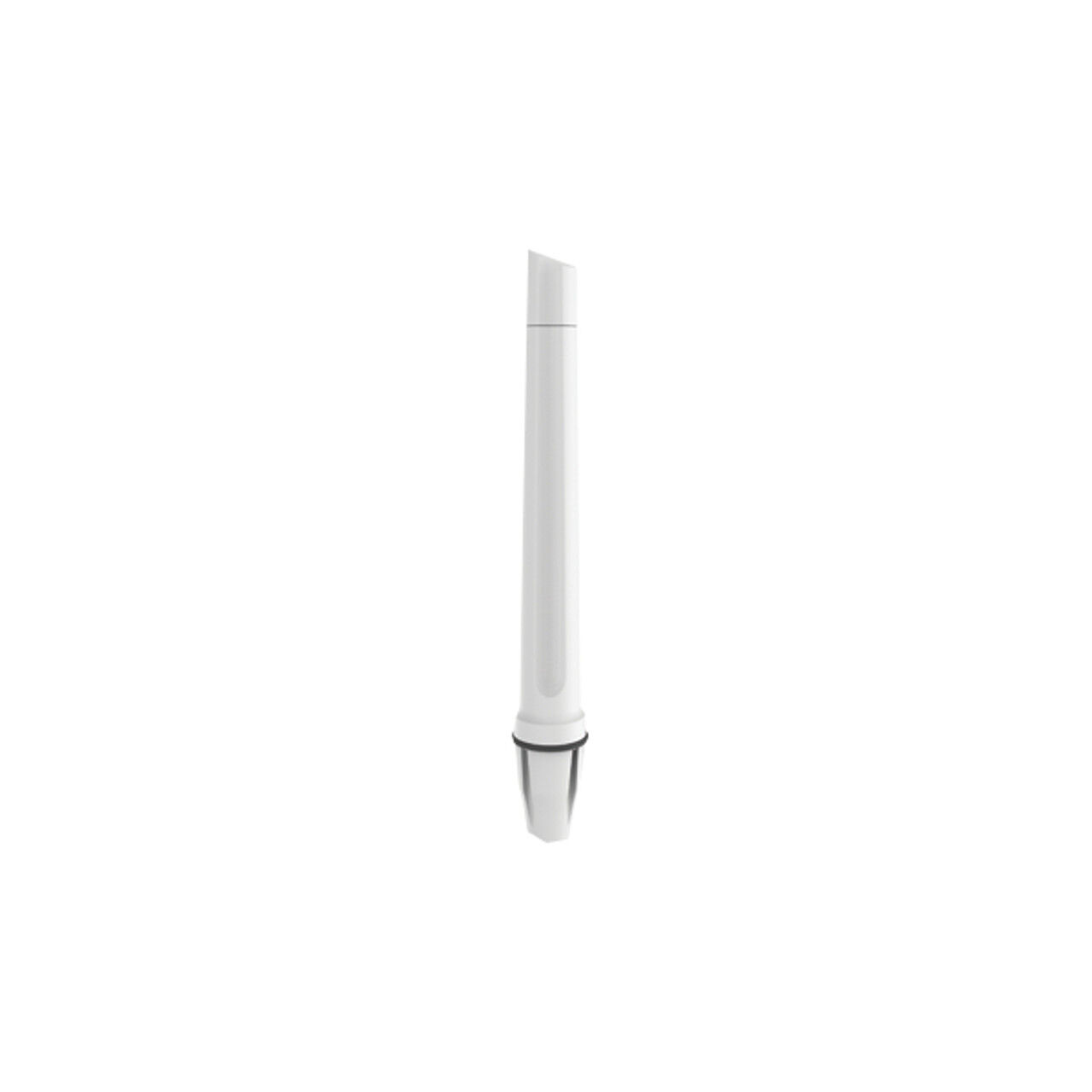

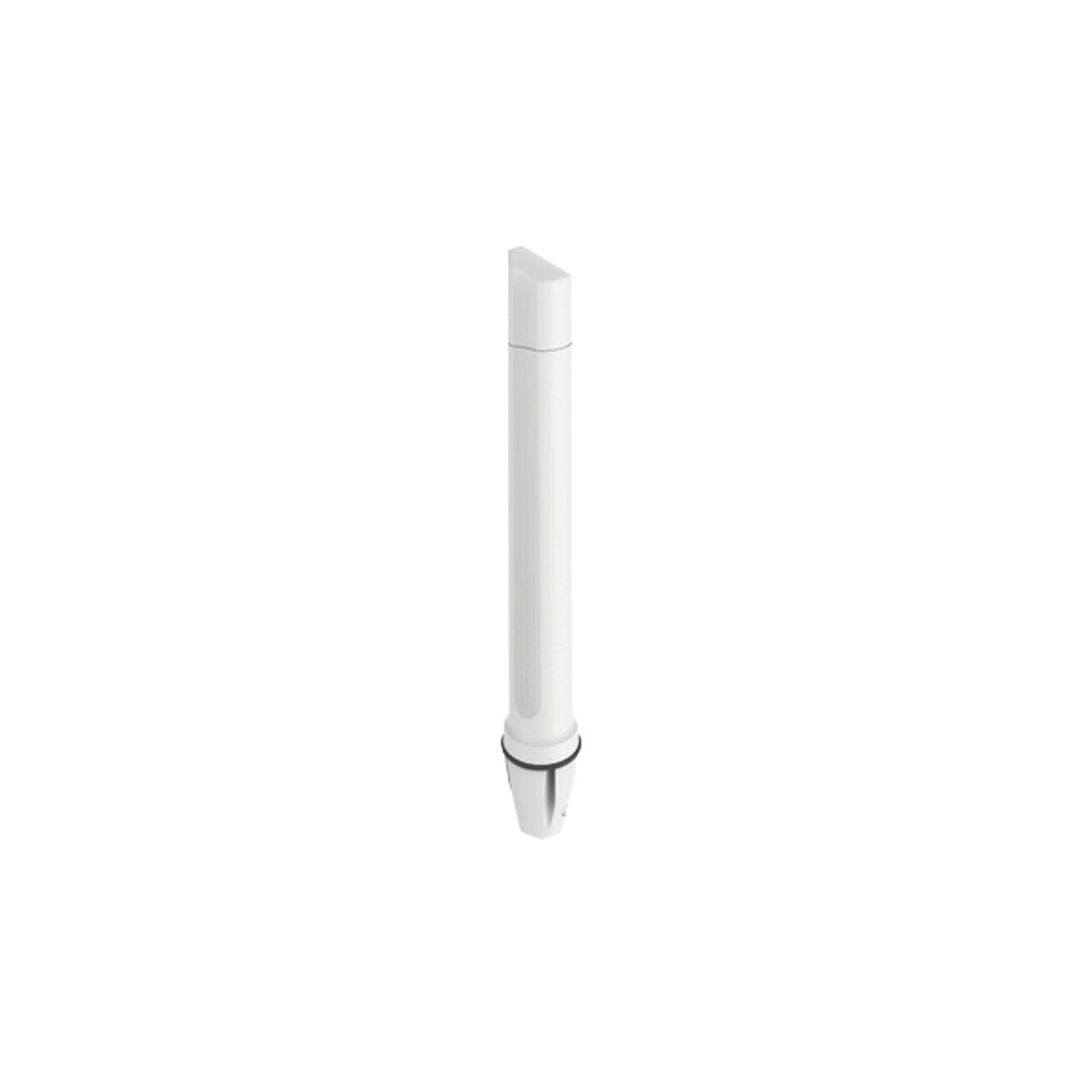

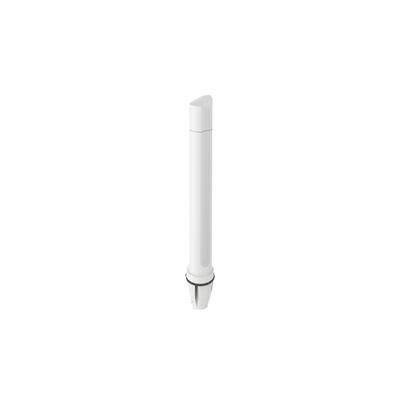

The OMNI-496 is designed to provide enhanced Wi-Fi performance and flexibility, capable of connecting to any Wi-Fi access point, from older technologies to the latest 802.11ax enabled devices. Its dual-band functionality ensures superior marine connectivity, covering 2400-7200 MHz with a high gain of 10dBi. Perfect for marine and coastal applications, it's robust with an IP68 rating, ensuring reliable performance in harsh environmental conditions.

Features:

  • Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz
  • Supports Wi-Fi/Wi-Fi6e/Wi-Fi7, 5G 3.3 – 4.2 GHz frequencies with a max gain of 8 dBi
  • Compliant with IEEE 802.11ac/ax/be/b/g/n wireless standards
  • Easy mounting with feed through 1-inch marine standard mount
  • Robust and all-weather proof (IP 68)
  • Various 316 stainless steel mounting brackets available optionally
  • UV and saltwater protected against tempestuous weather conditions
Specification Description
Industry (Application) Marine & Coastal Antennas
Technology Cellular (CBRS/5G), Wi-Fi
Frequency Range 2400 – 7200 MHz
Frequency Band 2400-2500MHz, 3300-4200MHz, 4900-7200MHz
5G Bands n48, n77, n78
Wi-Fi Standard Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Gain 10dBi
Directionality Omni-Directional
Mounting Type Pole Mount, Marine Mount, Wall Mount
Connectors N-Type
MIMO SISO
Polarisation Linear Polarised
Environmental IP68, Marine Grade, Salt Spray Protected
Enclosure Name Seahorse
Enclosure Size Medium
Wi-Fi Ports 1
SKU POY.OMNI-496-V1-01
Model # A-OMNI-0496-V1-01
Brand Poynting
Shipping Weight 1.2500kg
Shipping Width 0.580m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.005800000m3
