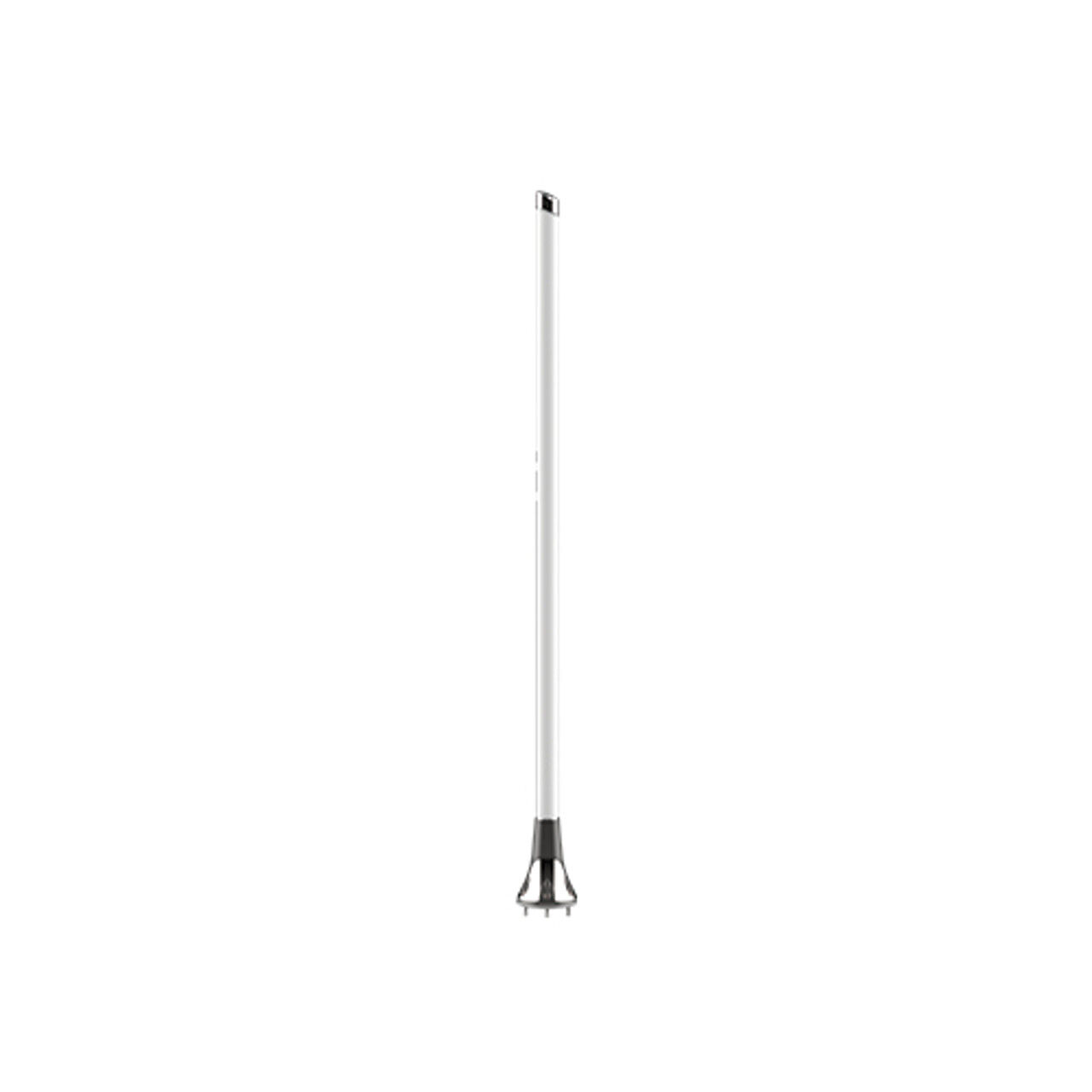

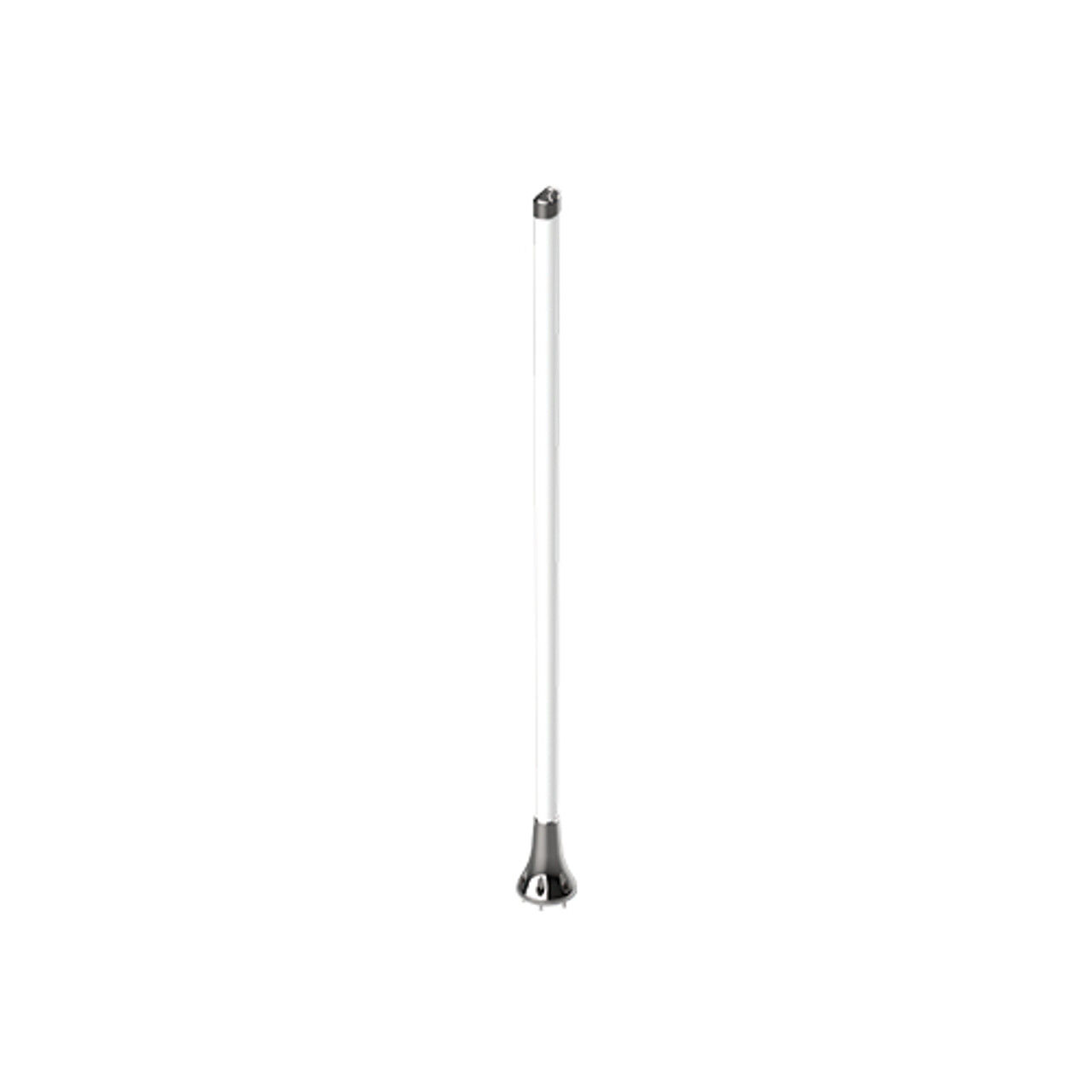

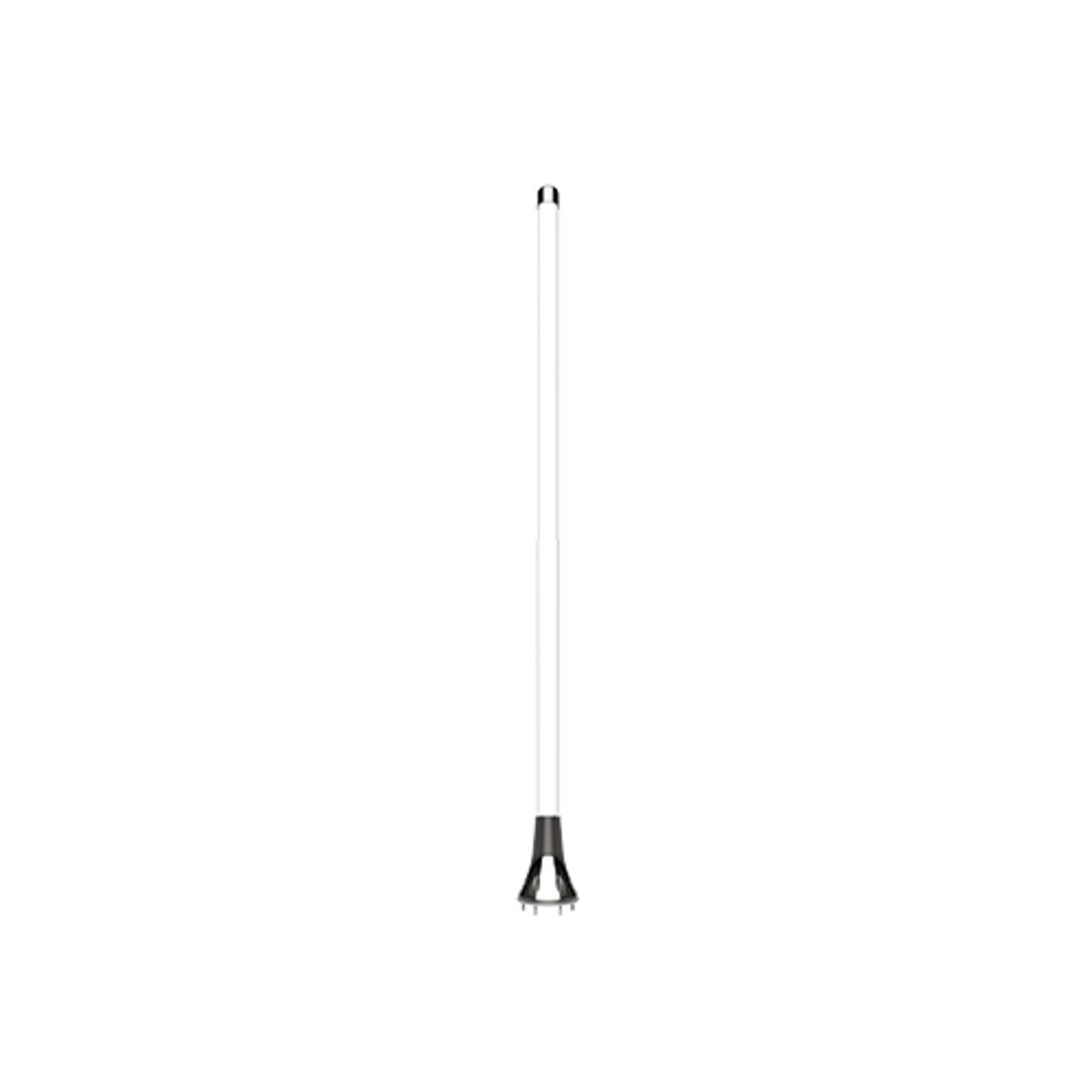

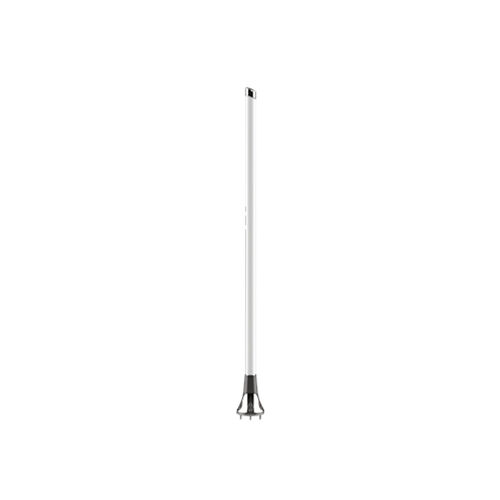

The OMNI-902 is a high gain, ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with balanced gain across all frequencies from 617 to 4200 MHz. The antenna offers 2x2 MIMO capability from its vertically separated radiating elements, all in the same single radome using two high gain omni-directional antennas, ensuring superior pattern control over the entire frequency range. This antenna comes with an IP68 protection rating against dust and water ingress, making it ideal for most severe storms at sea. The OMNI-902 guarantees signal reception almost everywhere and is usable in all part of the world. The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 4200 MHz for inland use

Specification Description
Industry (Application) Marine & Coastal Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 3800-4200MHz
Frequency Range 617 – 4200 MHz
Gain 8dBi
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Mounting Type Marine Mount
Wi-Fi Standard Wi-Fi 3 (802.11g)
Connectors N-Type
MIMO 2×2
Polarisation Linear Polarised
Environmental IP68, Marine Grade, Salt Spray Protected
Enclosure Name Narwhal
Enclosure Size Large
LTE Ports 2
SKU POY.OMNI-902-V1-02
Model # A-OMNI-0902-V1-02
Brand Poynting
Shipping Weight 0.5300kg
Shipping Width 0.240m
Shipping Height 0.090m
Shipping Length 0.100m
Shipping Cubic 0.002160000m3
