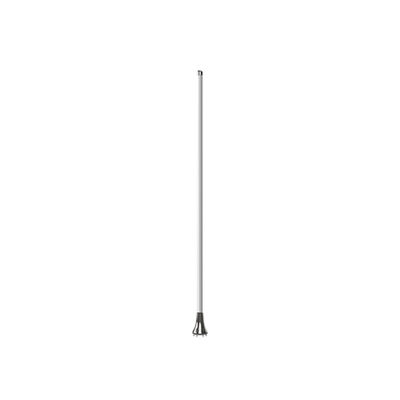

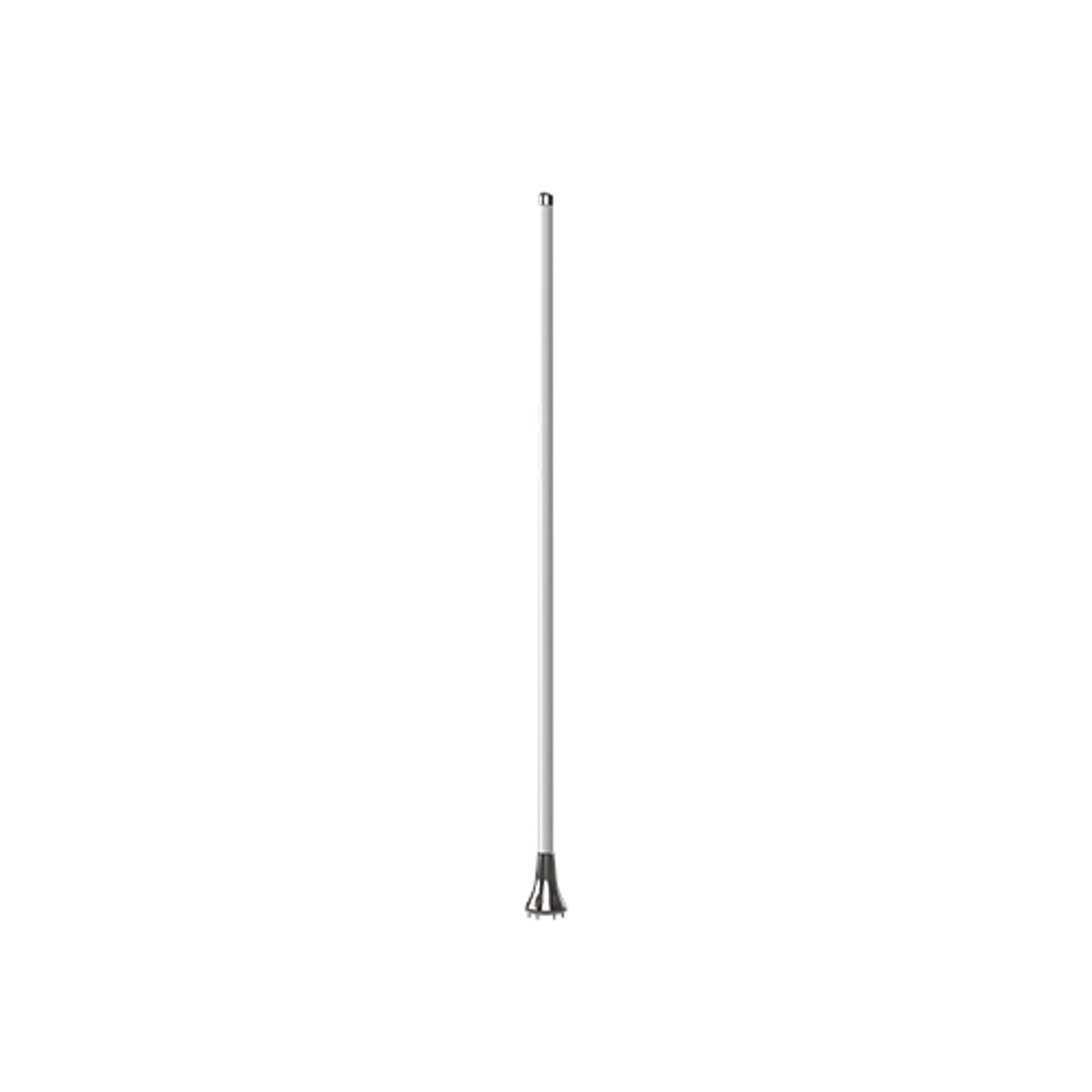

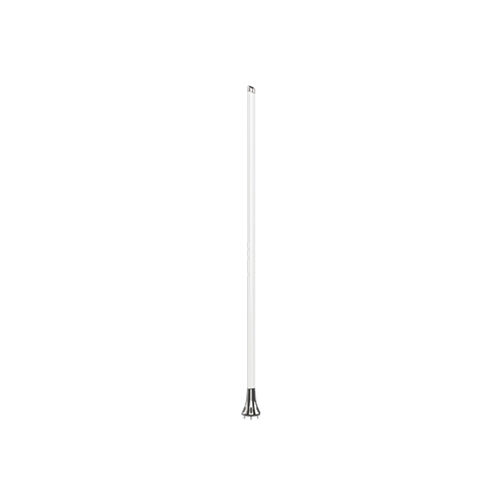

Poynting OMNI-914, Omni-Directional, 4x4 MIMO 4G-5G antenna; 617 to 4200 MHz A-OMNI-0914-V1-01

High-Gain Omni-Directional LTE/5G Antenna with 4x4 MIMO for Reliable Marine Communication

This high-gain omni-directional 4x4 MIMO LTE/5G antenna is designed for marine and coastal applications, offering superior performance with a frequency range of 617-4200 MHz and 8dBi gain. Built to withstand harsh sea conditions, it features IP68 protection, UV resistance, and saltwater protection, ensuring long-lasting durability in challenging environments. Its wide frequency range and robust design make it an ideal choice for reliable, high-quality communication at sea.

Key Features

Omni-Directional High Performance: Delivers excellent signal coverage in all directions, perfect for marine use.
4x4 MIMO Capability: Enhances signal strength and reliability for consistent communication.
Wide Frequency Range: Covers 617-4200 MHz, ensuring compatibility with various LTE/5G cellular networks.
Durable in Harsh Conditions: IP68 rated, dust and water-resistant, ideal for marine environments.
Saltwater and UV Protection: Fiberglass radome material protects against saltwater and UV radiation, extending antenna lifespan.
Optional Stainless Steel Bracket: Available 316 stainless steel mounting bracket for secure installation.

Specification	Description
Industry (Application)	Marine & Coastal Antennas
Technology	Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band	617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 3800-4200MHz
Frequency Range	617 – 4200 MHz
Gain	8dBi
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality	Omni-Directional
LTE/4G Bands	B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Mounting Type	Marine Mount
Wi-Fi Standard	Wi-Fi 3 (802.11g)
Connectors	N-Type
MIMO	4×4
Polarisation	Linear Polarised
Environmental	IP68, Marine Grade, Salt Spray Protected
Enclosure Name	Narwhal
Enclosure Size	Large
LTE Ports	4

SKU	POY.OMNI-0914-V1-01
Model #	A-OMNI-0914-V1-01
Brand	Poynting
Shipping Weight	9.9100kg
Shipping Width	0.210m
Shipping Height	2.510m
Shipping Length	0.380m
Shipping Cubic	0.200298000m3
