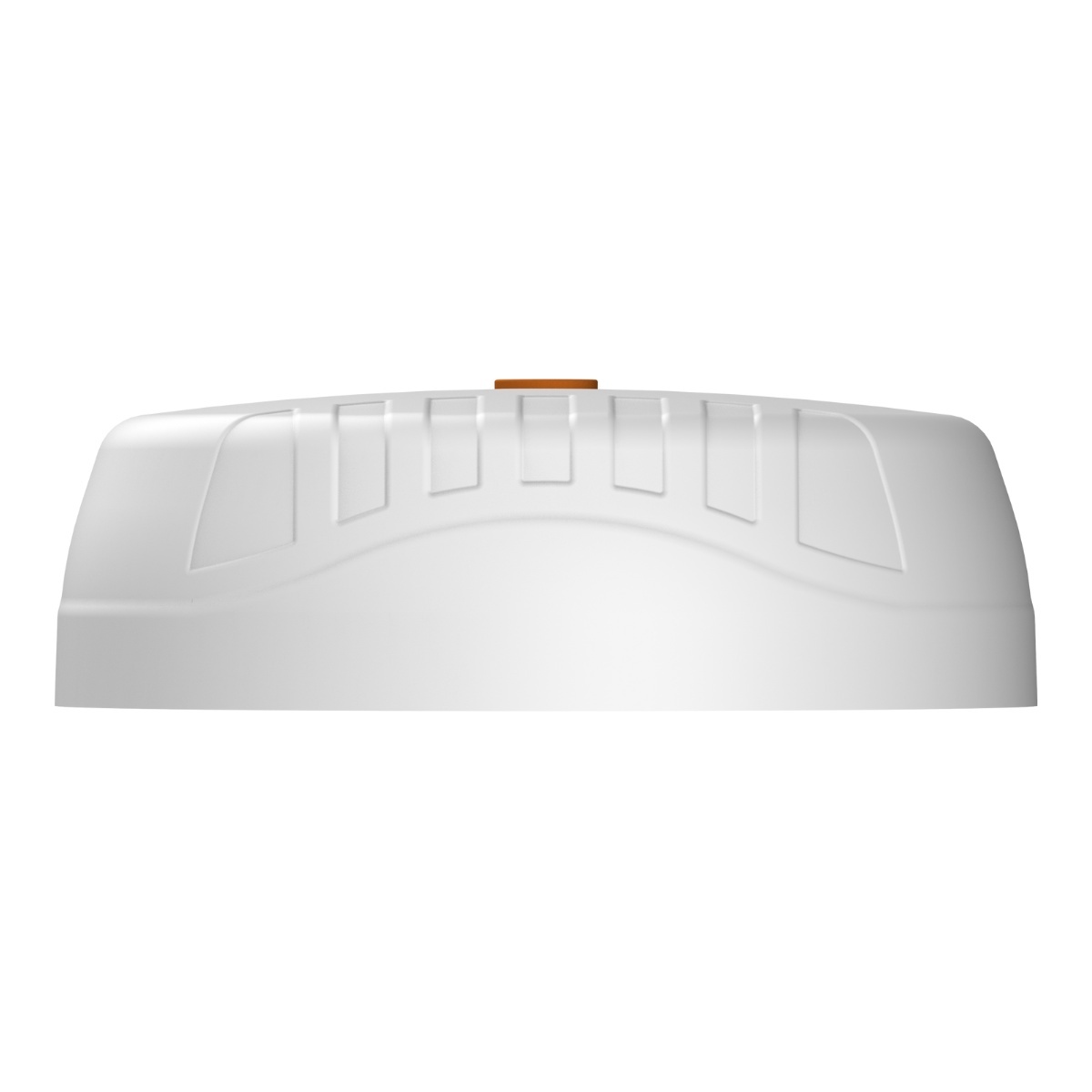

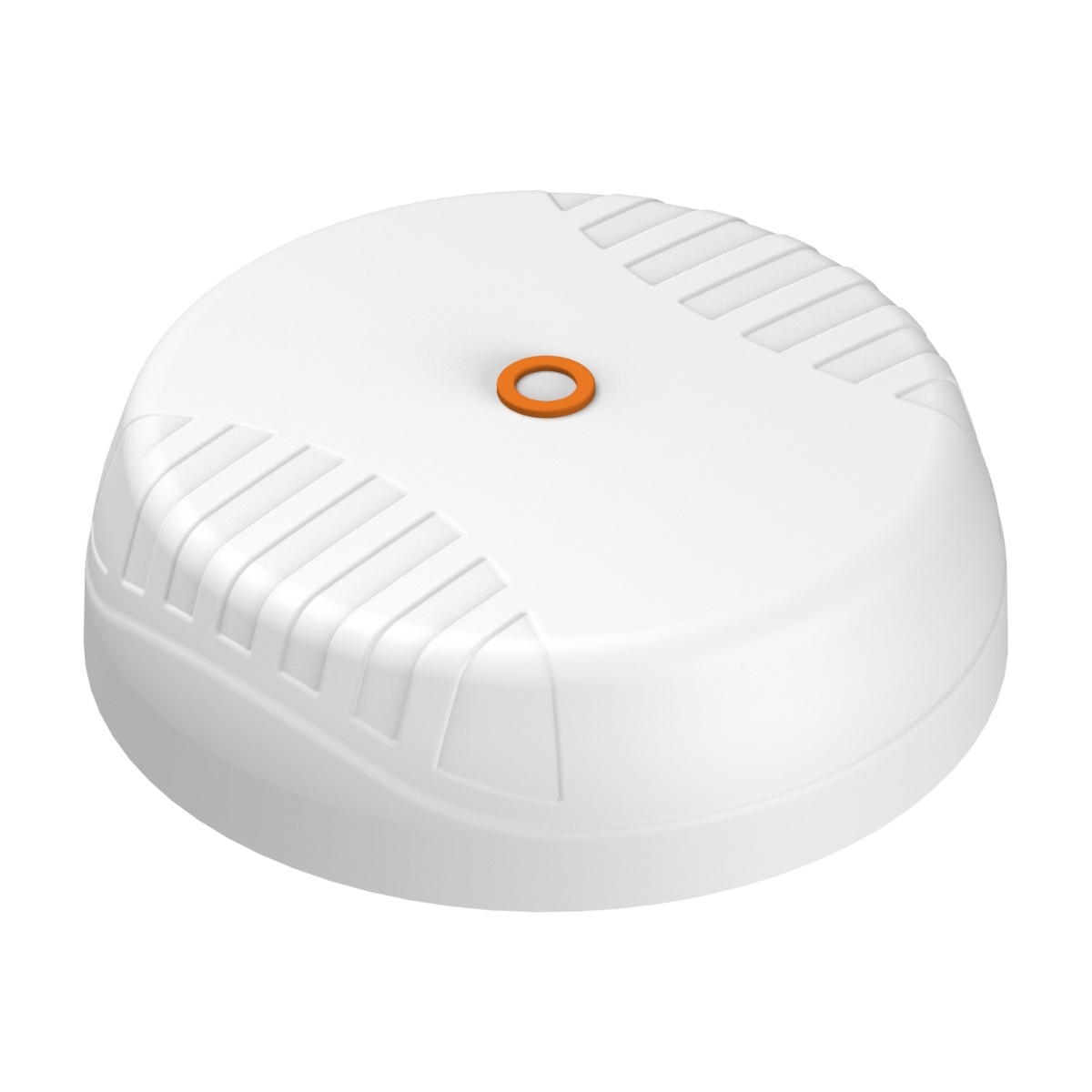

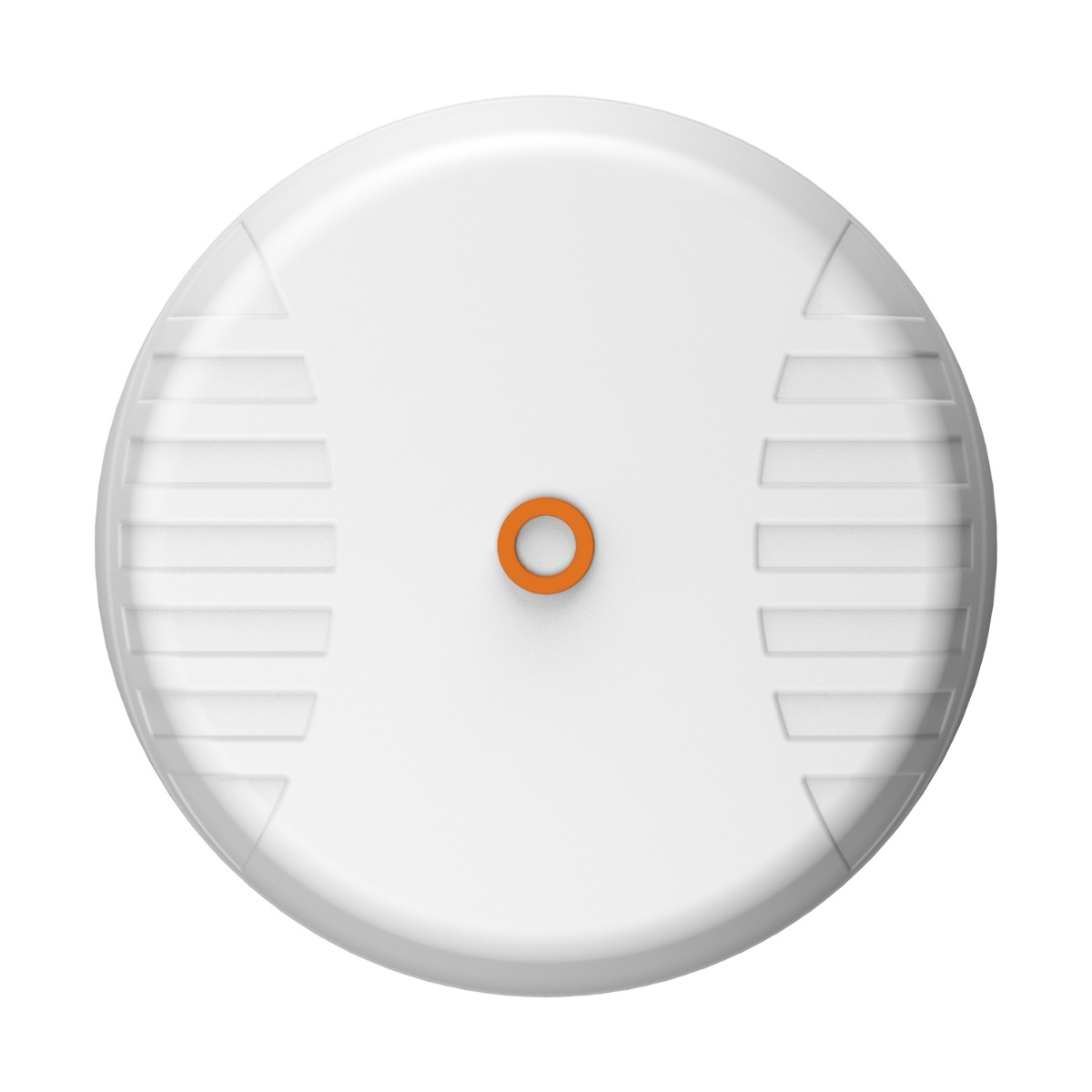

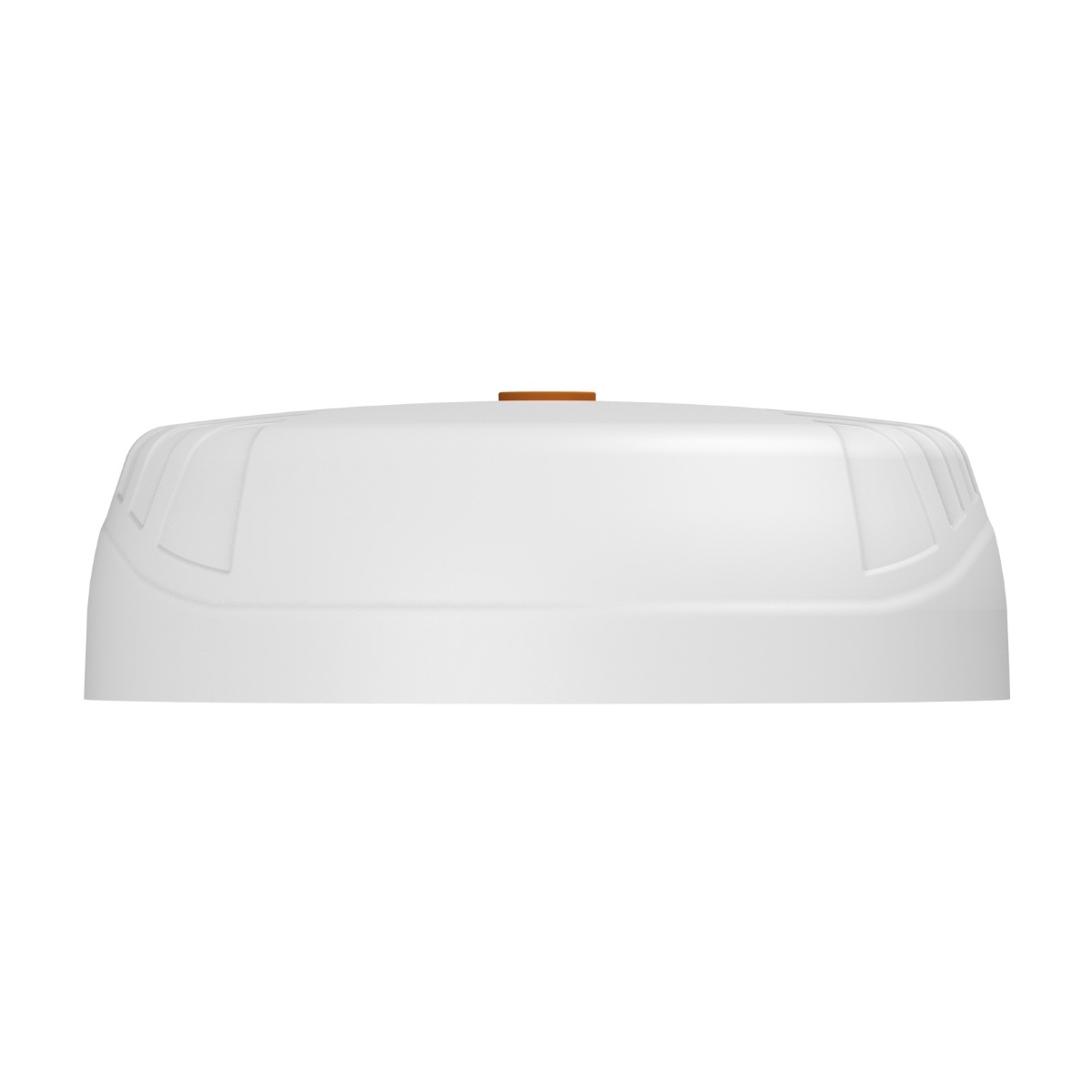

The Poynting SWIRL-4 is an omnidirectional antenna designed to provide exceptional connectivity for both marine and mobility applications. Operating across a wide frequency range of 617 MHz to 6000 MHz, this antenna supports 4x4 MIMO for both 4G/5G cellular and dual-band Wi-Fi, making it an ideal choice for high-performance communication in demanding environments.

Key Features:

• Wide Frequency Range
• MIMO Technology
• Dual-Band Wi-Fi Support
• GNSS Functionality
• High Gain Performance
• Durable and Weatherproof
• Saltwater Protection
• CPE Transformation Capability

Multi-Band Cellular and Wi-Fi Performance

The SWIRL-4 covers multiple frequency bands, ensuring seamless connectivity across 5G/LTE and Wi-Fi. With 4x4 MIMO cellular antennas and 4x4 MIMO Wi-Fi, the antenna delivers fast, reliable data speeds and high throughput in a variety of network conditions. The dual-band Wi-Fi operates at 2.4 GHz and 5.0 to 7.2 GHz, further enhancing its versatility.

Rugged and Durable Design

Built to withstand harsh marine conditions, the SWIRL-4 boasts an IP69K weatherproof rating, UV-stable radome, and saltwater protection. It is also tested to MIL-STD 810G standards for salt spray and IK08 impact resistance, ensuring durability in both maritime and onshore environments. The antenna is designed to operate in extreme temperatures, ranging from -40 °C to +80 °C.

GNSS Capability for Accurate Navigation

In addition to its cellular and Wi-Fi capabilities, the SWIRL-4 integrates a dual-band GNSS antenna supporting both L1 and L5 bands, providing accurate positioning for navigation and location-based services. This makes it particularly suitable for marine vessels and mobile platforms that require reliable GPS data.

High Gain and Optimised Signal Transmission

The SWIRL-4 antenna offers a peak gain of 6 dBi, ensuring enhanced signal strength across its supported frequency ranges. The antenna is designed for optimal signal transmission, with a VSWR of ≤2.5:1, ensuring that the majority of the signal is transmitted efficiently, improving overall performance and data reliability.

Versatile Mounting and Compact Design

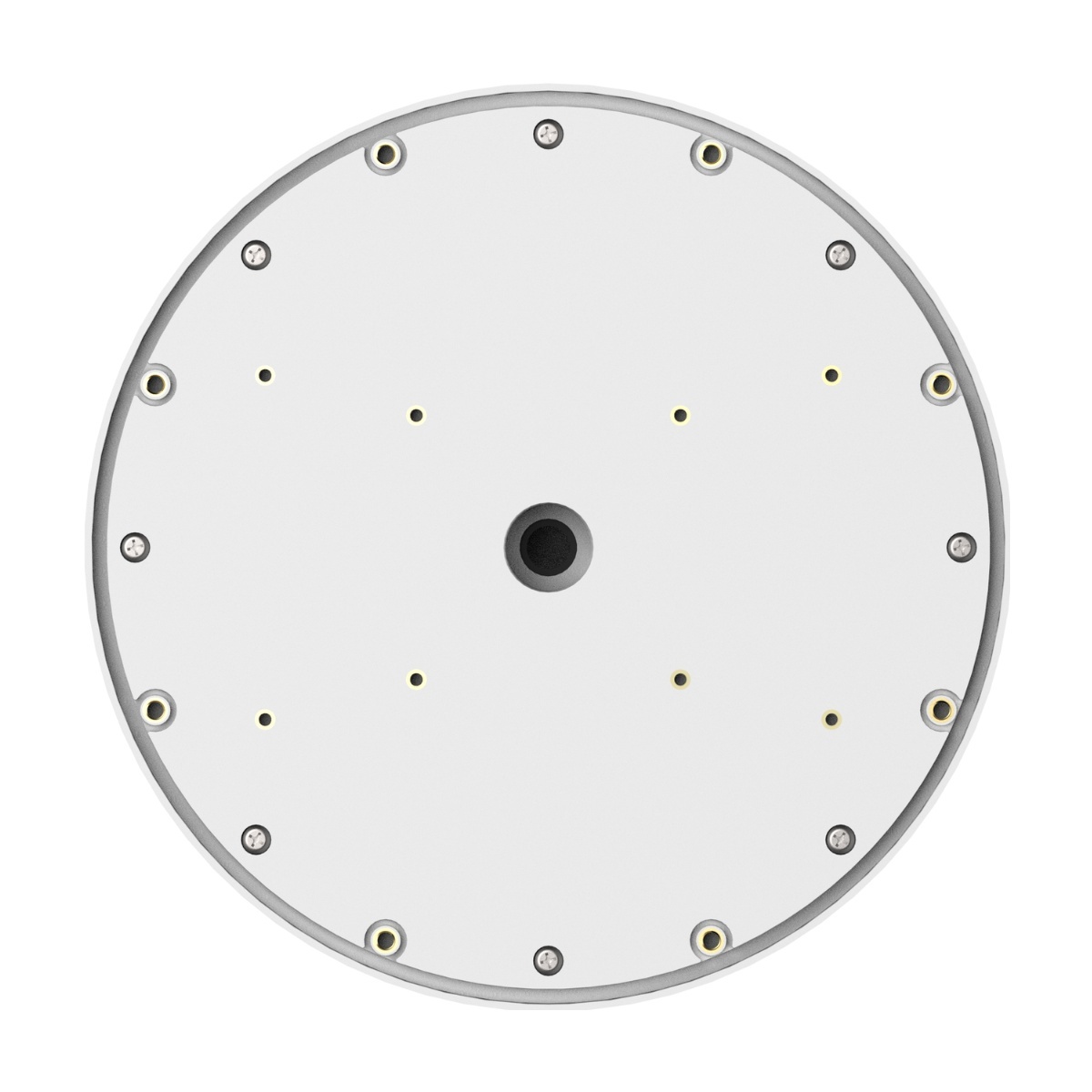

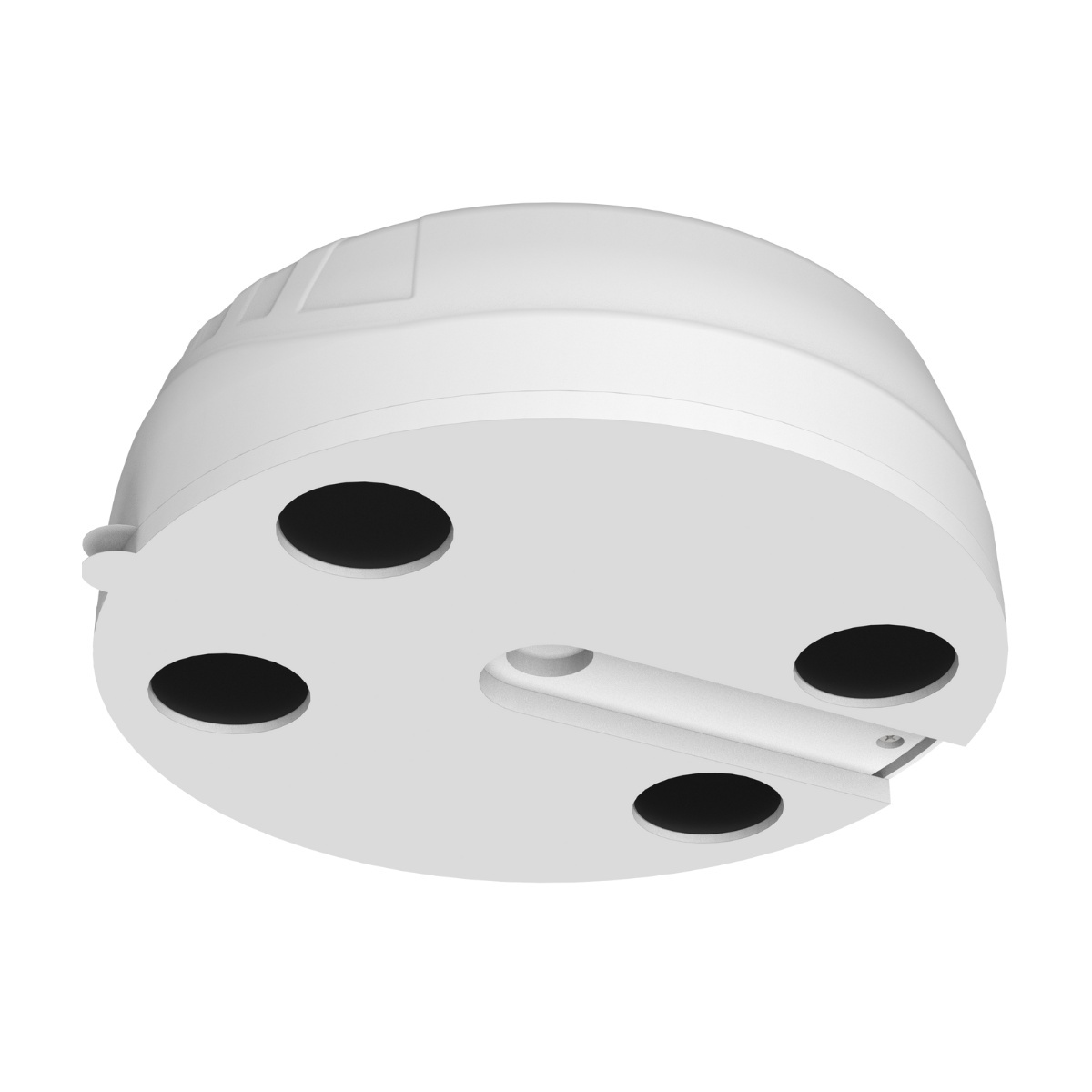

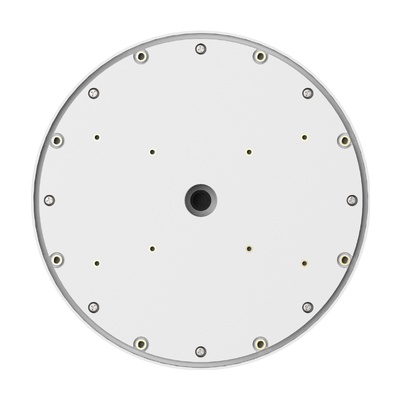

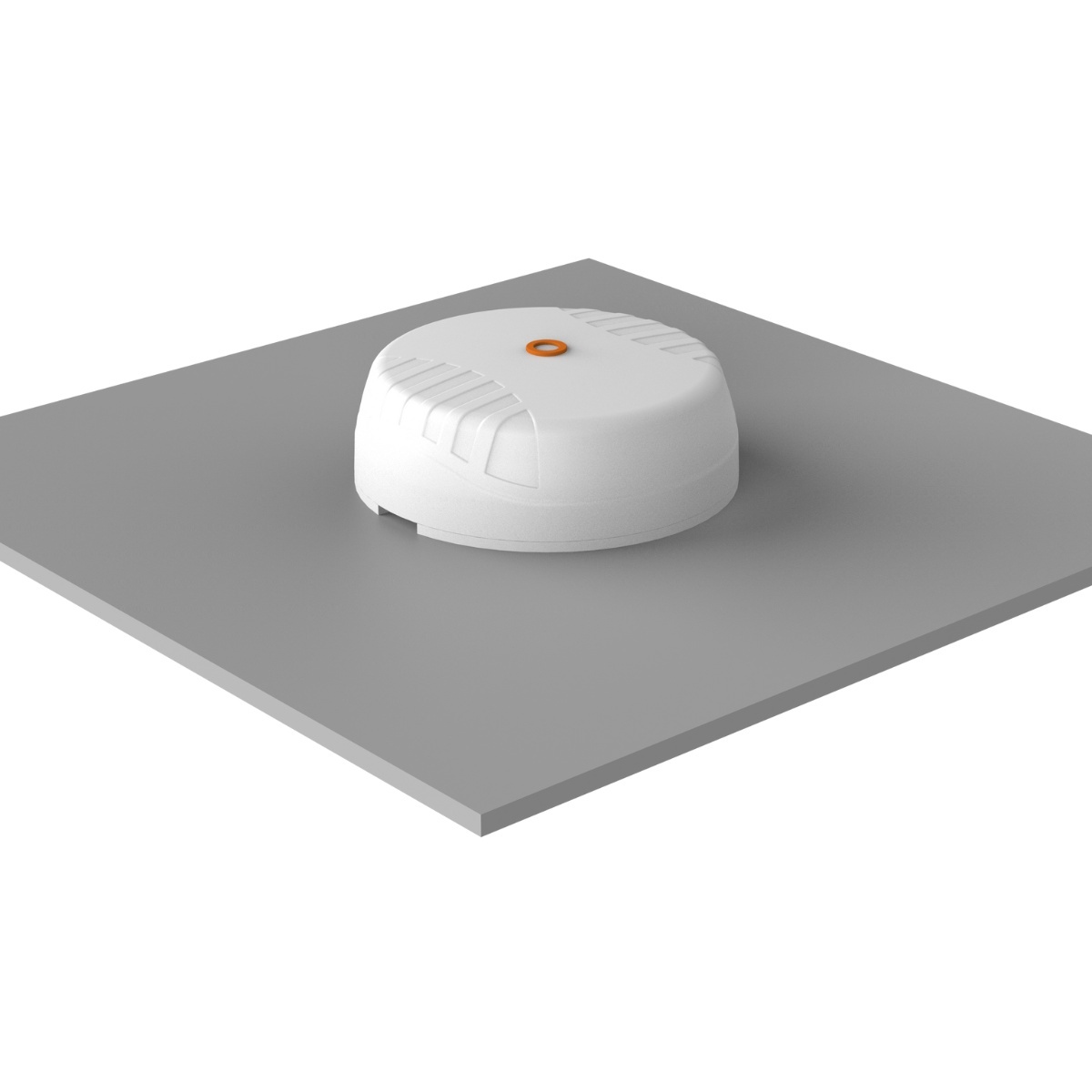

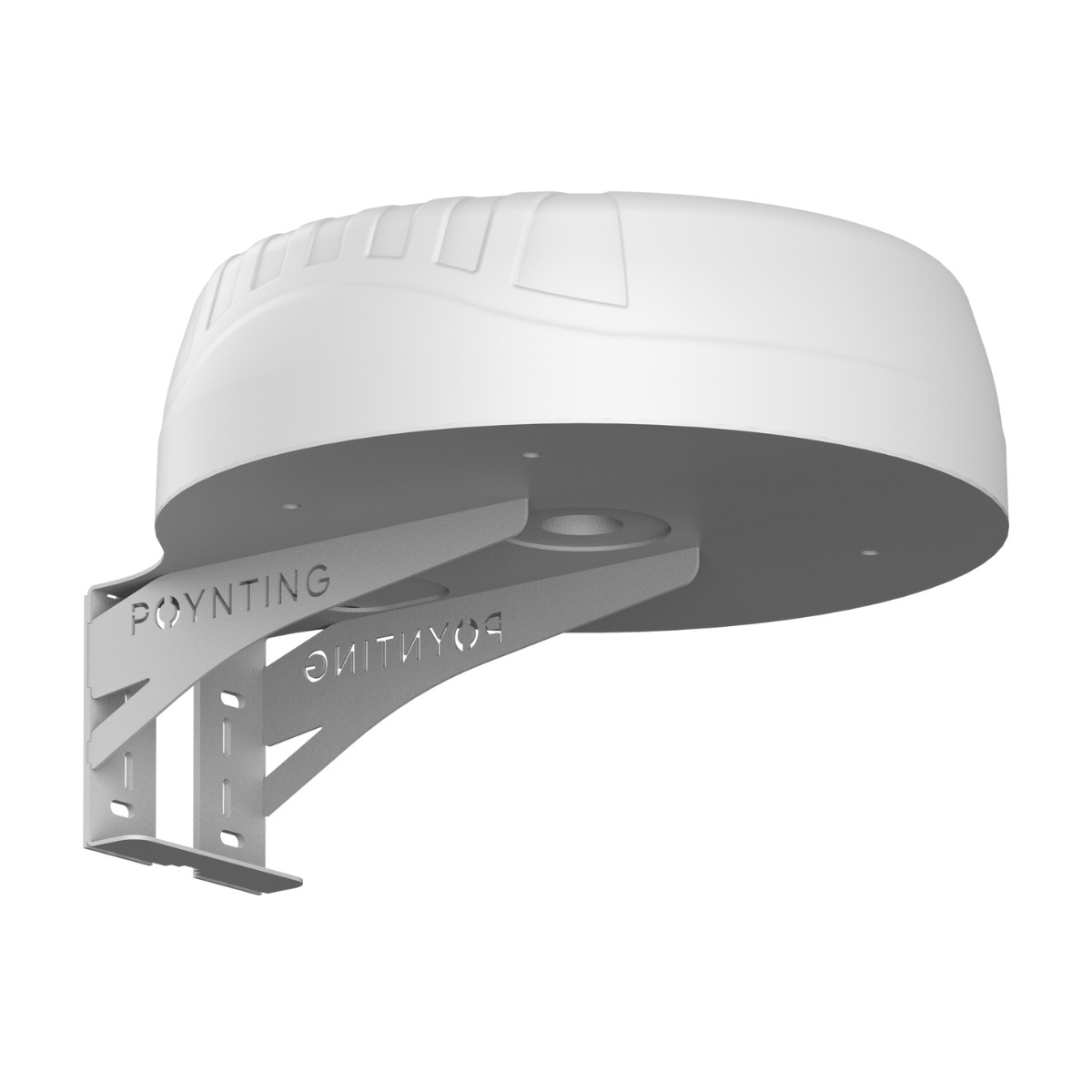

With a compact size of 382 mm in diameter and 127 mm in height, the SWIRL-4 is easy to mount on a wide range of surfaces. Its robust build and surface mount design ensure secure installation in both fixed and mobile environments. The antenna also offers a convenient coaxial cable length of 650 mm, facilitating flexible installation options.

Compliance and Certification

The SWIRL-4 complies with international safety and environmental standards, including CE, RoHS 2011/65/EU, and ISO 9001:2015. This ensures that the antenna meets stringent regulatory requirements, making it a reliable and compliant choice for global applications.
