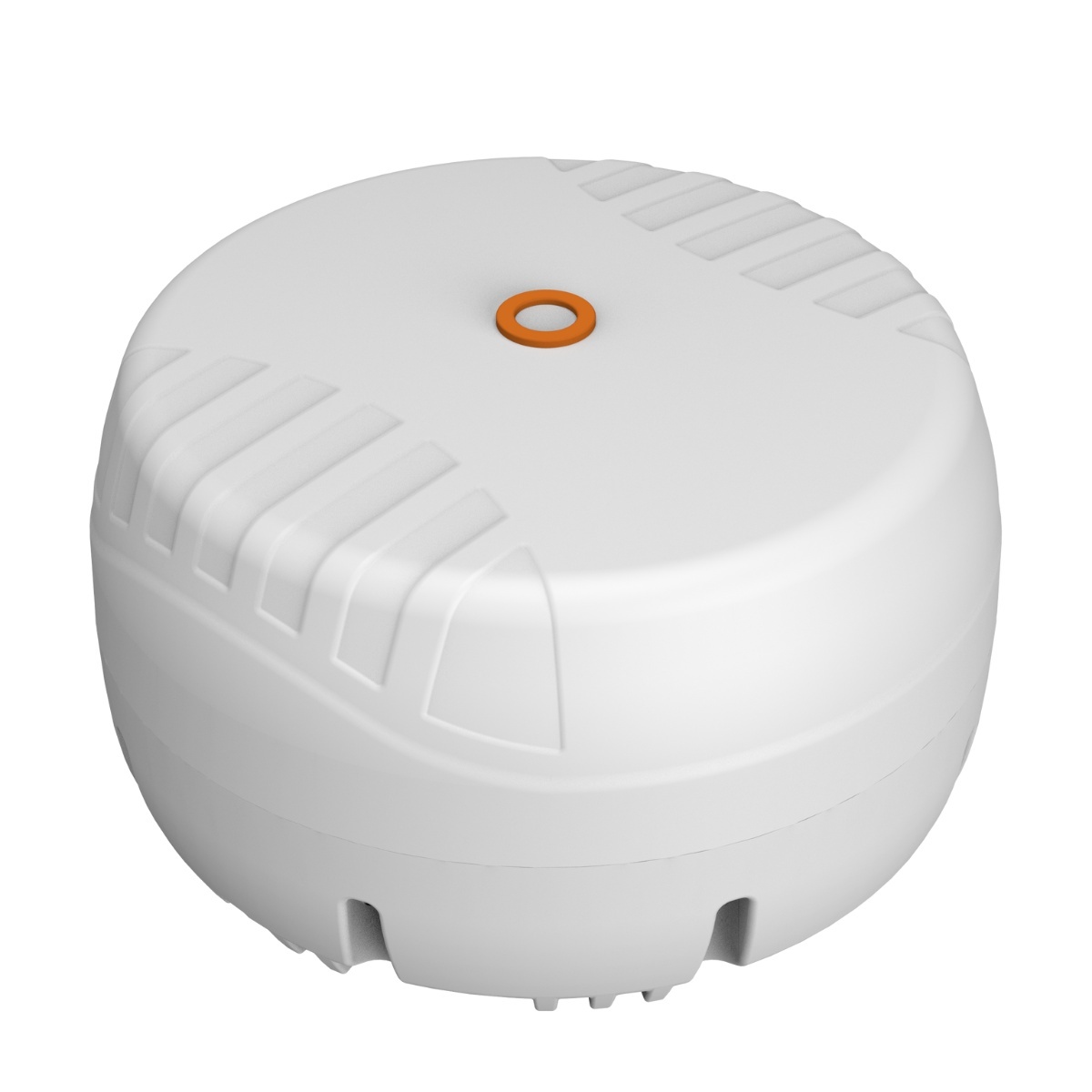

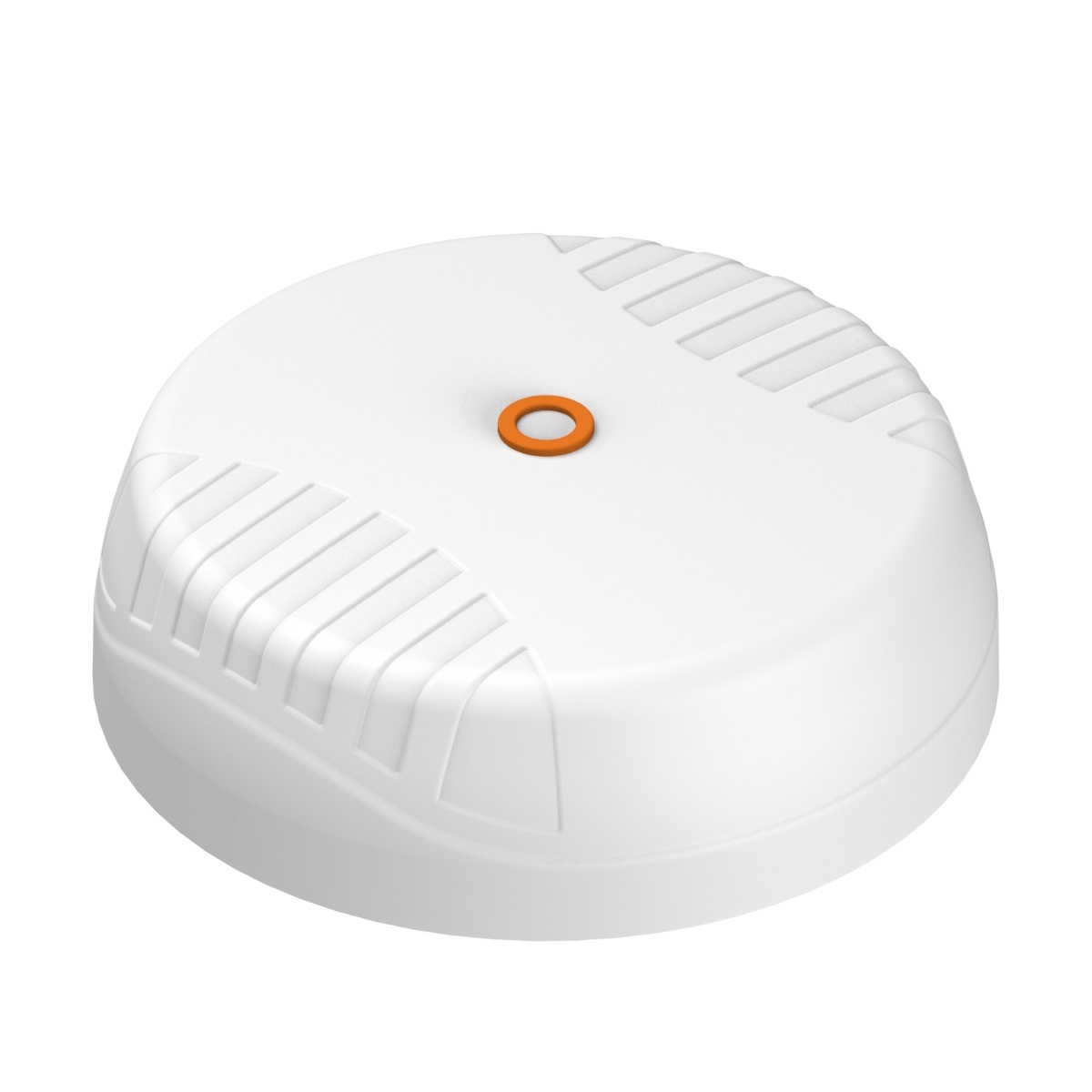

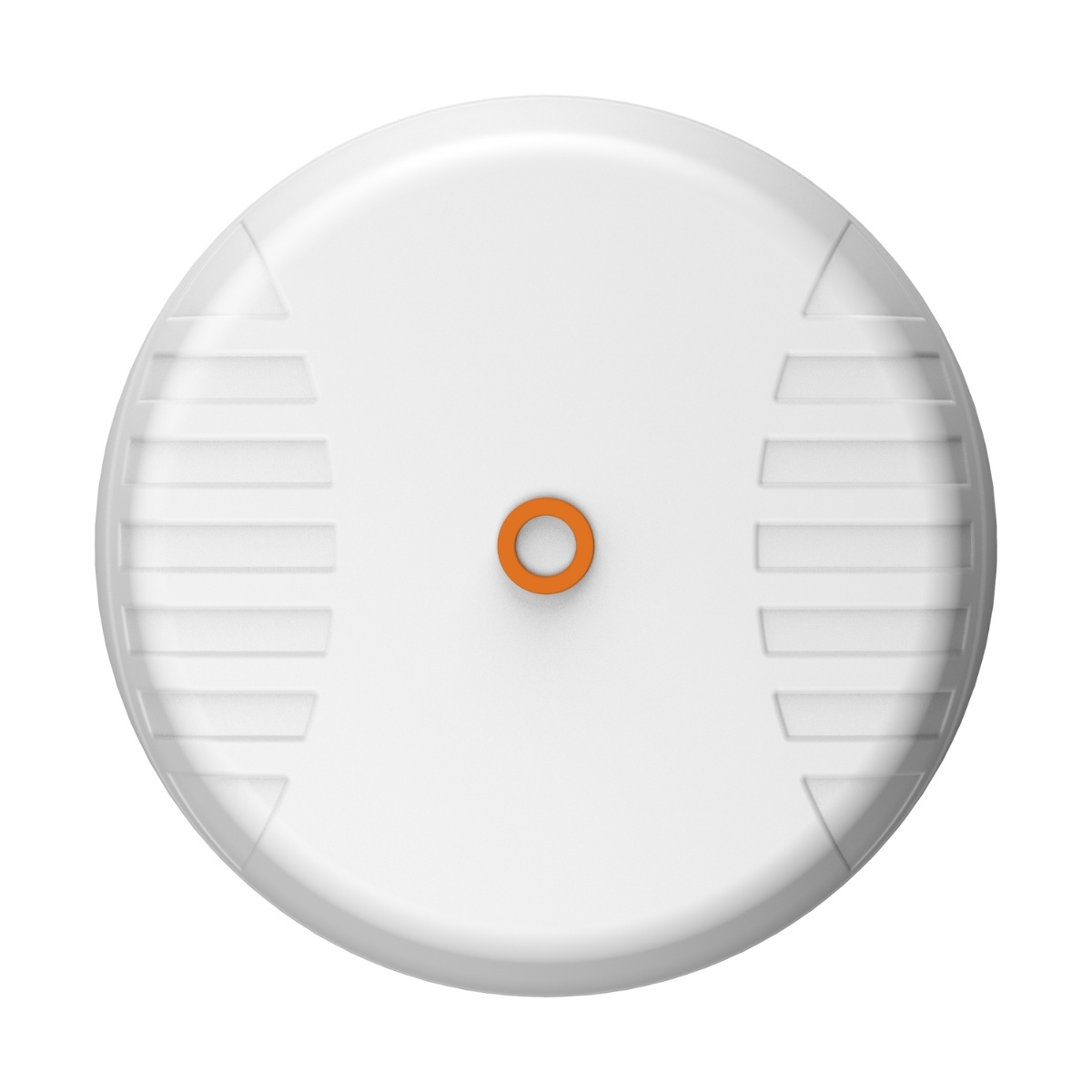

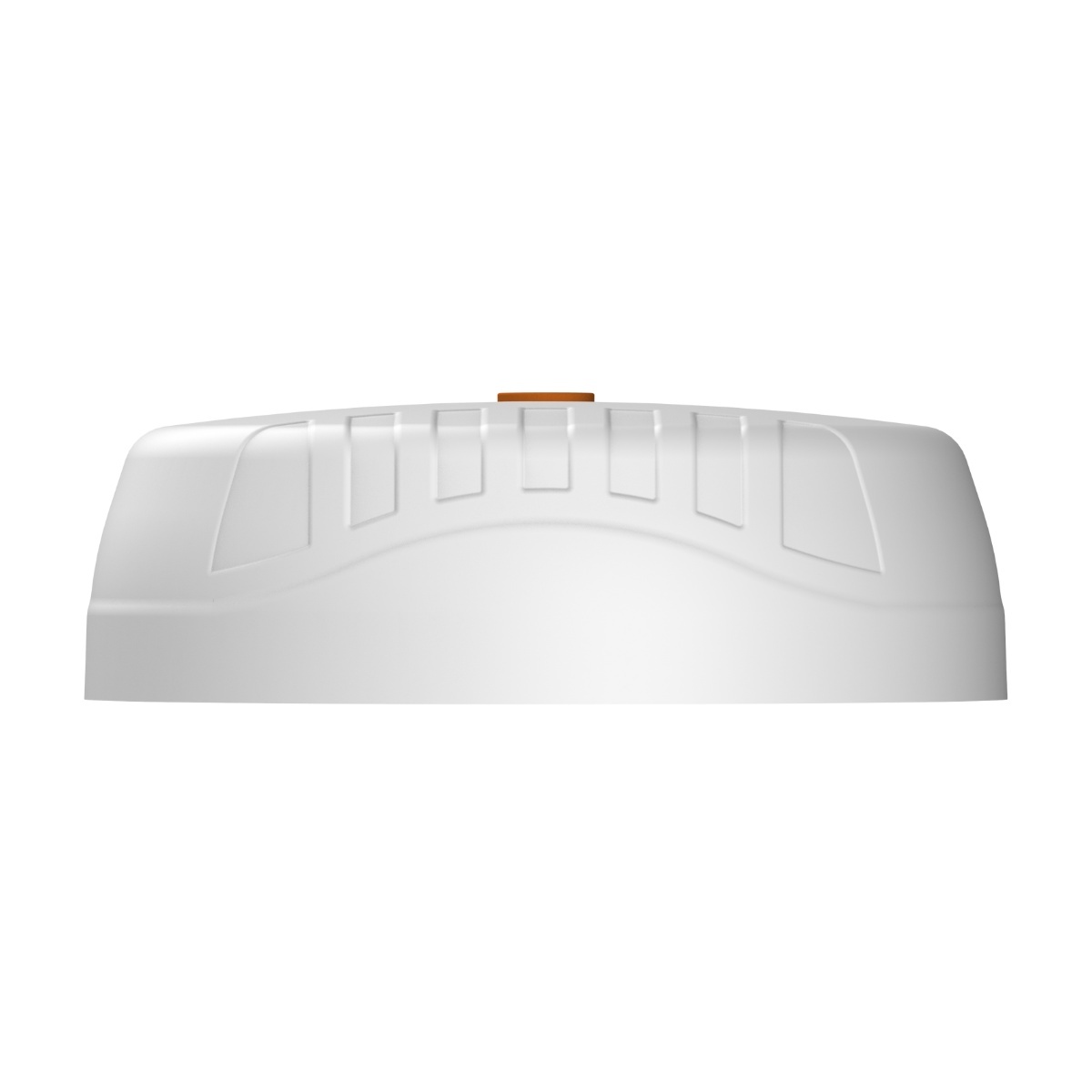

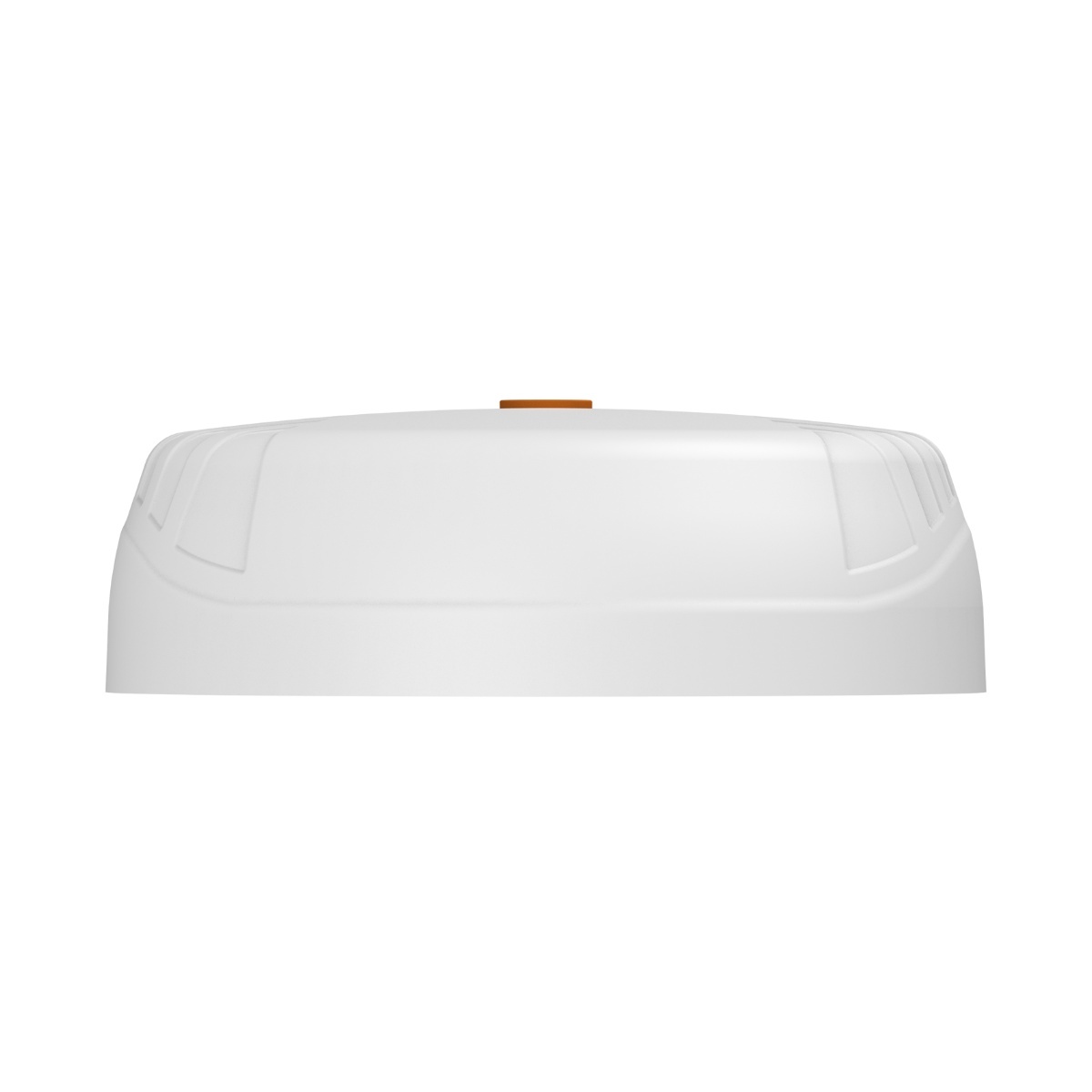

Poynting Antennas proudly presents the SWIRL-8, an advanced omnidirectional antenna solution engineered for maritime and mobility applications. This cutting-edge antenna covers a wide frequency range of 617 to 6000 MHz, ensuring optimal connectivity for cellular networks, Wi-Fi, and GNSS applications. With a peak gain of 6 dBi, the SWIRL-8 significantly enhances signal strength and reliability, making it an ideal choice for various challenging environments.

Key Features:

  • Wide Frequency Coverage
  • MIMO Capabilities
  • High Gain Performance
  • IK08 impact resistance
  • IP69K weather and dust resistance
  • Compact Design
  • CPE Transformation

Versatile Frequency Coverage

The SWIRL-8 features an impressive configuration of 8 cross-polarised cellular antennas and 4 dual-band Wi-Fi antennas, along with a GNSS antenna. This diverse frequency coverage allows seamless communication across contemporary 5G/LTE bands, as well as dual-band Wi-Fi operations at 2.4 GHz and 5 to 7.2 GHz. Such versatility makes the SWIRL-8 suitable for numerous applications, including boats, ships, and mobile platforms.

Robust Design for Harsh Environments

Constructed with durability in mind, the SWIRL-8 is built to withstand harsh marine conditions. It features a unique heat sink design for improved temperature regulation, and its radome is UV and saltwater resistant. With an IP69K weather and dust-resistant enclosure and IK08 impact resistance rating, this antenna is prepared to face the elements while ensuring reliable performance.

CPE Transformation Capability

One of the standout features of the SWIRL-8 is its ability to be transformed into Customer Premises Equipment (CPE) by incorporating the optional SWIRL-BASE. This cast aluminium base is designed to house 5G routers, reducing coaxial cable runs and minimising signal loss for improved performance. This adaptability further enhances the SWIRL-8's functionality in various settings.

Exceptional Temperature Tolerance

Operating efficiently in extreme temperatures, the SWIRL-8 can function reliably from -40 °C to +80 °C. This broad operating range ensures that the antenna can maintain connectivity in diverse conditions, making it an excellent choice for emergency response teams and public safety services that require stable communications in any environment.

Advanced Regulatory Compliance

The SWIRL-8 meets stringent regulatory standards, including RoHS compliance and ISO 9001:2015 certification. This ensures that the antenna not only provides high-quality performance but also adheres to environmental and safety regulations, reflecting Poynting's commitment to excellence in design and manufacturing.

Enhanced Network Performance

Whether used on ships, boats, or mobile platforms, the SWIRL-8 guarantees reliable connectivity. Its advanced design and superior signal handling capabilities enable enhanced network performance for various Internet of Things (IoT) applications, allowing for efficient data transmission and robust communication systems in challenging environments. Experience seamless connectivity with the Poynting SWIRL-8 antenna solution, engineered for the future.

Category Specification Details
Industry (Application) Type Marine & Coastal Antennas
Transportation
Mobility Antennas
Technology Type Cellular (LTE/2G/3G/4G/5G)
GPS/GLONASS
Wi-Fi
Cellular Freq. Range Frequency Range 617 – 6000 MHz
Wi-Fi Freq. Bands Frequency Bands 2400-2500MHz
5000-7200MHz
Frequency Band Range 617-698MHz
698-803MHz
791-894MHz
868-915MHz
880-960MHz
1427-1517MHz
1700-1900MHz
1900-2200MHz
2300-2400MHz
2400-2500MHz
2500-2700MHz
3400-3800MHz
3800-4200MHz
5000-6000MHz
6000-7200MHz
5G Bands Supported n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n102, n104, n106, n256
LTE/4G Bands Supported B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Wi-Fi Standard Supported Wi-Fi 3 (802.11g)
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)
Gain Value 6 dBi
Directionality Type Omnidirectional

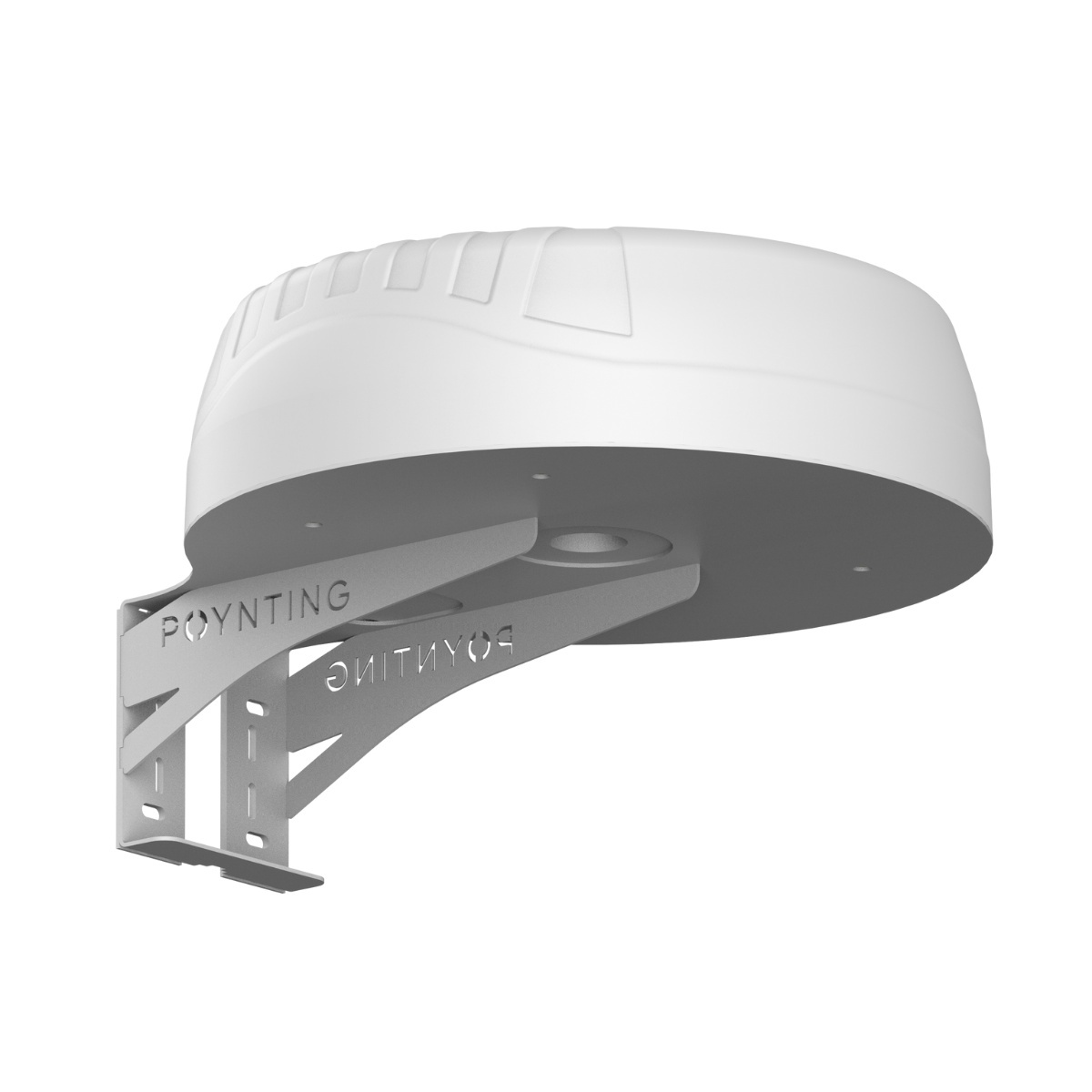

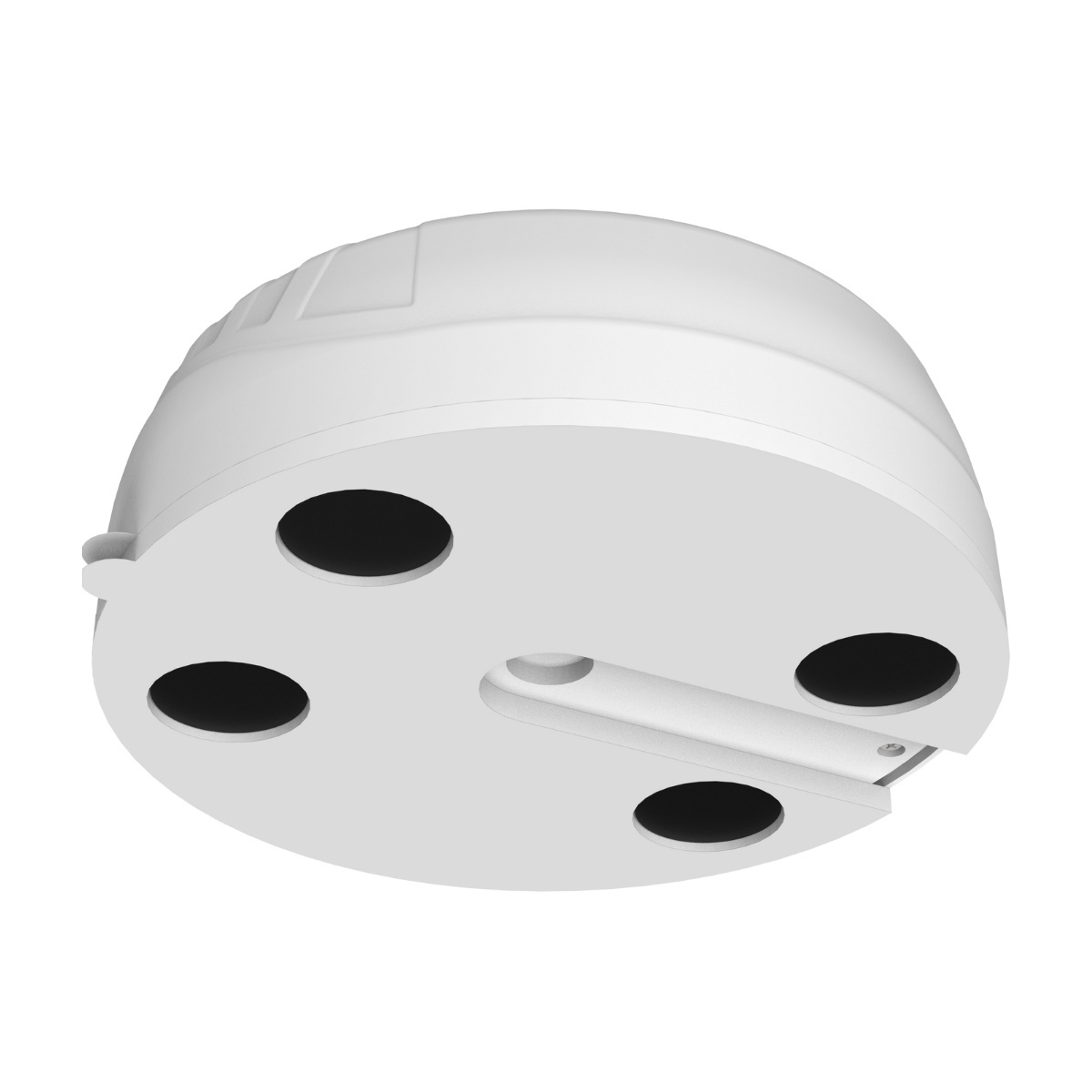

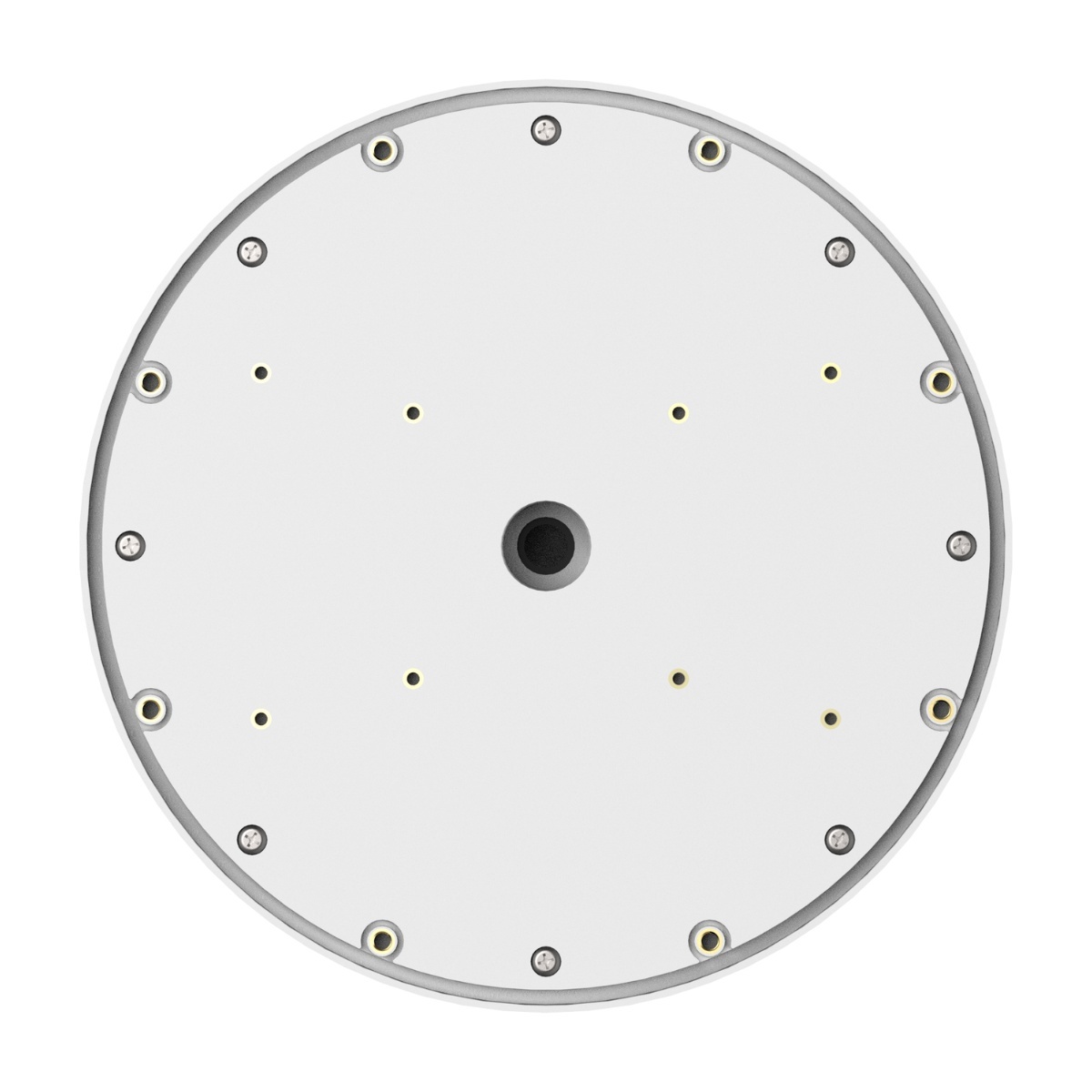

Mounting Type Types Magnet Mount

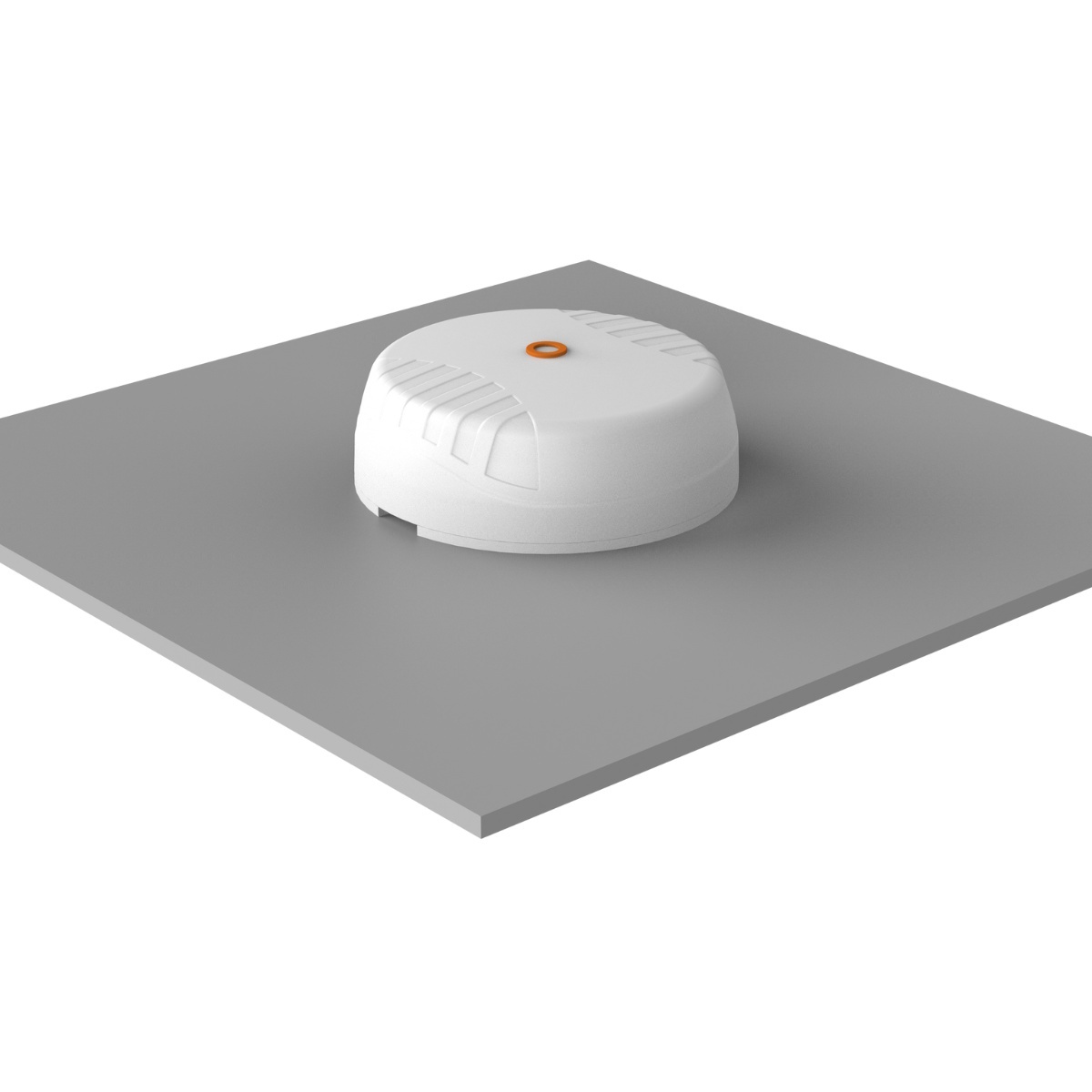

Surface Mount
Connectors Type SMA (m)
MIMO Configuration 8×8
Polarisation Type X-Polarised
Environmental Protection Rating IP69K
Enclosure Name Name Swirl
Enclosure Size Size Medium
LTE Ports Number 8
Wi-Fi Ports Number 4
GNSS/GPS Ports Number 1
SKU POY.SWIRL-8
Model # SWIRL-8
Brand Poynting
Shipping Width 0.390m
Shipping Height 0.130m
Shipping Length 0.390m
Shipping Cubic 0.019773000m3
