The XPOL-1-5G represents Poynting’s advanced generation of the Cross Polarised (XPOL) antenna. It is a versatile 2x2 MIMO antenna, with a 4x4 MIMO variant available, catering to a wide range of cellular bands including 2G, 3G, 4G, and 5G. This antenna has been redesigned from its predecessor to include the newer 3400 - 3800 MHz bands and the lower 617 MHz band, ensuring comprehensive coverage.

Key Features

  • Exceptional Performance Across 4G/5G Bands: Delivers high-quality connectivity over the main 4G/5G frequency bands.
  • High Gain for its Size: Provides a peak gain of 4 dBi, remarkable for its compact form.
  • Wideband MIMO Capability: Supports both 2x2 and 4x4 MIMO for 4G/5G, enhancing signal strength and reliability.
  • Backwards Compatible: Functions seamlessly with 2G, 3G, 4G/LTE, and 5G networks.
  • Robust and Resilient Design: Encased in a weather, dust, and vandal-resistant enclosure with an IP65 rating, ideal for harsh environments.
Specification Description
Industry (Application) Commercial & Industrial Antennas, Farming & Agricultural Antennas, Urban & Rural Cellular Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz
Frequency Range 617 – 3800 MHz
Gain 3dBi
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106

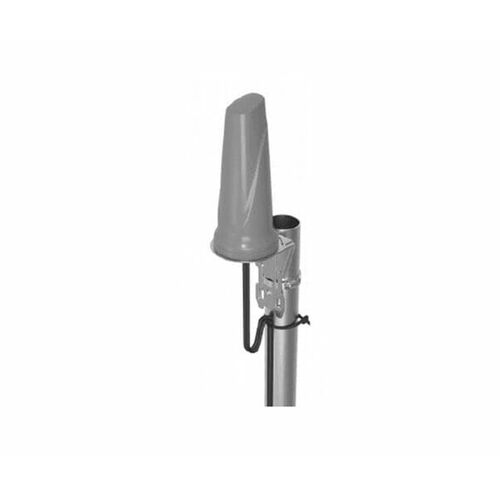

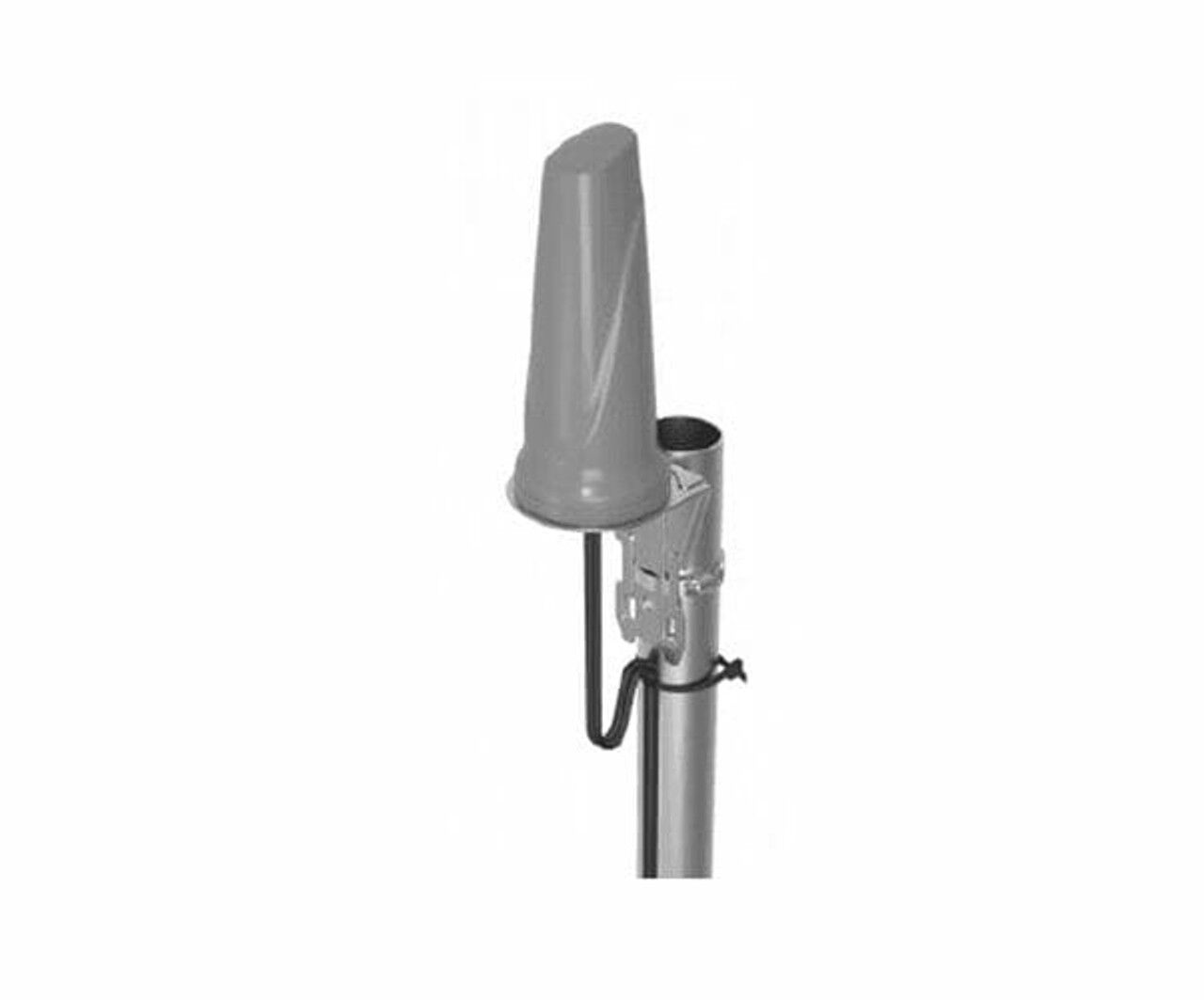

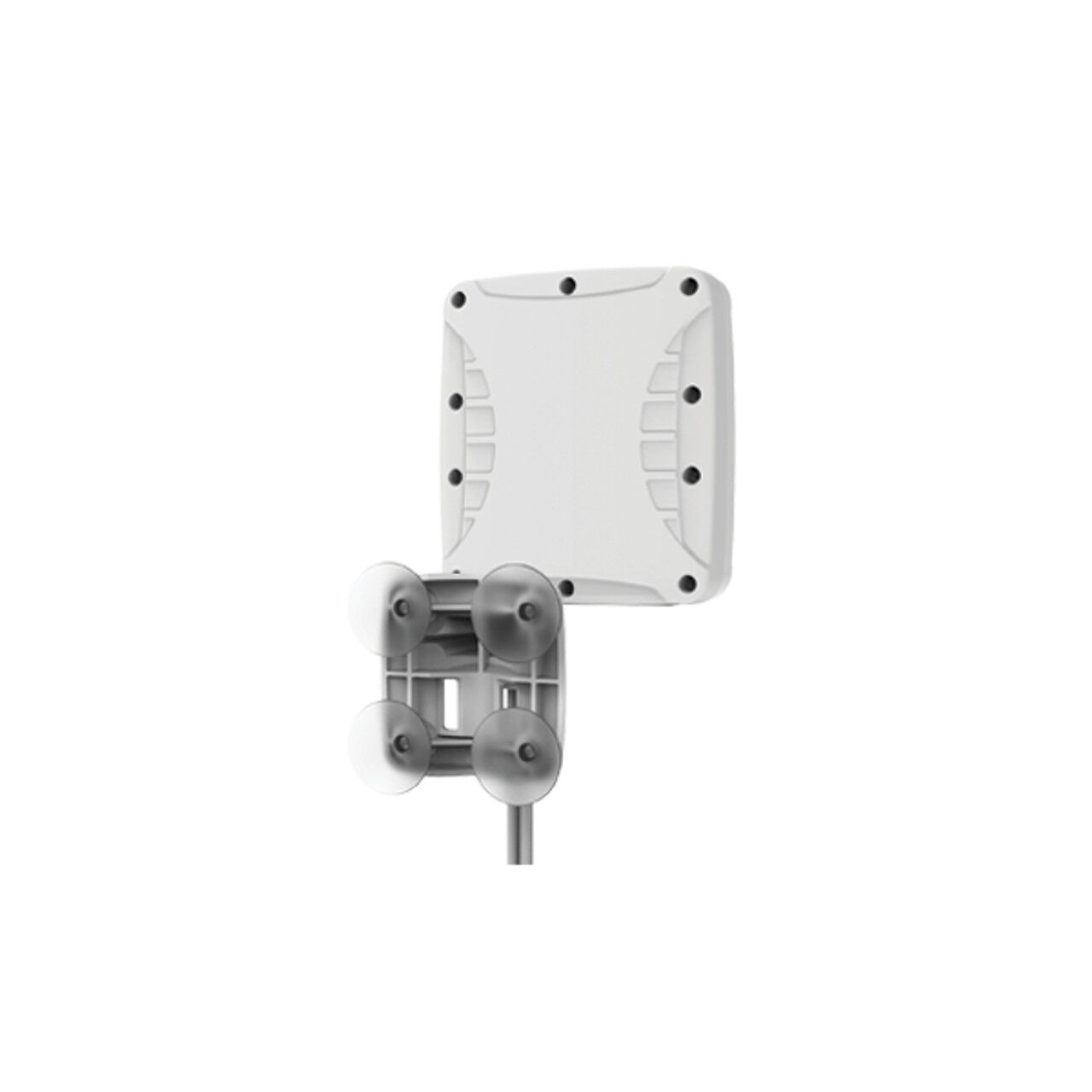

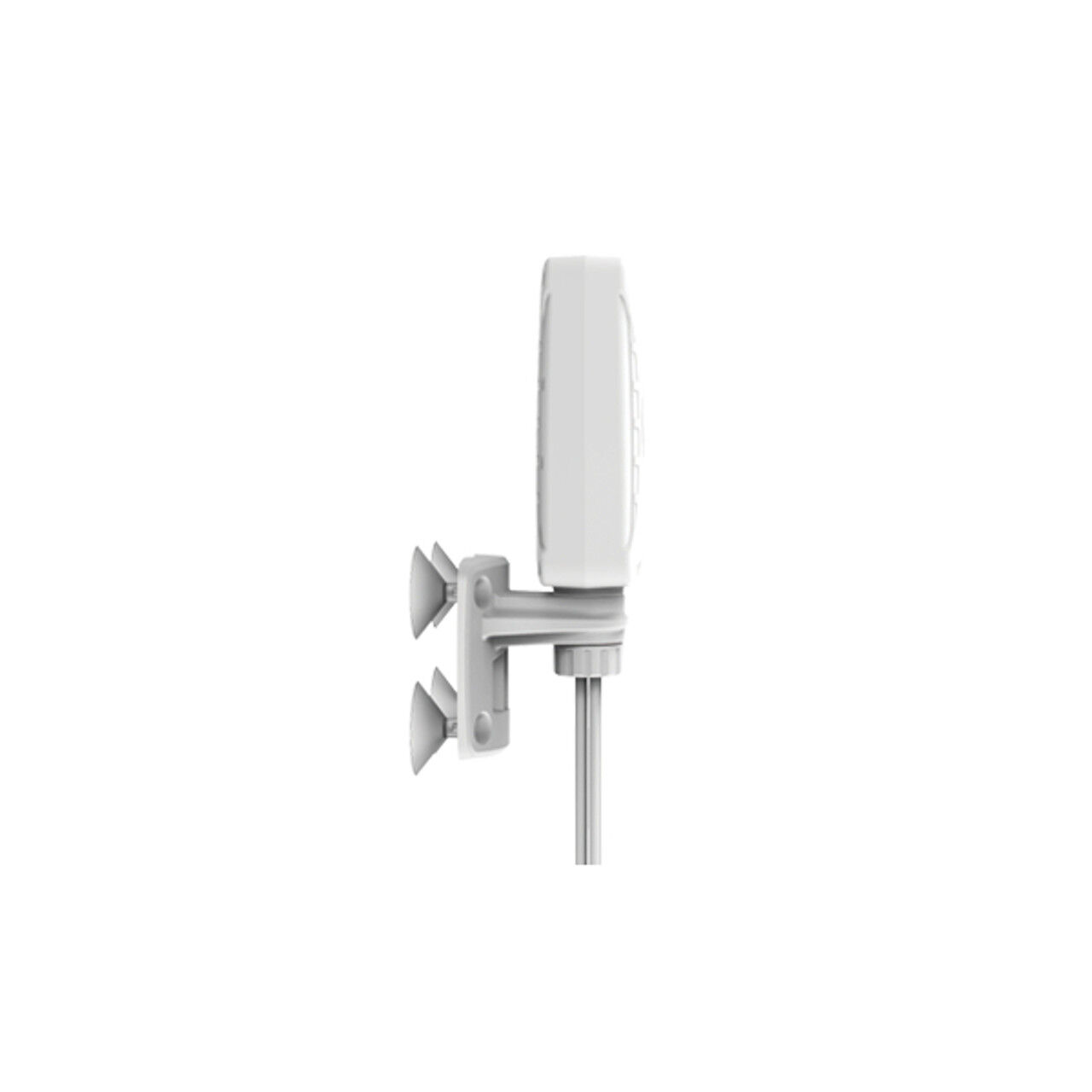

Mounting Type Pole Mount, Wall Mount, Window Mount
Wi-Fi Standard Wi-Fi 3 (802.11g)
Connectors SMA
MIMO 2×2, 4×4
Polarisation X-Polarised
Environmental IP65
Enclosure Name Lynx
Enclosure Size Small
LTE Ports 2, 4
SKU POY.XPOL-1-V2-41
Model # A-XPOL-0001-V2-41
Brand Poynting
Shipping Weight 1.3400kg
Shipping Width 0.270m
Shipping Height 0.100m
Shipping Length 0.190m
Shipping Cubic 0.005130000m3
