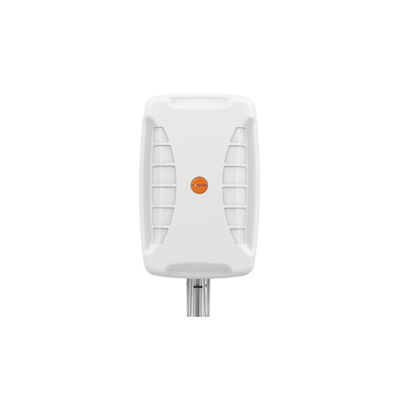

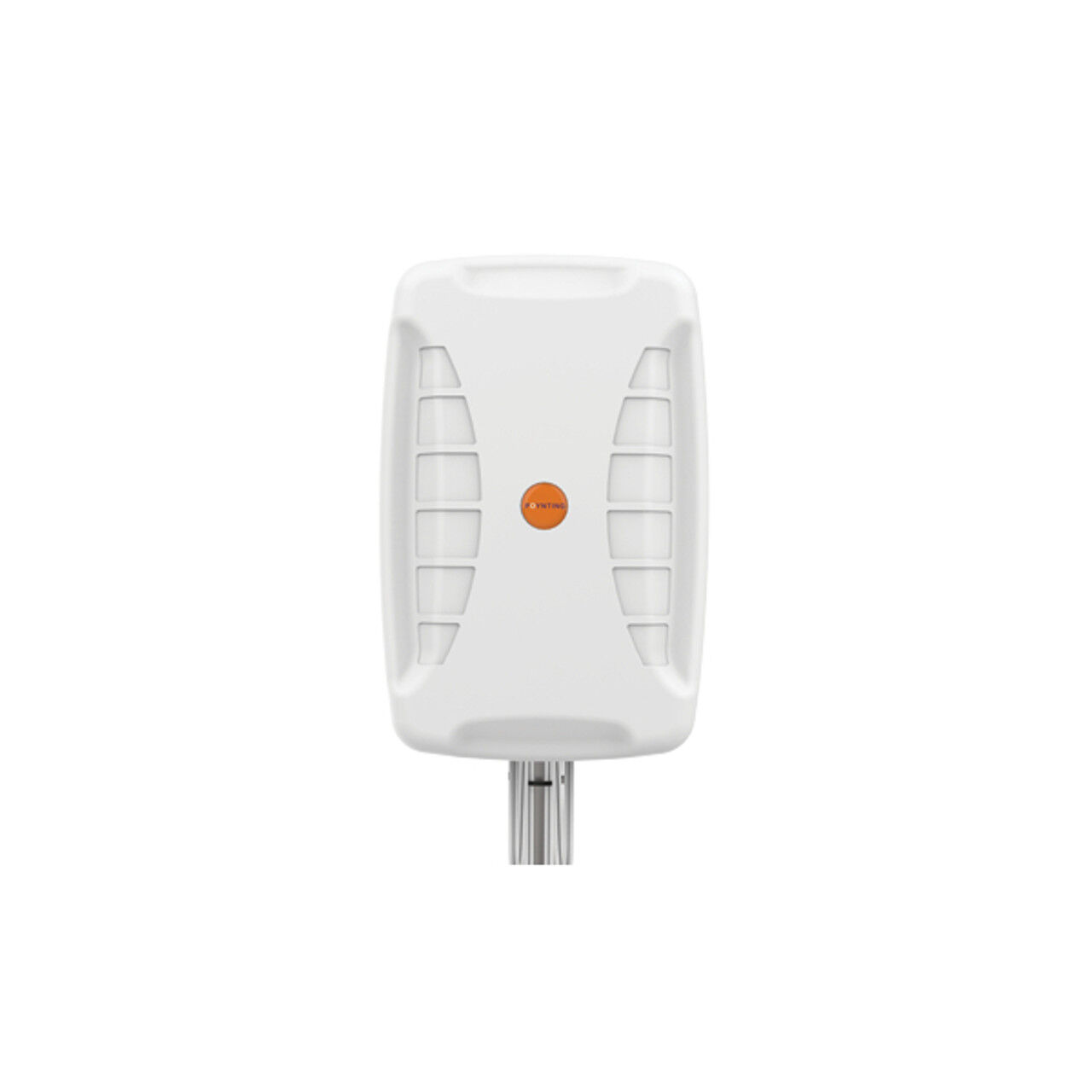

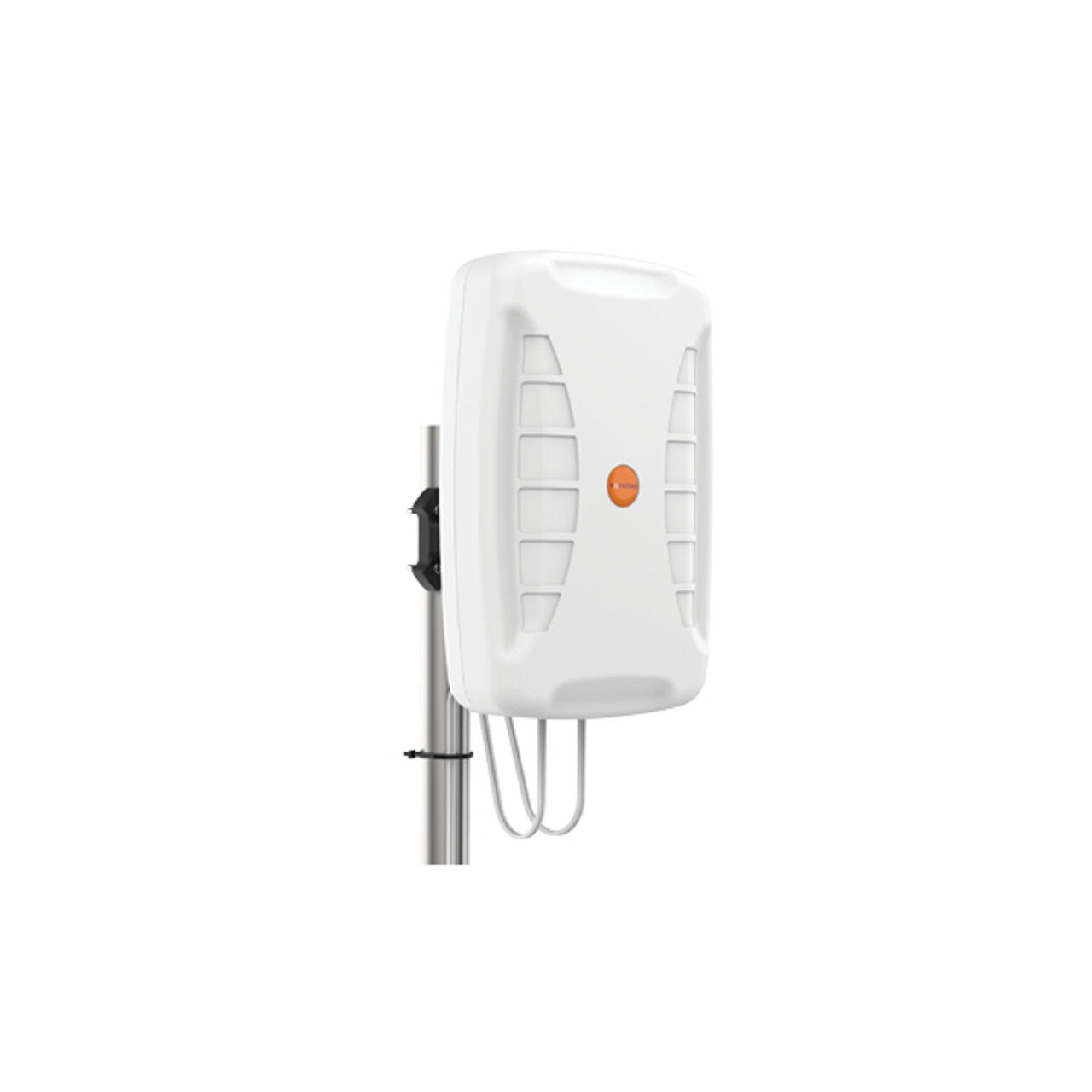

Discover the XPOL-24, a high-performance X-Polarised Uni-Directional 4x4 MIMO 5G/LTE Antenna, featuring advanced metamaterial technology for exceptional wideband coverage across 617 - 4200 MHz with an 11dBi gain. Ideal for diverse applications in urban, rural, commercial, and industrial settings, its robust IP65-rated design ensures durability against environmental challenges, making it a superior choice for current and future 5G/LTE networks.

Please call our office on 07 55770500 to be notified when the product becomes available.

Features:

  • Exceptional high-performance antenna over main 5G/LTE bands
  • New advanced metamaterial technology for high performance
  • Wideband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
  • Four cross-polarised antennas within a single enclosure
  • Weather, dust and vandal resistant enclosure with IP65 raing
Specification Description
Industry (Application) Commercial & Industrial Antennas, Farming & Agricultural Antennas, Urban & Rural Cellular Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 3800-4200MHz
Frequency Range 617 – 4200 MHz
Gain 11dBi
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Uni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106

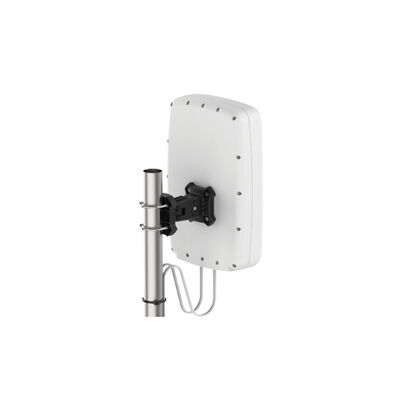

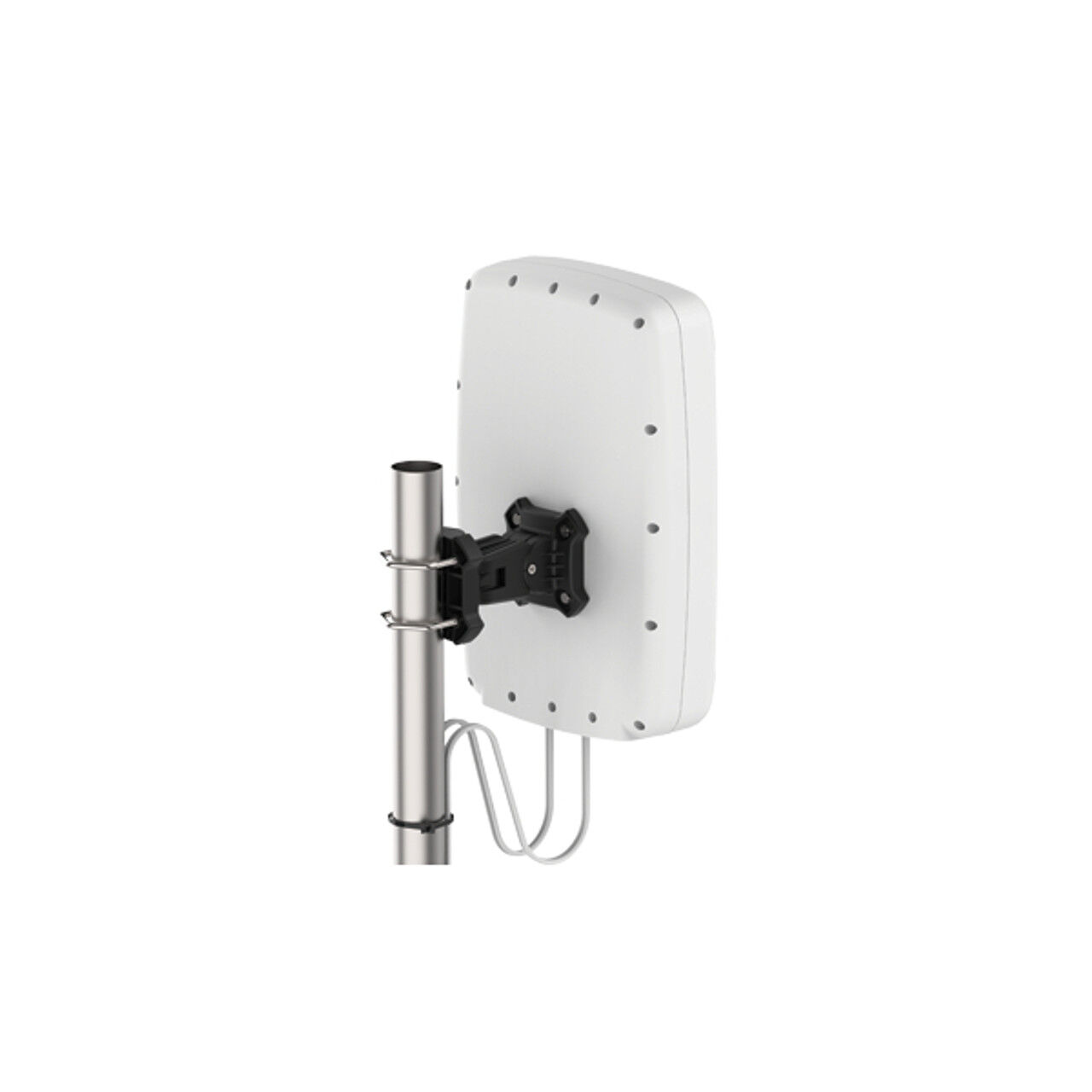

Mounting Type Pole Mount, Wall Mount
Wi-Fi Standard Wi-Fi 3 (802.11g)
Connectors SMA (m)
MIMO 4×4
Polarisation X-Polarised
Environmental IP65
Enclosure Name Lion
Enclosure Size Large
LTE Ports 4
SKU POY.XPOL-24-V1-02
Model # A-XPOL-0024-V1-02
Brand Poynting
Shipping Weight 3.8800kg
Shipping Width 0.510m
Shipping Height 0.120m
Shipping Length 0.420m
Shipping Cubic 0.025704000m3
