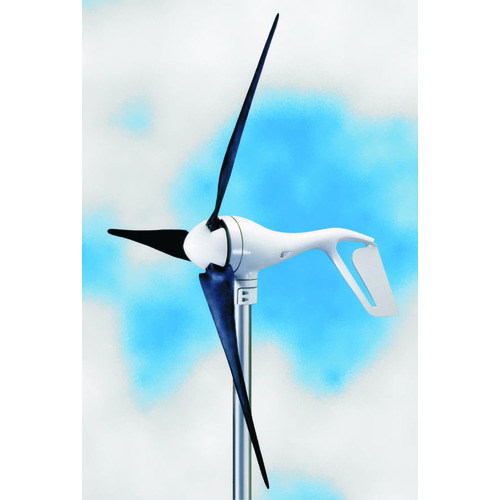

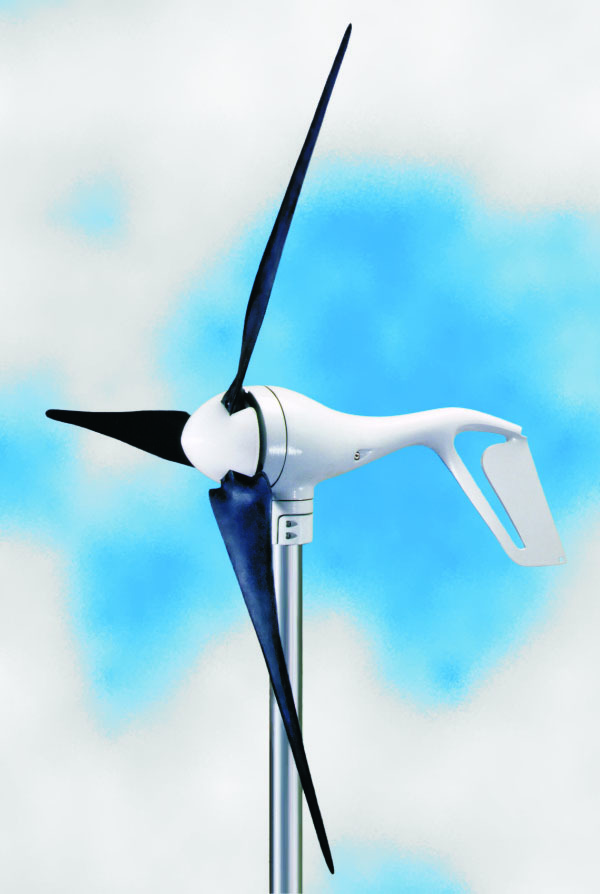

Primus Wind Power AIR X Marine Wind Turbine Generator - 48 Volt
AIR X Marine 48VDC WInd Turbine Generator for commercial marine use generates approx. 30 kWh/mo at 5.8 m/s (13 mph) with an operating range of 3.6-22 m/s (8-49 mph)
SKU: PWP.1-ARXM-15-48 | MPN: 1-ARXM-15-48
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
The Air X Wind Turbine has been a long time favorite renewable energy wind generator used by many cruisers around the world due to its simplicity and reliability.
It is once again available to the Marine marketplace being produced by Primus Wind Power of Colorado, the new producers of the Air X Wind Turbine product line formally manufactured by Southwest Wind Power. The new and improved Air X features increase energy performance at lower wind speeds and quieter operation due to the advances in blade design.
When you need energy in marine environments, the AIR X Marine delivers. It's hands down the best energy choice for off-grid marine-based applications in high wind environments. Use it for SCADA, telecom, security, cathodic protection -- you name it. With optimised software, AIR X Marine consistently delivers energy where it matters. The AIR X Marine’s heavy-duty design can withstand most high wind environments. The AIR X Marine is an ideal turbine for hybrid combinations with solar PV. AIR X Marine is built and backed by the worldwide leader in small wind.
Air X Wind Turbine Features:
- High-quality, third-party tested components for reliability and safety
- Pair with solar PV for redundant energy production year-round
- Advanced microprocessor technology for superior performance and high wind protection without mechanical braking
- Lightweight design is simple and easy-to-install; integrated power electronics for plug-and-play operation
- Produces 30 kWh of energy a month* for marine-based, high wind applications
- Intended for corrosive - marine environments
Technical Specifications
Energy | Approx. 30 kWh/mo at 5.8 m/s (13 mph) |
Swept Area | 1.07 m2 (11.5 ft2) |
Rotor Diameter | 1.17 m (46 in) |
Weight | 5.9 kg (13 lb) |
Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
Startup Wind Speed | 3.58 m/s (8 mph) |
Voltage | 12, 24, 48 VDC |
Turbine Controller | Mircoprocessor-based smart controller |
Body | Permanent mold cast aluminum |
Blades | (3) Injection-molded composite |
Alternator | Permanent magnet brushless |
Overspeed Protection | Electronic torque control |
Survival Wind Speed | 49.2 m/s (177kmph - 110 mph) |
Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
Wind Speed Operating Range | 3.6-22 m/s (8-49 mph) |
Optimum Wind Speed Range | 11-15 m/s (25-32 mph) |
SKU | PWP.1-ARXM-15-48 |
Model # | 1-ARXM-15-48 |
Brand | Primus Wind Power |
Shipping Weight | 8.0000kg |
Shipping Width | 0.690m |
Shipping Height | 0.230m |
Shipping Length | 0.320m |
Shipping Cubic | 0.050784000m3 |
Unit Of Measure | ea |
