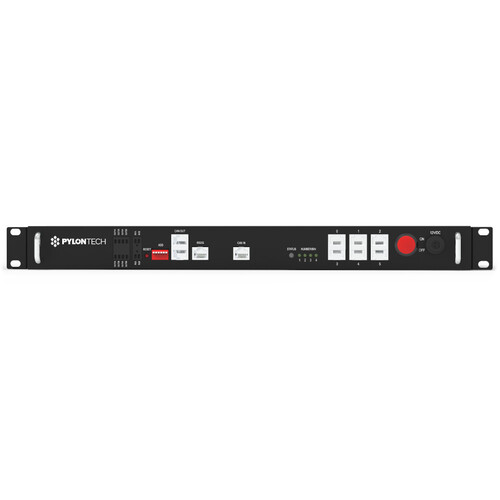

The Pylontech LV-Hub is a communication hub for US2000 / US3000 / US5000 Lithium-Ion Phosphate Battery storage system. LV-Hub is the CAN/RS485 communication hub for multiple 48V battery groups in parallel connection.

When using the RS485 protocol, a hub is not required for up to 6 groups and 16 batteries, totalling 96 batteries.

In CanBus protocol, an LV HUB is required when more than one string of batteries (Max 16 Batteries) is paralleled.

Each battery group can configure a maximum of 8x US2000B Plus or 8x US3000 with a maximum of 5 groups of batteries.

ITEM PARAMETER
Operating Voltage Range 12VDC
Communication Interface CAN/RS485
System Power Consumption 2W
Size 442 x 150 x 44mm
Ingress Protection Rating IP20
Weight 3.5KG
Operation Life 15 Years
Working Temperature -20 ~ 60℃
Storage Temperature -40 ~ 80℃
CAN (Max 5 groups) Baud rate: 500; Terminal Resistance: 0/120Ω
RS485 (Max 5 groups) Baud rate:9600/115200



SKU PYL.LV-HUB
Model # LV-HUB
Brand Pylontech
Shipping Weight 4.0000kg
Shipping Width 0.450m
Shipping Height 0.500m
Shipping Length 0.150m
Shipping Cubic 0.033750000m3
