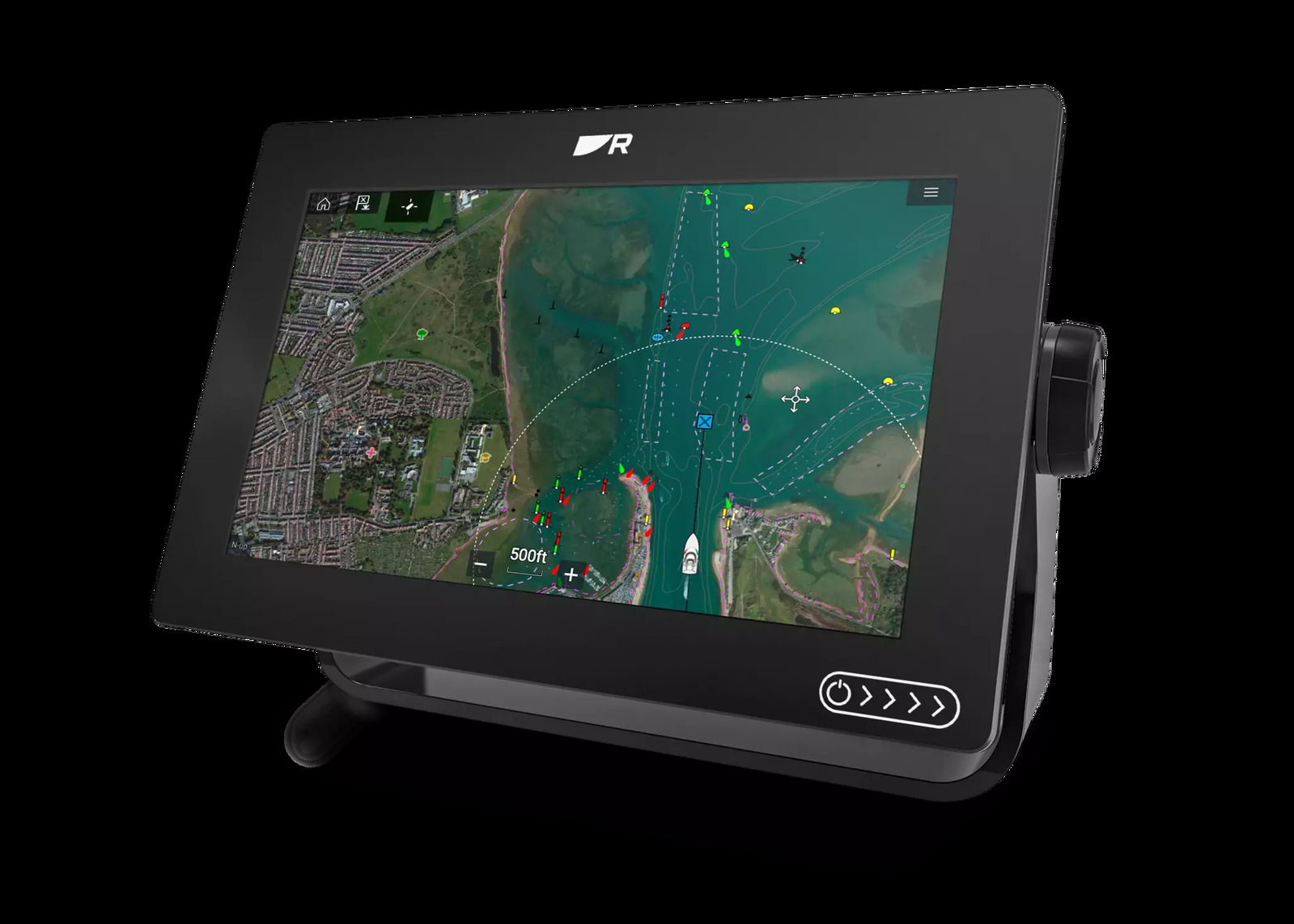

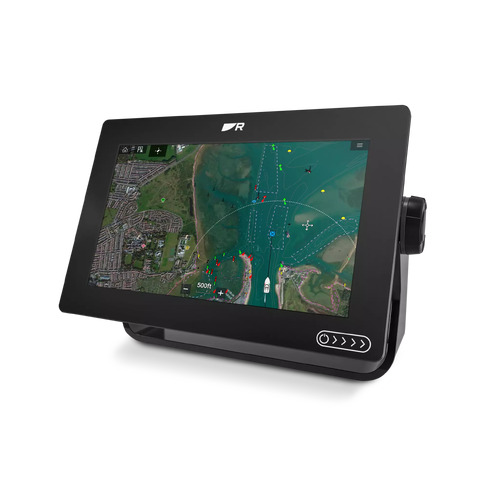

AXIOM+ 12, Multi-function 12" Display with Australia & New Zealand LightHouse Chart.

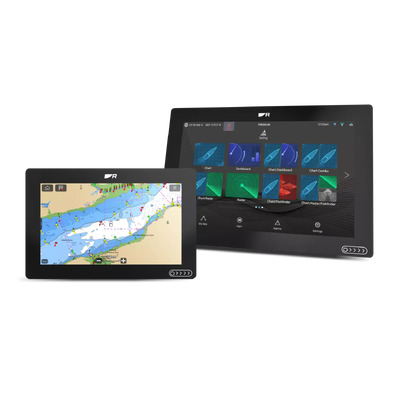

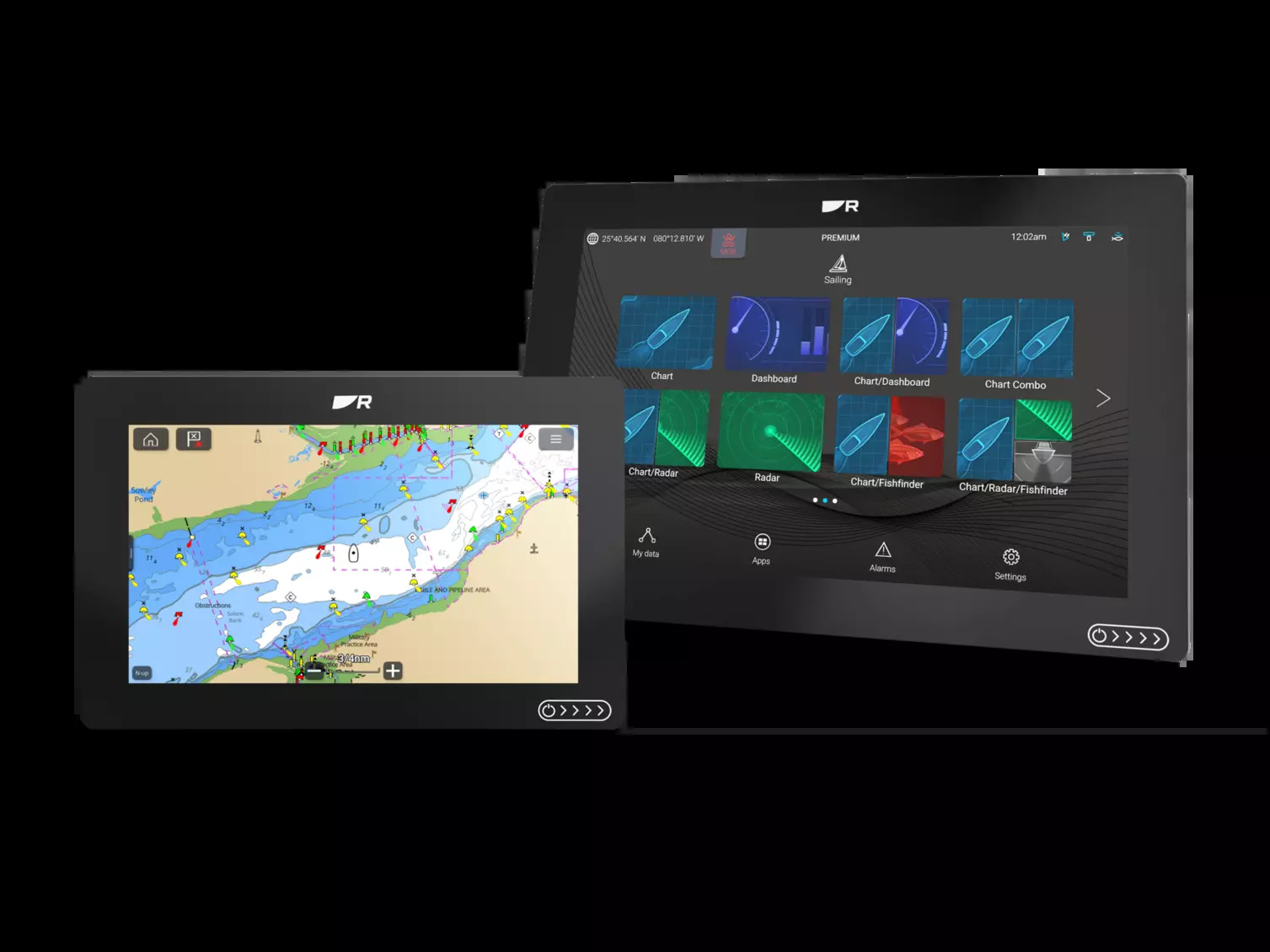

The AXIOM+ Series - a line of advanced chartplotters that offers mariners an exceptional navigation experience with its 7, 9, and 12-inch touchscreen displays, integrated GPS, and a host of innovative features.

Key Features:

  1. Enhanced Display Quality:

    The AXIOM+ chartplotters boast high-resolution IPS displays that are 25% brighter than previous models, ensuring clear visibility in various lighting conditions.

  2. Powerful Performance:

    Equipped with a fast, responsive quad-core processor and increased onboard storage, these devices provide smooth and efficient chart redraws and ample space for personal data and applications.

  3. LightHouse Operating System:

    The renowned LightHouse OS offers an intuitive and user-friendly interface, making navigation and system expansion straightforward.

  4. Versatile Networking:

    Easily connect with multiple displays, radars, engines, marine cameras, and more, to create a comprehensive marine system.

  5. HydroTough™ Technology:

    The screens are treated with HydroTough nano-coating, making them impact-resistant and capable of dispelling water, oil, and smudges for improved clarity and touch control in all weather conditions.

  6. Smart Navigation Options:

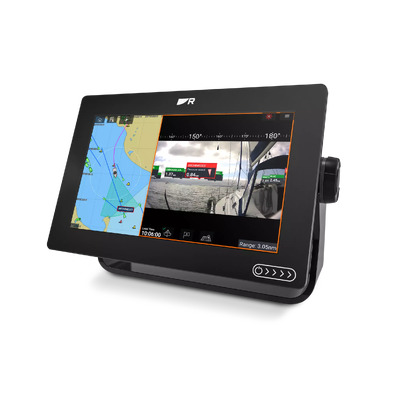

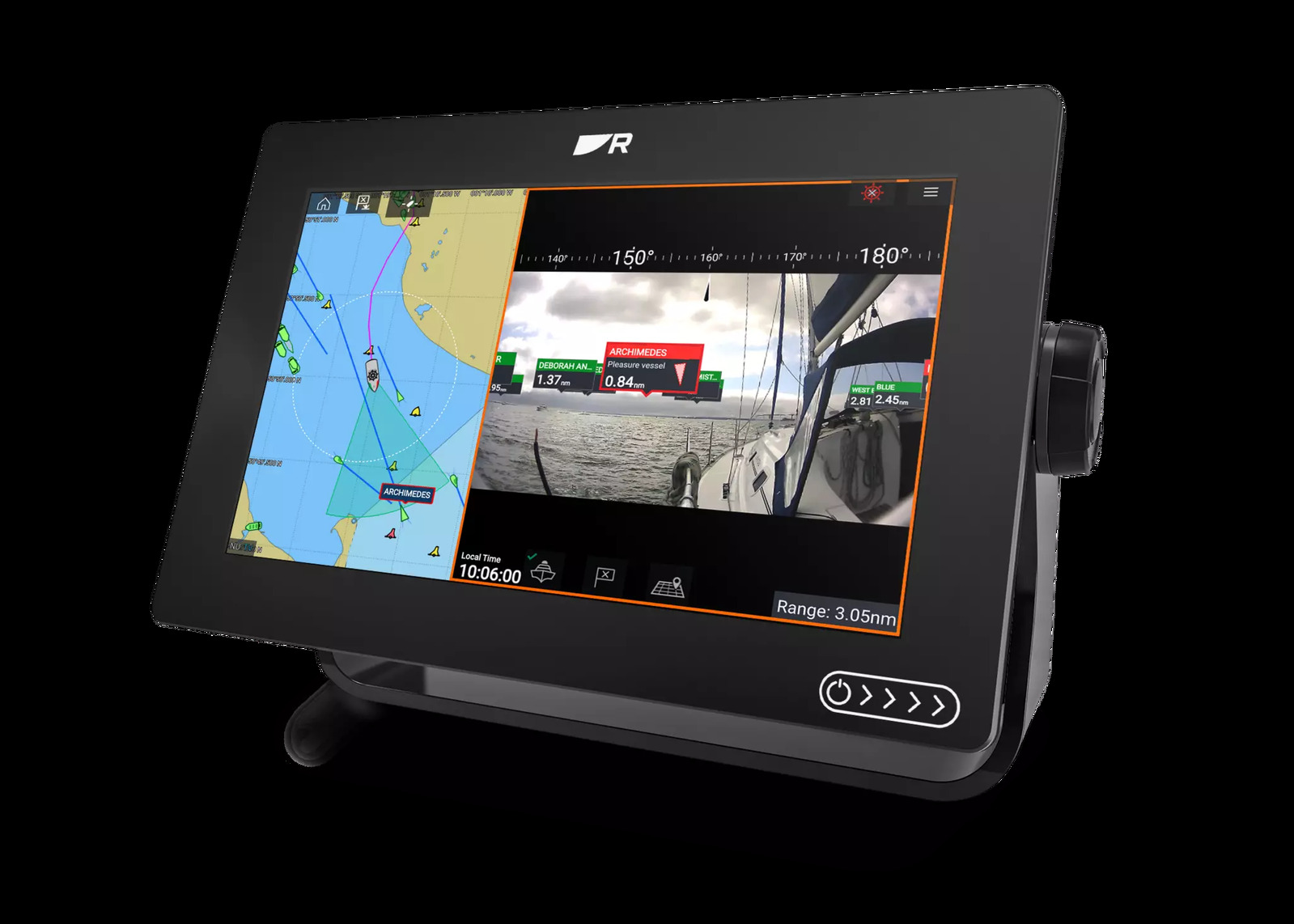

    Integrate an AIS (automatic identification receiver) for safe navigation in busy waterways, and enhance situational awareness with ClearCruise Augmented Reality. Additional options include Quantum and Cyclone radars for obstacle avoidance and Doppler target tracking.

Enhanced Chart Compatibility:

  • Supports LightHouse, Navionics, and C-MAP electronic charts for comprehensive and up-to-date navigational data.

Improved Visibility Features:

  • New LightHouse color themes for optimal viewing in Day, Dusk, and Night modes, with up to 1,800 nits brightness.

What's in the box?

Package contents

  1. MFD (Chartplotter)
  2. Trunnion bracket
  3. Trunnion knobs x 2
  4. Suncover
  5. Documentation
  6. Panel mount gasket
  7. Rear mounting brackets for 9" display
  8. Rear mounting brackets for 12" display
  9. Threaded studs (M5x58) x 4
  10. Thumb nuts (M5) x 4
  11. Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
  12. DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
Physical
Dimensions (Trunnion mounted)

Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)

Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)

Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Dimensions (Surface/Flush mounted)

Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)

Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)

Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
Accessory connection

USB Micro B
Ethernet connection

RayNet (10/100 Mbits/s)
External storage

MicroSDXC card slot x 1
NMEA 2000 connection

DeviceNet (male connector built into power cable)
Wireless connections

Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal storage

16 GB Solid State (14 GB usable)
Transducer connection

25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers
LCD
Size (diagonal)

Axiom+ 7: 7"

Axiom+ 9: 9"

Axiom+ 12: 12"
Resolution

Axiom+ 7: WSVGA 1024 x 600

Axiom+ 9: Widescreen HD 1280 x 720

Axiom+ 12: WXGA 1280 x 800
Viewing angle

Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85°

Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85°

Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°
Illumination

Axiom+ 7: 1800 nits / 1800 cd/m2

Axiom+ 9:1500 nits / 1500 cd/m2

Axiom+ 12: 1800 nits / 1800 cd/m2
Protective coating

HydroToughTM Oleophobic
Type

IPS (In-Plane Switching)
Color depth

24-bit
Number of simultaneous touches

2
Power
Power consumption

Axiom+ 7: 7.34 W

Axiom+ 9: 8.95 W

Axiom+ 12: 18.96 W
Operating voltage range

8 V dc to 16 V dc
Fuse rating

7 A
Nominal supply voltage

12 V dc
LEN (NMEA 2000 Load Equivalency Number)

1
Environmental
Operating temperature

-25°C to +55°C (-13°F to 131°F)
Storage temperature

-30°C to +70°C (-22°F to 158°F)
Relative humidity

Up to 93% @ 40°C (104°F)
Waterproof rating

IPx6, IPx7
GPS
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels

Track up to 28 satellites simultaneously
Antenna

Internal - Ceramic chip mounted near top of unit
GNSS compatibility

GPS, GLONASS, Beidou
Almanac Update

Automatic
Signal Acquisition

Automatic
Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency

1574 MHz to 1605 MHz
Refresh rate

10 Hz (10 times per second)
Time to first fix from cold start

< 2 minutes
SKU RAY.E70638-00-ANZ
Model # E70638-00-ANZ
Brand Raymarine
Shipping Weight 2.8400kg
Shipping Width 0.314m
Shipping Height 0.077m
Shipping Length 0.217m
Shipping Cubic 0.005247000m3
Unit Of Measure ea
