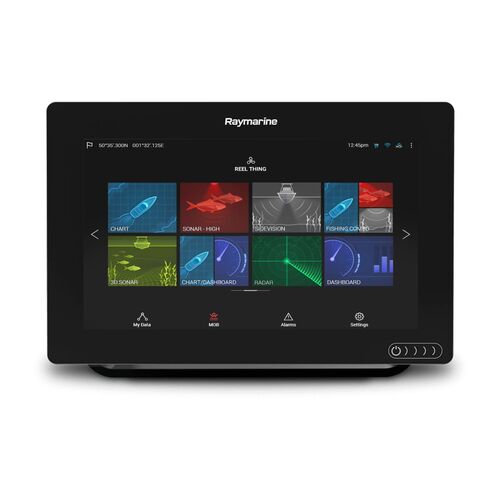

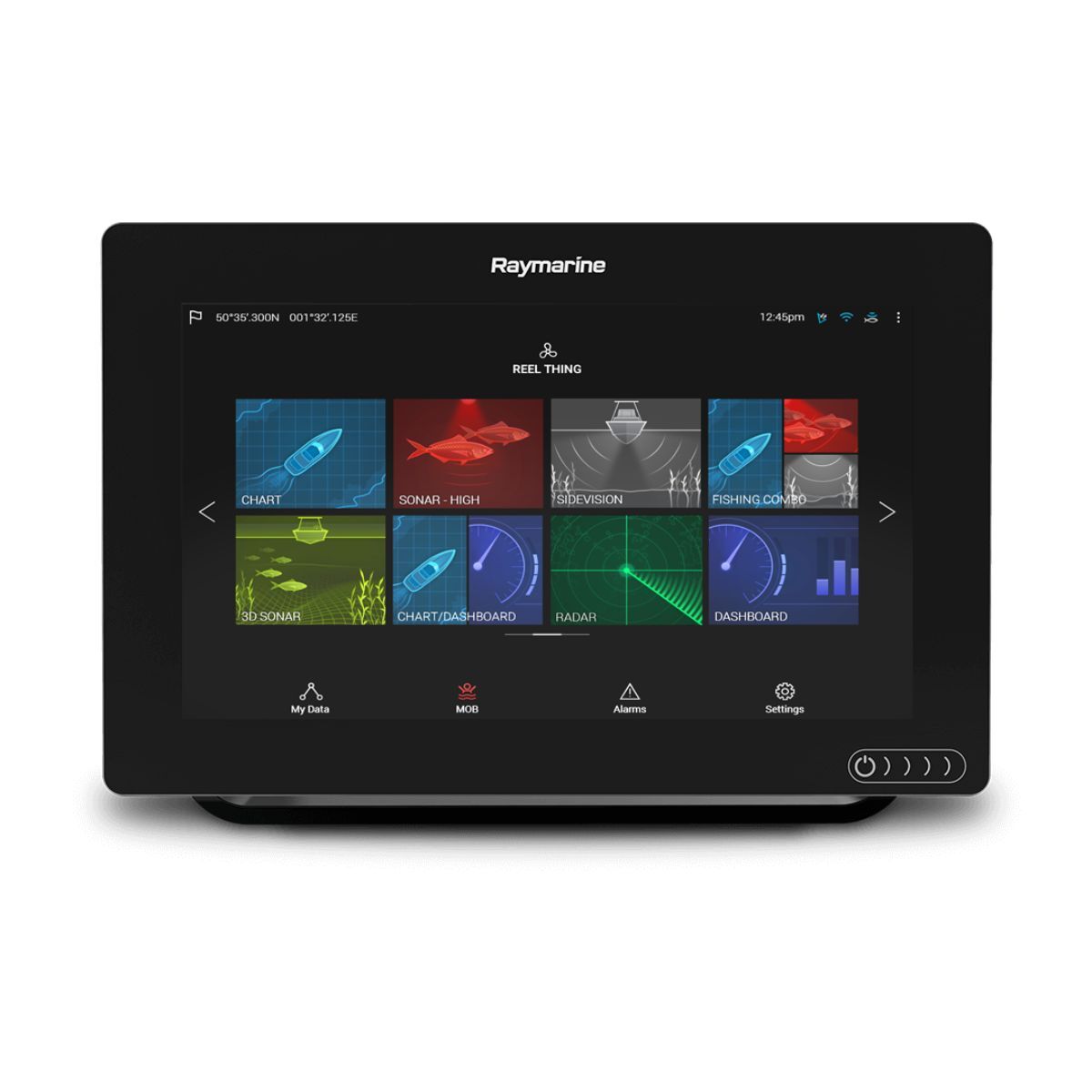

AXIOM+ 12 RV, Multi-function 12" Display with integrated RealVision 3D, 600W Sonar, no transducer with Australia & New Zealand LightHouse Chart.

The AXIOM+ RV Series brings cutting-edge technology to marine navigation and fishfinding, available in 7, 9, and 12-inch touchscreen displays. This series elevates your marine experience with its advanced features and intuitive design.

Advanced Sonar Capabilities:

  • RealVision 3D™ Sonar: Offers a gyro-stabilized, GPS-locked bathymetric model for a detailed understanding of the underwater environment.
  • High-Frequency CHIRP Sonar: Ideal for targeting fish and assessing bottom density.
  • CHIRP DownVision and SideVision: Provides high-definition views of structures, fish habitats, and submerged objects.
  • Powerful 600W Digital Sonar: Compatible with 50 kHz and 200 kHz frequencies. Option to connect an AIRMAR transducer for deeper depth fishing.

Enhanced Display and Performance:

  • Upgraded IPS Display: Delivers charts, sonar, radar, and video in vibrant color, 25% brighter than previous models (up to 1,800 nits).
  • LightHouse Colour Themes: Offers improved viewing in various lighting conditions with Day, Dusk, and Night modes.
  • Quad-Core Processor: Ensures fast and fluid chart redraws and increased onboard storage for personal data and apps.
  • LightHouse Operating System: Provides a smart and intuitive interface for easy navigation.

Ready for Expansion:

  • Seamlessly network with multiple displays, radars, engines, marine cameras, and more.
  • Compatible with solid-state radar and FLIR thermal cameras, and marine cameras for ClearCruise Augmented Reality.

HydroTough™ Technology:

  • Features nano-coated, impact-resistant screens that dispel water, oil, and smudges, ensuring clear visibility and accurate touch controls in all weather conditions.

Package contents

What's in the box?

1. MFD (Chartplotter)

2. Trunnion bracket

3. Trunnion knobs x 2

4. Suncover

5. Documentation

6. Panel mount gasket

9. Threaded studs (M5x58) x 4

10. Thumb nuts (M5) x 4

11. Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)

12. DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)

Physical
Dimensions (Trunnion mounted)

Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)

Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)

Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Dimensions (Surface/Flush mounted)

Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)

Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)

Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
Accessory connection

USB Micro B
Ethernet connection

RayNet (10/100 Mbits/s)
External storage

MicroSDXC card slot x 1
NMEA 2000 connection

DeviceNet (male connector built into power cable)
Wireless connections

Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal storage

16 GB Solid State (14 GB usable)
Transducer connection

25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers
LCD
Size (diagonal)

Axiom+ 7: 7"

Axiom+ 9: 9"

Axiom+ 12: 12"
Resolution

Axiom+ 7: WSVGA 1024 x 600

Axiom+ 9: Widescreen HD 1280 x 720

Axiom+ 12: WXGA 1280 x 800
Viewing angle

Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85°

Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85°

Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°
Illumination

Axiom+ 7: 1800 nits / 1800 cd/m2

Axiom+ 9:1500 nits / 1500 cd/m2

Axiom+ 12: 1800 nits / 1800 cd/m2
Protective coating

HydroToughTM Oleophobic
Type

IPS (In-Plane Switching)
Color depth

24-bit
Number of simultaneous touches

2
Power
Power consumption

Axiom+ 7: 9.84 W

Axiom+ 9: 11.98 W

Axiom+ 12: 18.96 W
Operating voltage range

8 V dc to 16 V dc
Fuse rating

7 A
Nominal supply voltage

12 V dc
LEN (NMEA 2000 Load Equivalency Number)

1
Sonar
Depth range

CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)
Environmental
Operating temperature

-25°C to +55°C (-13°F to 131°F)
Storage temperature

-30°C to +70°C (-22°F to 158°F)
Relative humidity

Up to 93% @ 40°C (104°F)
Waterproof rating

IPx6, IPx7
GPS
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels

Track up to 28 satellites simultaneously
Antenna

Internal - Ceramic chip mounted near top of unit
GNSS compatibility

GPS, GLONASS, Beidou
Almanac Update

Automatic
Signal Acquisition

Automatic
Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency

1574 MHz to 1605 MHz
Refresh rate

10 Hz (10 times per second)
Time to first fix from cold start

< 2 minutes
SKU RAY.E70639-00-ANZ
Model # E70639-00-ANZ
Brand Raymarine
Shipping Weight 5.8210kg
Shipping Width 0.314m
Shipping Height 0.077m
Shipping Length 0.217m
Shipping Cubic 0.005247000m3
Unit Of Measure ea
