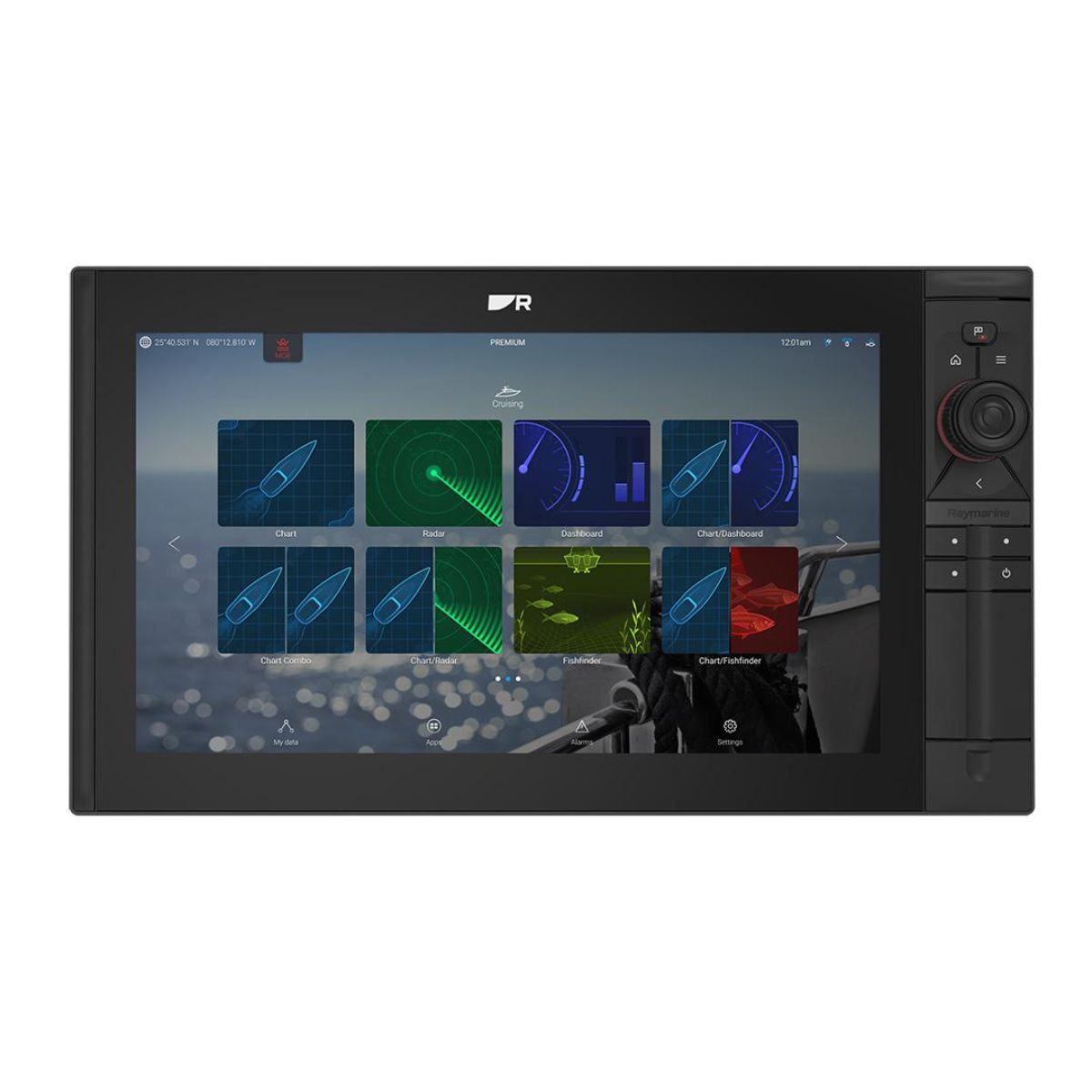

Raymarine AXIOM2 Pro 16 S, HybridTouch 16" Multi-function Display, High CHIRP Conical Sonar for CPT-S, Australia & New Zealand LightHouse Chart
Raymarine AXIOM2 Pro 16 S: 16" HybridTouch Display with High CHIRP Sonar for CPT-S. Includes Australia & NZ LightHouse Charts. Ideal for advanced maritime navigation.
SKU: RAY.E70657-00-ANZ | MPN: E70657-00-ANZ
SAVE 25%!
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Raymarine AXIOM2 Pro 16 S, HybridTouch 16" Multi-function Display, High CHIRP Conical Sonar for CPT-S, Australia & New Zealand LightHouse Chart.
The AXIOM 2 PRO S series, comprising 9, 12, and 16-inch HybridTouch chartplotters, is an innovative all-in-one navigation system that expertly combines chartplotter functionality with single-channel CHIRP sonar technology. Engineered for both the recreational boater and the seasoned mariner, the Axiom 2 Pro S series offers a range of features designed for effortless and precise navigation.
Key Features:
-
HybridTouch Control:
Intuitive touch screen and keypad control, powered by the LightHouse operating system, for ease of use in any condition. -
Integrated High CHIRP Sonar:
For clear and reliable depth soundings and underwater exploration. -
Powerful 6-Core Processor:
Ensures fast and seamless integration of chartplotter, radar, autopilot, and video capabilities. -
HydroTough Technology:
Water-repellent nano-coating for enhanced touch control and sunlight visibility. -
Customizable Keypads:
Interchangeable keypads including a dedicated Evolution autopilot keypad or programmable soft keys. -
Advanced Sailing Tools:
- Preloaded sailboat polar profiles.
- Dynamic laylines and adjustable race timers.
- Sailing-specific indicators for optimal performance.
Sailing Assistance:
-
Polars and Dynamic Laylines:
Optimize performance with over 500 racing and cruising sailboat profiles. -
Race Features:
SmartStart™ starting line tool, line bias, and time to burn displays. -
VMG Indicators:
Easy sail trimming and tactical advantage with visual VMG to windward.
Enhanced Connectivity and Integration:
-
Radar and Thermal Imaging:
Compatibility with Quantum 2 radome or Cyclone open array radar and FLIR thermal imaging. -
ClearCruise Augmented Reality:
Enhanced situational awareness with AIS, waypoints, and chart objects overlay. -
Engine Integration:
Connects with NMEA2000-compatible engines, Mercury SmartCraft, and Yamaha Command Link engines. -
Entertainment:
Stream media, control marine audio systems, and HDMI output for larger display viewing. -
Smart Boating:
Wi-Fi connectivity for smartphone control and LightHouse Apps for expanded capabilities.
Building a Comprehensive System:
- Connectivity: Dual RayNet Ethernet ports and NMEA2000 compatibility for multi-display and accessory integration.
| Physical | |
|---|---|
| Dimensions (Trunnion mounted) |
Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in) |
| Dimensions (Surface/Flush mounted) |
Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) |
| Connections | |
| Ethernet connection |
2 RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 2000 connection |
DeviceNet connector |
| Wi-Fi |
Multiband - 2.4GHz, and 5Ghz 802.11b/g/n |
| Bluetooth |
v4.0 |
| Accessory connection |
USB Micro B |
| Internal storage |
64GB Solid State |
| External storage |
2 front mounted MicroSDXC card slots |
| Digital Video and Audio |
HDMI Out Micro connector type D |
| Analog video connections |
BNC Analog video input (on power cable) |
| Analog audio connections |
RCA connectors via power cable |
| External GPS anternna |
TNC connector |
| Power | |
| Power consumption @ 12 V dc |
Axiom Pro 9: 33.12 W Axiom Pro 12: 29.88 W Axiom Pro 16: 42.36 W |
| Power consumption @ 24 V dc |
Axiom Pro 9: 30.96 W Axiom Pro 12: 28.8 W Axiom Pro 16: 40.8 W |
| Operating voltage range |
8 V dc to 32 V dc |
| Nominal supply voltage |
12 V dc / 24 V dc |
| Off current @ 12 V dc |
11 mA (0.13 W) |
| Off current @ 24 V dc |
18 mA (0.43 W) |
| LEN (NMEA 2000 Load Equivalency Number) |
1 |
| Current |
5 A |
| Fuse rating |
15 A |
| GPS (GNSS) | |
| Position Accuracy |
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum |
WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) |
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels |
Track up to 28 satellites simultaneously |
| Antenna |
Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility |
GPS, Galileo, GLONASS, Beidou |
| Almanac Update |
Automatic |
| Signal Acquisition |
Automatic |
| Receiver IC Sensitivity |
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency |
1574 MHz to 1605 MHz |
| Refresh rate |
10 Hz (10 times per second) |
| Time to first fix from cold start |
< 2 minutes |
| Environmental | |
| Operating temperature |
-25°C to +55°C (-13°F to 131°F) |
| Storage temperature |
-30°C to +70°C (-22°F to 158°F) |
| Relative humidity |
Up to 93% @ 40°C (104°F) |
| Waterproof rating |
IPx6, IPx7 |
| LCD | |
| Size (diagonal) |
Axiom 2 Pro 9: 9.0" Axiom 2 Pro 12: 12.1" Axiom 2 Pro 16: 15.6" |
| Ratio |
Axiom 2 Pro 9: 16:9 Axiom 2 Pro 12: 16:9 Axiom 2 Pro 16: 16:10 |
| Resolution |
Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD |
| Viewing angle |
Top 88° / Bottom 88° / Left 88° / Right 88° |
| Type |
IPS (In-Plane Switching) |
| Color depth |
24-bit |
| Illumination |
Axiom 2 Pro 9 1300 nits / 1300 cd/m2 |
| Number of simultaneous touches |
1 to 16 |
| Sonar | |
| Channels |
CHIRP conical sonar |
| Depth range |
0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions |
| Transducer connection |
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
| SKU | RAY.E70657-00-ANZ |
| Model # | E70657-00-ANZ |
| Brand | Raymarine |
| Shipping Weight | 9.0200kg |
| Shipping Width | 0.254m |
| Shipping Height | 0.558m |
| Shipping Length | 0.356m |
| Shipping Cubic | 0.050457000m3 |
| Unit Of Measure | ea |
