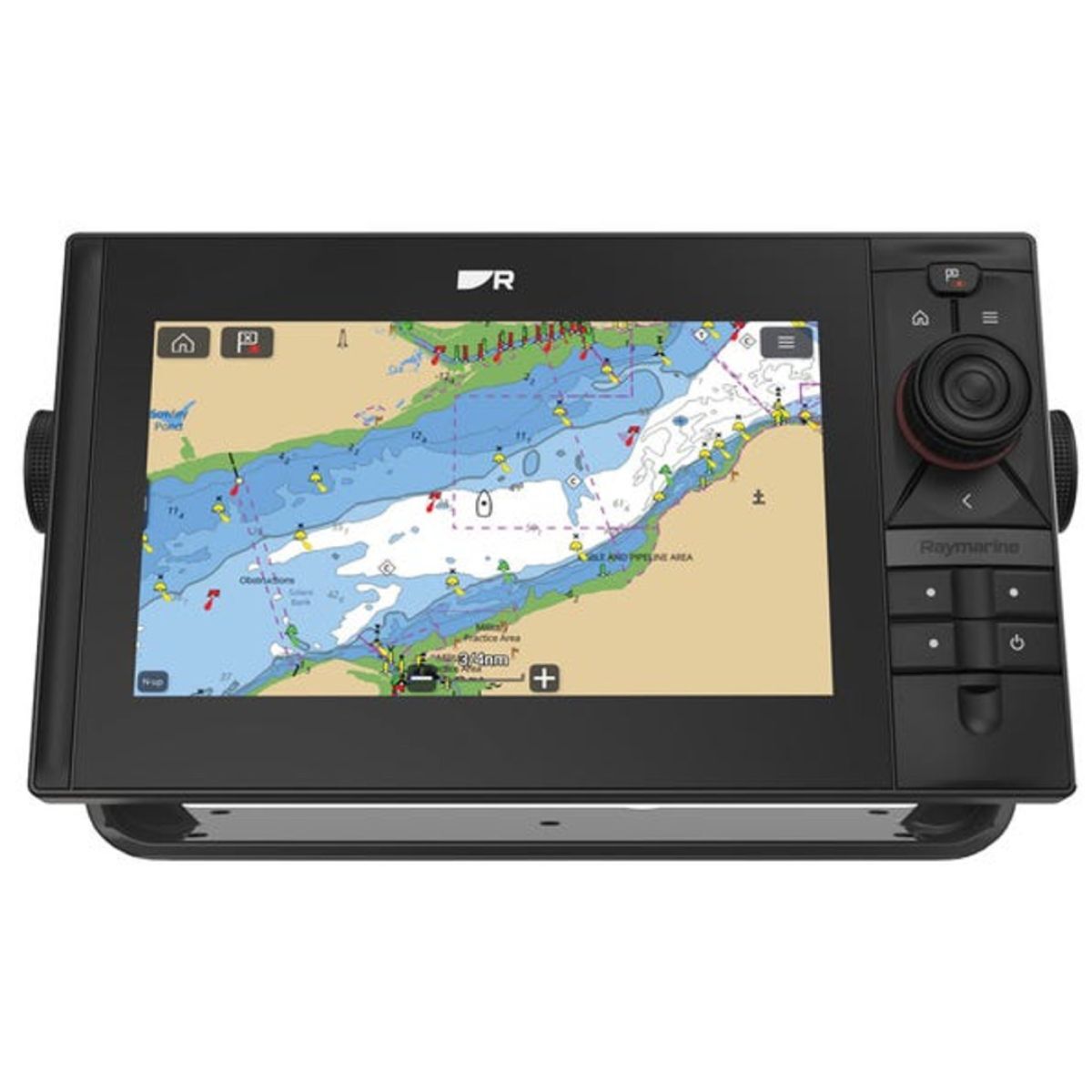

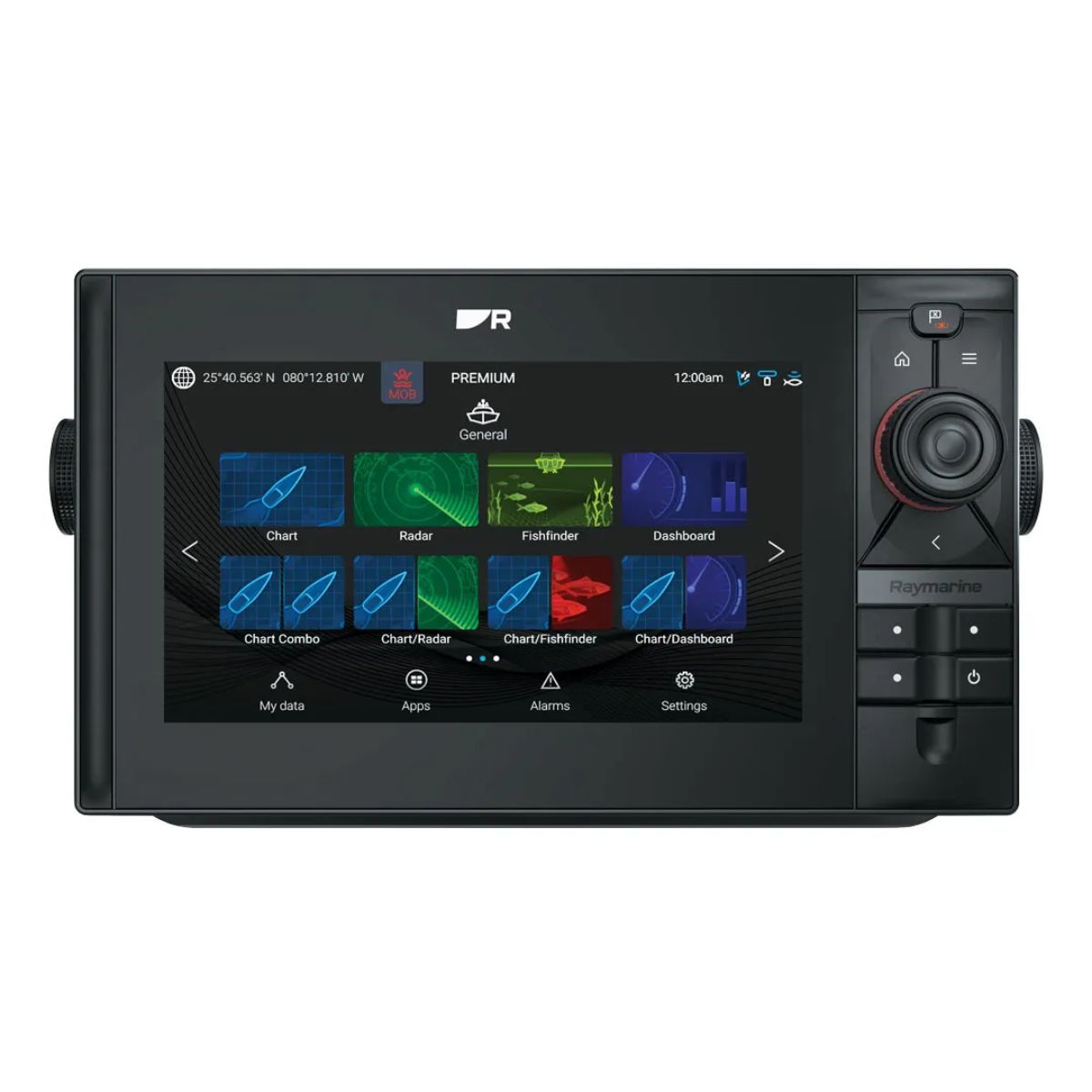

Raymarine AXIOM2 Pro 9 RVM
HybridTouch 9" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar
SKU: RAY.E70654 | MPN: E70654
WAS $4,434.60
NOW $4,341.24
SAVE 13%!
Sale Ends in
23:59 pm, 8 December 2024
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
AXIOM 2 PRO RVM: Your Offshore Adventure Guide
The Axiom 2 Pro RVM is a groundbreaking chartplotter and fish finder system designed to enhance your fishing and boating experience. Combining advanced navigation features with high-definition sonar technology, the Axiom 2 Pro RVM offers unparalleled performance for serious anglers and mariners. Available in 9, 12, and 16-inch HybridTouch displays, this system integrates seamlessly into any boating setup.
Key Features:
-
HybridTouch Control
Offers both touchscreen and keypad navigation, ensuring ease of use in any condition. -
RealVision MAX CHIRP Sonar
Delivers increased range, resolution, and clarity for identifying fish and underwater structures. -
Powerful 6-core Processor
Ensures swift and efficient operation of GPS, radar, fish finder, and video functionalities. -
HydroTough Nano-coating
Repels water for reliable touchscreen use, enhanced colour, and visibility in sunlight. -
Smart Backlighting
Automatically adjusts for optimal viewing at any time of day. -
Expandable System
Customize with interchangeable keypads, LightHouse Charts, Quantum 2 radar, FLIR thermal imaging, and more for a tailored navigation experience. -
Comprehensive Connectivity
Features built-in Wi-Fi, HDMI output, and compatibility with a wide range of marine audio systems and engines.
Advanced Capabilities:
-
Versatile Fish Finding
Integrated CHIRP DownVision, SideVision, RealVision 3D, and traditional CHIRP sonar, along with a 1kW dual-channel CHIRP for deep-water exploration. -
Enhanced Navigation
Upgrade with LightHouse Charts for detailed mapping, and add radar for safer navigation and target tracking. -
Night Vision and Augmented Reality
FLIR thermal cameras and ClearCruise AR technology provide superior awareness and safety. -
Engine Integration and Entertainment
Connects with NMEA2000-compatible engines, streams entertainment apps, and supports marine audio system control.
Expand Your System:
-
Networking
Utilize two RayNet Ethernet ports and NMEA2000 for integrating multiple Axiom displays, radar, autopilot, cameras, and more. -
Stay Connected
With the YachtSense Link router and Raymarine mobile App, your system remains accessible on and off the boat.
The Axiom 2 Pro RVM is not just a chartplotter; it's a comprehensive marine technology platform that brings smart boating into the 21st century. Whether you're navigating unfamiliar waters or searching for the next big catch, the Axiom 2 Pro RVM provides the tools you need for a successful voyage

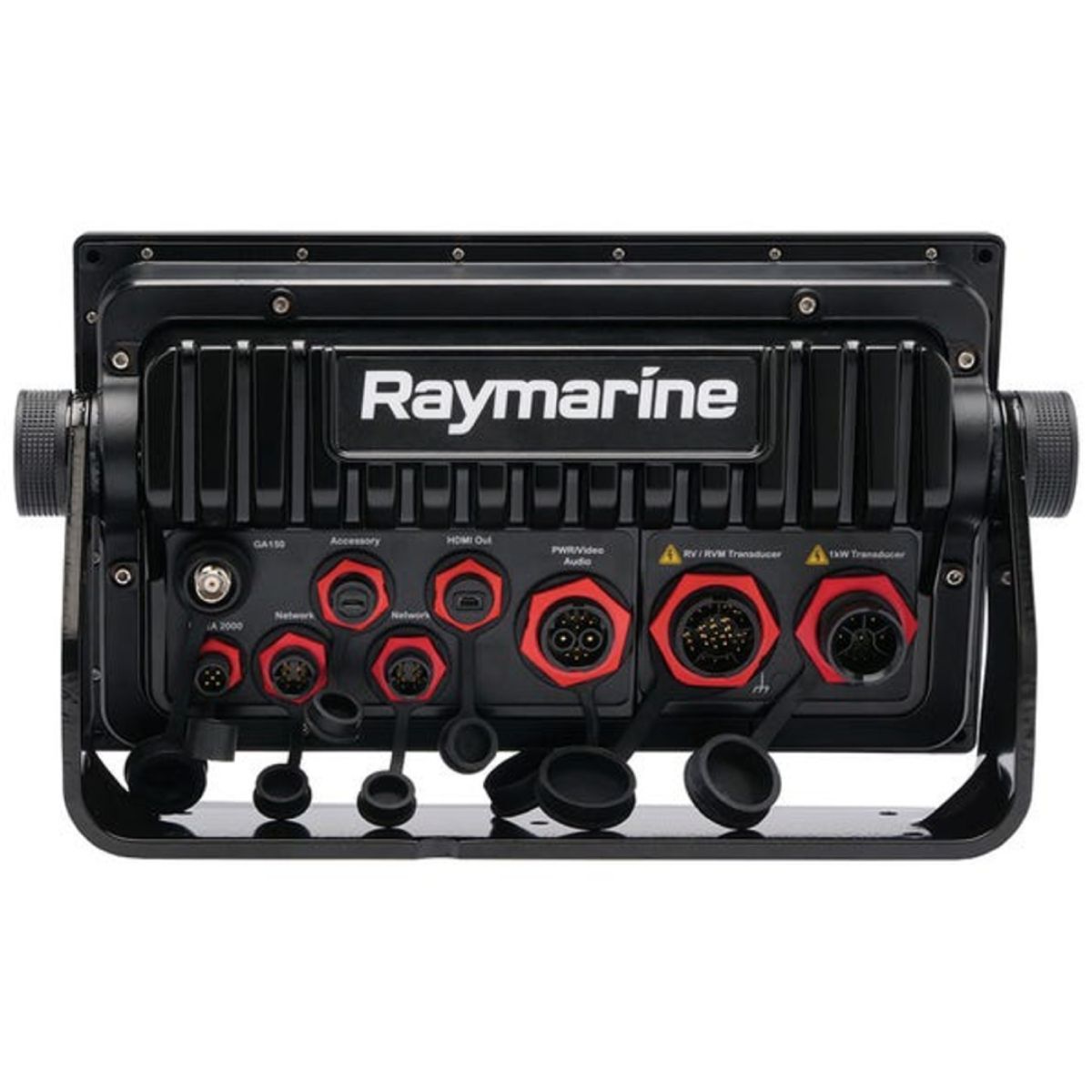

| Connections | |
|---|---|
| Ethernet connection | 2 RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 2000 connection | DeviceNet connector |
| Wi-Fi | Multiband - 2.4GHz, and 5Ghz 802.11b/g/n |
| Bluetooth | v4.0 |
| Accessory connection | USB Micro B |
| Internal storage | 64GB Solid State |
| External storage | 2 front mounted MicroSDXC card slots |
| Digital Video and Audio | HDMI Out Micro connector type D |
| Analog video connections | BNC Analog video input (on power cable) |
| Analog audio connections | RCA connectors via power cable |
| External GPS antenna | TNC connector |
| Physical | |
| Dimensions (Trunnion mounted) |
Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) |
| Dimensions (Surface/Flush mounted) | Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) |
| Power | |
| Power consumption @ 12 V dc | Axiom Pro 9: 33.12 W Axiom Pro 12: 29.88 W Axiom Pro 16: 42.36 W |
| Power consumption @ 24 V dc | Axiom Pro 9: 30.96 W Axiom Pro 12: 28.8 W Axiom Pro 16: 40.8 W |
| Operating voltage range | 8 V dc to 32 V dc |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Off current @ 12 V dc | 11 mA (0.13 W) |
| Off current @ 24 V dc | 18 mA (0.43 W) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Current | 5 A |
| Fuse rating | 15 A |
| Environmental | |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| LCD | |
| Size (diagonal) | Axiom 2 Pro 9: 9.0" Axiom 2 Pro 12: 12.1" Axiom 2 Pro 16: 15.6" |
| Ratio | Axiom 2 Pro 9: 16:9 Axiom 2 Pro 12: 16:9 Axiom 2 Pro 16: 16:10 |
| Resolution | Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD |
| Viewing angle | Top 88° / Bottom 88° / Left 88° / Right 88° |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Illumination | Axiom 2 Pro 9 1300 nits / 1300 cd/m2 Axiom 2 Pro 12 1200 nits / 1200 cd/m2 Axiom 2 Pro 16 1200 nits / 1200 cd/m2 |
| Number of simultaneous touches | 1 to 16 |
| GPS (GNSS) | |
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, Galileo, GLONASS, Beidou |
| Almanac Update | Automatic |
| Signal Acquisition | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Refresh rate | 10 Hz (10 times per second) |
| Time to first fix from cold start | < 2 minutes |
| Sonar | |
| Power output | RealVision MAX high CHIRP sonar channel: 600 Watts RMS Traditional dual channel CHIRP channel: 1kW RMS |
| Sonar channels | RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) 1kW CHIRP Port: 42 - 250kHz (Transducer dependent) |
| RealVision MAX Depth range | 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) |
| 1 kW Depth range | 11 pin 1kW connector: 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) |
| Connections | 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector |
| SKU | RAY.E70654 |
| Model # | E70654 |
| Brand | Raymarine |
| Shipping Weight | 5.1600kg |
| Shipping Width | 0.186m |
| Shipping Height | 0.234m |
| Shipping Length | 0.329m |
| Shipping Cubic | 0.014319000m3 |
| Unit Of Measure | ea |
