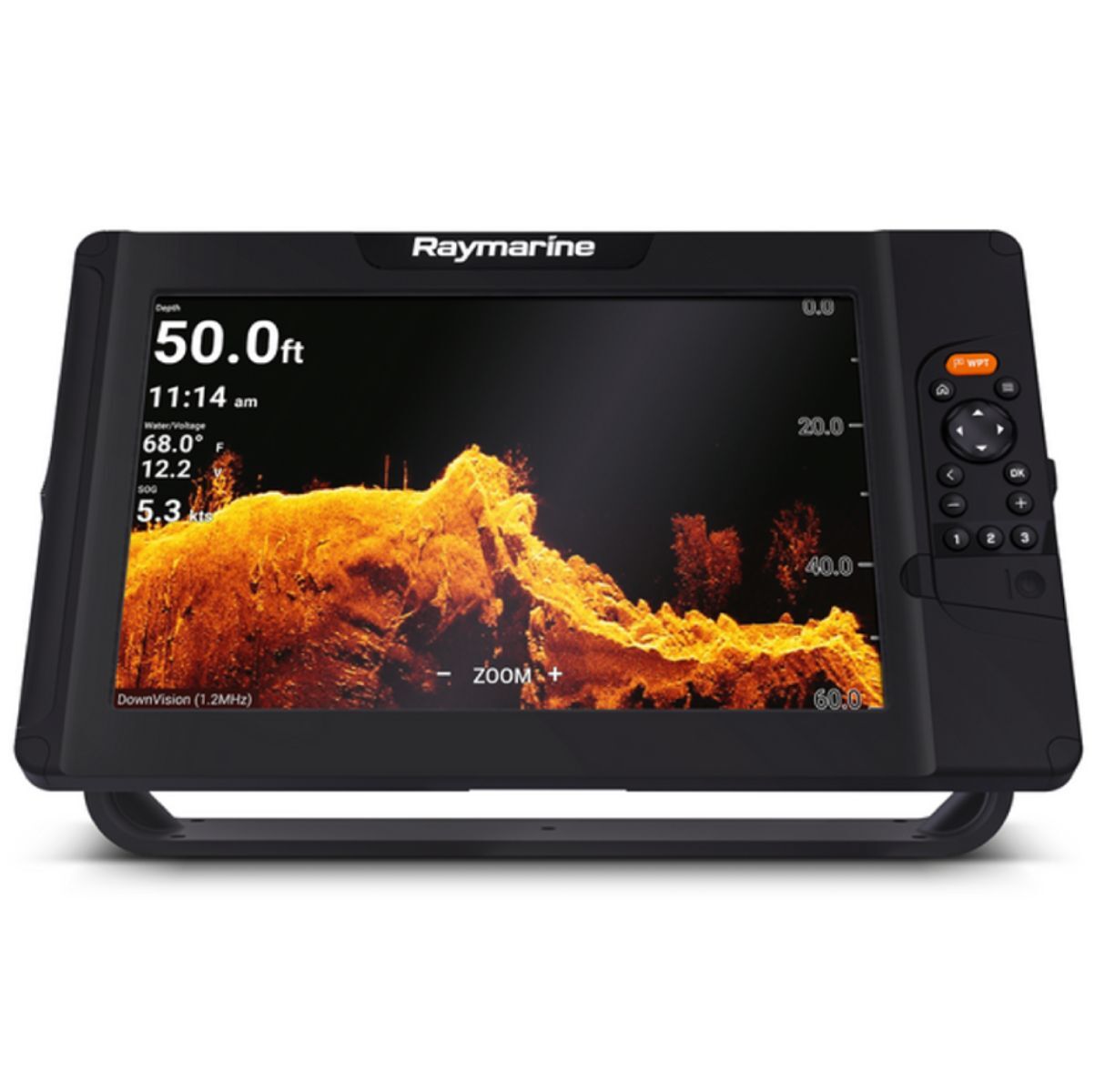

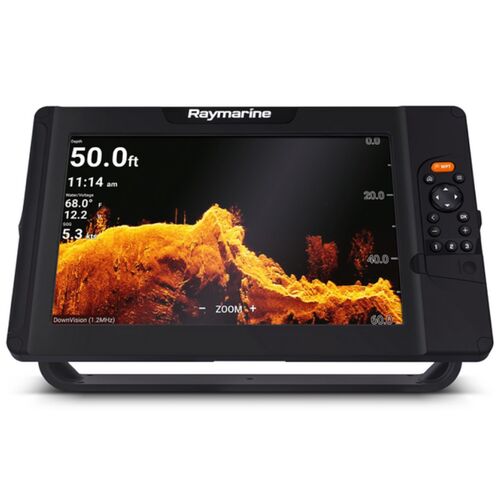

Element 12 HV -12" Chart Plotter with CHIRP Sonar, HyperVision, Wi-Fi & GPS, Australia & New Zealand LightHouse Chart & No Transducer.

The ELEMENT HV Series Chartplotters with HyperVision Sonar - a comprehensive solution for anglers and mariners seeking superior fish-finding capabilities and navigational aids. This series includes models with 7, 9, and 12-inch displays, catering to various vessel sizes and user preferences.

Key Features:

  1. HyperVision™ Sonar Technology:

    Utilizing a 1.2 megahertz CHIRP sonar, the ELEMENT HV offers unprecedented imaging clarity. It enhances DownVision, SideVision, and RealVision 3D, providing detailed views of underwater structures, vegetation, and fish.

  2. Display and Build:

    Each model boasts a sunlight-viewable display, ensuring clear visibility in bright conditions. The integrated GPS/GNSS receiver enhances navigational precision.

  3. RealVision™ 3D:

    Built-in RealVision 3D aids in accurately identifying underwater topographical changes like ledges and channel beds.

  4. Performance:

    A fast quad-core processor ensures quick chart redraws and crisp 3D imaging.

  5. Versatile Transducer:

    An all-in-one transducer merges multiple sonar channels, including HyperVision, DownVision, SideVision, and RealVision, for a simplified setup.

  6. Mapping Capabilities:

    Supports Raymarine LightHouse Charts, Navionics, and C-MAP charts, along with Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live.

  7. User-Friendly Interface:

    The LightHouse Sport Operating System is optimized for fishing, offering speed and ease of use. The intuitive controls include an oversized waypoint key and three programmable keys for personalized navigation.

Enhanced Sonar Capabilities:

  • High-Resolution Imaging:

    HyperVision mode offers super high-resolution imagery up to 100 feet (30 meters) using 1.2 megahertz frequencies.

  • Versatile Sonar Ranges:

    Switch to 350 kHz CHIRP sonar for broader range imaging up to 600 feet (180 meters), or use the 200kHz range for fish targeting and bottom tracking up to 900 feet.

What's in the box?

Package contents

  1. Element display
  2. Surface mount gasket
  3. Suncover
  4. Trunnion knobs (x 2)
  5. Documentation
  6. Trunnion bracket
  7. Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
  8. Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).



Physical
Dimensions (Trunnion mount)

Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)

Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)

Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)
Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)

Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)

Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)
Weight (display only)

Element 7: 1.0 Kg (2.2lbs)

Element 9: 1.3 Kg (2.86lbs)

Element 12: 2.0 Kg (4.4lbs)
LCD
Size (diagonal):

Element 7: 7.0"

Element 9: 9.0"

Element 12: 12.1"
Resolution

Element 7: WVGA 800 x 480

Element 9: WVGA 800 x 480

Element 12: WXGA 1280 x 800
Ratio

Element 7: 5:3

Element 9: 5:3

Element 12: 8:5
Viewing angle (T / B / L / R):

Element 7: 50° / 60° / 70° / 70°

Element 9: 50° / 70° / 70° / 70°

Element 12: 89° / 89° / 89° / 89°
Type

Element 7: TN (Twisted Nematic)

Element 9: TN (Twisted Nematic)

Element 12: IPS (In-Plane Switching)
Color depth

24-bit
Maximum Illumination

1500 nits / 1500 cd/m2
Power
Operating voltage range

8 V dc to 16 V dc (protected up to 32 V dc)
Power consumption (Approximate @ 12 V dc)

Element 7: 15 Watts

Element 9: 20 Watts

Element 12: 25 Watts
Nominal supply voltage

12 V dc
Fuse requirements

Inline fuse = 5 A, Thermal breaker = 3 A
LEN (NMEA 2000 Load Equivalency Number)

1 (Based on 9 V dc nominal voltage)
Data connections
SeaTalkng / NMEA 2000

1 x DeviceNet female connector built into power cable
2.4 GHz Wi-Fi

1 x 802.11/b/g/n
Transducer

1 x 15-pin HyperVision connector
Hypervision
350 kHz (Standard) range

RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
1.2 MHz (Hyper) range

RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
Sonar channels

Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
200 kHz range

Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
Frequencies

1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP
Power

1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W
Storage
External

1 x MicroSDXC card slot
Environmental
Operating temperature range

-25°C (-13°F) to +55°C (+131°F)
Storage temperature range

-30°C (-22°F) to +70°C (+158°F)
Humidity

up to 93% @ 40°C (+104°F)
Waterproof rating

IPx6, IPx7
GPS Receiver
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)
Channels

Multiple - ability to simultaneously track up to 28 satellites
Antenna

Internal - Ceramic chip mounted near top of unit
GNSS compatibility

GPS, GLONASS, Beidou
SBAS compatibility

EGNOS, GAGAN, MSAS, QZSS, WAAS
Signal Acquisition

Automatic
Almanac Update

Automatic
Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency

1574 MHz to 1605 MHz
Cold start

< 2 minutes
Conformance
Standards

EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
SKU RAY.E70536-00-ANZ
Model # E70536-00-ANZ
Brand Raymarine
Shipping Weight 4.8210kg
Shipping Width 0.240m
Shipping Height 0.062m
Shipping Length 0.135m
Shipping Cubic 0.002009000m3
Unit Of Measure ea
