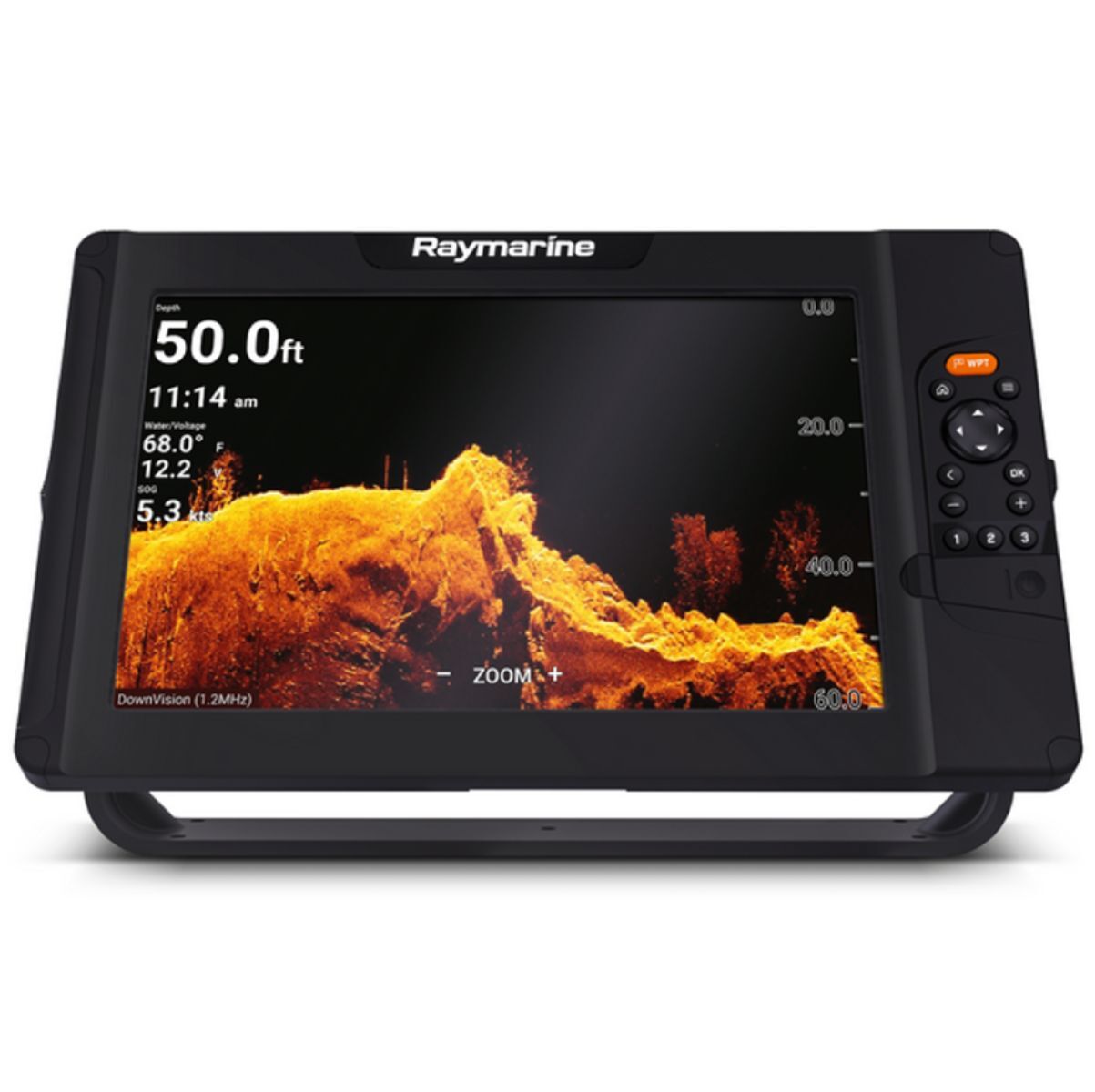

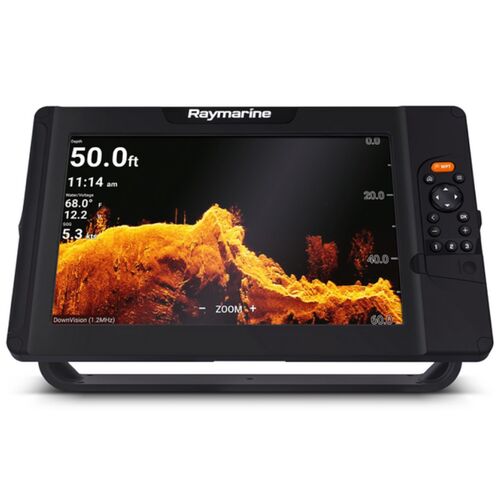

Raymarine Element 7 HV - 7" Chart Plotter with CHIRP Sonar, HyperVision, Wi-Fi & GPS, Australia & New Zealand LightHouse Chart & No Transducer
Element 7 HV: a 7" chart plotter with CHIRP Sonar, HyperVision, Wi-Fi, GPS, and Australia & New Zealand LightHouse charts. No transducer included. Perfect for navigators and anglers.
SKU: RAY.E70532-00-ANZ | MPN: E70532-00-ANZ
SAVE $124.08 (11%)
Special OrderSpecial Order from Supplier
Element 7 HV - 7" Chart Plotter with CHIRP Sonar, HyperVision, Wi-Fi & GPS, Australia & New Zealand LightHouse Chart & No Transducer.
The ELEMENT HV Series Chartplotters with HyperVision Sonar - a comprehensive solution for anglers and mariners seeking superior fish-finding capabilities and navigational aids. This series includes models with 7, 9, and 12-inch displays, catering to various vessel sizes and user preferences.
Key Features:
-
HyperVision™ Sonar Technology:
Utilizing a 1.2 megahertz CHIRP sonar, the ELEMENT HV offers unprecedented imaging clarity. It enhances DownVision, SideVision, and RealVision 3D, providing detailed views of underwater structures, vegetation, and fish. -
Display and Build:
Each model boasts a sunlight-viewable display, ensuring clear visibility in bright conditions. The integrated GPS/GNSS receiver enhances navigational precision. -
RealVision™ 3D:
Built-in RealVision 3D aids in accurately identifying underwater topographical changes like ledges and channel beds. -
Performance:
A fast quad-core processor ensures quick chart redraws and crisp 3D imaging. -
Versatile Transducer:
An all-in-one transducer merges multiple sonar channels, including HyperVision, DownVision, SideVision, and RealVision, for a simplified setup. -
Mapping Capabilities:
Supports Raymarine LightHouse Charts, Navionics, and C-MAP charts, along with Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live. -
User-Friendly Interface:
The LightHouse Sport Operating System is optimized for fishing, offering speed and ease of use. The intuitive controls include an oversized waypoint key and three programmable keys for personalized navigation.
Enhanced Sonar Capabilities:
-
High-Resolution Imaging:
HyperVision mode offers super high-resolution imagery up to 100 feet (30 meters) using 1.2 megahertz frequencies. -
Versatile Sonar Ranges:
Switch to 350 kHz CHIRP sonar for broader range imaging up to 600 feet (180 meters), or use the 200kHz range for fish targeting and bottom tracking up to 900 feet.
What's in the box?
- Element display
- Surface mount gasket
- Suncover
- Trunnion knobs (x 2)
- Documentation
- Trunnion bracket
- Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
- Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
Physical | |
---|---|
Dimensions (Trunnion mount) |
Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in) Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in) |
Dimensions (surface mount) |
Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in) Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in) |
Weight (display only) |
Element 7: 1.0 Kg (2.2lbs) Element 9: 1.3 Kg (2.86lbs) Element 12: 2.0 Kg (4.4lbs) |
LCD | |
Size (diagonal): |
Element 7: 7.0" Element 9: 9.0" Element 12: 12.1" |
Resolution |
Element 7: WVGA 800 x 480 Element 9: WVGA 800 x 480 Element 12: WXGA 1280 x 800 |
Ratio |
Element 7: 5:3 Element 9: 5:3 Element 12: 8:5 |
Viewing angle (T / B / L / R): |
Element 7: 50° / 60° / 70° / 70° Element 9: 50° / 70° / 70° / 70° Element 12: 89° / 89° / 89° / 89° |
Type |
Element 7: TN (Twisted Nematic) Element 9: TN (Twisted Nematic) Element 12: IPS (In-Plane Switching) |
Color depth |
24-bit |
Maximum Illumination |
1500 nits / 1500 cd/m2 |
Power | |
Operating voltage range |
8 V dc to 16 V dc (protected up to 32 V dc) |
Power consumption (Approximate @ 12 V dc) |
Element 7: 15 Watts Element 9: 20 Watts Element 12: 25 Watts |
Nominal supply voltage |
12 V dc |
Fuse requirements |
Inline fuse = 5 A, Thermal breaker = 3 A |
LEN (NMEA 2000 Load Equivalency Number) |
1 (Based on 9 V dc nominal voltage) |
Data connections | |
SeaTalkng / NMEA 2000 |
1 x DeviceNet female connector built into power cable |
2.4 GHz Wi-Fi |
1 x 802.11/b/g/n |
Transducer |
1 x 15-pin HyperVision connector |
Hypervision | |
350 kHz (Standard) range |
RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft) |
1.2 MHz (Hyper) range |
RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft) |
Sonar channels |
Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard) |
200 kHz range |
Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft) |
Frequencies |
1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP |
Power |
1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W |
Storage | |
External |
1 x MicroSDXC card slot |
Environmental | |
Operating temperature range |
-25°C (-13°F) to +55°C (+131°F) |
Storage temperature range |
-30°C (-22°F) to +70°C (+158°F) |
Humidity |
up to 93% @ 40°C (+104°F) |
Waterproof rating |
IPx6, IPx7 |
GPS Receiver | |
Position Accuracy |
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
Geodetic Datum |
WGS-84 (alternatives can be selected on the MFD) |
Channels |
Multiple - ability to simultaneously track up to 28 satellites |
Antenna |
Internal - Ceramic chip mounted near top of unit |
GNSS compatibility |
GPS, GLONASS, Beidou |
SBAS compatibility |
EGNOS, GAGAN, MSAS, QZSS, WAAS |
Signal Acquisition |
Automatic |
Almanac Update |
Automatic |
Receiver IC Sensitivity |
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
Operating frequency |
1574 MHz to 1605 MHz |
Cold start |
< 2 minutes |
Conformance | |
Standards |
EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15 |
SKU | RAY.E70532-00-ANZ |
Model # | E70532-00-ANZ |
Brand | Raymarine |
Shipping Weight | 1.3600kg |
Shipping Width | 0.240m |
Shipping Height | 0.062m |
Shipping Length | 0.135m |
Shipping Cubic | 0.002009000m3 |
Unit Of Measure | ea |
