RVM-420

The RVM-400 series presents a stainless steel all-in-one through hull transducer featuring RealVision MAX technology, specifically designed for both inboard and outboard powerboats. It seamlessly integrates with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters, providing advanced sonar capabilities for marine navigation.

Transducer Features:

  • DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability
  • Built-in attitude and heading reference system (AHRS) for 3D sonar stabilization
  • Fast-response water temperature sensor for accurate readings

Design and Compatibility:

  • Rugged stainless steel through hull body for fiberglass, wood, or metal hulls
  • Low-profile design for smooth water passage without drag or cavitation
  • Single, all-in-one transducer for mounting positions with less than 5° hull deadrise

RVM-412 Transducer Pair:

  • Designed for boats with 5° to 15° of deadrise
  • Port and starboard transducer pair
  • Each transducer element tilted at 12° to compensate for hull deadrise

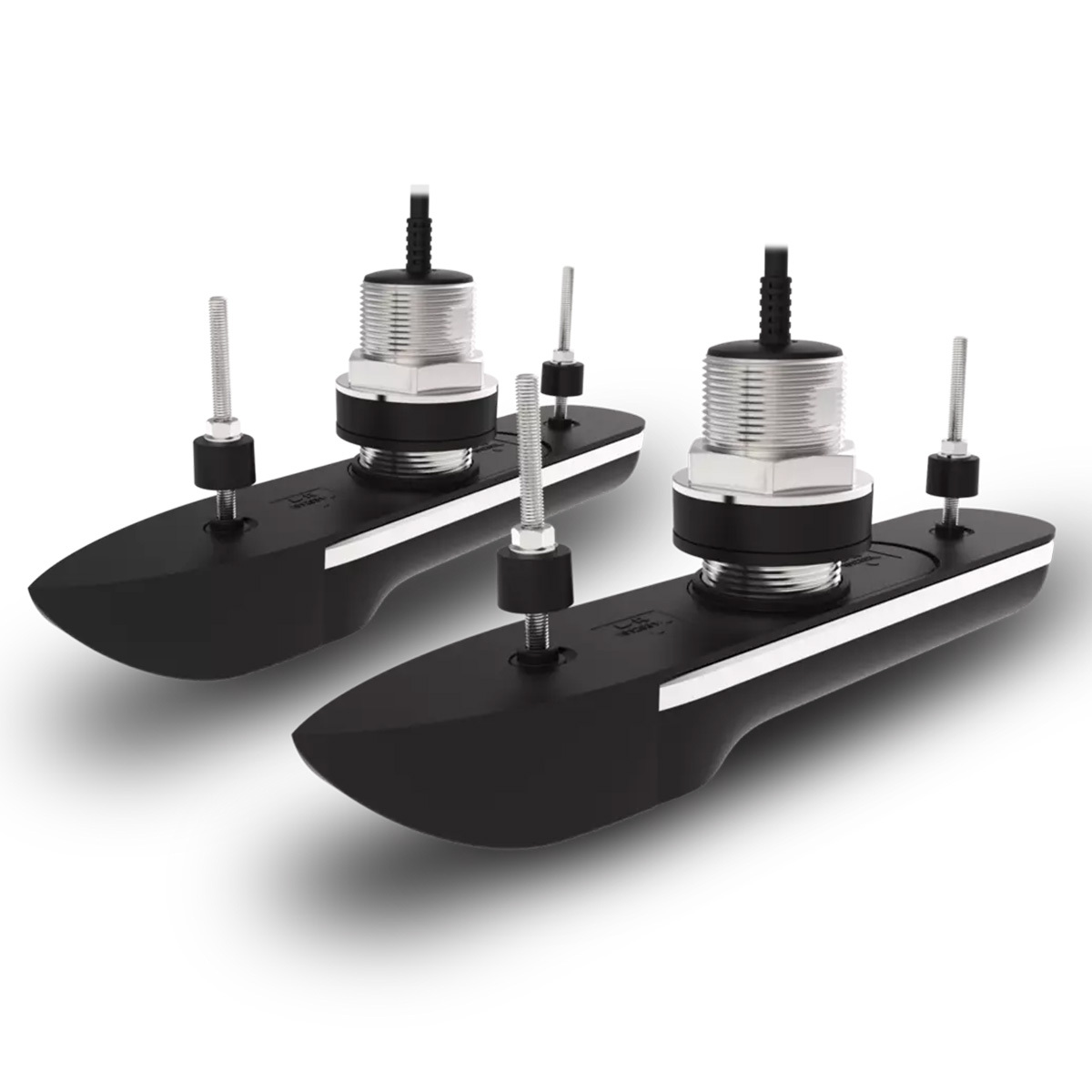

RVM-420 Transducer Pair:

  • Designed for boats with 15° to 25° of deadrise
  • Port and starboard transducer pair
  • Each transducer element tilted at 20° to compensate for hull deadrise

Special Features of RVM-412 and RVM-420 Transducer Pairs:

  • Titled offset sonar elements inside surface mount housings
  • Ensures correct alignment of sonar beam patterns for maximum performance
  • Eliminates drag and turbulence associated with fairing-blocked transducer installation
  • Bundled with Y-Cable harness and 8-meter transducer extension cable for easy installation.
Physical
Cable length

RVM-400: 8 m (26.2 ft), RVM-412 / RVM-420: 2 m (6.5 ft) + 8 m (26.2 ft) extension cable = 10 m (32.8 ft)
Weight

RVM-400 4.56 kg (including cable), RVM-412 / RVM-420 3.87 kg (including cable)
Dimensions (including high speed nose cone)

Length: 424.69 mm (16.72 in), Width: 79.64 mm (3.14 in)
Weight

223.70 mm (8.81 in.) - including cable bend radius
Environmental
Waterproof rating

IPx6 (surfaces exterior to hull only), IPx7, IPx8
Storage temperature range

-20° C (23° F) to + 70° C (158° F)
Operating temperature range

-2° C (28.4° F) to + 55° C (131° F)
RealVision Max 3D sonar range
Sonar range

CHIRP sonar = 0.6 M (2 ft) to 365 m (1,200 ft), DownVision = 0.6 M (2 ft) to 182 m (600 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft), RealVision Max 3D = 0.6 M (2 ft) to 91 m (300 ft)
Sonar channels

RealVision Max 3D, SideVision, DownVision, Conical High CHIRP 600 W @ 200 kHz
SKU RAY.T70544
Model # T70544
Brand Raymarine
Shipping Weight 11.5000kg
