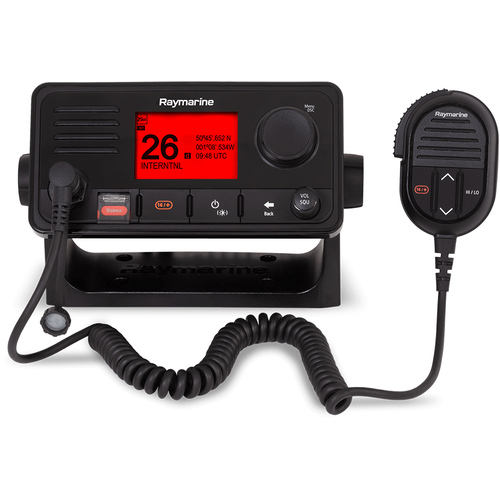

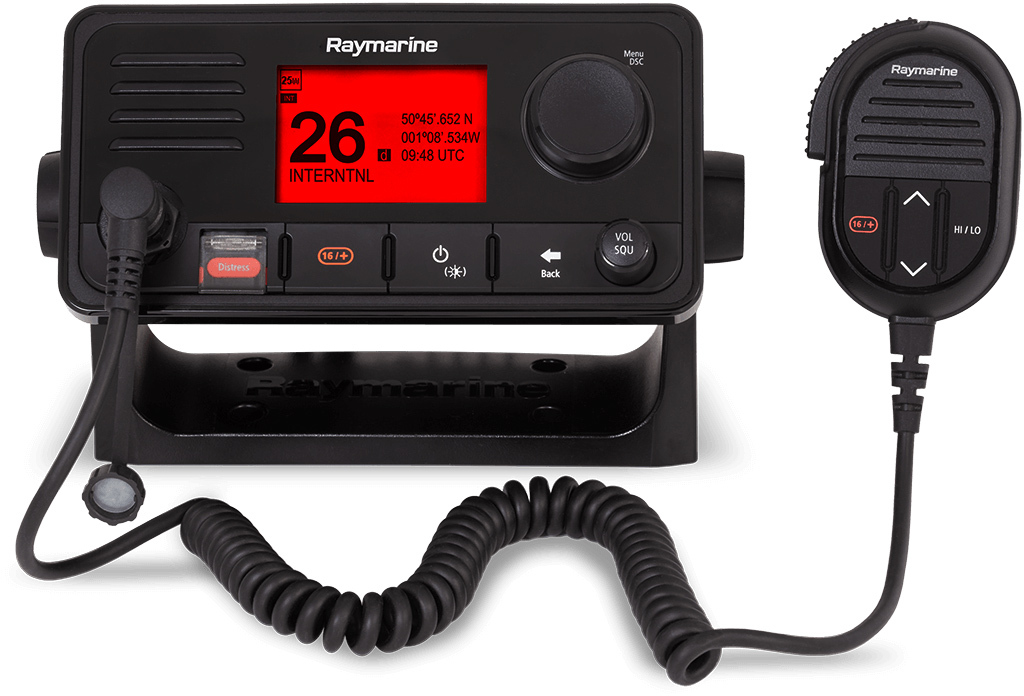

Raymarine Ray73 VHF Radio (optional 2nd handset) with Integrated GPS and AIS receiver
SKU: RAY.E70517 | MPN: E70517
WAS $1,214.44
NOW $1,188.87
SAVE 13%!
Sale Ends in
23:59 pm, 8 December 2024
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Raymarine Ray73 VHF Radio (optional 2nd handset) with Integrated GPS and AIS receiver
ENVIRONMENTAL SPECIFICATIONS
| Operating Temperature | -20ºC (-4ºF) to +60ºC (140ºF) |
| Storage Temperature | -25ºC (-13ºF) to +70ºC (158ºF) |
| Relative Humidity | 95% |
| Water Proofing | IPx6 & IPx7 |
| Connections | 1x NMEA 0183 | 1x SeaTalkng ® / NMEA 2000 | 1x Front Fistmic connection | 1x Rear connection for 2nd station | 1x Audio (RCA) | 1x GNSS (GPS) antenna (TNC) |
POWER
| Nominal Supply Voltage | 12 V dc (Reverse polarity and over voltage protection) |
| Operating Voltage Range | 9 Vdc to 16 Vdc |
| Current Consumption | Less than 6 A at high power (13.6 V) Standby: 600 mA Receive: 2 A Loud hailer: 3A (8 Ω) / 6A(4 Ω) |
TRANSMITTER
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency Range | 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Frequency Stability | +/- 1.5 ppm |
| Channel Spacing | 12.5 kHz |
| Power Output | Low power setting — 1 W | High power setting — 25 W |
| Spurious missions | Better than –36 dBm at 25 W (Less than 0.25 μW) |
| Maximum Deviation | +/- 5 kHz |
| Antenna Impedance | 50 Ohms (typical) |
RECEIVER
| Receiver Type | Double conversion super heterodyne |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency Range | 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Sensitivity | Better than 1 microvolt EMF @20dB SINAD |
| Squelch Sensitivity | Less than —2 dBμ EMF |
| Hum and Noise | Better than –40 dB |
| Audio Distortion | Less than 10% |
| Receiver Sensitivity | Distance — 119dBm (0.25uV) @ 12dB SINAD (typical) Local — 110dBm (0.7uV) @12dB SINAD (typical) |
| Adjacent Channel Selectivity | More than 70 dB |
| Spurious Response Rejection | More than 70 dB |
| Inter Modulation Rejection | More than 70 dB |
SPEAKER
| Base Station Speaker Power Output | 2.5W (8Ω) |
| Fistmic Speaker Power | 1W (16Ω) |
| External Speaker Power | 5W (8Ω) |
| Handset Speaker Power Output | 1W (16Ω) |
| Hailer Speaker Power Output | 25W (4Ω) / 12W (8Ω) |
GNSS (GPS)
| Channels | 72 |
| Cold Start | <2 minutes |
| Receiver IC Sensitivity | –167 dBm (Tracking) / –148 dBm (Acquisition) |
| GNSS Compatibility | GPS | GLONASS | *Beidou |
| SBAS Compatibility | WAAS | EGNOS | MSAS |
| Special Features | Active Jamming and Interference Reduction |
| Operating Frequency | GPS L1 C/A | GLONASS L10F | Beidou B1 |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Geodetic Datum | WGS-84 (alternatives available through Raymarine MFD) |
| Refresh Rate | 10 Hz (10 times per second Concurrent GNSS) |
| Antenna | Internal — Ceramic chip mounted near top of unit External — Passive antenna connection via TNC connector |
| Position Accuracy | Without SBAS: <= 15 metres 95% of the time | With SBAS: <= 5 metres 95% of the time |
AIS
| Class Type | AIS receiver only |
| SKU | RAY.E70517 |
| Model # | E70517 |
| UPC/EAN | 723193826485 |
| Brand | Raymarine |
| Shipping Weight | 3.0700kg |
| Unit Of Measure | kit |
