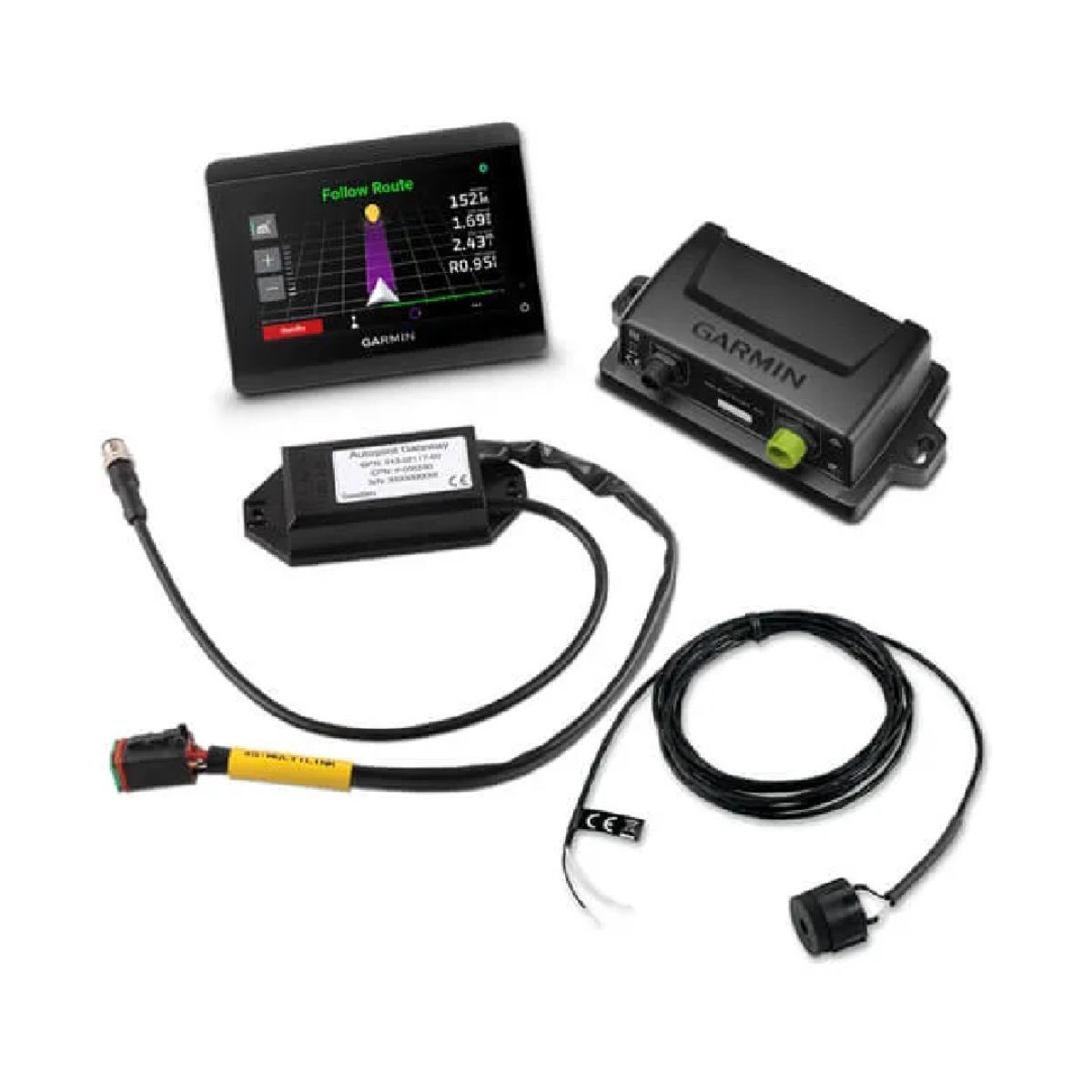

COREPACK COMPATIBILITY

This corepack works with yachts that have a Yamaha Helm Master system, and it requires a compatible Garmin chartplotter.

SOLID-STATE 9-AXIS AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimises heading error and more.

REACTS TO WATER CONDITIONS

Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.

SIMPLE CALIBRATION

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

WIRELESS REMOTE CAPABILITIES

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).



CCU Specifications

  • Dimensions: 3 19/32" diameter (91.4 mm)
  • Weight: 5.6 oz (159 g)
  • Temperature range: From 5°F to 131°F (from -15°C to 55°C)
  • Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
  • CCU cable length: 9.5 ft (3 m)
  • NMEA 2000 power input: 9-16 V
  • NMEA 2000 LEN: 3 (150 mA)

Buzzer/Alarm Specifications

  • Dimensions (L x Diameter): 29/32" x 1" (23 mm x 25 mm)
  • Weight: 2.4 oz (68 g)
  • Temperature range: from 5°F to 131°F (from -15°C to 55°C)
  • Cable length: 10 ft (3.0 m)

Autopilot Gateway Specifications

  • Dimensions (L x Diameter): 5 1/8" x 2 3/8" x 1" (130 mm x 60 mm x 25 mm)
  • Weight: Less than 1 oz (28 g)
SKU GAR.010-02794-04
Model # 010-02794-04
UPC/EAN 753759302887
Brand Garmin
Shipping Weight 0.2500kg
Shipping Width 0.091m
Shipping Height 0.085m
Shipping Length 0.150m
Shipping Cubic 0.001160000m3
Unit Of Measure ea
