REMCO is well known for its AGM batteries in the recreational world of Golf Carts, Camper Trailers, Caravan/RV, Motorhomes, Solar and Marine markets. Just like these existing products, the REMCO Lithium range has been developed and manufactured with quality in mind. Their batteries use the highest quality A-grade lithium cells, so you can feel confident that we've got your back.

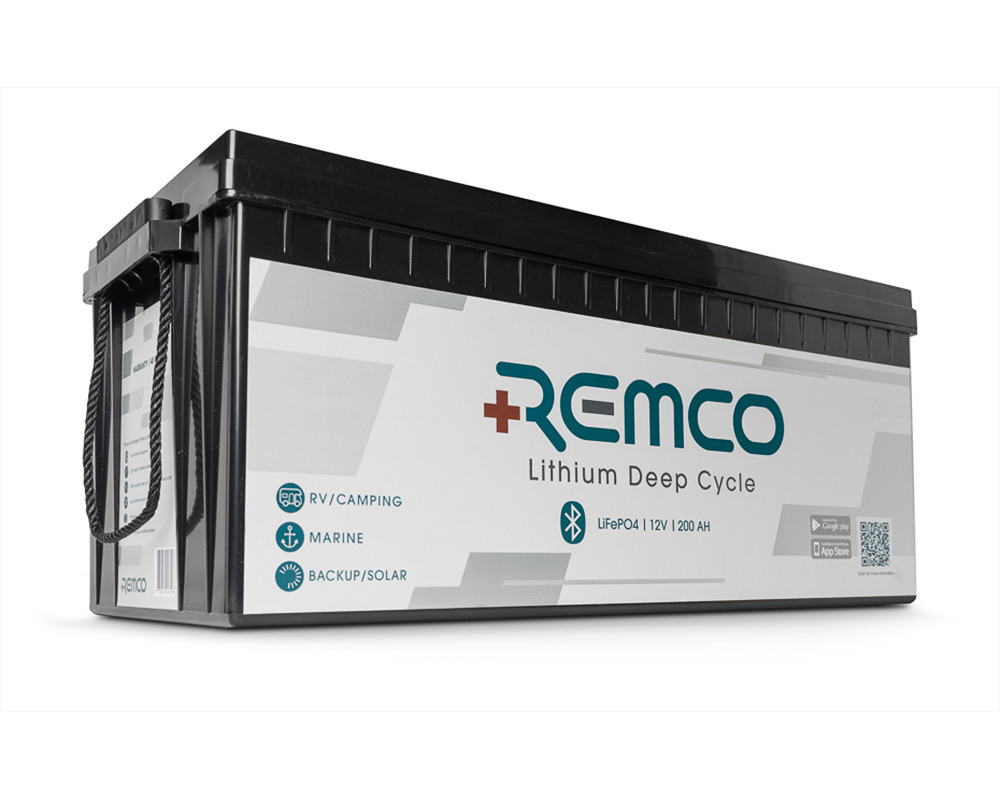

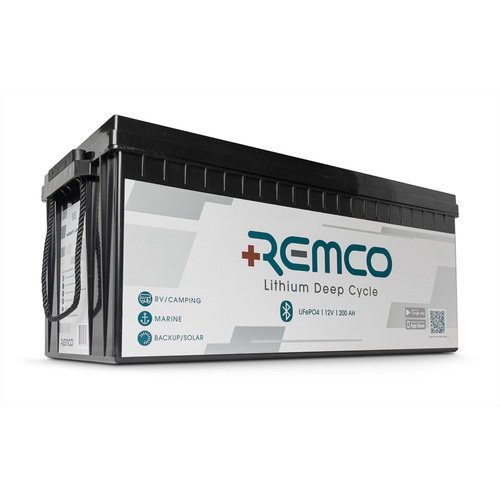

The RM12-200LFP weighs only 23.5KG with dimensions of 552 x 240 x 218mm (8D) and popular M8 bolt terminals for easy connection.

Smart Battery Management with built-in Bluetooth app, available for Android and Apple, provides real-time information about your battery, ensuring safe operation and maximum service life.

Key Advantages of REMCO Lithium

  • Light Weight vs traditional batteries
  • 3000+ recharge cycles up to 5 times more compared to AGM
  • Less maintenance and no sulfation
  • 100% Amp hour capacity available
  • Faster recharge vs traditional batteries
  • Built-in Battery Management System (BMS)
  • Connect up to 48V in series or 4 batteries in parallel
  • 5 Year Warranty



REMCO Intelligent Battery Management System App


Remco App Device Connection

Device Connection

Remco App Battery Performance

Battery Performance

Remco App Battery Cell Balance

Battery Cell Balance

Remco App Troubleshooting

Troubleshooting



ELECTRICAL PERFORMANCE
Nominal Voltage 12.8 V
Nominal Capacity 200 Ah
Capacity @ 26.4A 300 min
Energy 2560 Wh
Resistance ≤20 mΩ @ 50% SOC
Self Discharge <3% / Month
Cells Prismatic Cell 100Ah
CHARGE PERFORMANCE
Recommended Charge Current 20 A
Max Charge Current 50 A
Recommended Charge Voltage 14.6 V
Charge Cut-Off Voltage <15.2 V (0.5 ~ 1.5 s)
Reconnect Voltage >14.4 V
Balancing Voltage <14 V
Maximum Batteries in Series 4
Maximum Batteries in Parallel 4
MECHANICAL PERFORMANCE
Dimension (L x W x H) 522 x 240 x 218 mm
Approx. Weight 23.5 kg
Terminal Type M8
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Bluetooth Yes
Case Material ABS
Enclosure Protection IP65
DISCHARGE PERFORMANCE
Continuous Discharge Current 50 A
Maximum contiuous Discharge Current 150 A
Peak Discharge Cut-Off Current 450 A (5 ~15 ms)
Recommended Low Voltage Disconnect 10 V
Discharge Cut-Off Voltage 8.4 V (50 ~ 150 ms)
Reconnect Voltage 10 V
Short Circuit Protection 200 ~ 600 µs
TEMPERATURE PERFORMANCE
Discharge Temperature -4 ~ 140 ºF (-20 ~ 60 ºC)
Charge Temperature 32 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
High Temperature Cut-Off 149 ºF (65 ºC)
Reconnect Temperature 118 ºF (48 ºC)
COMPLIANCE
Certifications CE UN38.3
UL1642 & IEC62133
Shipping Classification UN 3480, CLASS 9
SKU REM.RM12-200LFP
Model # RM12-200LFP
Brand Remco
Shipping Weight 24.0000kg
Shipping Width 0.550m
Shipping Height 0.220m
Shipping Length 0.250m
Shipping Cubic 0.030250000m3
Unit Of Measure ea
