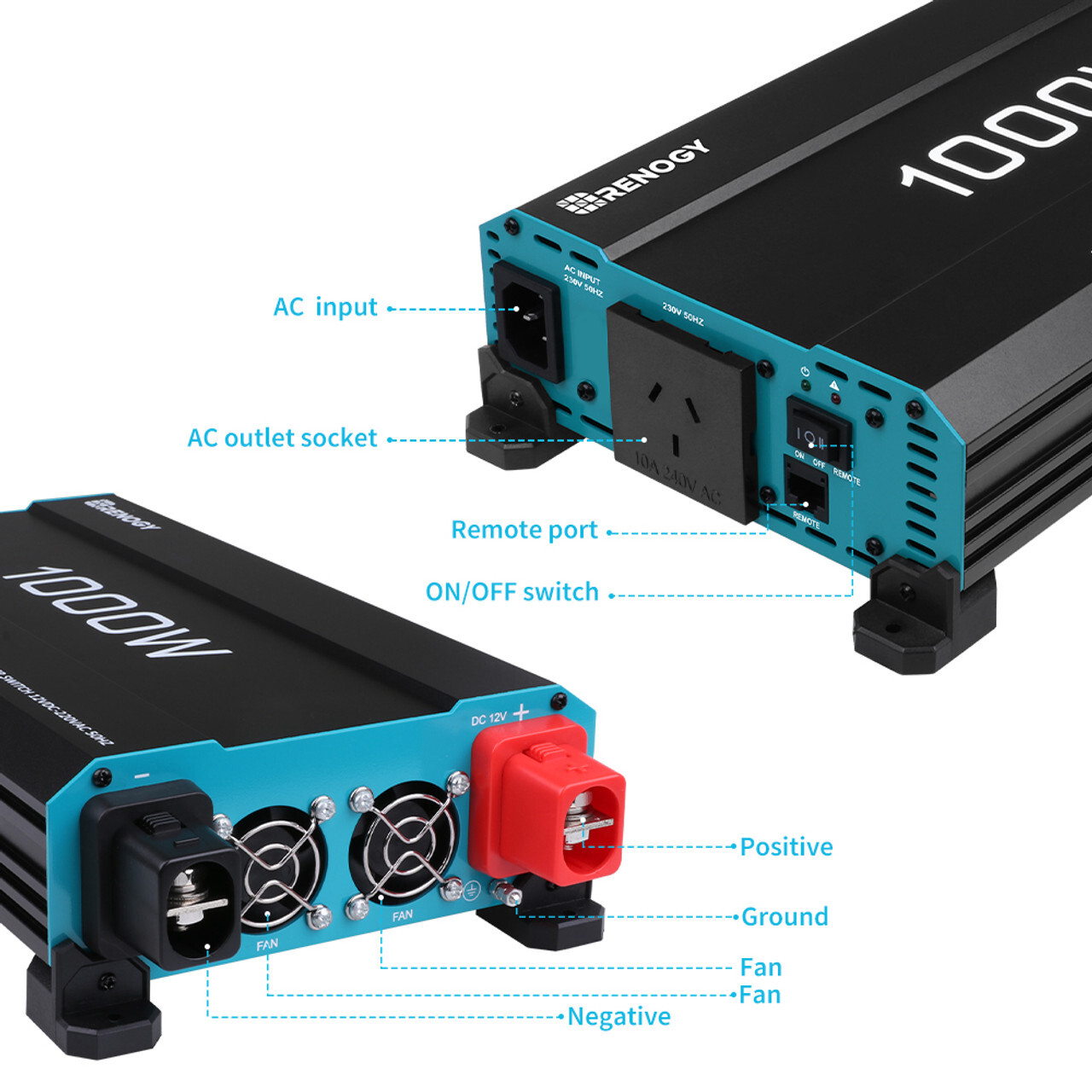

The perfect addition to any off-grid system, whether for a caravan or a cabin, the Renogy 1000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliances. Unlike modified sine wave inverters, this 1000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, cpap machine and other electronics without interference. The AC priority function enables the inverter to automatically switch from mains power AC  to battery (DC) in the event of AC mains power failure/disconnection via the inbuilt transfer switch, giving this inverter a UPS (Uninterruptible Power Supply) function.

Key Features:

  • UPS Function: Rapidly switch between battery and AC power in 50ms
  • Incorporate internal backup DC fuse for enhanced safety

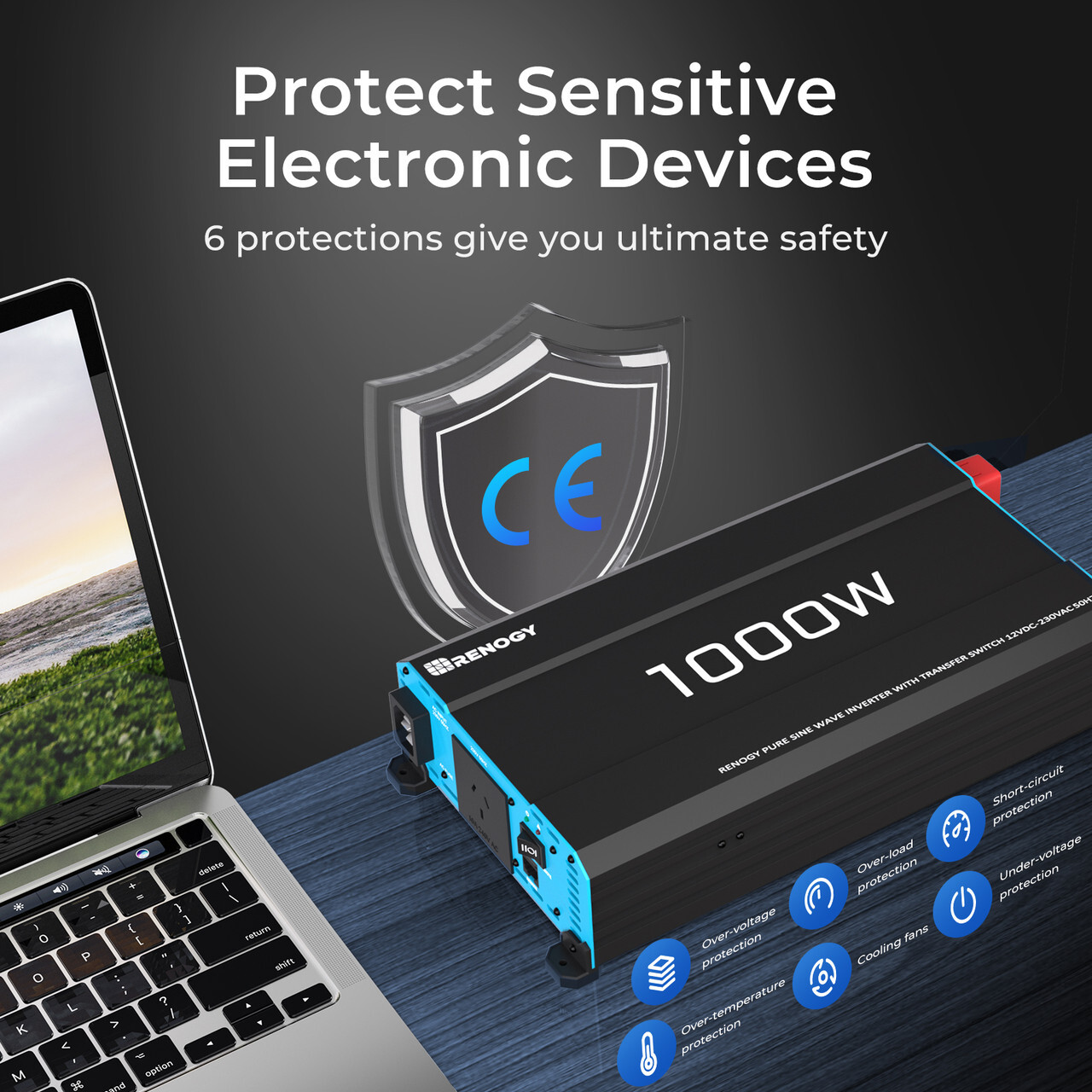

  • Comprehensive electronic protections for ultra safety

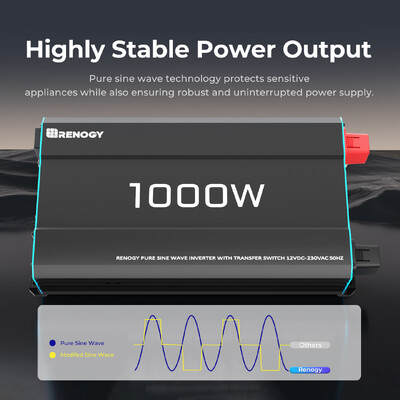

  • Pure sine wave power gives you cleaner, smoother electricity
  • The grid priority function prioritises utility power over the battery



Electrical Specifications
Rated Output Power 1000W
Surge Power (Peak Power) 2000W
Input Voltage 12V DC
Input Voltage Range 11-16VDC
Output Voltage 220-240V AC
Output Frequency (Nominal) 50Hz
Output Wave Form Pure Sine Wave

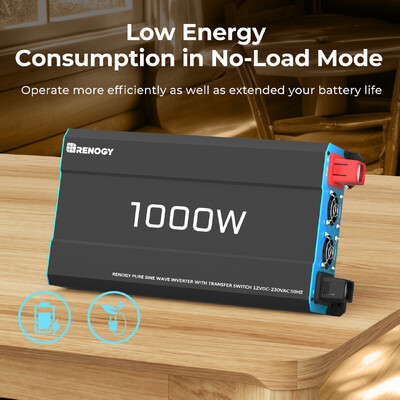

Static Current 1A
Low Voltage Shutdown 10VDC
Low Voltage Protection Recover from low voltage protection
High Voltage Shutdown 16.3VDC
Battery Supply & AC Main Transfer Time Within 50ms
Maximum Efficiency 90%
Working Temperature 0°C~40°C

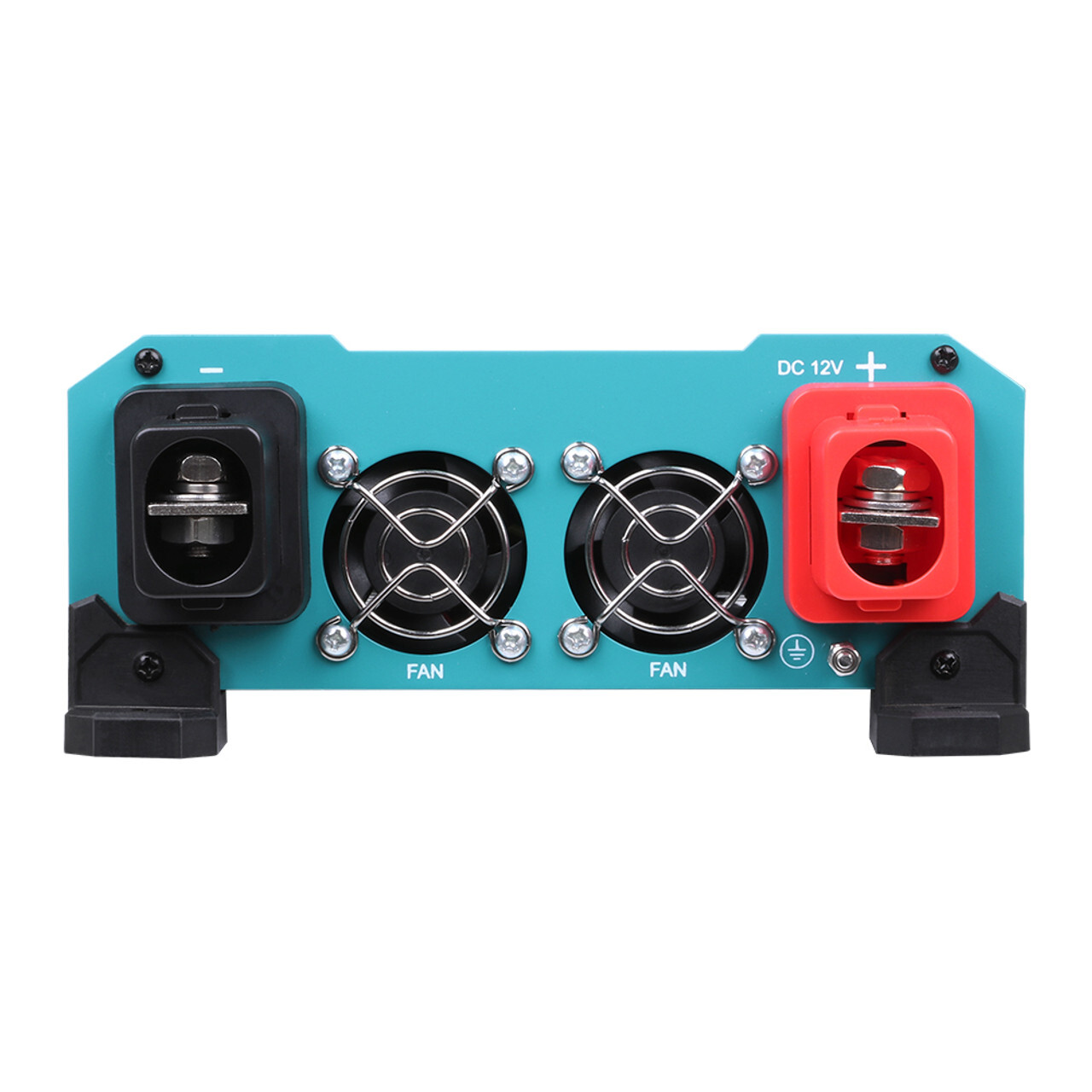

Heat Dissipation Fan
Ingress Protection IP20

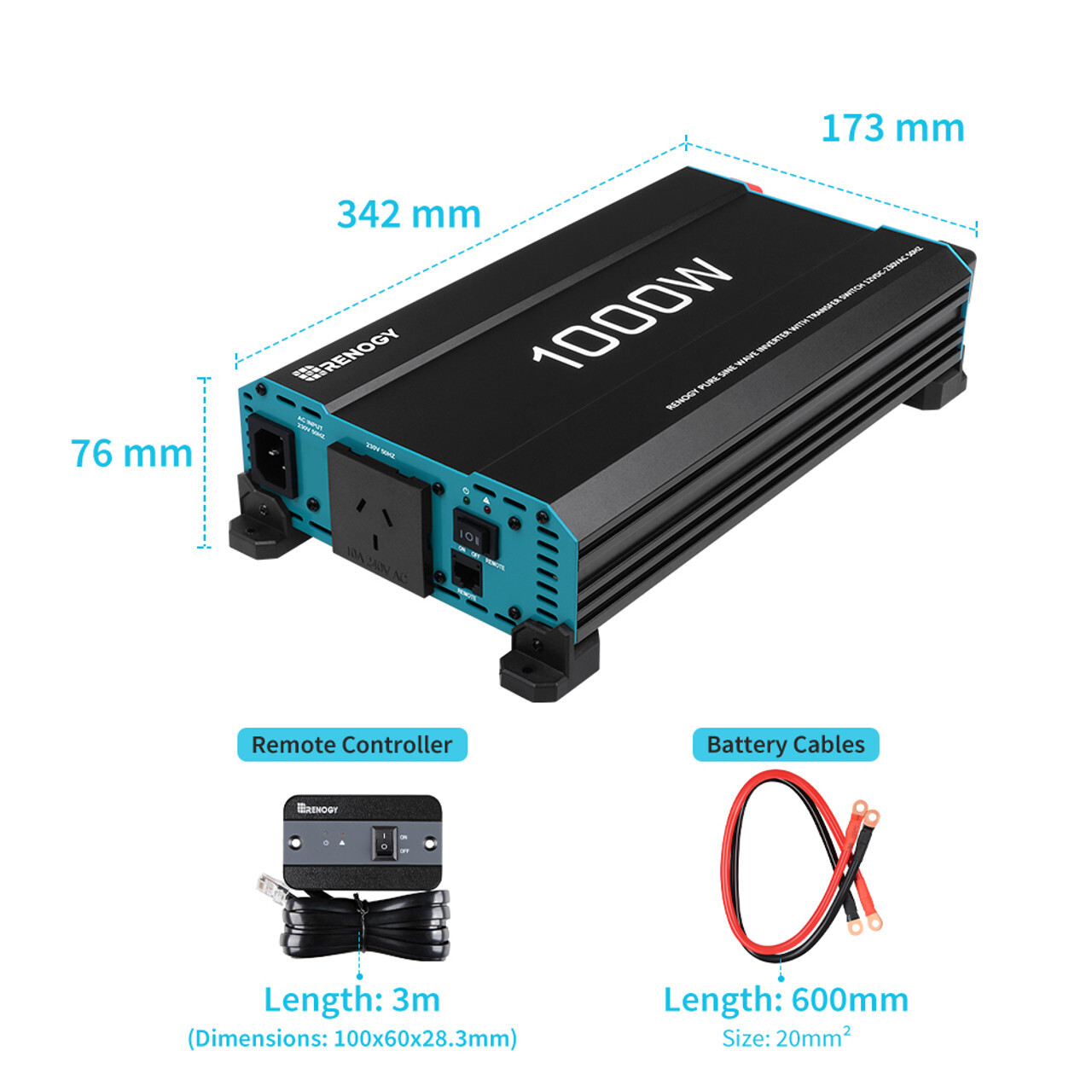

Dimensions 342 x 173 x 76 mm
Weight 2.64KG
Certifications CE
PACKAGE INCLUDES

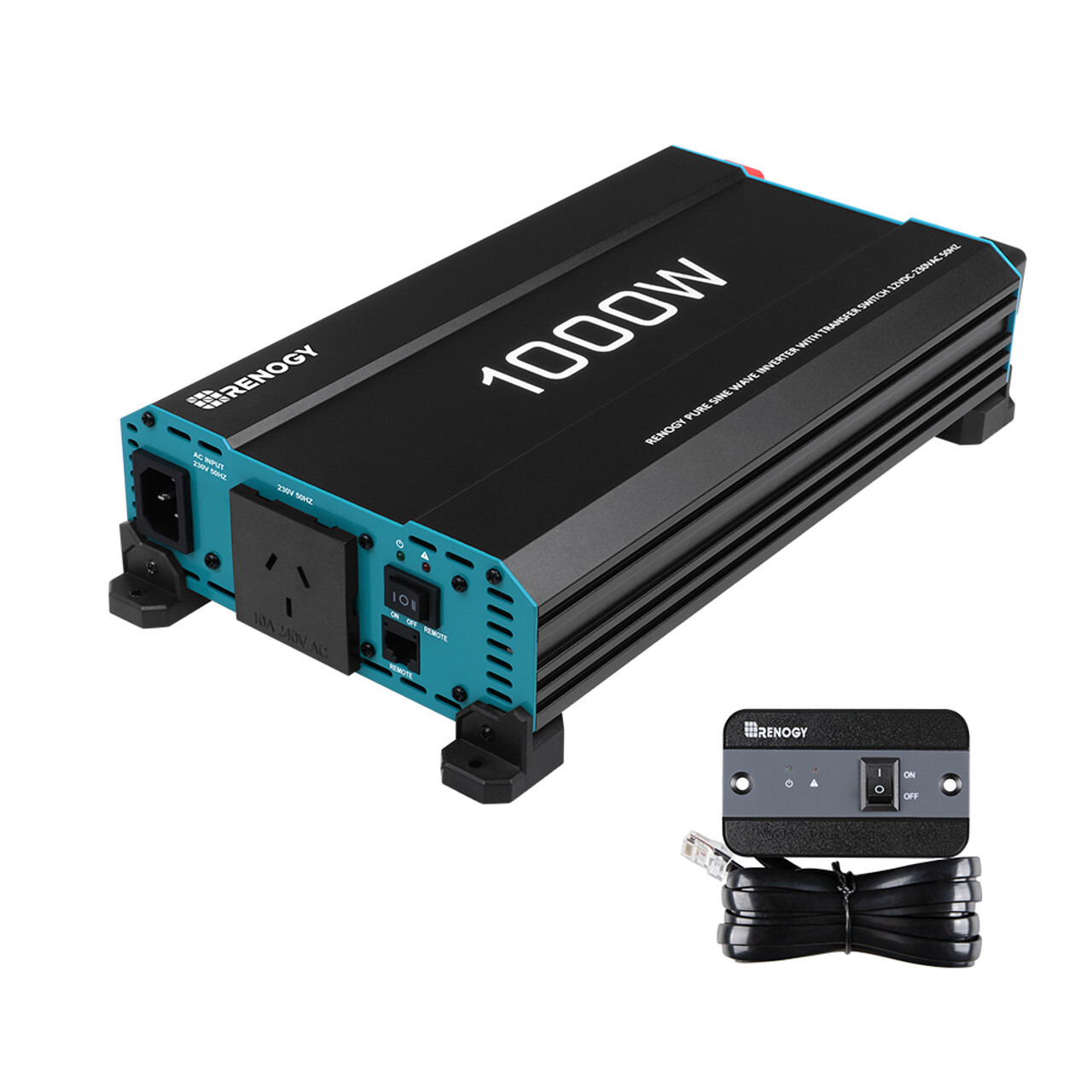

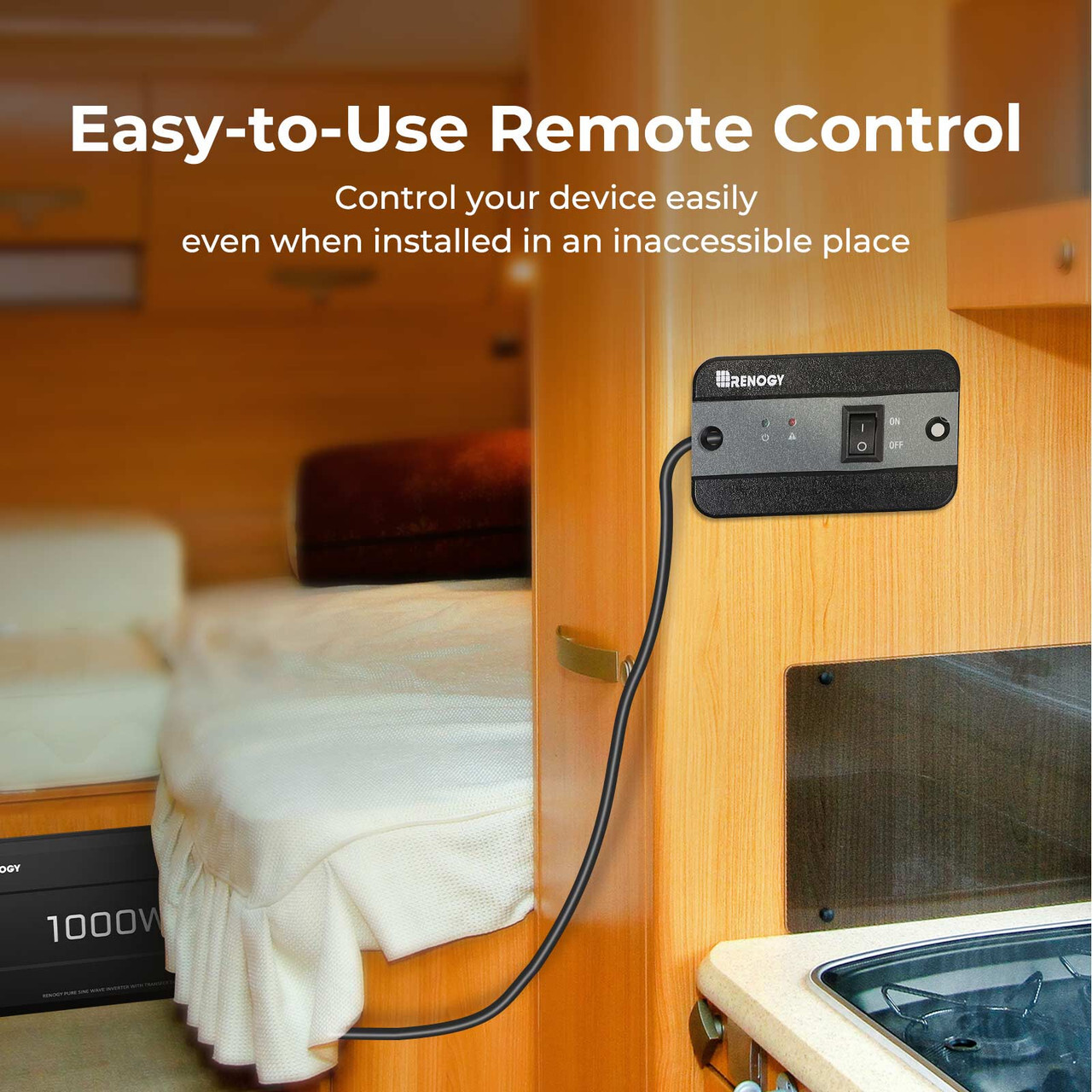

battery inverter x1, remote control and 3m cable x 1 and battery cables (20mm²) x 2
Material and Workmanship Warranty
 Warranty Period 1-year



SKU REN.R-INVT-PUH1-101235-AU
Model # R-INVT-PUH1-101235-AU
Brand Renogy
Shipping Weight 2.6000kg
Shipping Width 0.350m
Shipping Height 0.080m
Shipping Length 0.180m
Shipping Cubic 0.005040000m3
Unit Of Measure ea
