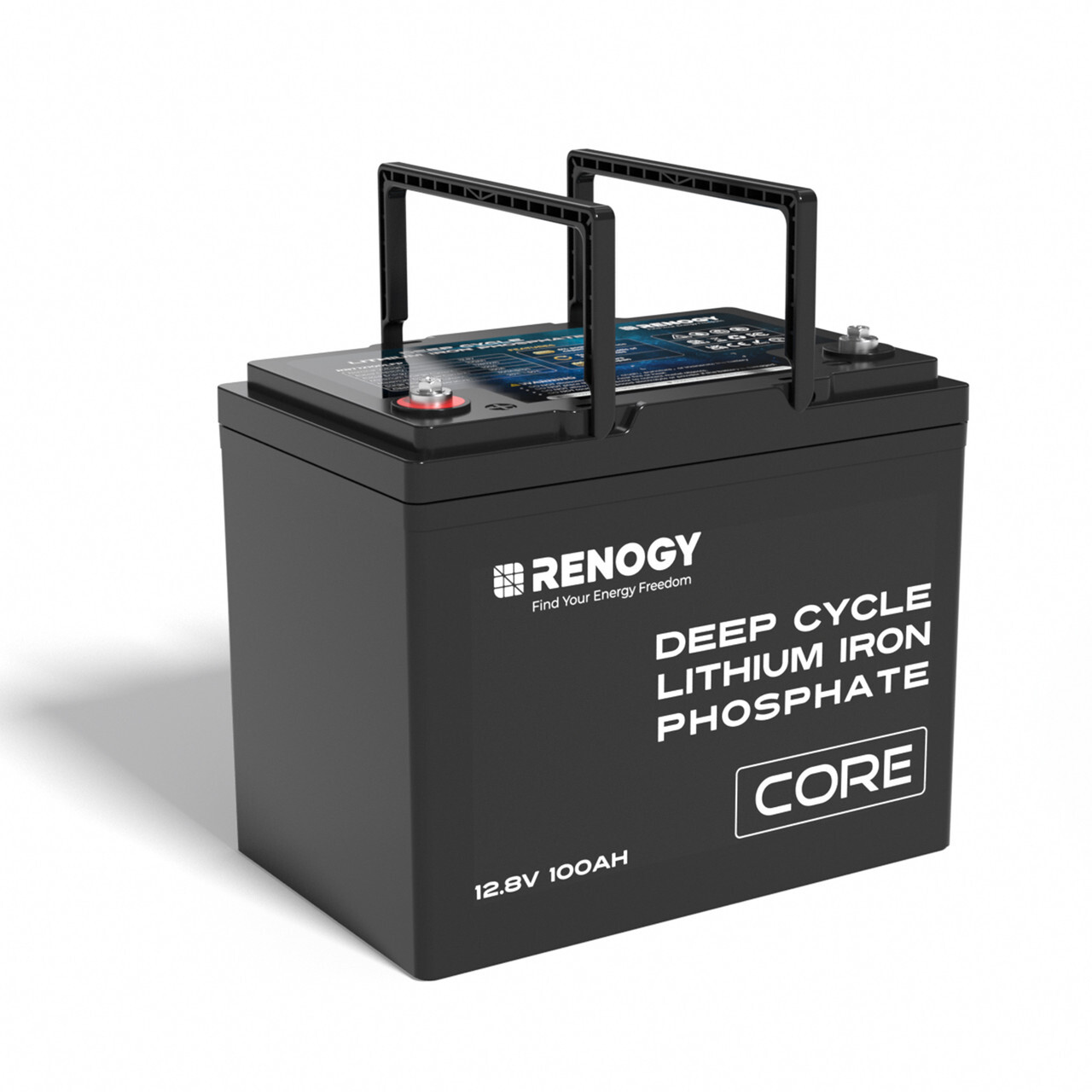

Renogy 12V 100Ah Core Series LiFePO4 Battery
Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. This battery delivers a seamless upgrade experience without compatibility issues.
With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series, parallel and even series-parallel to keep your system running longer.
Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.
Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.
The Renogy Core Series 12.8V 100Ah Deep Cycle Lithium Iron Phosphate Battery is designed for the drop-in replacement of deep-cycle lead-acid batteries with its standard Battery Council International (BCI) group size.
Weighing only half of the lead-acid counterparts, the battery can be safely discharged to 100% Depth of Discharge (DOD), delivering twice the energy. Manufactured with automotive grade battery cells, the battery features the highest safety standards and an extended 5000+ cycle life. In addition, the reliable Battery Management System (BMS) provides comprehensive protection to the battery.
Key Benefits:
- One stop for upgrade from lead-acid to lithium.
- Get max. 6% more power than rated capacity.
- Support series (Up to 4S), parallel (Up to 4P), or series-parallel (4S4P) connections.

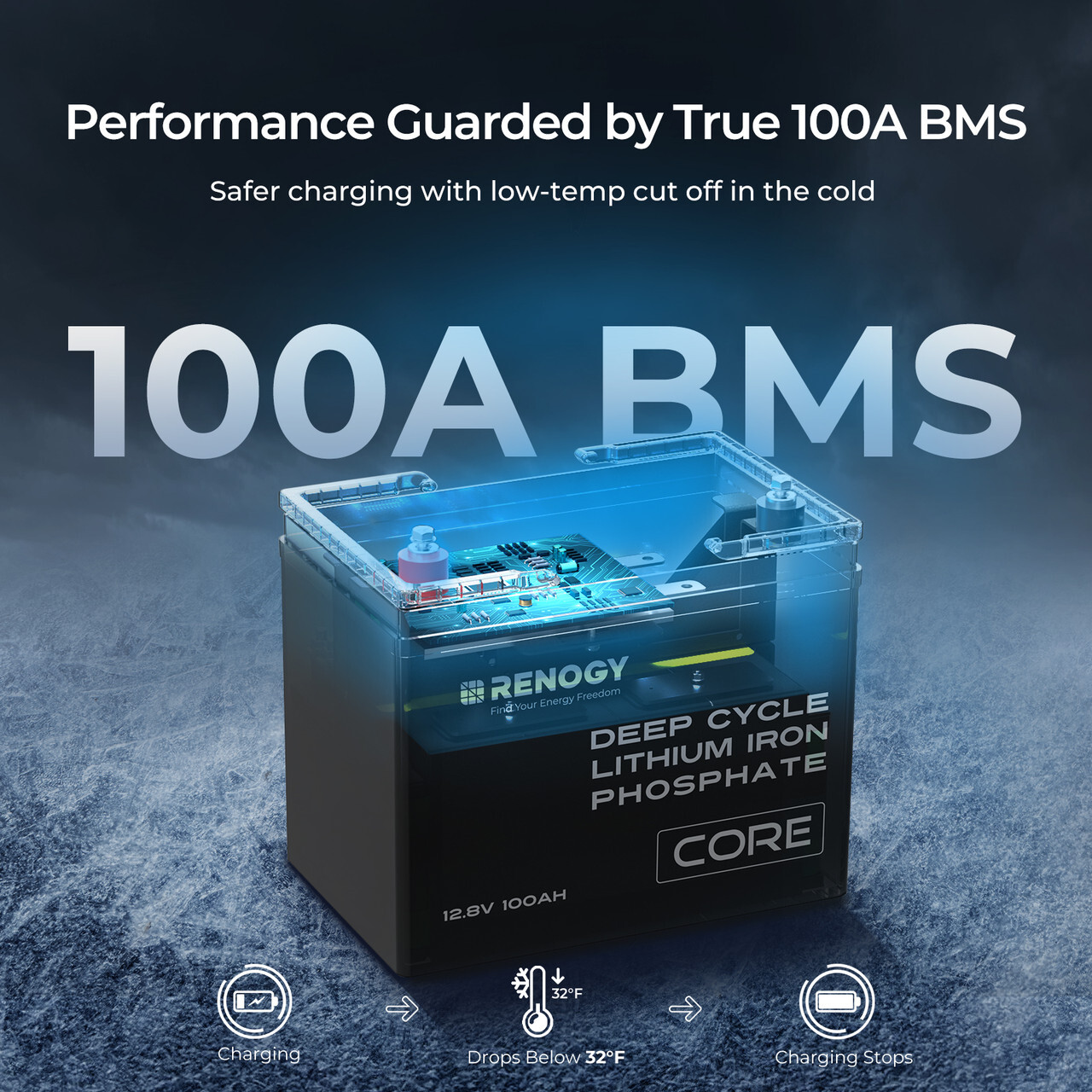

- A true 100A BMS with low-temperature cut-off.
Key Features:
- Unparalleled Performance
Features a greater energy density, a deeper discharge capability, a higher round-trip efficiency, and a faster charging speed in a smaller size over counterparts in the market. - Uncompromising Quality
Ensures an exceptional lifespan with more than 5000 cycles (80% DOD), a continuous charge/discharge current of 100A, and a wide range of operating temperatures with the automotive grade battery cells. - Reliable Protection Mechanisms
Designed with a sturdy internal structure for RV use, and includes multiple levels of protection such as low temperature cut-off and precise balancing through the battery management system. - Higher Capacity than Competitors
106Ah instead of 100Ah, for a longer-lasting application. - Easy to Expand

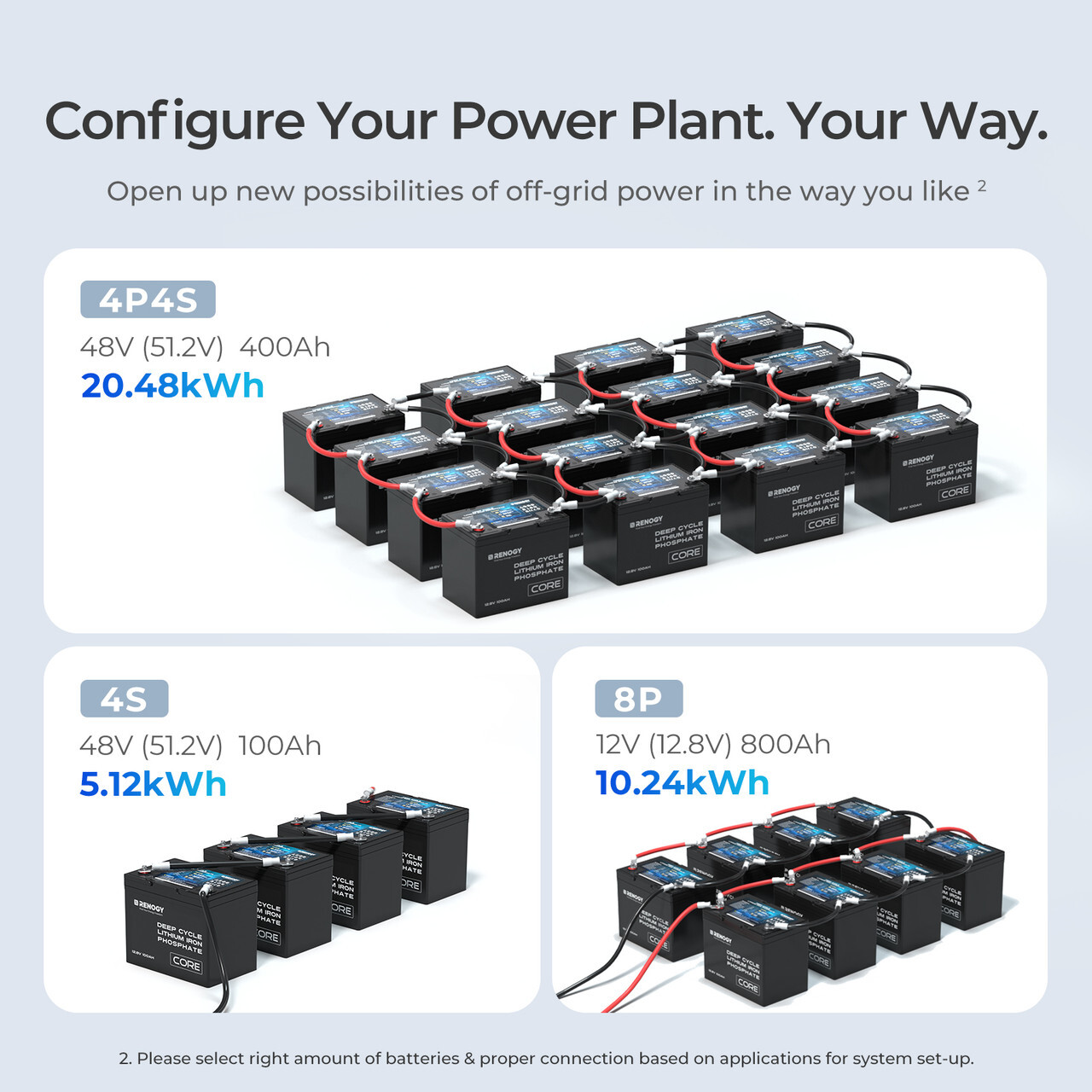

Upgrades to lithium batteries seamlessly with the standard BCI group sizes; up to 16 batteries in 4 series and 4 parallels system connection delivering a maximum of 48V (51.2V) 400Ah with 20.48 kWh.
CORE SERIES - 12V 100AH DEEP CYCLE LITHIUM IRON PHOSPHATE BATTERY | |
---|---|
Category | Details |
Electrical Specifications | |
Battery Type | Lithium Iron Phosphate |
Rated Capacity | 100Ah |
Nominal Voltage | 12.8V |
Cycle Life (0.5C/1C, 25°C) | 5000 Cycles (80% DOD, 80% EOL) |
Charging Parameters | |
Charge Voltage | 14.4V |
Maximum Charge Current | 100A |
Maximum Discharge Current | 100A |
Charge Temperature Range | 0°C to 55°C / 32°F to 131°F |
Discharge Temperature Range | -20°C to 60°C / -4°F to 140°F |
Connection Method | Series (Up to 4); Parallel (Up to 8); Series & Parallel (4P4S) |
Communication Protocol | N/A |
Recommended Terminal Torque | 10 N·m |
Protection Rating | IP65 |
Housing Material | ABS |
Terminal Bolt Size | M8 |

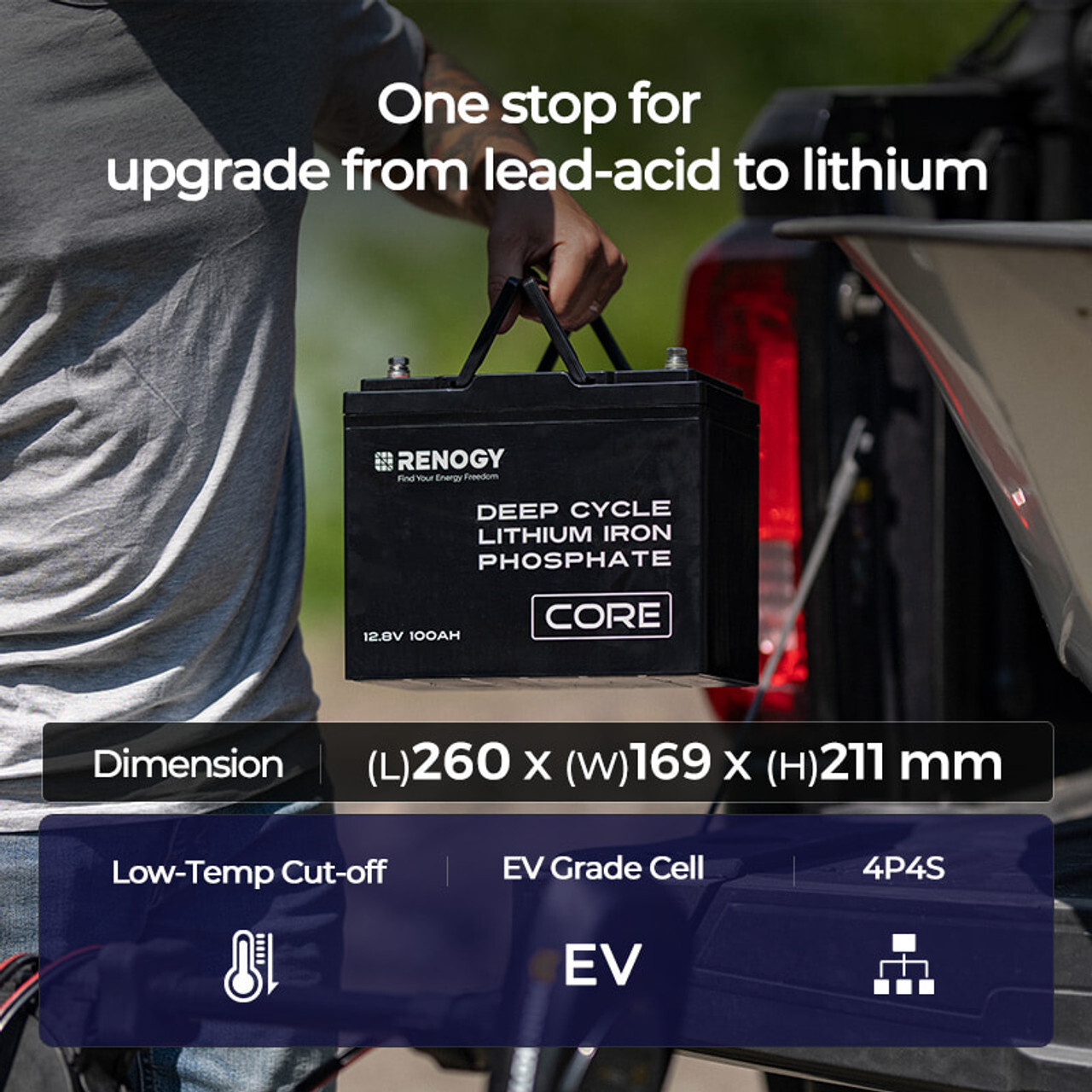

Dimensions | 260 x 169 x 211 mm / 10.24 x 6.65 x 8.31 inch |
Weight | 10.5 kg / 23.15 lbs |
Accessories | |
Long Terminal Bolts | 2x M8 |
Insulating Sleeves | 2 |
Certifications | |
Certifications | MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619: YES |
Warranty | |
Material and Workmanship Warranty | Prorated 5 Years Warranty |
SKU | REN.RBT12100LFP-AU |
Brand | Renogy |
Shipping Weight | 10.5000kg |
Shipping Width | 0.260m |
Shipping Height | 0.220m |
Shipping Length | 0.180m |
Shipping Cubic | 0.010296000m3 |
Unit Of Measure | ea |
