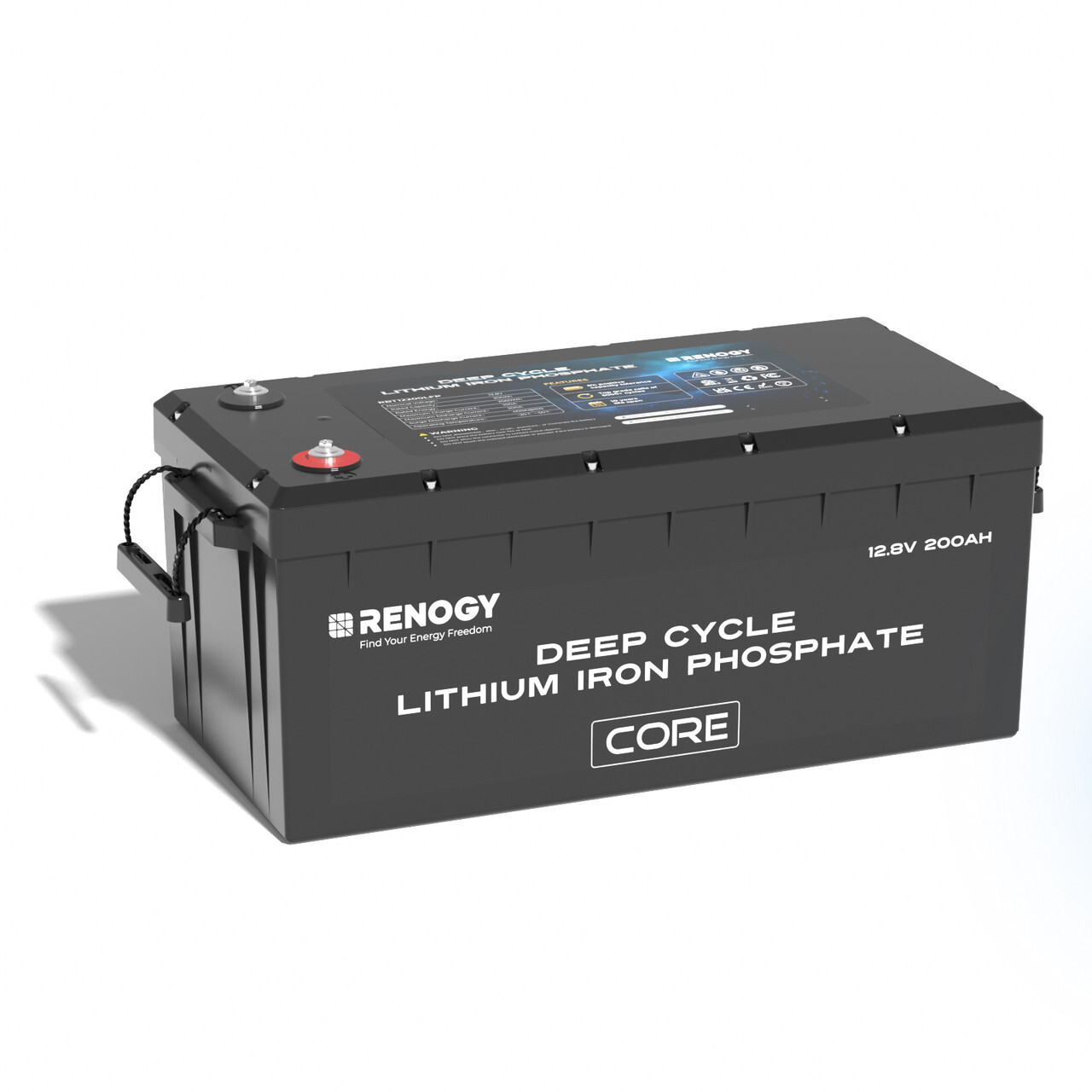

Renogy 12V 200Ah Core Series LiFePO4 Battery

Meet Renogy 12V 200Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without any compatibility issues.

With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series, parallel and even series-parallel to keep your system running longer.

Off-grid living can be challenging, but the Renogy 12V 200Ah Core Battery offers a true 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.

Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 200Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

Key Benefits:

  • Get max. 6% more power than rated capacity.
  • 400A@10s peak output to start heavey loads.
  • Support series, parallel, or series-parallel connections.
  • A true 200A BMS with low-temperature cut-off.

Key Features:

  • Unparalleled Performance
    Features a greater energy density, a deeper discharge capability, a higher round-trip efficiency, and a faster charging speed in a smaller size over counterparts in the market.
  • Uncompromising Quality
    Ensures an exceptional lifespan with more than 5000 cycles (80% DOD), a continuous charge current of 100A and a continuous discharge current of 200A, and a wide range of operating temperatures with the automotive grade battery cells.
  • Reliable Protection Mechanisms
    Designed with a sturdy internal structure for RV use, and includes multiple levels of protection such as low temperature cut-off and precise balancing through the battery management system.
  • Higher Capacity than Competitors
    212Ah instead of 200Ah, for a longer-lasting application.
  • Easy to Expand

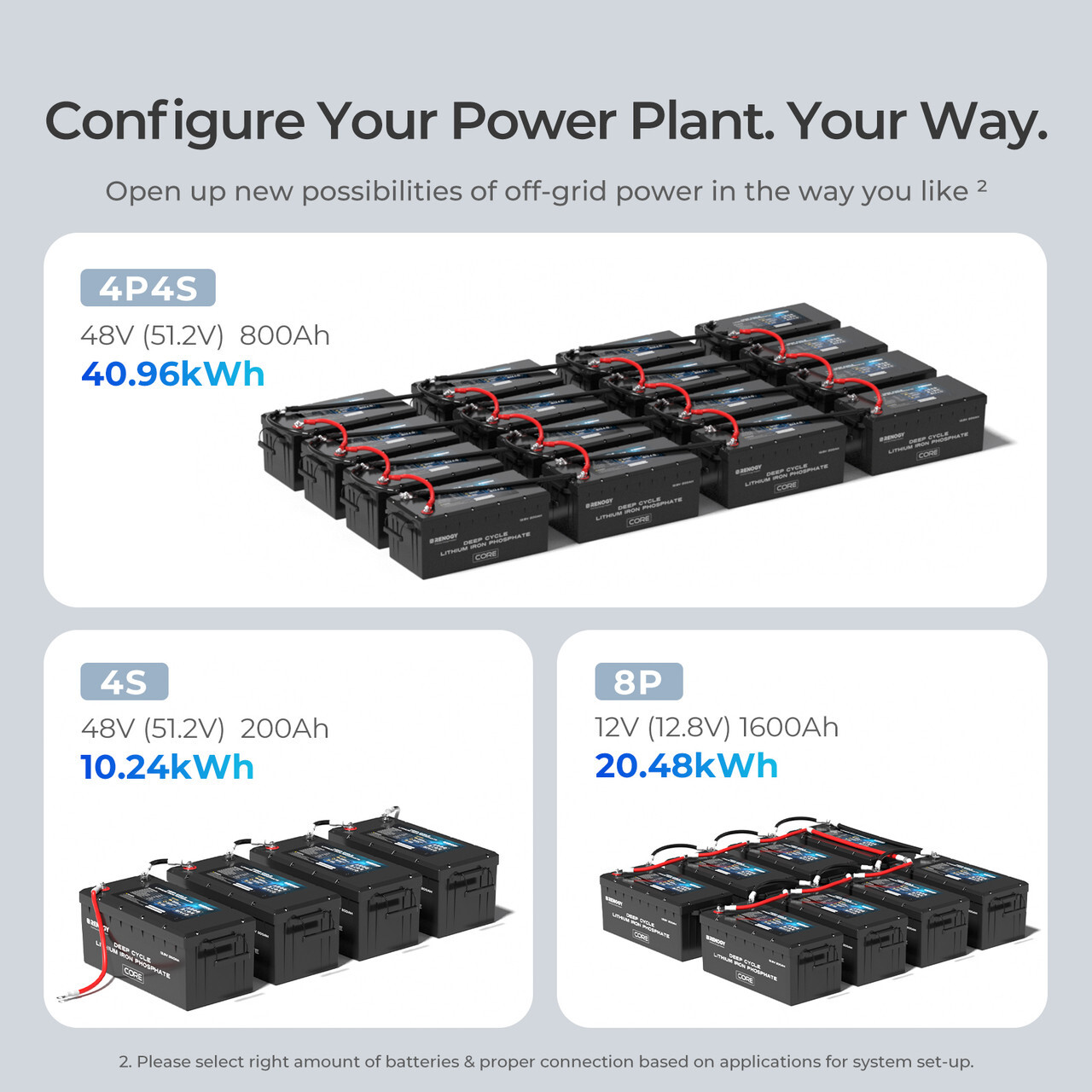

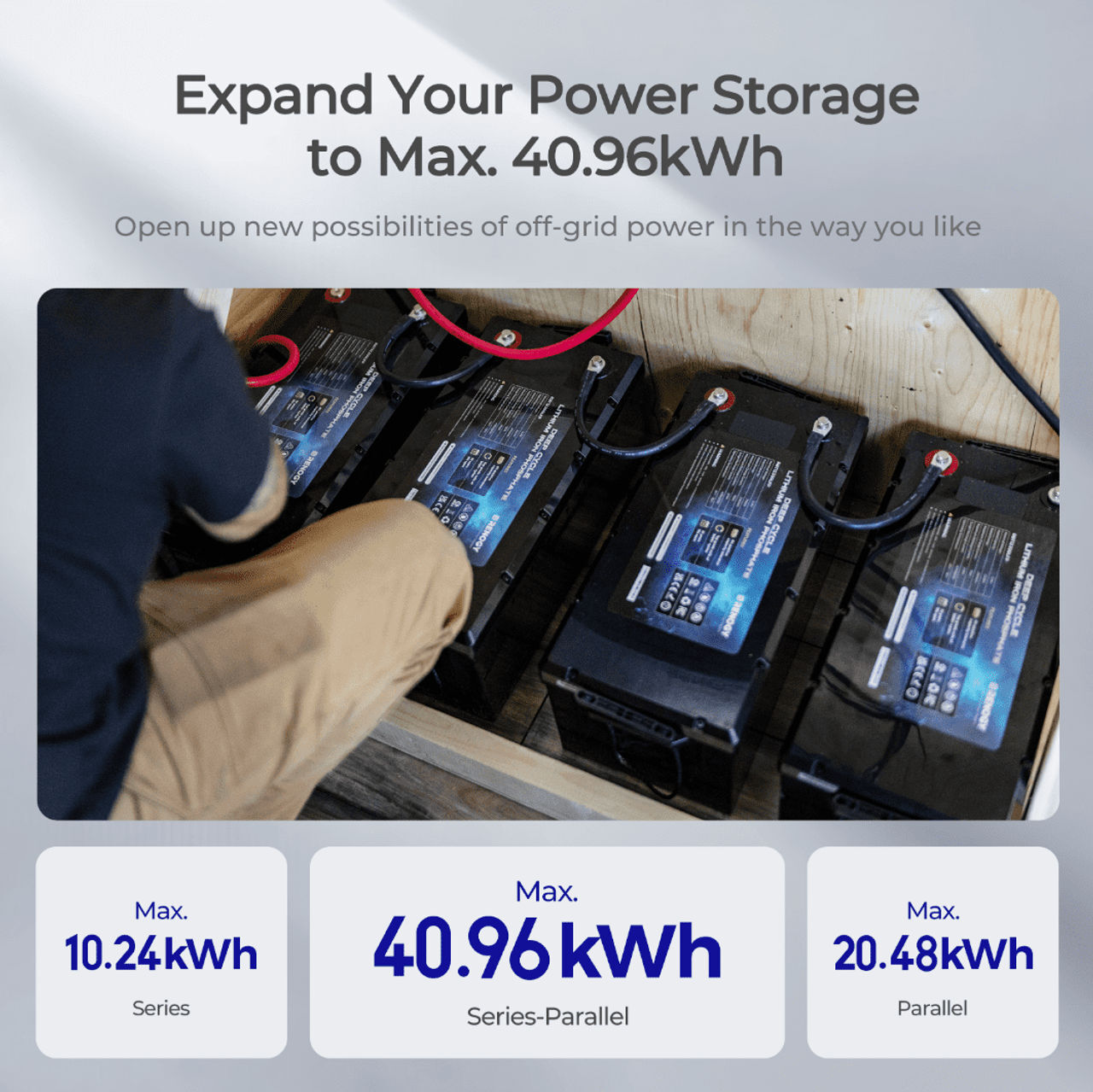

    Upgrades to lithium batteries seamlessly with the standard BCI group sizes; up to 16 batteries in 4 series and 4 parallels system connection delivering a maximum of 48V (51.2V) 800Ah with 40.96 kWh



CORE SERIES - 12V 200AH DEEP CYCLE LITHIUM IRON PHOSPHATE BATTERY
Category Details
Electrical Specifications
Rated Capacity 200Ah
Energy 2560Wh
Nominal Voltage 12.8V
Cycle Life (0.5C/1C, 25°C) 5000 Cycles (80% DOD, 80% EOL)
Temperature Parameters
Operation Temperature Range (Charge) 0°C to 55°C / 32°F to 131°F
Operation Temperature Range (Discharge) -20°C to 60°C / -4°F to 140°F
Storage Temperature Range -25°C to 65°C / -13°F to 149°F
Operation Relative Humidity 10% to 95%
Charging Parameters
Charge Voltage 14.4V
Maximum Continuous Charge Current 100A
Discharging Parameters
Maximum Continuous Discharge Current 200A
Peak Discharge Current 400A @ 10s
Mechanical Specifications
Dimensions (L x W x H) 522 x 240 x 219 mm / 20.55 x 9.45 x 8.62 in
Weight 21.45 kg / 47.3 lbs
Terminal Bolt Size M8 x 1.25 x 15 mm
Protection Rating IP65
Certifications
Certifications MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619: YES
Warranty
Material and Workmanship Warranty 5-year Prorated Warranty
SKU REN.RBT12200LFP-AU
Brand Renogy
Shipping Weight 21.4500kg
Shipping Width 0.530m
Shipping Height 0.220m
Shipping Length 0.240m
Shipping Cubic 0.027984000m3
