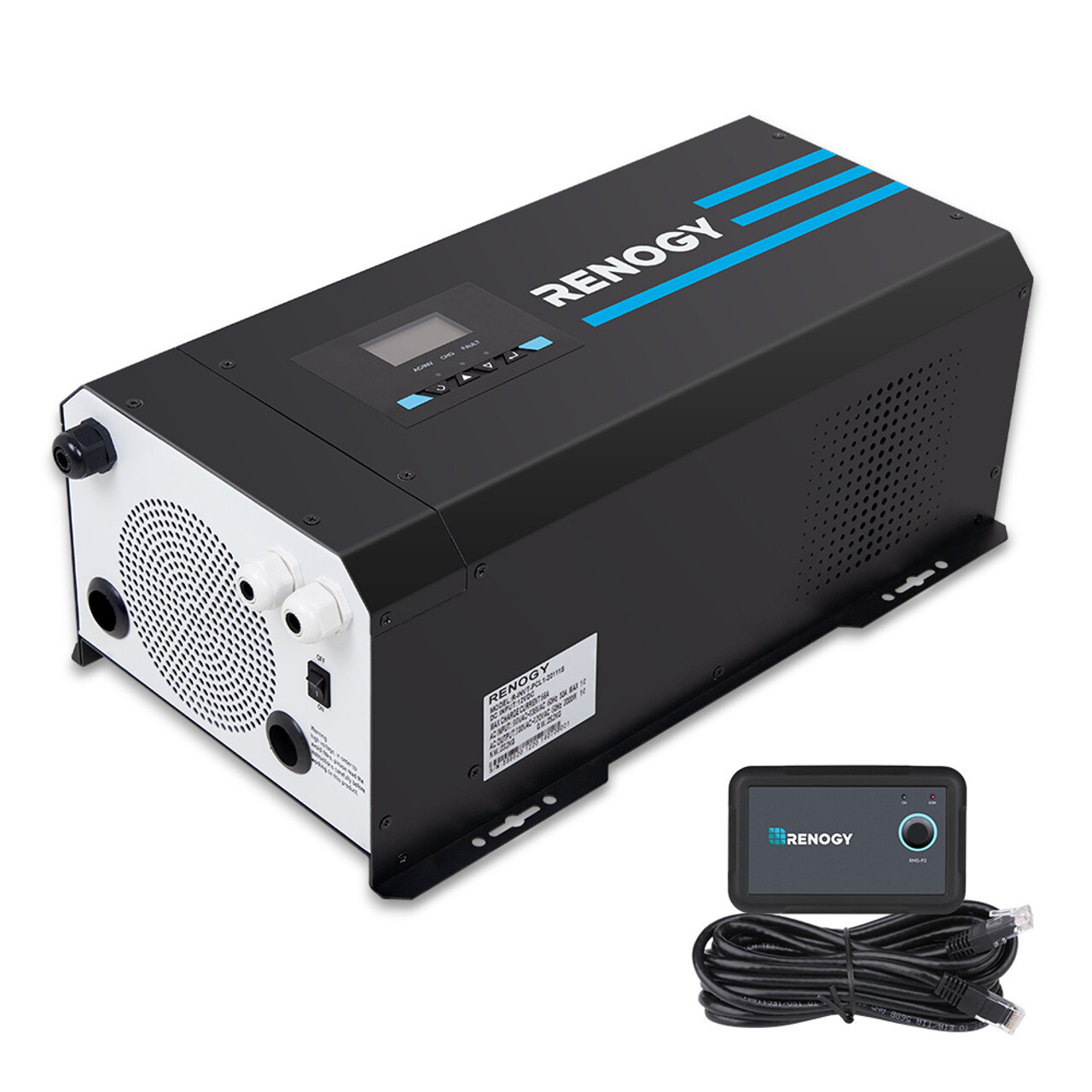

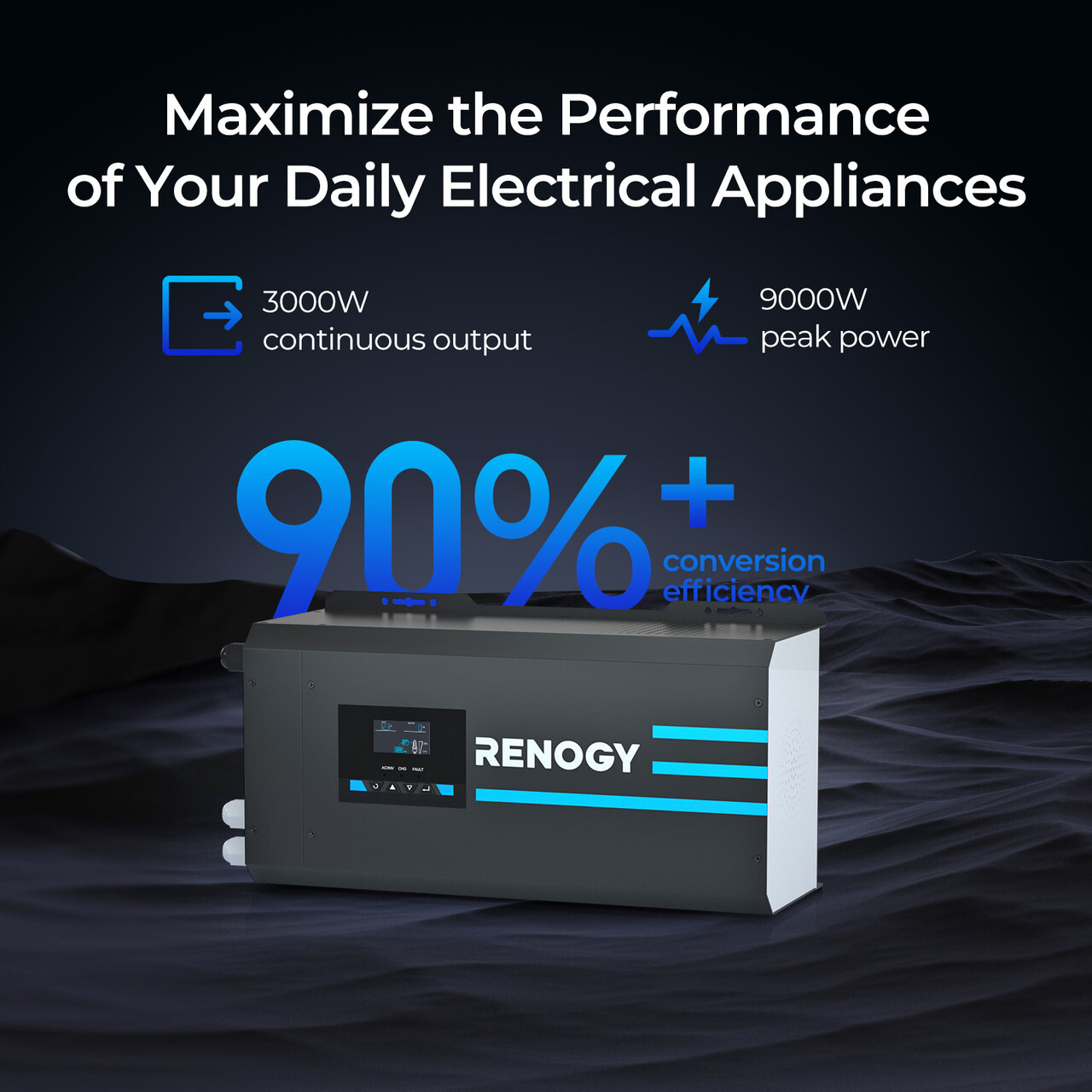

The Renogy 3000W Pure Sine Wave Inverter Charger with LCD Display is an ideal choice for RV or standalone power systems, offering 9000W peak power (1 second) for handling sudden surges. It ensures seamless operation, capable of driving 1.5kW air conditioners, motors, refrigerators, and washing machines. This versatile inverter charger not only serves as a DC to AC converter for powering household appliances but also efficiently charges and maintains a battery bank when connected to shore power. Now compatible with various battery types, it offers enhanced flexibility for different energy storage options. With a low transfer time, an uninterrupted power supply is guaranteed when switching from shore power to battery. Utilising advanced Renogy Pure Sine Wave technology, it safeguards and prolongs the lifespan of your electronics and appliances, making it an excellent backup power source.

Features:

  • Robust and sleek design
  • LCD and LED display used to view inverter status and programming features
  • Pure Sine Wave technology safeguards delicate appliances
  • Offers high-quality waveform with little harmonic distortion
  • 4-Stage battery charger with a configurable charging current of 5A to 75A
  • 8 Pre-Set battery voltages including Lithium; User-defined option available
  • Automatic generator start option
  • Peak efficiency >90%
  • Multiple electronic protections



Model

 R-INVT-PCL1-30123S
Rated Output Power 3000W
Surge Power (1 second) 9000W
Surge Power (3 seconds) 4500W
Surge Power (10 seconds) 3600W
Nominal output Voltage RMS 230VAC (200 - 240VAC 10V intervals)
Outuput Frequency 50HZ ± 0.3HZ
Output Wave Form Pure Sine Wave
Output Overload 105% < Load < 120% ± 10% : Fault ( Turn off output after 10 seconds)
120% < Load < 150% ± 10% : Fault ( Turn off output after 3 seconds)
150% < Load ± 10% : Fault ( Turn off output after 1 seconds)
Nominal Input Voltage 12VDC
Input Voltage Range 10 - 16 VDC ± 0.3 VDC
Low DC Warning Voltage 10.5 VDC ± 0.3 VDC
Low DC Cut-off Voltage 10 VDC ± 0.3 VDC
Short Circuit Protection Software Protection
Nominal Efficiency > 90% Peak
No load power Consumption Normal:<30W

Power Saving:<15W
Charger Specifications
Nominal Input Voltage 230VAC
Input Voltage Range 155-275 VAC
Input Frequency Range 40Hz - 70Hz
Input Wave Form Sine Wave (Utility or Generator)
Power Factor 0.9-1
Optimal Efficiency >85%
Output Current 5-75A
Configurable, 5A intervals
Short Circuit Protection Circuit Breaker
Output Overload 120% < Load< 150% ± 10% Fault (Turnoff output after 60 seconds) 150% < Load ± 10% : Fault ( Turn off output after 1 second)
Over Charge Protection Shutdown 16.0V for 12VDC
Transfer Switch Specifications
Transfer Time -10ms
Transfer Relay Rating 3 Legs @ 40A each (277VAC)
Line Mode Efficiency > 95%
Wired Remote Control
Dimensions 70 x 110 x 31.8 mm
Cable Length Approx. 5 metres
General Specifications
Battery Types GEL, AGM, SLA, FLD, CAL, LIF, USER
Operating Temperature Range 0-40°C
Storage Temperature -30-70°C
Humidity 0% - 95% RH
Noise <50dB

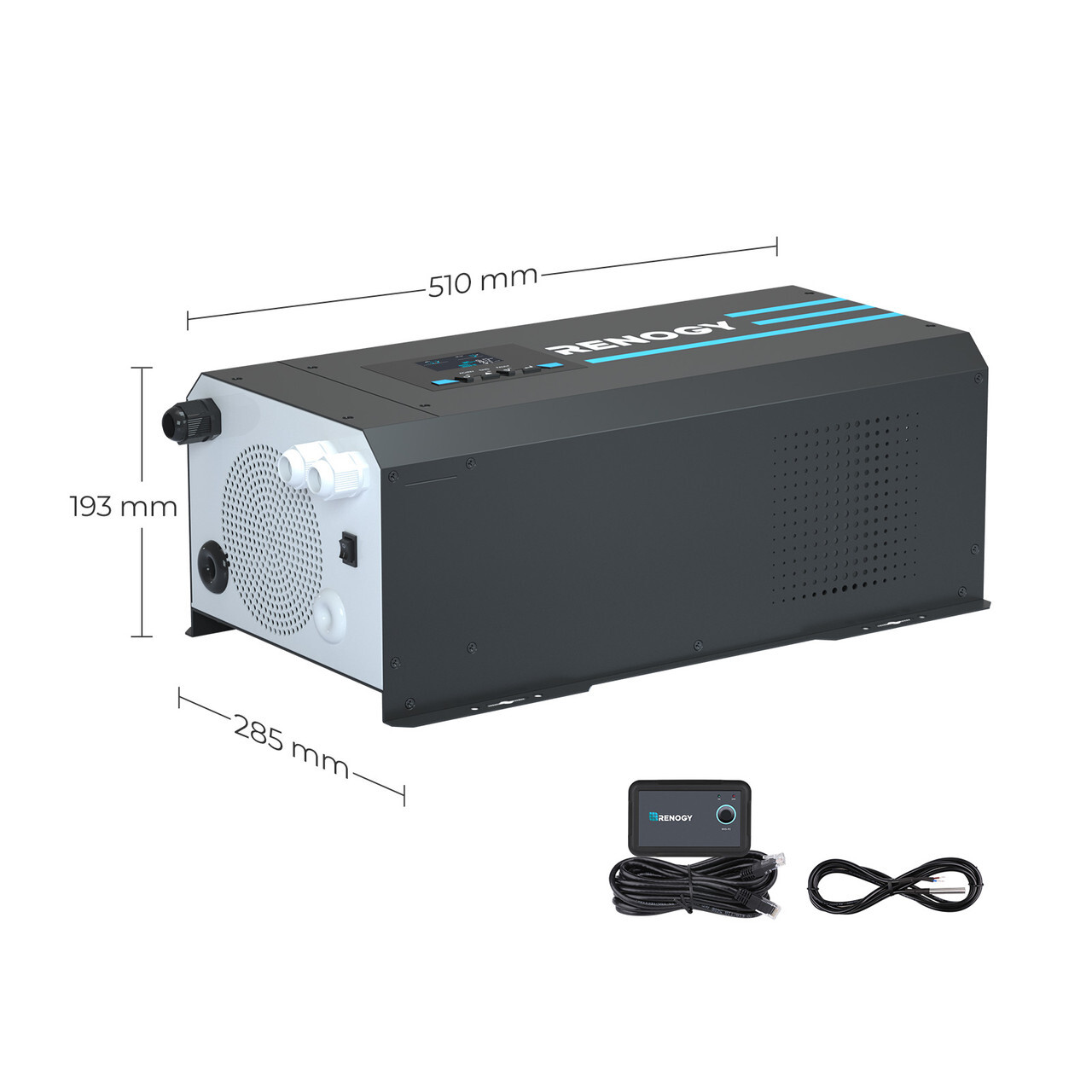

Dimensions 510 x 285 x 193 mm
Weight 28.8KG
Certifications ETL listed to CSA Standard
C22.2 No. 107.1 and UL458 with Marine Supplement
Warranty 1 Year

Product specifications are subject to change without further notice

SKU REN.R-INVT-PCL1-30123S-AU
Model # R-INVT-PCL1-30123S-AU
Brand Renogy
Shipping Weight 29.0000kg
Shipping Width 0.550m
Shipping Height 0.200m
Shipping Length 0.250m
Shipping Cubic 0.027500000m3
