Renogy 16BB N-Type 100 Watt Solar Panel
Unlock the power of the Renogy 16BB N-Type 100 Watt Solar Panel for maximum efficiency in off-grid and mobile energy systems. Durable and reliable, it's perfect for Caravans, RVs, boats, and more.
SKU: REN.RSP100DC-AU-0 | MPN: RSP100DC-AU
SAVE $50.00 (20%)
On BackorderMore stock on the way. Order now to reserve your stock.

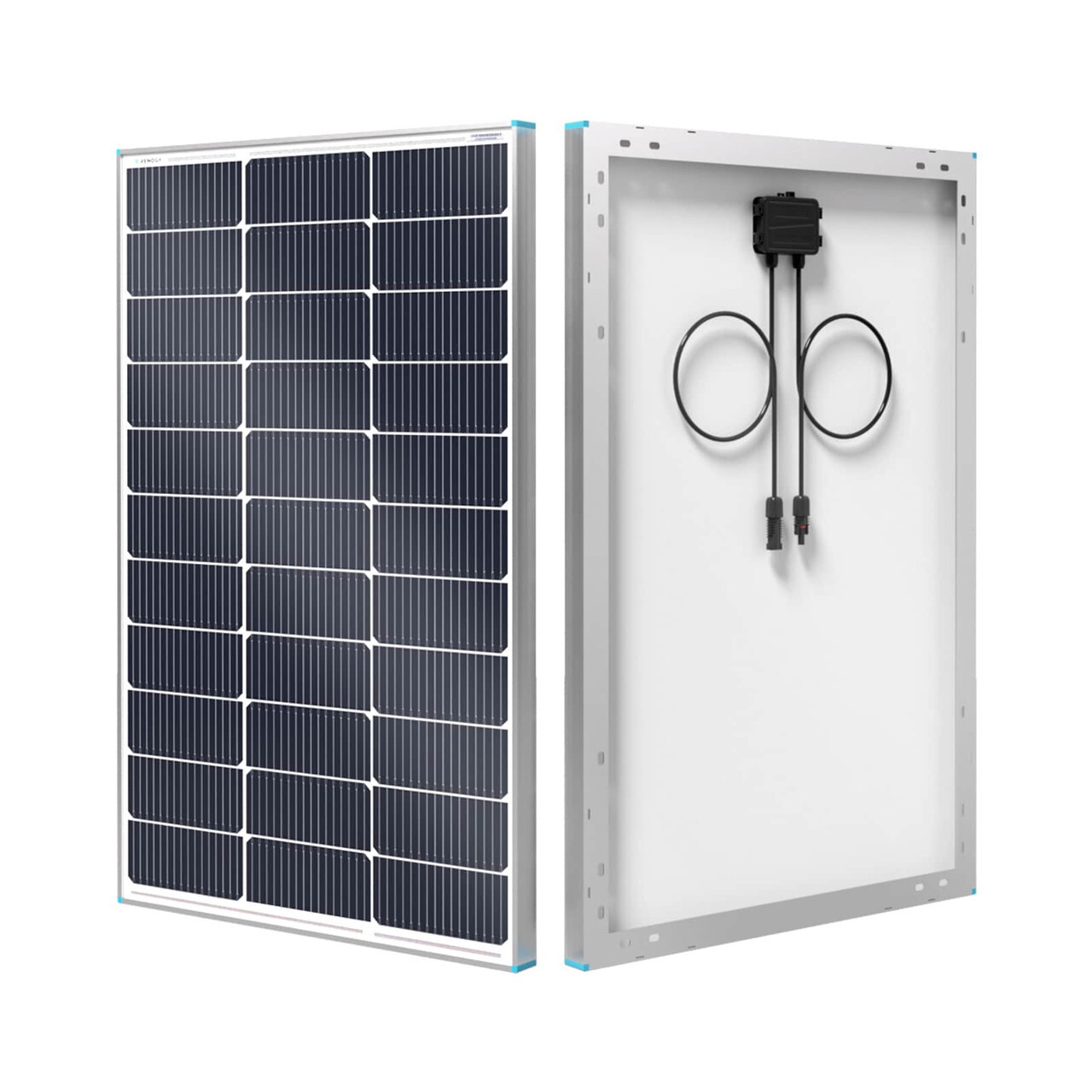

The Renogy 100 Watt 12 Volt Monocrystalline Solar Panel features a sleek and durable frame design. This solar panel uses high-efficiency monocrystalline silicon solar cells and frame corner supports for outdoor protection.
Renogy Solar Panels have applications in residential solar power arrays,water pumping systems, signal- ing systems, and plenty of other applications. The Renogy 100 Watt solar panel offers a feasible off-grid renewable energy solution for rooftop, RV, boat, and outdoor power systems.
Key Features:
- 25% cell efficiency & an additional 20W of power.

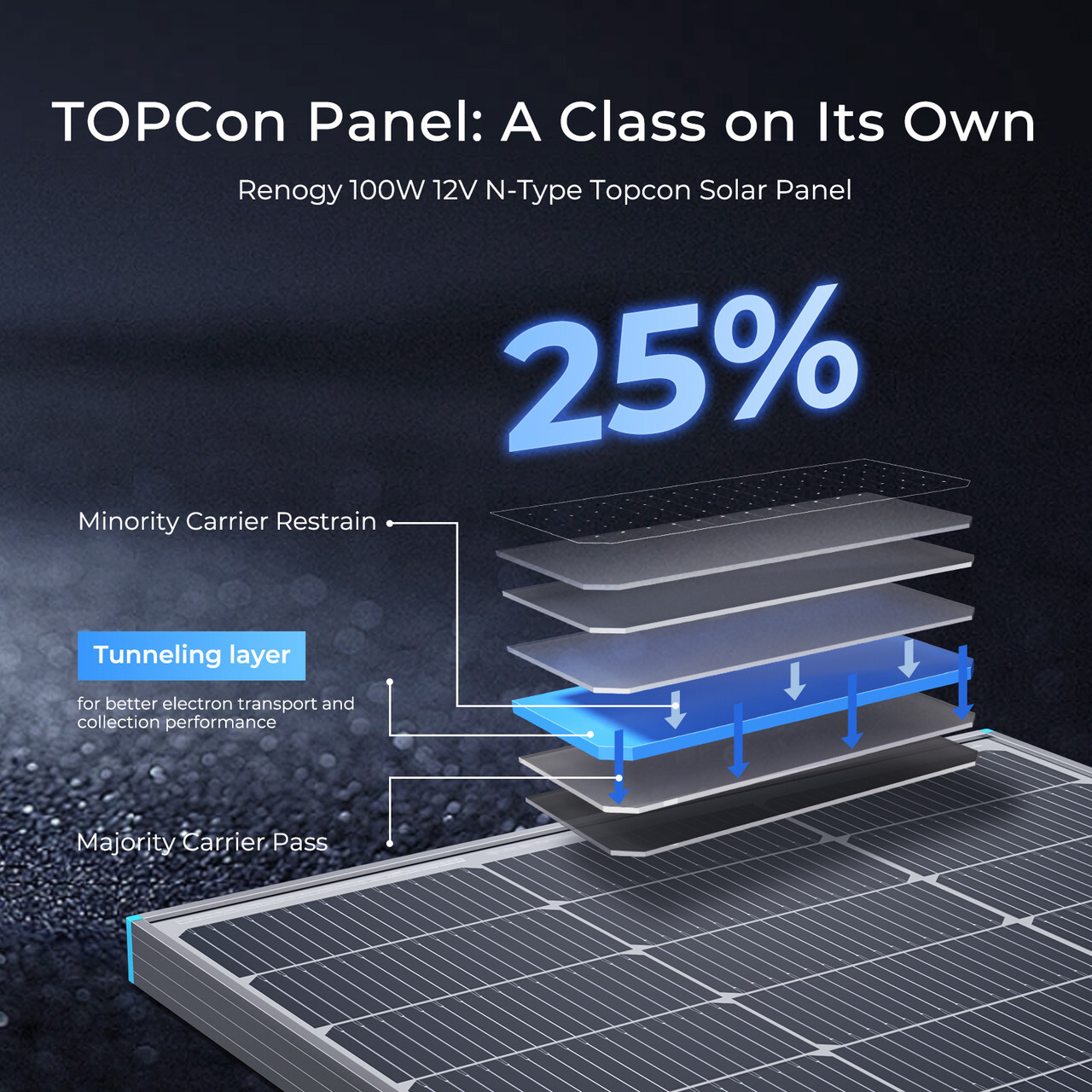

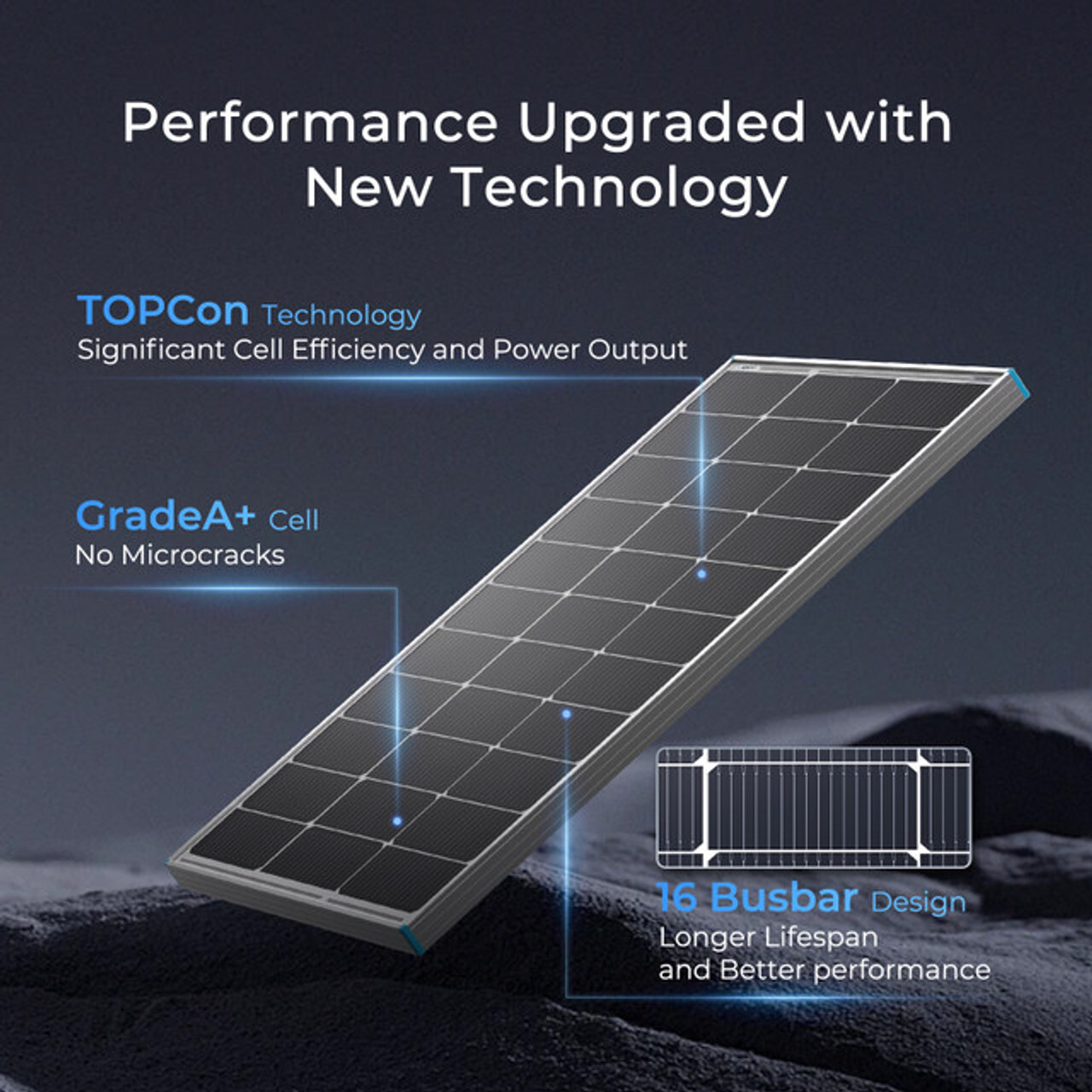

- 16BB for higher conversion efficiency & longer lifespan.

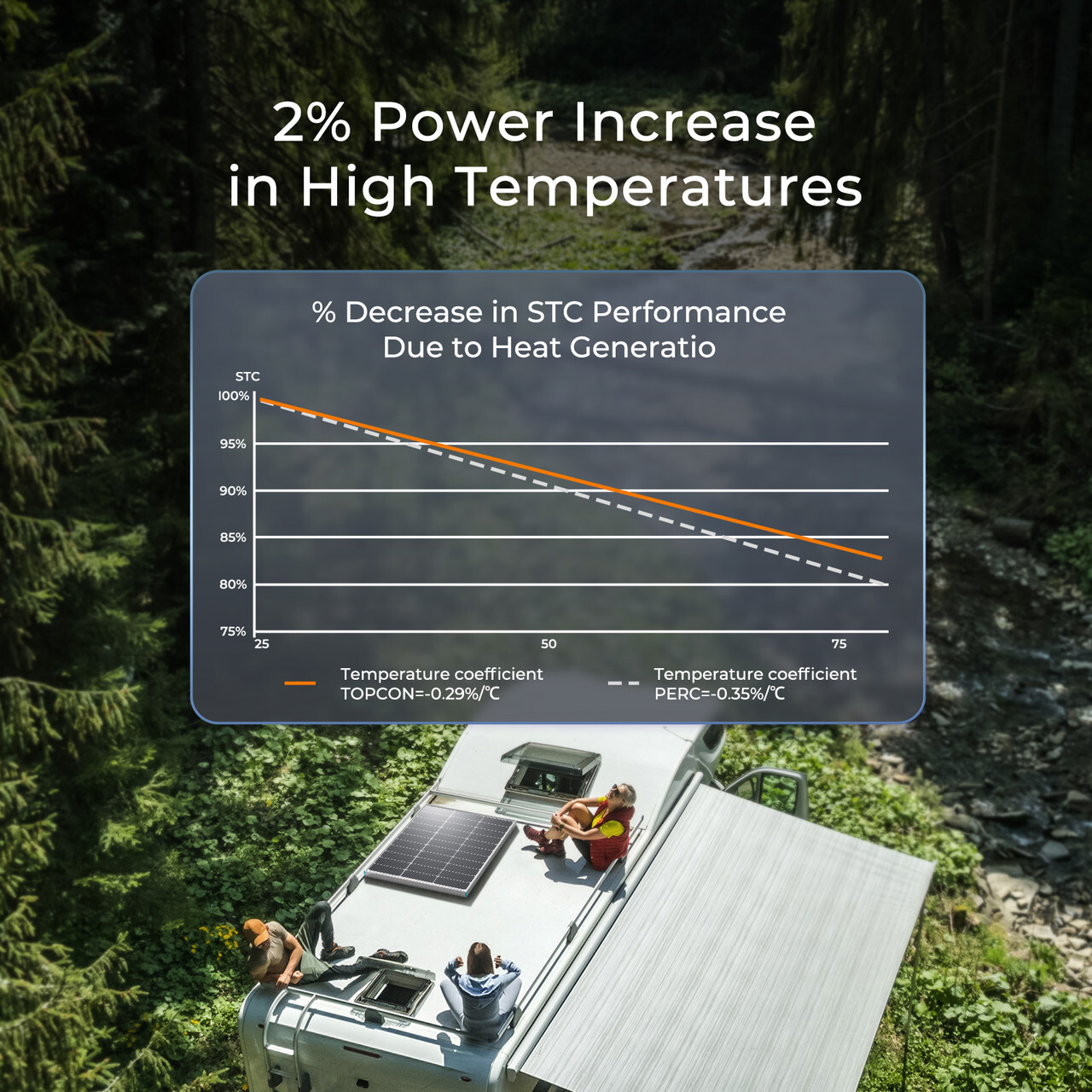

- -0.29%/℃ low temp coefficient. Better Performance in High Temps.
- IP65 protection. Long-lasting performance in any weather.
- 10-year workmanship warranty, 25-year 80% output warranty.
100W Monocrystalline Solar Panel | |
---|---|
Category | Details |
Electrical Data | |
Maximum Power at STC* | 100 W |
Optimum Operating Voltage (Vmp) | 19.97 V |
Optimum Operating Current (Imp) | 5.01 A |
Open Circuit Voltage (Voc) | 22.79 V |
Short Circuit Voltage (Isc) | 5.31 A |
Module Efficiency | 20.0 % |
Maximum System Voltage | 600 VDC UL |
Maximum Series Fuse Rating | 15 A |
Mechanical Data | |
Solar Cell Type | Monocrystalline (7.2 x 2.9 in) |
Number of Cells | 33 (3 x 11) |

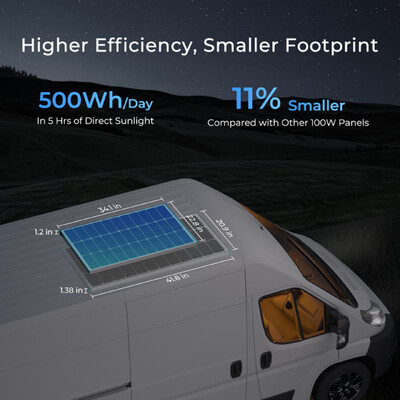

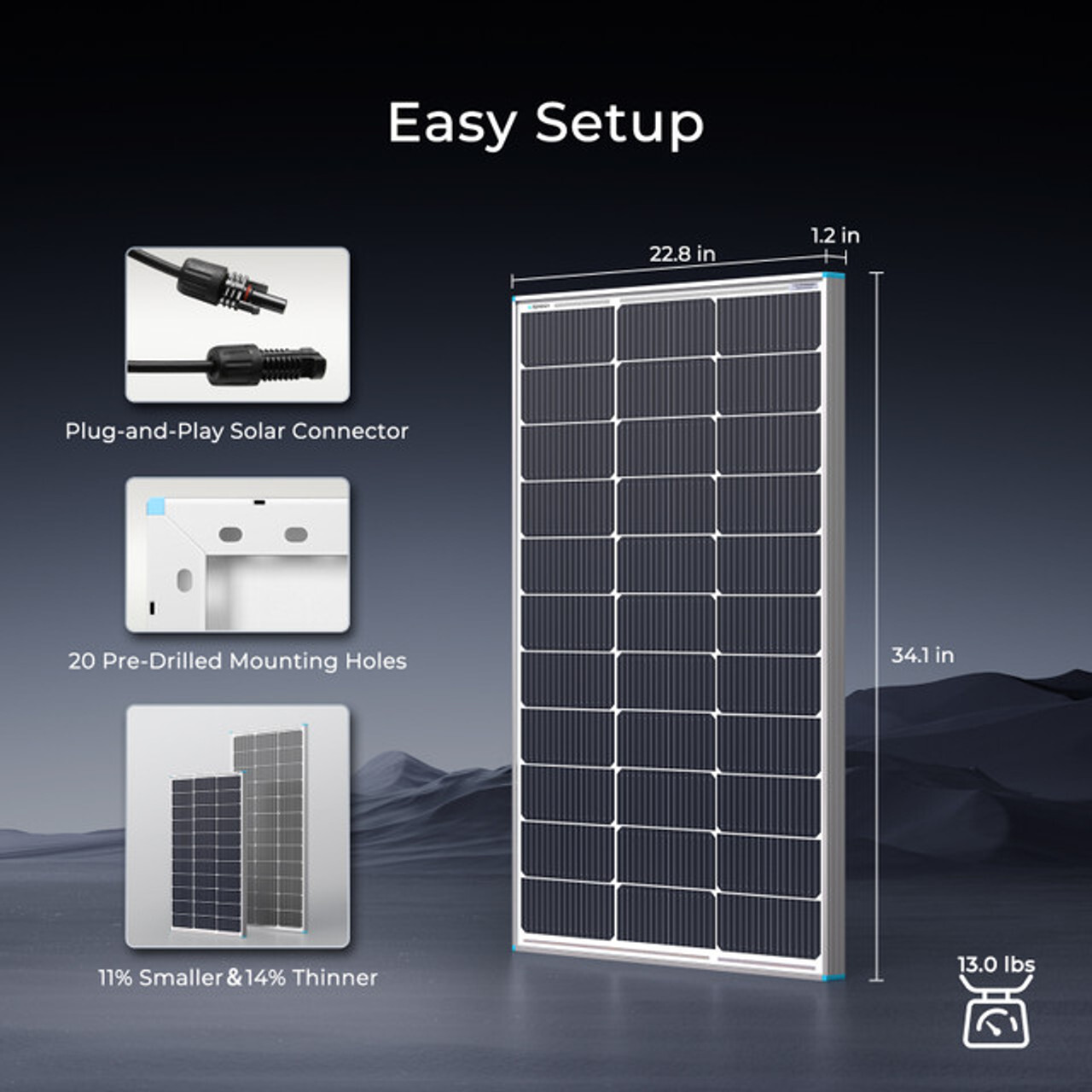

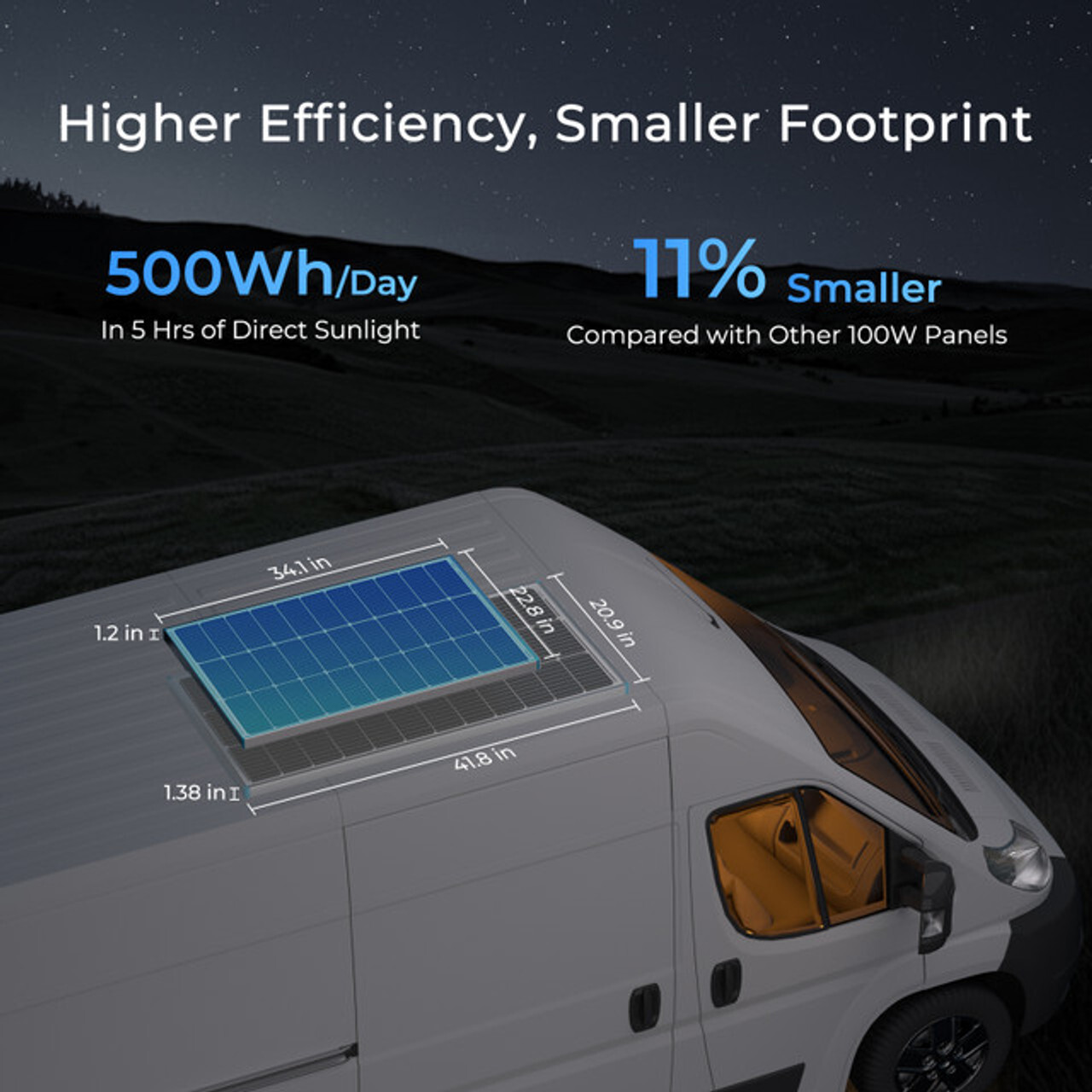

Dimensions | 865 x 578 x 30 mm (34.1 x 22.8 x 1.2 in) |
Weight | 5.9 kg (13.0 lbs) |
Front Glass | Tempered Glass 0.13 in (3.2 mm) |
Frame | Anodized Aluminium Alloy |
Connectors | Solar Connectors |
Fire Performance | Type 1 |
Thermal Characteristics | |
Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
Nominal Operating Cell Temperature (NOCT) | 47°C ± 2°C |
Temperature Coefficient of Pmax | -0.32%/°C |
Temperature Coefficient of Voc | -0.26%/°C |
Temperature Coefficient of Isc | 0.046%/°C |
Solar Connectors | |
Rated Current | 22 A |
Maximum Voltage | 1000 VDC |
Maximum AWG Size Range | 10 AWG |
Temperature Range | -40°C - 90°C (-40°F - 194°F) |
IP Rating | IP 65 |
Junction Box | |
IP Rating | IP 65 |
Diode Type | 15SQ045 |
Number of Diodes | 2 Diodes |
Output Cables | 14 AWG 600mm (23.6 in) |
Certifications | |
CE, EN IEC61730, EN IEC61215, ISO 9001: Quality Management System |
SKU | REN.RSP100DC-AU-0 |
Model # | RSP100DC-AU |
Brand | Renogy |
Shipping Weight | 5.9000kg |
Shipping Width | 0.870m |
Shipping Height | 0.030m |
Shipping Length | 0.580m |
Shipping Cubic | 0.015138000m3 |
Unit Of Measure | ea |
