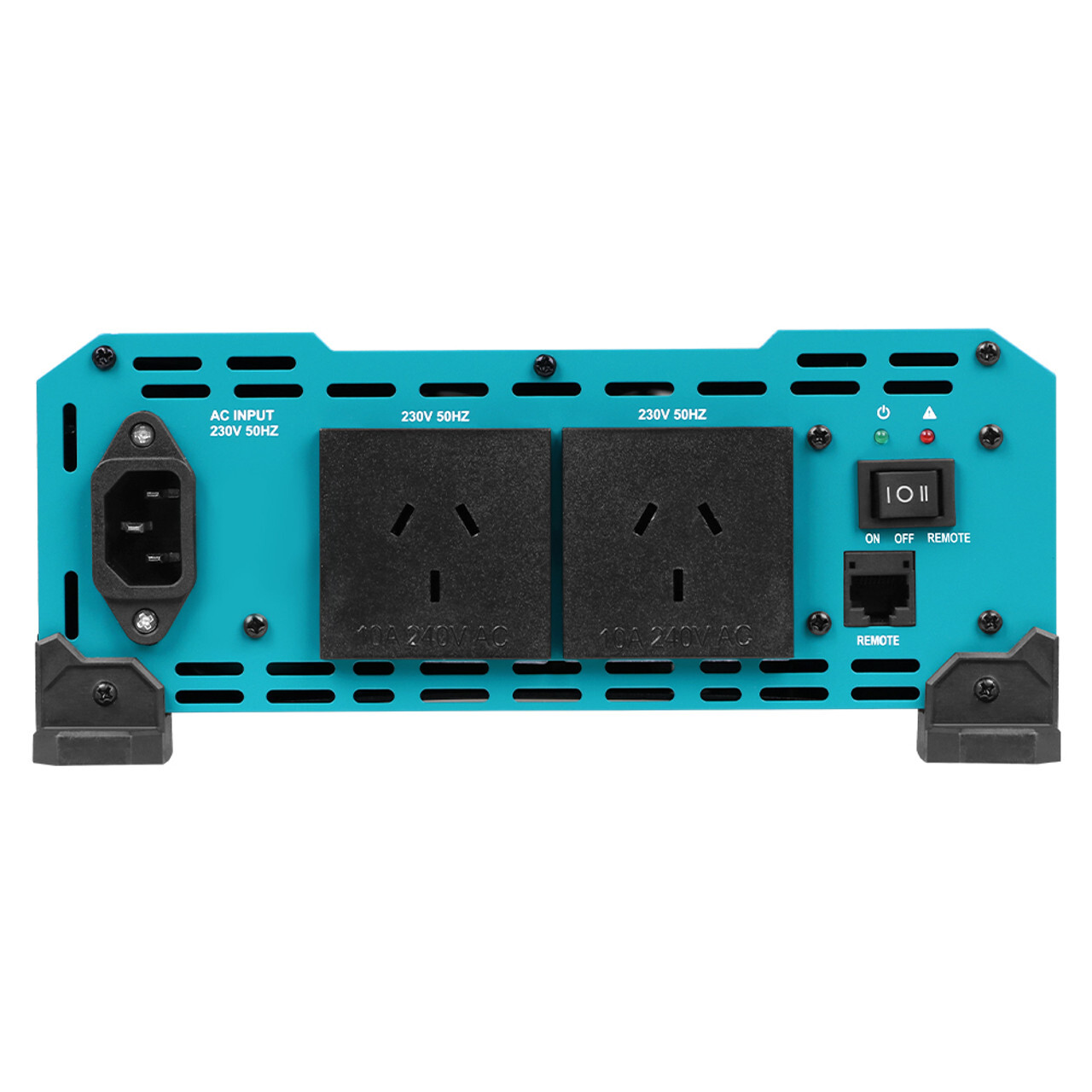

The perfect addition to any off-grid system where you don't need a combined Inverter/Charger. Great for the for a caravan to a cabin, the Renogy 3000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliances. Unlike modified sine wave inverters, this 3000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate coffee pod machines, microwaves, tools, fans, lights, and other electronics without interference. The AC priority function enables the inverter to automatically switch from mains power AC  to battery (DC) in hte event of AC mains power failure/disconnection via the inbuilt transfer switch, giving this inverter a UPS (Uninterruptible Power Supply) function.

Key Features:

  • UPS Function: Rapidly switch between battery and AC power in 50ms
  • Incorporate internal backup DC fuse for enhanced safety

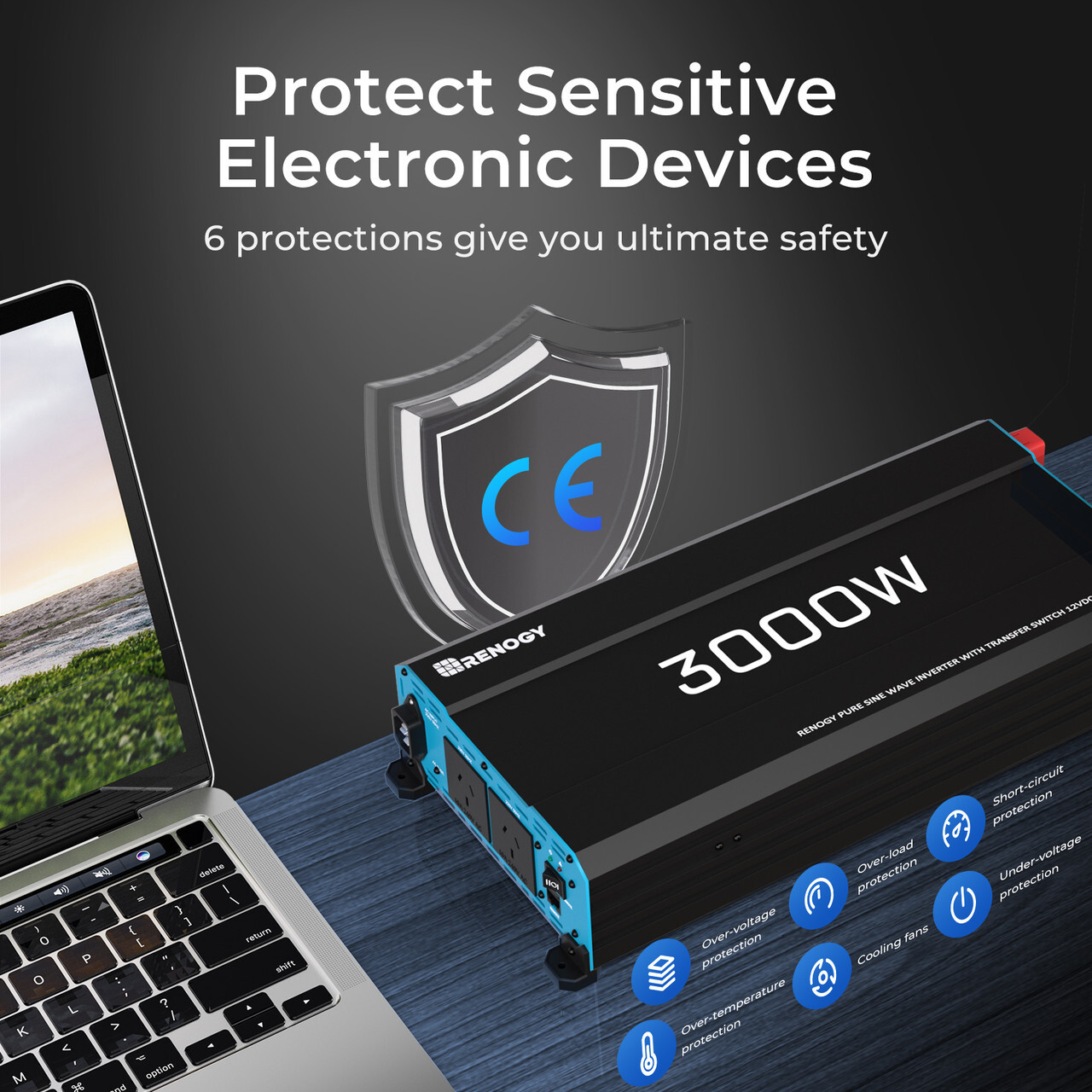

  • Comprehensive electronic protections for ultra safety

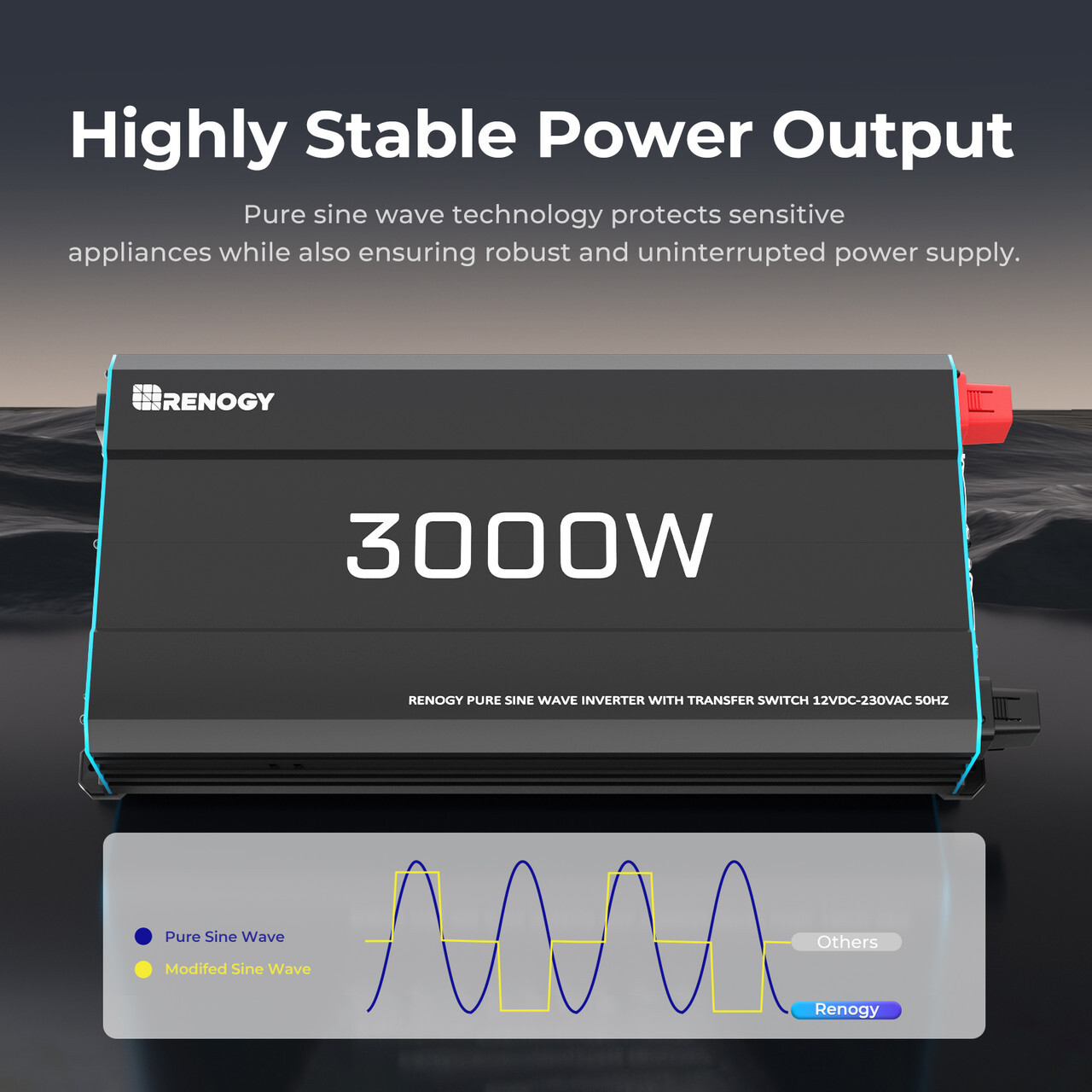

  • Pure sine wave power gives you cleaner, smoother electricity

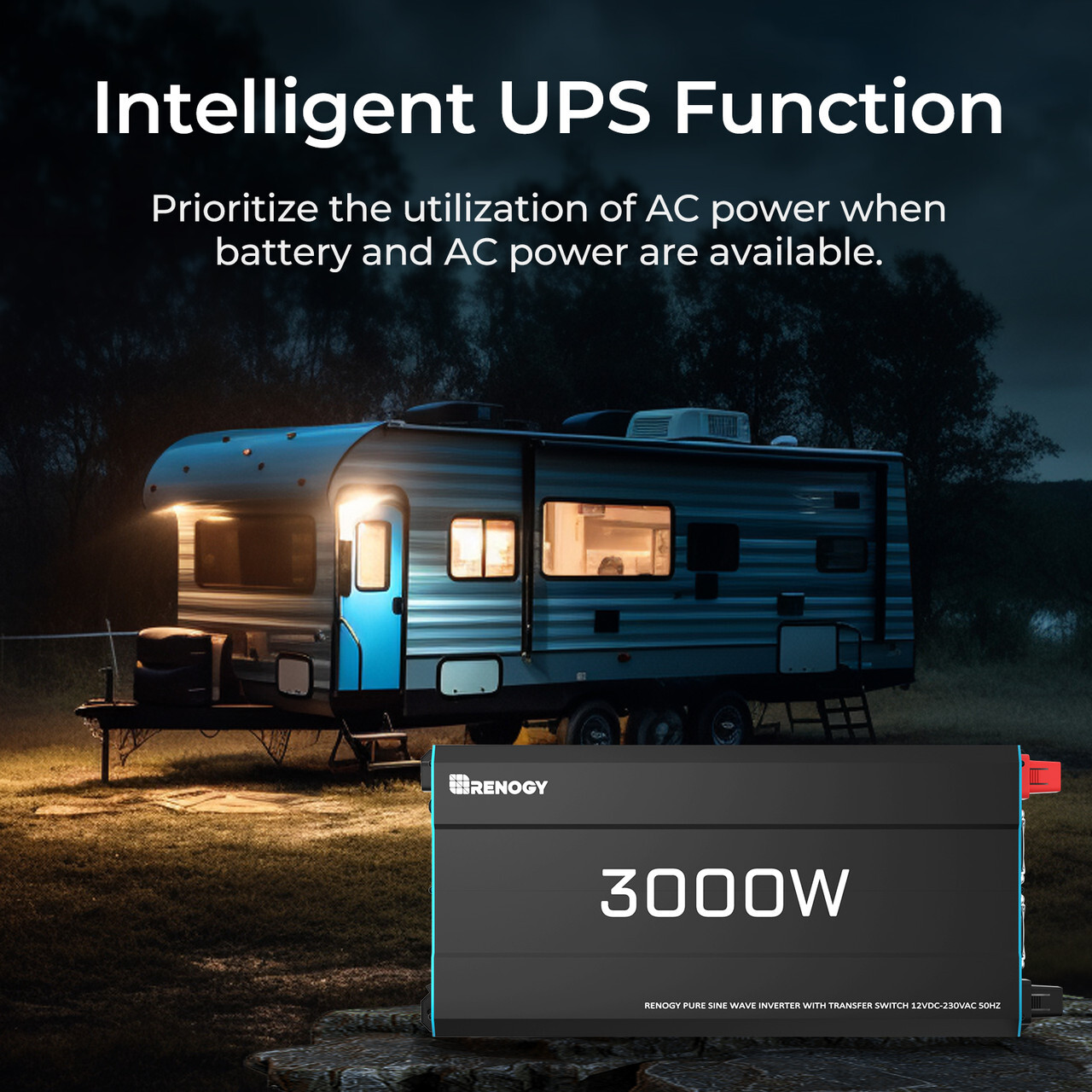

  • The grid priority function prioritises utility power over the battery



Electrical Specifications
Rated Output Power 3000W
Surge Power (Peak Power) 6000W
Input Voltage 12V DC
Input Voltage Range 11-16VDC
Output Voltage 220-240V AC
Output Frequency (Nominal) 50Hz
Output Wave Form Pure Sine Wave

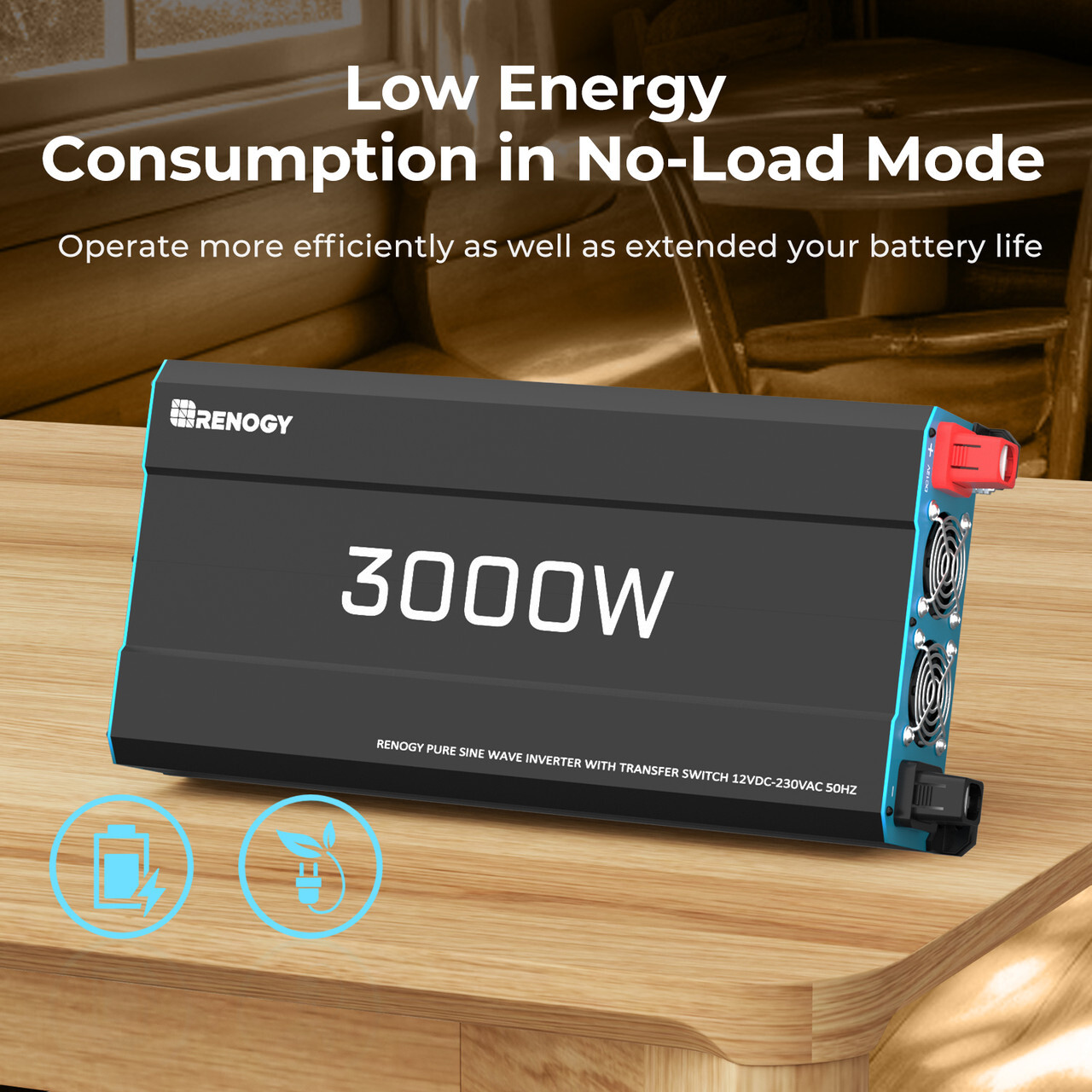

Static Current 1.5A
Low Voltage Shutdown 10VDC
Low Voltage Protection Recover from low voltage protection
High Voltage Shutdown 16.3VDC
Battery Supply & AC Main Transfer Time Within 50ms
Maximum Efficiency 90%
Working Temperature 0°C~40°C

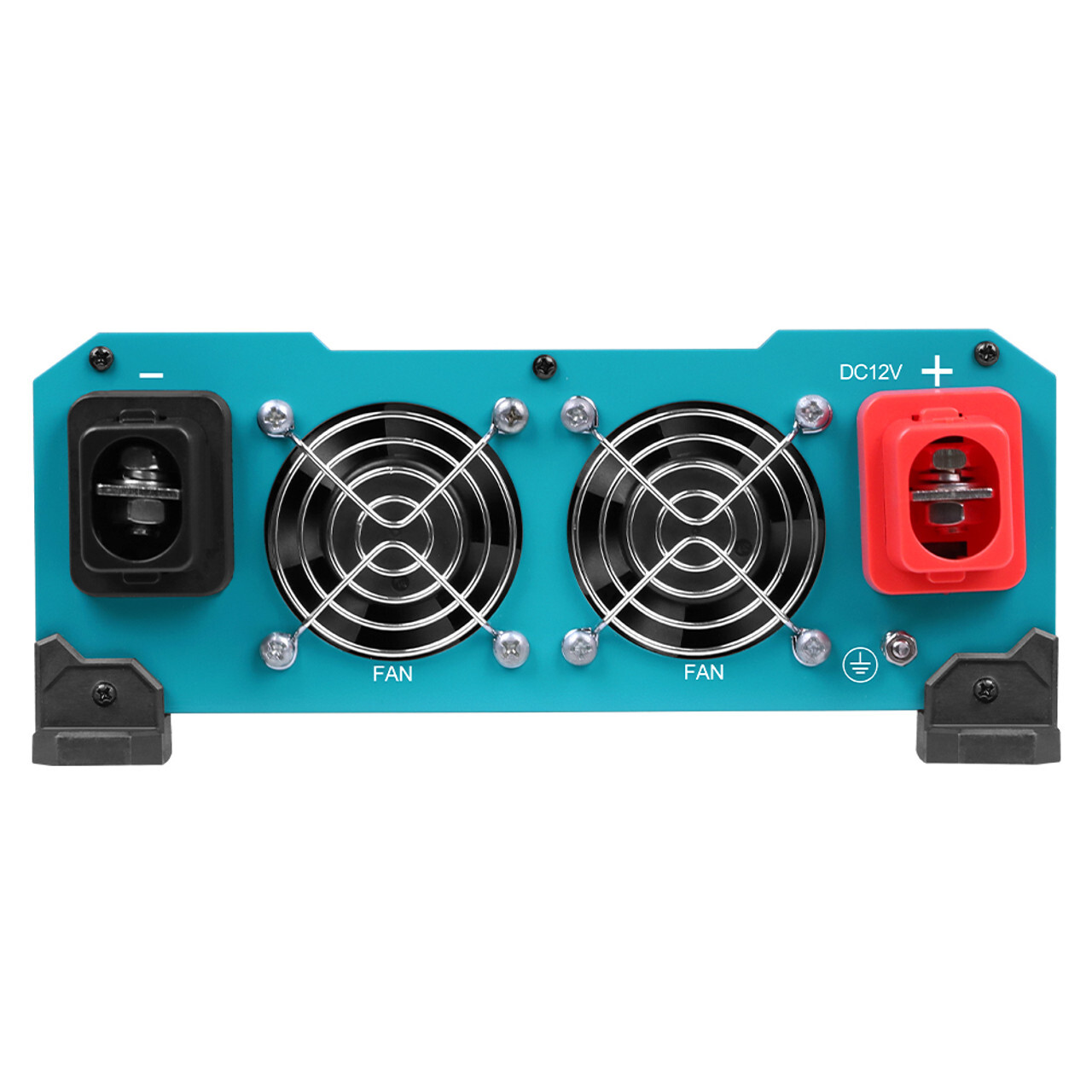

Heat Dissipation Fan
Ingress Protection IP20

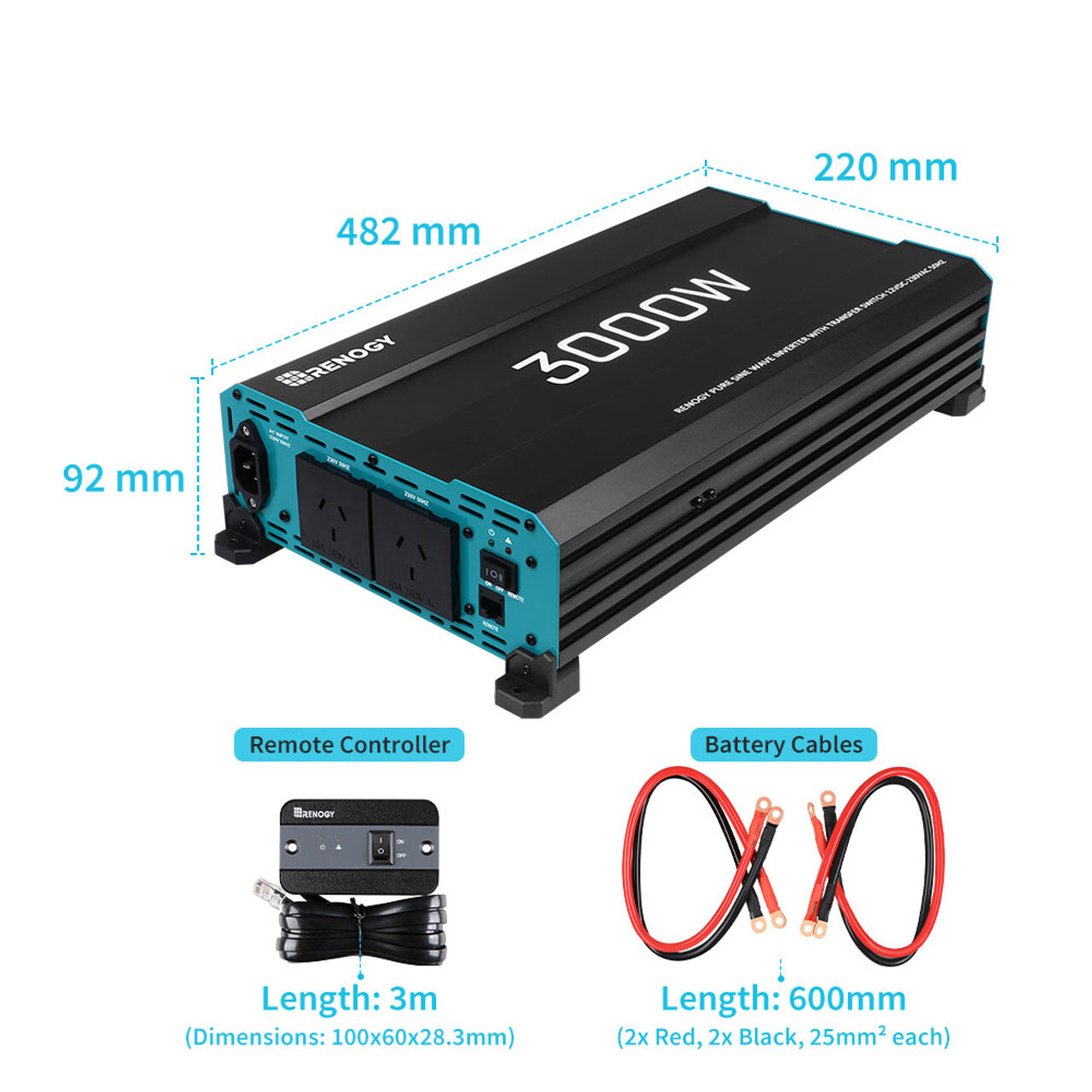

Dimensions 482*220*92 mm
Weight 6.4KG
Certifications CE
PACKAGE INCLUDES

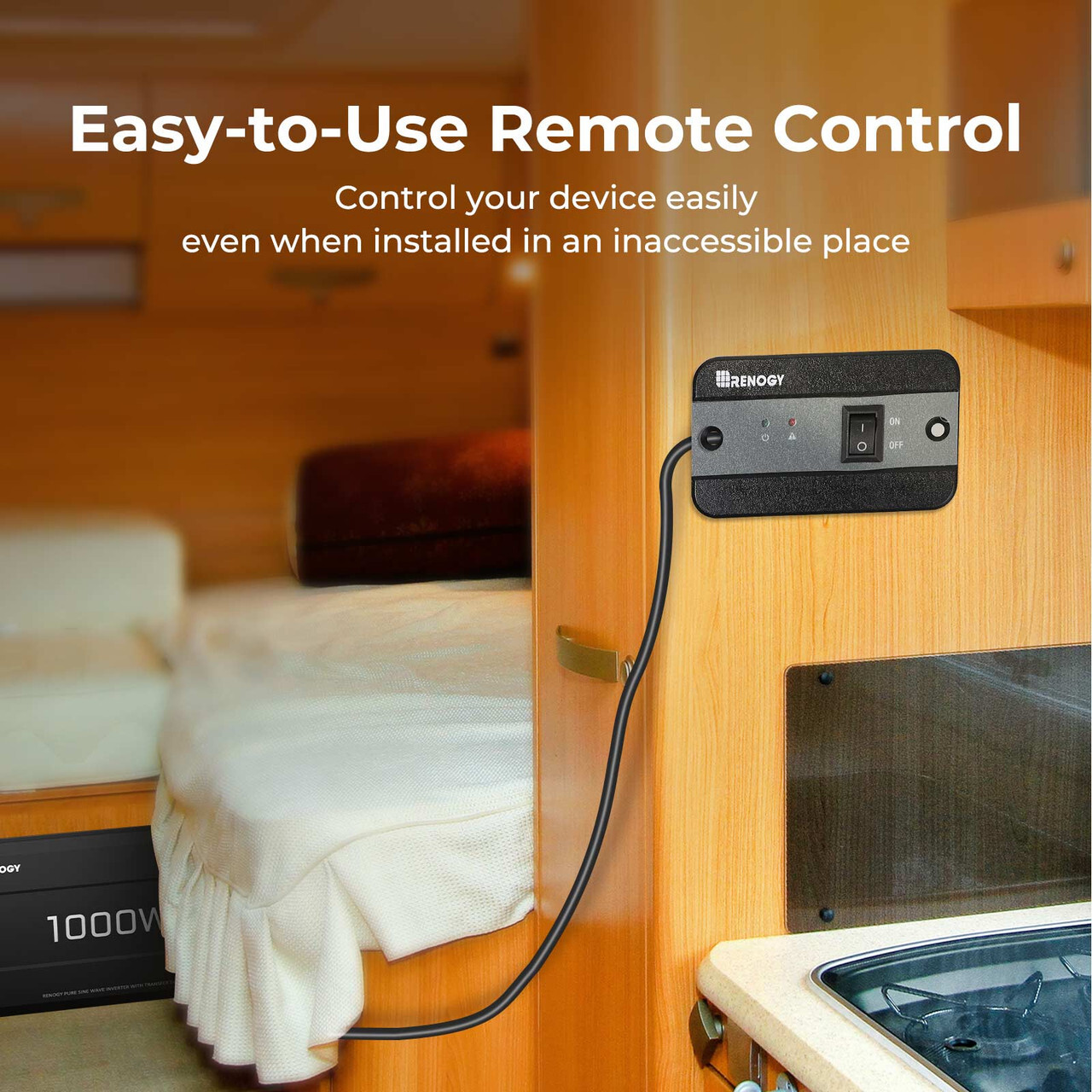

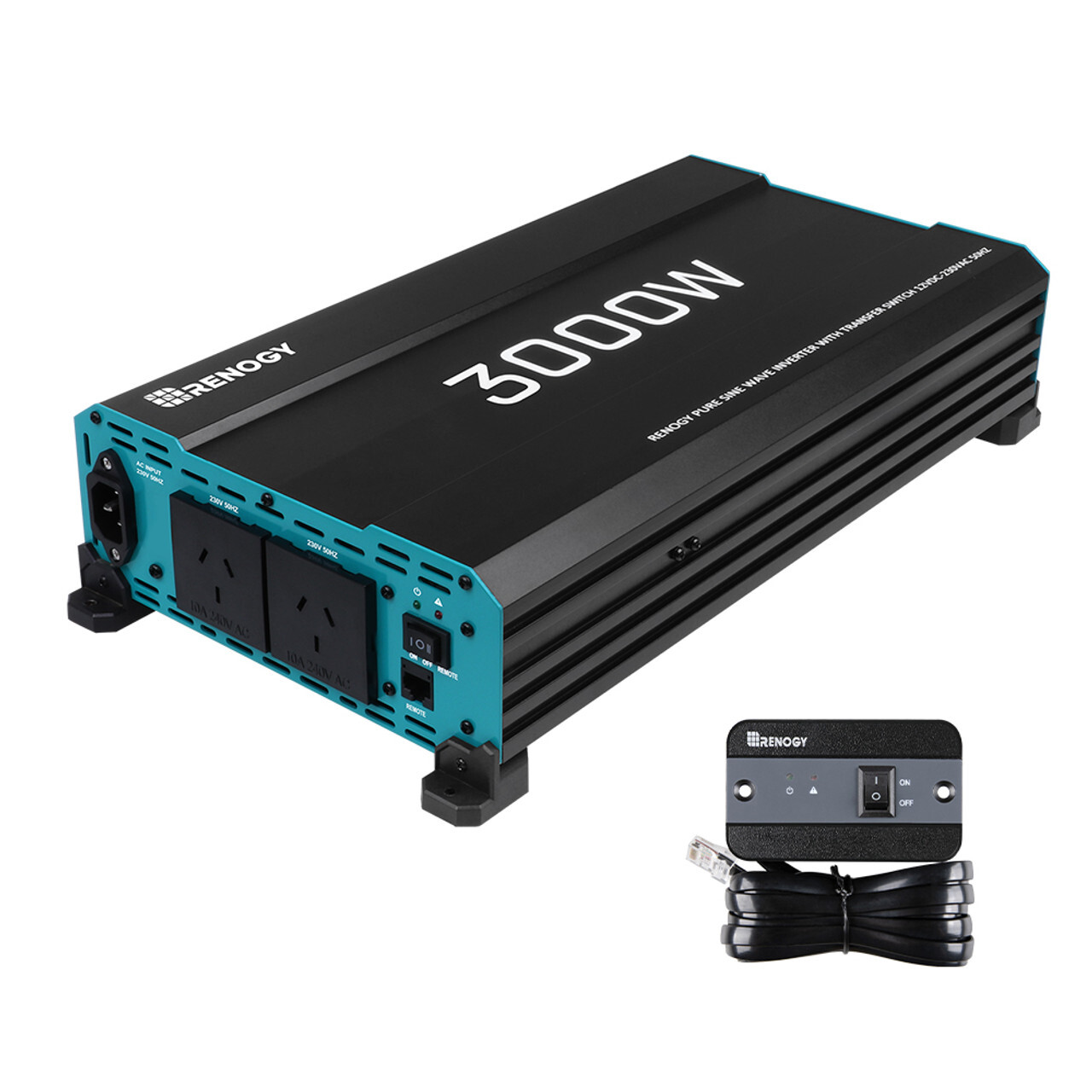

battery inverter x1, remote control and 3m cable x 1 and cables (25mm²) x 4
Material and Workmanship Warranty
 Warranty Period 1-year



SKU REN.R-INVT-PUH1-301235-AU
Model # R-INVT-PUH1-301235-AU
Brand Renogy
Shipping Weight 6.5000kg
Shipping Width 0.490m
Shipping Height 0.100m
Shipping Length 0.220m
Shipping Cubic 0.010780000m3
Unit Of Measure ea
