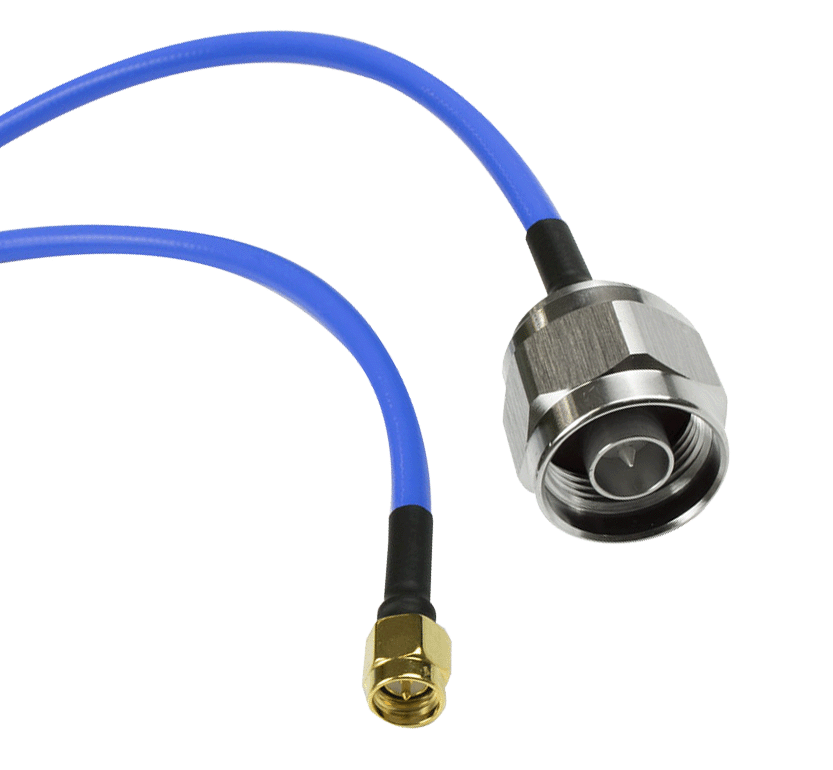

N Male to SMA Male RG-402 0.141″ semi-flex patch cables are a high-performance microwave-grade assembly designed to interconnect two components within an RF system.

This short cable is designed to connect two passive components while meeting strict VSWR and PIM requirements.

  • N Male to SMA Male connection
  • Available in 200 mm and 500 mm lengths
  • RG-402 cable type also known as SF-141

RG-402 is a 0.141″ Semi-Flex cable type used as a very high-performance patching cable. This cable type is required to meet the high electrical performance requirements imposed by LTE-A Pro, 5G, and other advanced wireless technologies.

0.141″ Semi-Flex cables like RG-402 use a tin-soaked copper braid to provide near 100% RF shielding, low PIM, very low loss, all while retaining malleability.


General Specifications

Nut Brass, Nickel plated
Body Brass, Trimetal plated
Insulator PTFE
Centre Conductor Brass, Gold plated
Standard IEC 60169

Electrical Data

Impedance 50Ω
Frequency Range DC to 6 GHz
VSWR ≤1.3:1
PIM ≤ -150 dBc
Dielectric  withstanding voltage ≥ 1000 V
Insulation resistance ≥ 5000 MΩ



SKU PWT.WEB-214
Shipping Weight 0.0500kg
