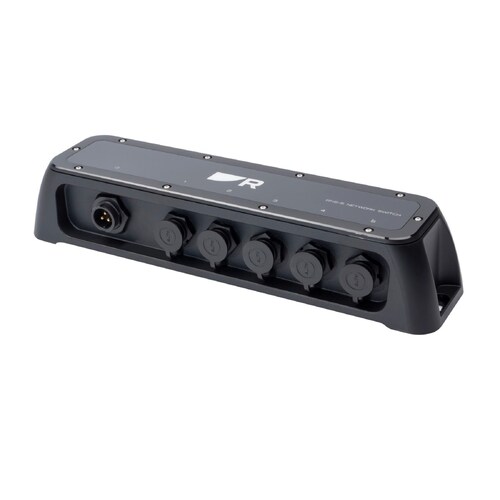

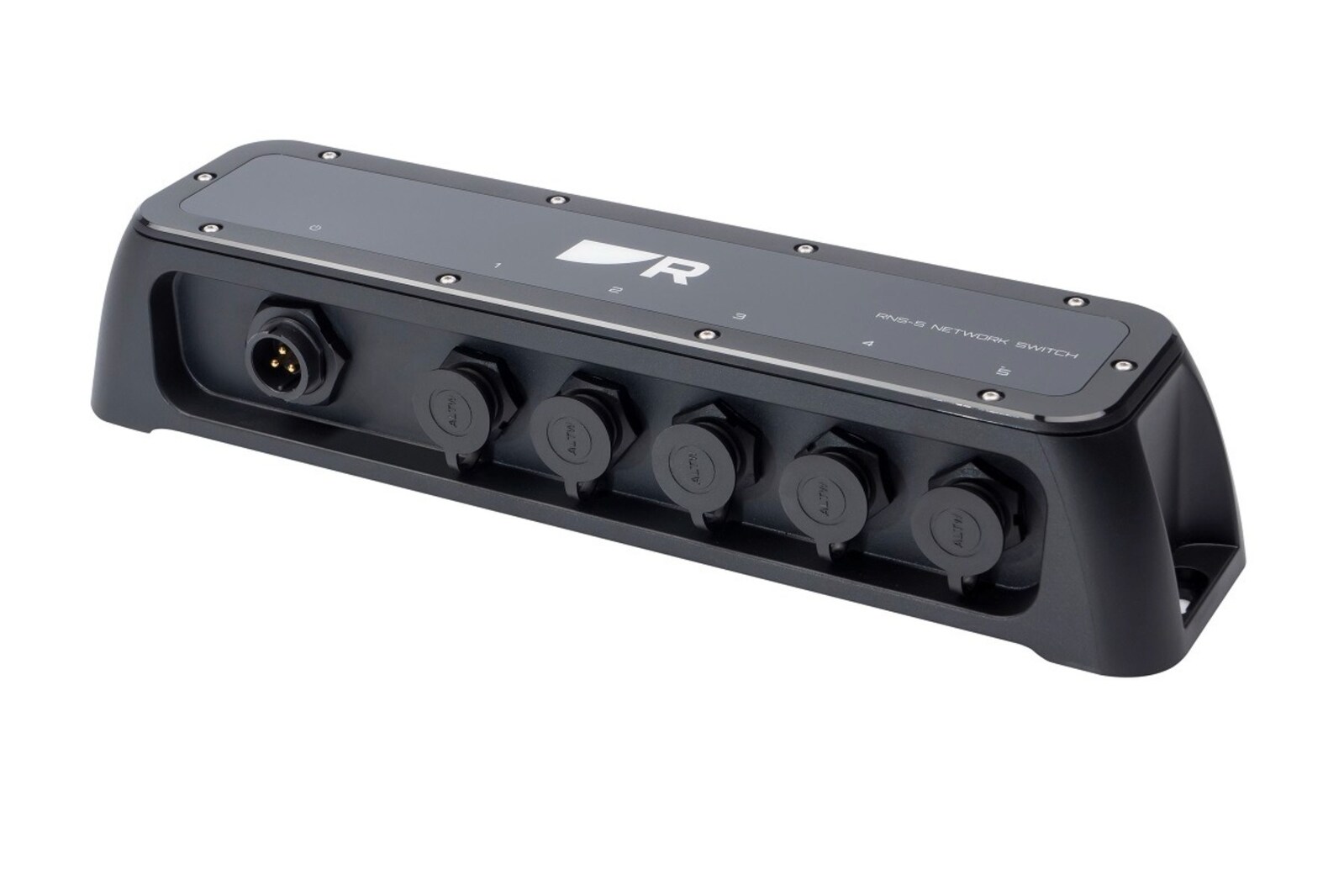

Raymarine RNS-5 5 Port raynet network Switch

  • 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
  • Rugged IPX6 and IPX7 construction
  • Reliable, waterproof RayNet connector Ethernet cable ports
  • Designed for simple bulkhead mounting
  • LED power and network port status indicators
  • Unmanaged- simply plug and play with Raymarine devices
  • No complicated setup or configuration

Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.

POWER SPECIFICATION
Nominal supply voltage 12 or 24 V dc
Operating voltage range 9 to 32 V dc
Power Consumption <2.5 watts <600mA @12V
ENVIRONMENTAL SPECIFICATION
Operating temperature range -25°C (-13°F) to + 55°C (131°F)
Storage temperature range -30°C (—22°F) to + 70°C (158°F)
Humidity up to 93% @ 40°C (104°F)
Water ingress protection IPx6
PHYSICAL SPECIFICATION
Dimensions (w x h x d) 286 mm (11.26 in) x 69 mm (2.72 in) x 55 mm (2.17 in)
Weight .36 Kg (.79 lbs)
NETWORK
Protocols RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable
Connection Speed 1 Gigabit
Number of Ports 5
SKU RAY.A80731
Model # A80731
Brand Raymarine
Shipping Weight 0.8200kg
Unit Of Measure ea
2 Years
