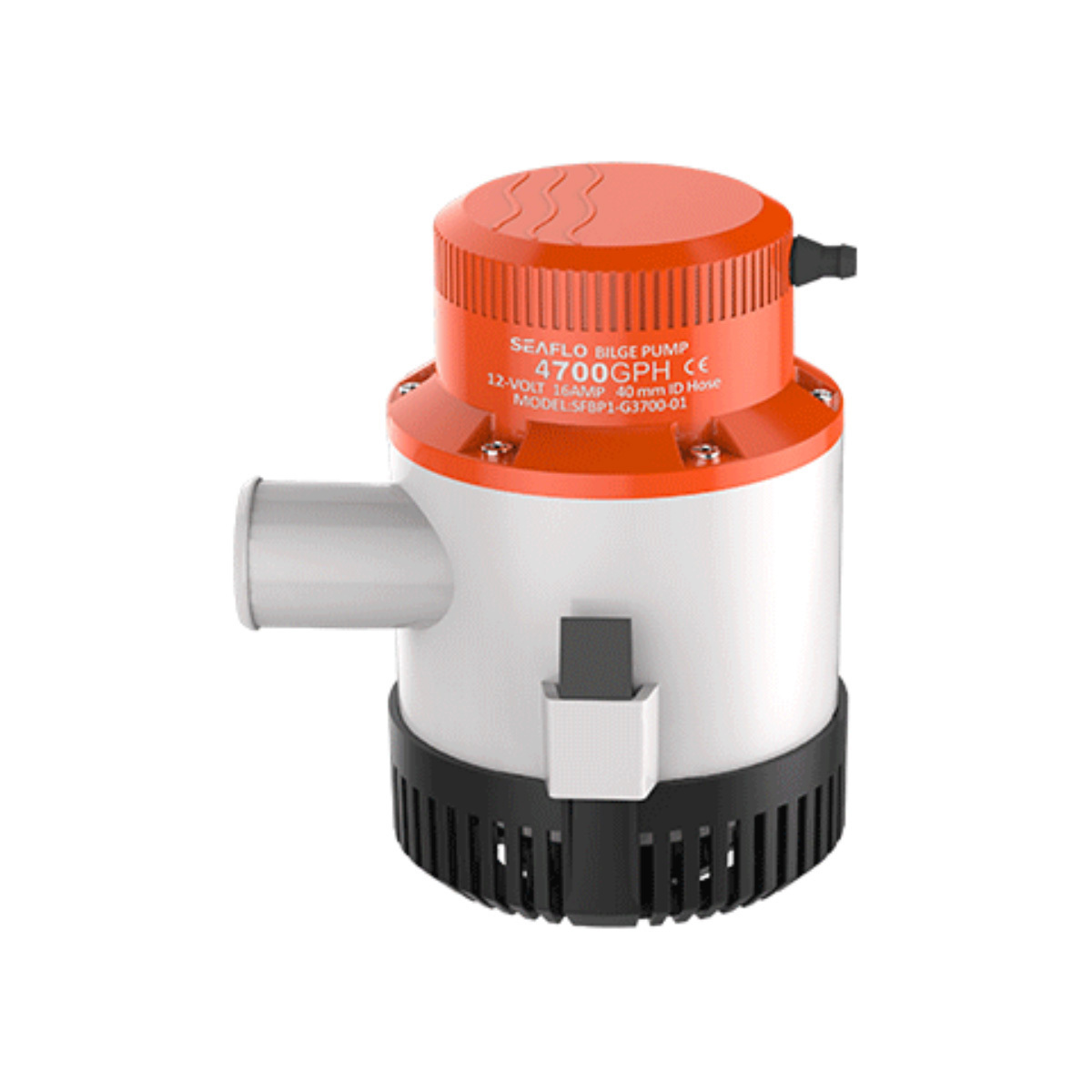

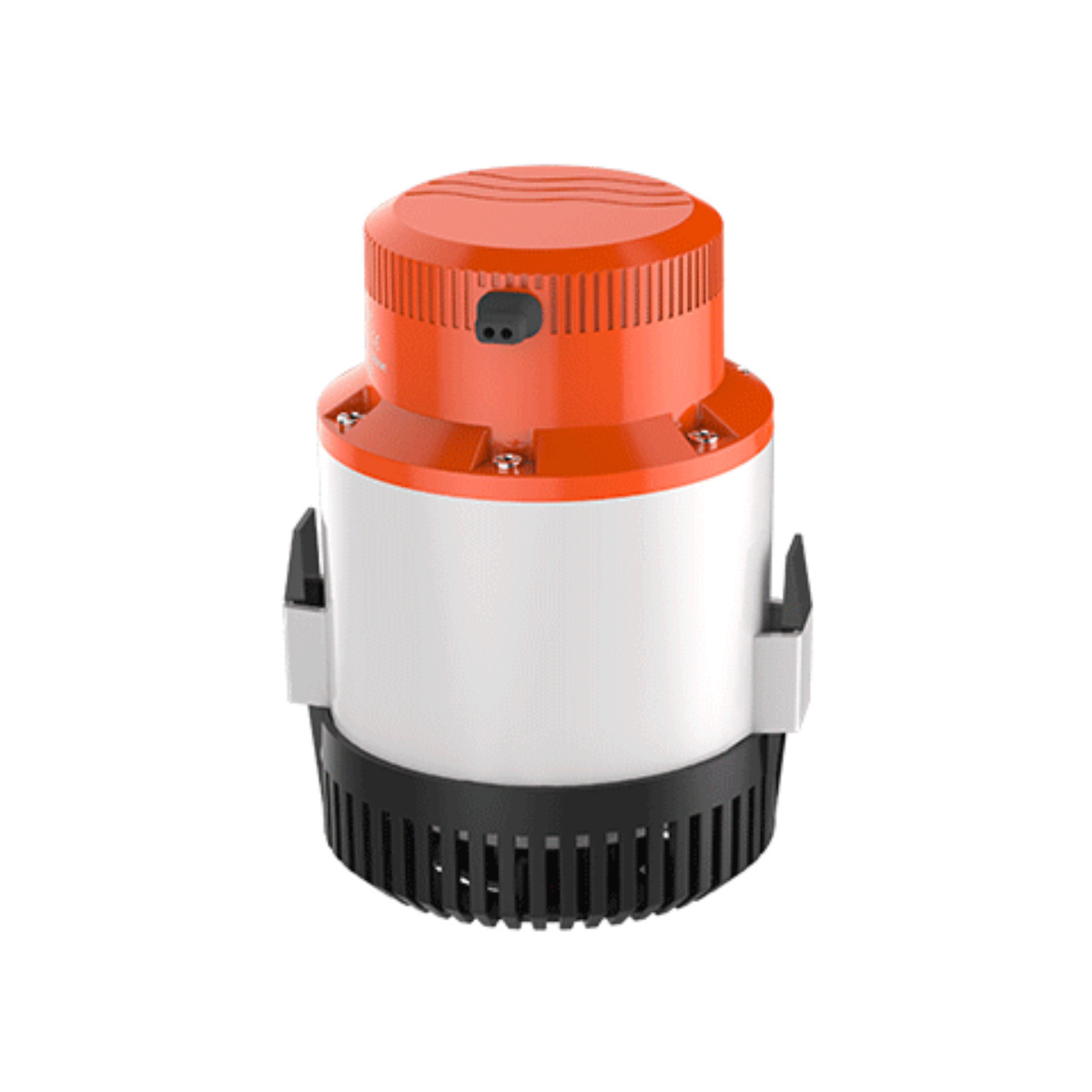

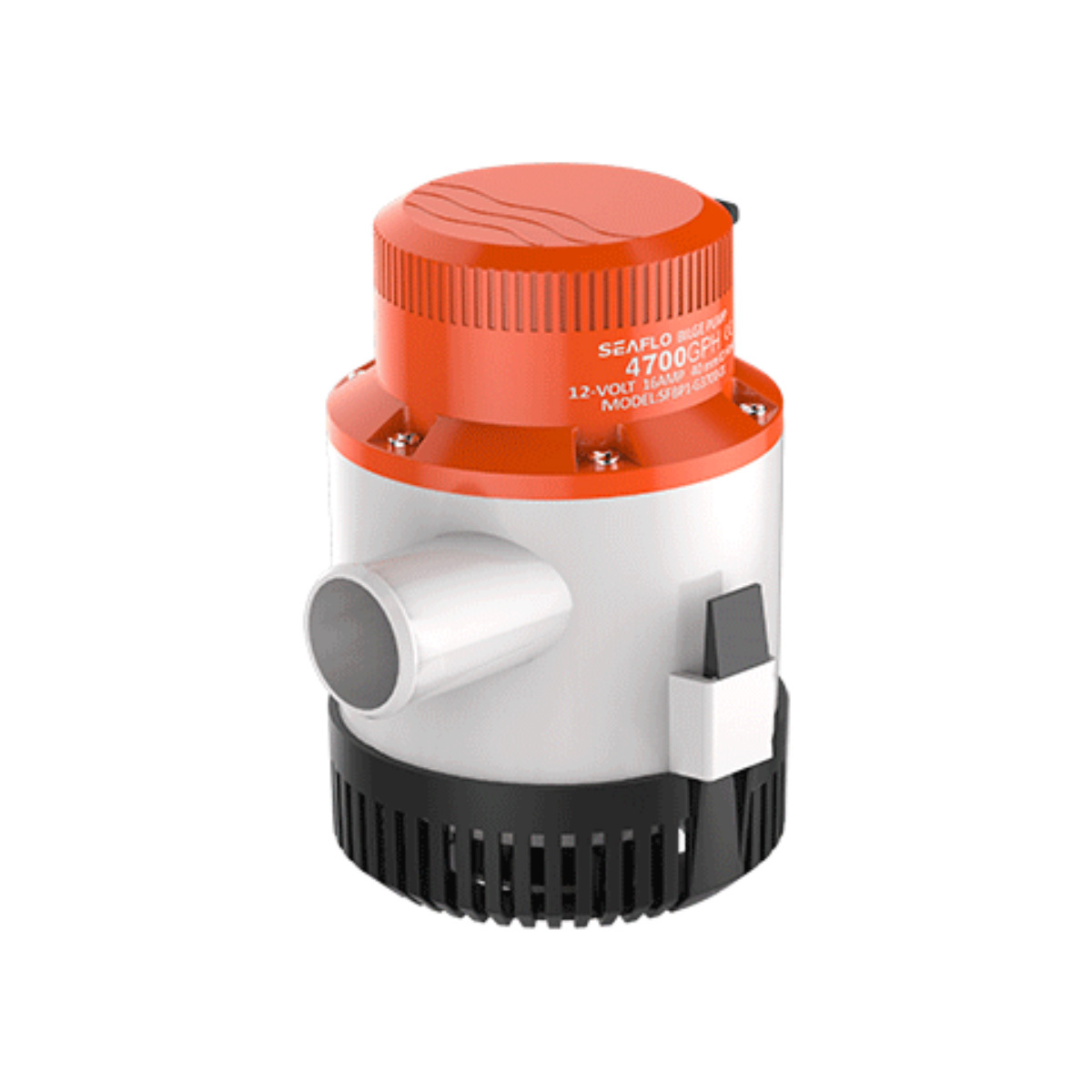

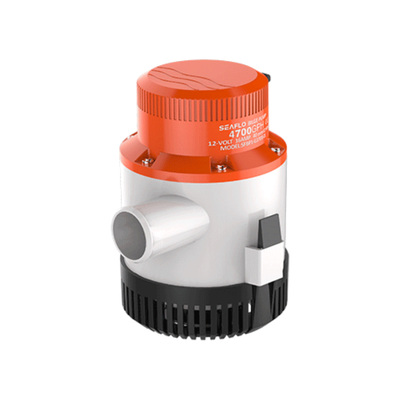

SeaFlo Bilge Pump 4700GPH 12V

The SEAFLO 01 Series 4700GPH Bilge Pump is a non-automatic, high-capacity pump designed for a variety of applications, including marine, medical, pond management, and water research. Its heavy-duty motor and high-efficiency design make it an ideal solution for rapid water transfer in demanding environments.

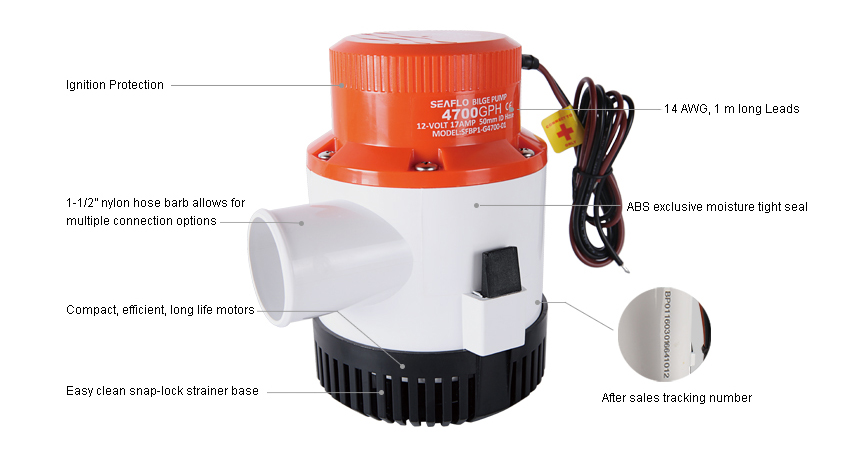

Features and Benefits:

Features and benefits

  • High Efficiency: Offers high capacity output with a 4700GPH flow rate, ensuring quick and efficient water removal.
  • Durability: Equipped with compact, efficient, and long-life motors that stand up to demanding applications.
  • Easy Maintenance: Features a quick-release strainer and a snap-lock strainer base for straightforward cleaning.
  • Versatile Installation: Comes with a 1-1/2" nylon hose barb for multiple connection options, accommodating diverse plumbing setups.
  • Reliable Operation: Traditional operation by switch or float switch, with ignition protection and entirely submersible design for safe use in marine environments.
  • Safety and Quality: Meets or exceeds RoHS, SGS, and ISO standards, with ABS-exclusive moisture-tight seal and marine-grade blocked wiring.
  • Extended Warranty: Offers peace of mind with a 2-year warranty and after-sales tracking number for support.

General Specifications:

Feature Specification
Flow Rate 4700GPH
Voltage 12V
Hose Barb 1-1/2" nylon
Wire Leads 14 AWG, 1m long
Temperature Limits 110°F (43°C)
Motor Sealed efficient, long life
Shaft Material Stainless steel
Protection Features Anti-airlock, exclusive moisture-tight seals

Typical Applications:

  • Marine: Ideal for boats up to 60ft, providing efficient bilge water removal.
  • Medical & Water Research: Supports water sampling and liquid transfer in laboratory settings.
  • Pond & Solar Water Systems: Enhances water circulation in ponds and solar water systems.

The SEAFLO 01 Series 4700GPH Bilge Pump is your reliable partner for handling high-volume water transfer needs, combining power, efficiency, and durability in a compact design.

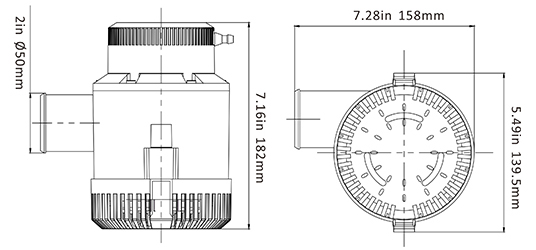

Dimensions:

Product dimensions

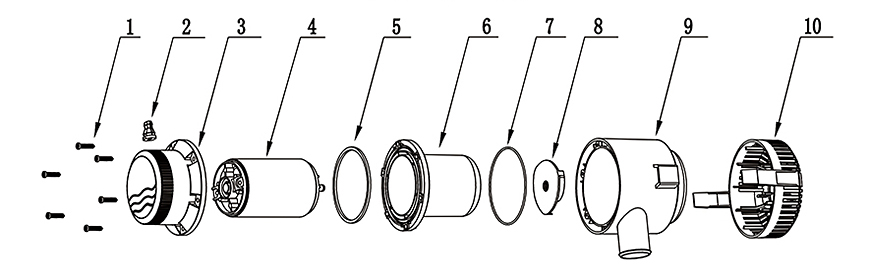

Package Contents

Package contents

Key Description Quantity
1 Tapping Screw 6
2 Wire Buckle 1
3 Pump Cover 1
4 Motor 1
5 Seal 1 1
6 Motor Cover 1
7 Seal 2 1
8 Impeller 1
9 Pump Housing 1
10 Strainer 1

STANDARD PUMP CONFIGURATIONS

Model Flow Rate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W.
SFBP1-G4700-01 4451 GPH 12 V 32.1 A 26.0 A 26.2' (8 m) 3' (1 m) 2" 2.10/2.37 kg

PERFORMANCE

Voltage(V) Current(A) Flow Head(M)
  GPH LPH
OPEN 14.6 4451 16844 0
12 16.2 4011 15179 1
12 18.5 3657 13839 2
12 20.1 2741 10373 3
12 22.6 1966 7440 4
12 25.2 831 3145 5
12 27.4 405 1533 6
12 30.9 136 515 7
12 32.1 0 0 8
SKU SFL.SFBP1-G4700-01
Model # SFBP1-G4700-01
Brand SeaFlo
Shipping Weight 2.5000kg
Shipping Width 0.163m
Shipping Height 0.235m
Shipping Length 0.155m
Shipping Cubic 0.005937000m3
Unit Of Measure ea
