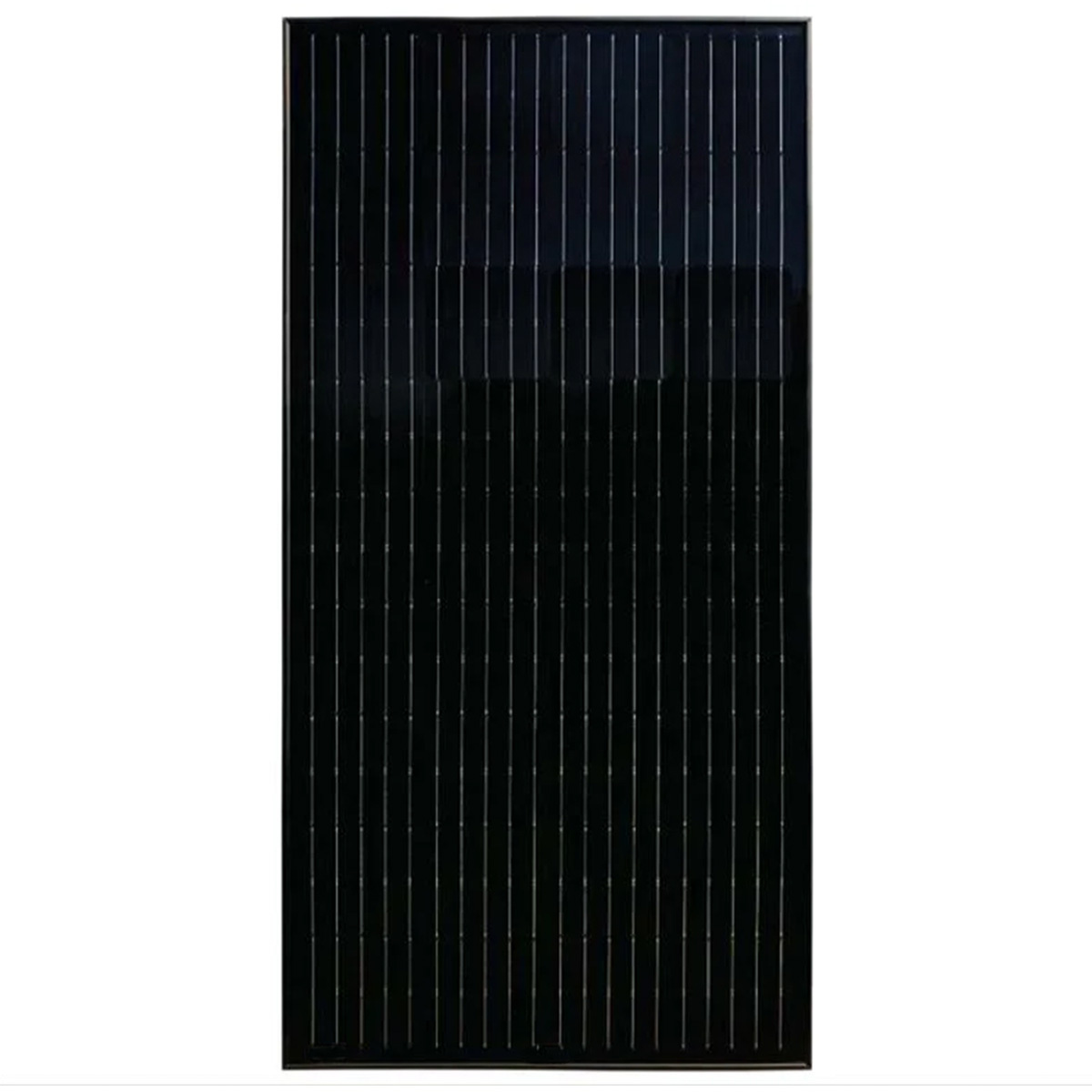

Shervey Power Products High Voltage Solar Panel Premium 190W-48V Mono Black Frame
With a VoC of 99V, this solar panel is ideal in situations where a singular panel needs to charge a 36v or 48v battery bank. ie Electric Trolling Motors & Golf Carts
SKU: SPP.SHER-190-144C | MPN: SHER-200BB, 190W-48V Mono
SAVE $6.00 (2%)
On BackorderMore stock on the way. Order now to reserve your stock.
Ideal in situations where a singular panel needs to charge a 36v or 48v battery bank. ie Electric Trolling Motors & Golf Carts
Name | Solar Panel Shervey Premium 190W-48V Mono (Black Frame) |
Model Number | SHER-190-144C |
Cell Type | Monocrystalline |
Peak Power (Pmax) | 190Wp |
Power Tolerance Range % | +/- 3% |
Open Circuit Voltage (Voc) | 99.15V |
Max Power Voltage (Vmp) | 84.36V |
Short Circuit Current (Isc) | 2.51A |
Max Power Current (Imp) | 2.26A |
Maximum System Voltage | 1000VDC |
Dimensions (mm) | 1280x808x35 mm |
Approximate Weight | 11kg |
*Note: MPPTs with a maximum PV open circuit voltage lower than or equal to 100 volts are unsuitable for this solar panel, as the voltage is too close to this limit. The recommended Victron MPPT should have a rating of at least 150 Volts, for instance, but not limited to, Victron MPPT 150/35 Solar Controller.
SKU | SPP.SHER-190-144C |
Model # | SHER-200BB, 190W-48V Mono |
Brand | Shervey Power Products |
Shipping Weight | 13.0000kg |
Shipping Width | 0.808m |
Shipping Height | 0.050m |
Shipping Length | 1.280m |
Shipping Cubic | 0.051712000m3 |
