SMA Male Connector for RG-58 / L-195 Coaxial Cable

The SMA Male Connector for RG-58 / L-195 Coaxial Cable is an essential component for professionals and enthusiasts in the field of wireless communications. This connector is meticulously designed to meet the high demands of modern RF and microwave systems, offering a reliable connection for a wide range of coaxial cables, including RG-58 and LMR-195.

Key Features

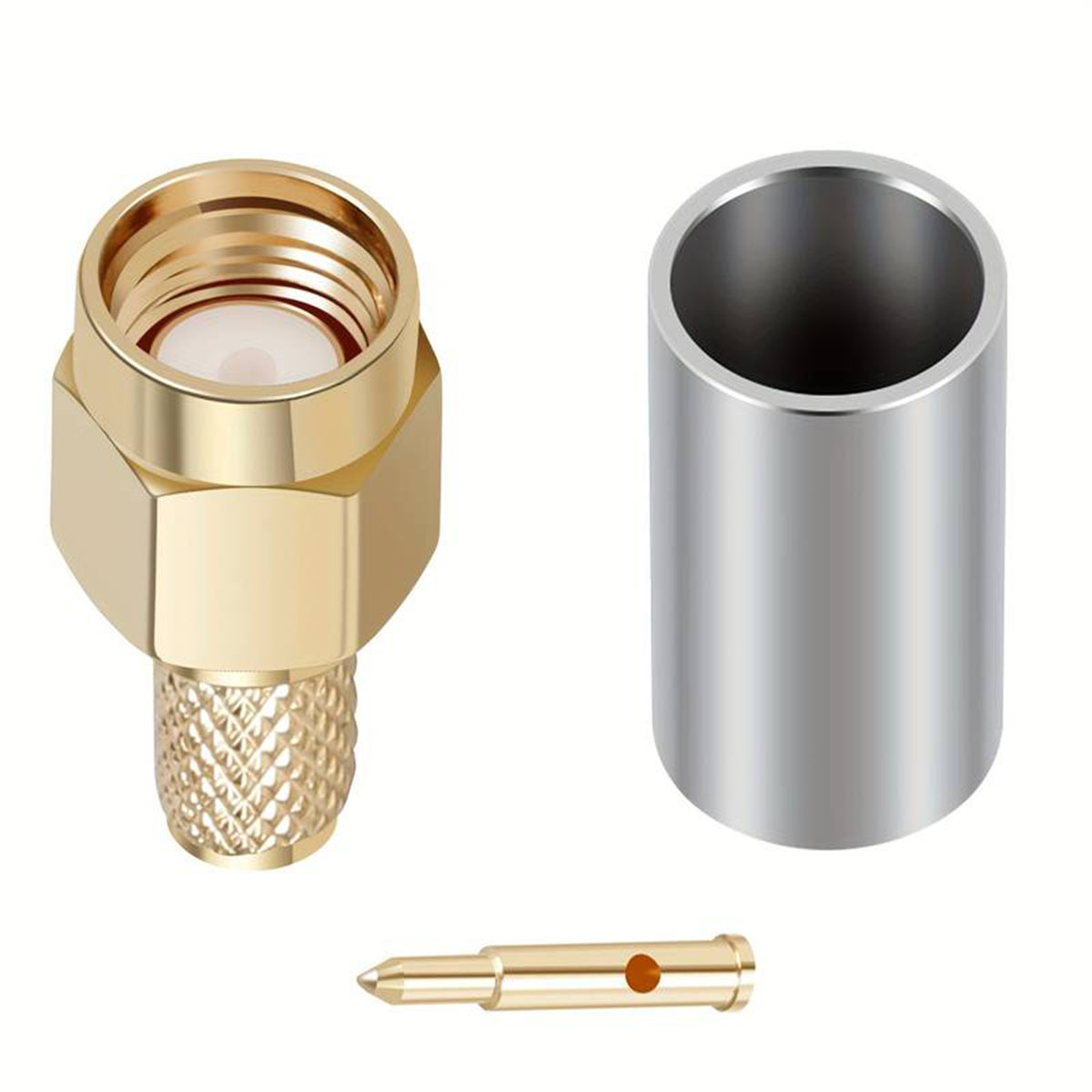

• Compact Design: The SMA Male Connector features a hex-shaped outer body with an inner thread that allows for a secure interface with the female connector. Its straight body is optimized for durability and minimal space usage.
• High-Frequency Support: Engineered to support frequencies up to 6 GHz, making it suitable for a variety of wireless applications, including WiFi, RF communications, and microwave systems.
• Universal Compatibility: Specifically designed for use with L-195 and RG-58 series coaxial cables, providing a versatile solution for your connectivity needs.
• Easy Installation: The connector is attached via a standard crimp and solder method. The centre pin is soldered to the cable's conductor, and a 5.4 mm (.213″) hex die crimps the ferrule for a secure fit.
• Quality Materials: Features a gold-plated pin for excellent conductivity and corrosion resistance, ensuring reliable signal transmission.

Installation Process

1. Prepare the coaxial cable by stripping it to the correct dimensions.
2. Solder the centre pin to the cable's conductor.
3. Slide the connector's body over the cable until the pin sits flush.
4. Crimp the ferrule using a 5.4 mm (.213″) hex die for a secure attachment.

General Specifications

The SMA Male Connector is ideal for anyone looking to establish secure, high-quality connections in their wireless systems. Whether for amateur radio, professional broadcasting, or personal projects, this connector ensures excellent performance and durability.
