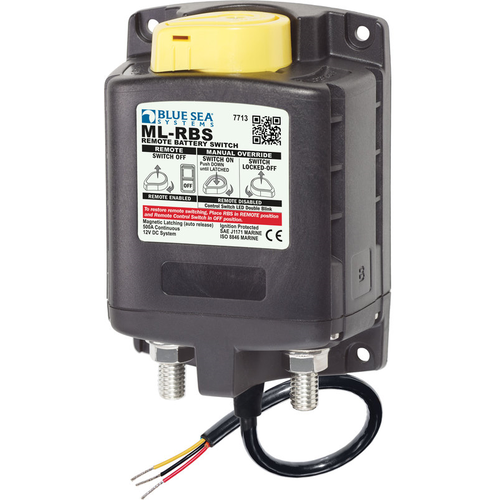

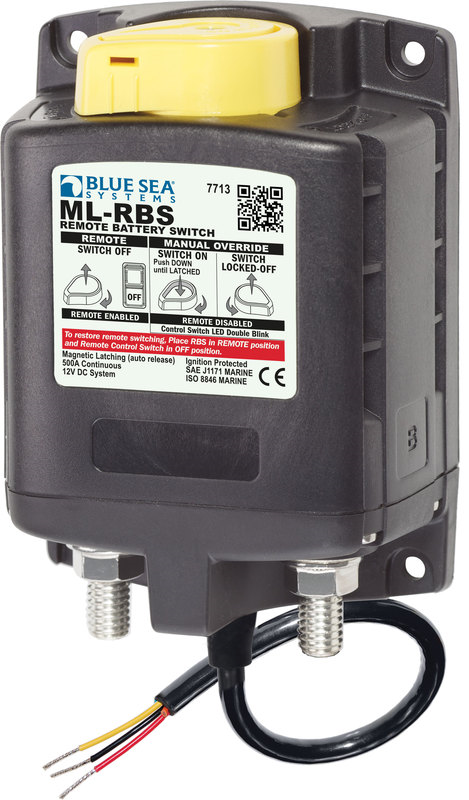

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7∕ 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

ML-Series Remote Control Contura Switch not included - see BSS.2155 if required



SKU BSS.7713
Model # 7713B
UPC/EAN 632085077129
Brand Blue Sea Systems
Shipping Weight 0.9400kg
3 years
