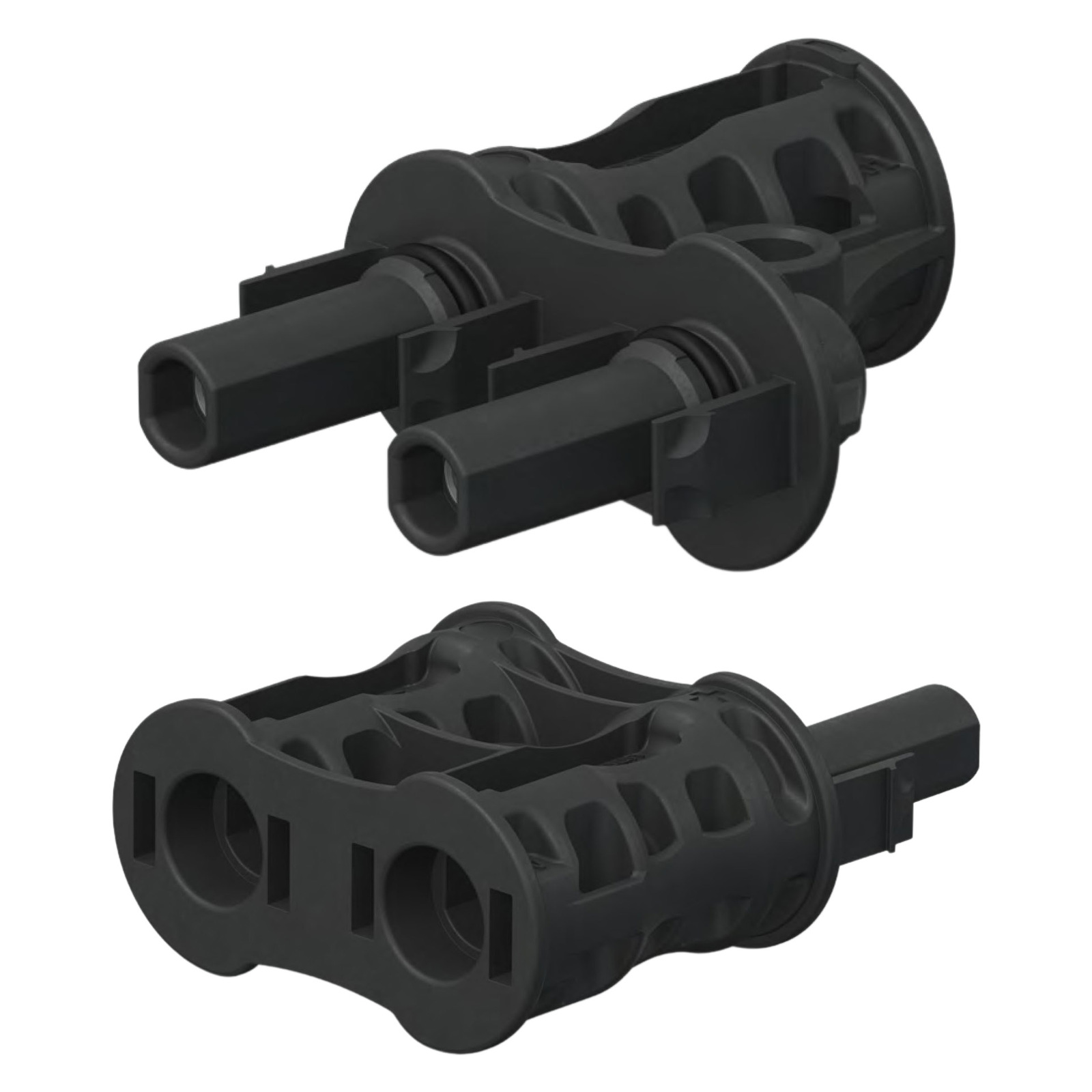

From the original makers of hte MC4, comes the new MC4-Evo 2 branch connectors featuring the world's first dual certified DC 1500 V branch connectors.

Branch plugs and sockets are an economical method of joining 2 strings in parallel. The IP rated connectors make for a safe and reliable connection and save running 2 cables on the long return path from the far end of the PV array, saving time and money.

MC4 -Evo 2 branch connectors Feature:

  • Plug-and-play: no crimping or torquing necessary
  • Versatility and compact dimensions
  • Mating compatibility with original MC4 and MC4-Evo 2 cable connectors
  • DC 1500 V according to IEC 62852 and UL 6703
  • Resistance to salt mist spray
  • Proven MULTILAM Technology with high long-term stability which ensures consistently low performance loss throughout the entire service life of the connector
Spec Details
Rated Voltage DC 1500 V (according to IEC 62852: 2014 + AMD1:2020)
DC 1500 V (according to UL 6703)
Test Voltage 8 kV
Rated Impulse Voltage 16 kV
Rated Current IEC 60 A
Rated Current UL 50 A
Ambient Temperature Range -40 °C to +85 °C
-40 °C to +90 °C
Upper Limiting Temperature 115 °C
Degree of Protection Mated: IP65 / IP68 (1 m, 1 h)
Unmated: IP2X
Pollution Degree 3
Contact Resistance < 0.5 mΩ
Safety Class II
Contact System MULTILAM
Contact Material Copper, tin plated
Insulation Material PA
Locking System Locking type
Flame Class UL94-V0
Salt Mist Spray Test, Degree of severity 6, according to IEC 60068-2-52 Yes
UV Resistance Yes (according to ISO 4892-2/3)
TÜV Certifications, According to IEC 62852:2014+AMD1:2020 R 60149724
UL certified according UL6703  E343181
Compatibility Original MC4
Original MC4-Evo 2
Maximum Altitude for Operation above Sea Level 5000 mAK 60159400
CE Declaration of Conformity Yes
SKU MUC.MC4-B
Model # PV-AZB4 / PV-AZS4
Brand Multi-Contact / Stäubli
Shipping Weight 0.0200kg
Unit Of Measure pr
